Description

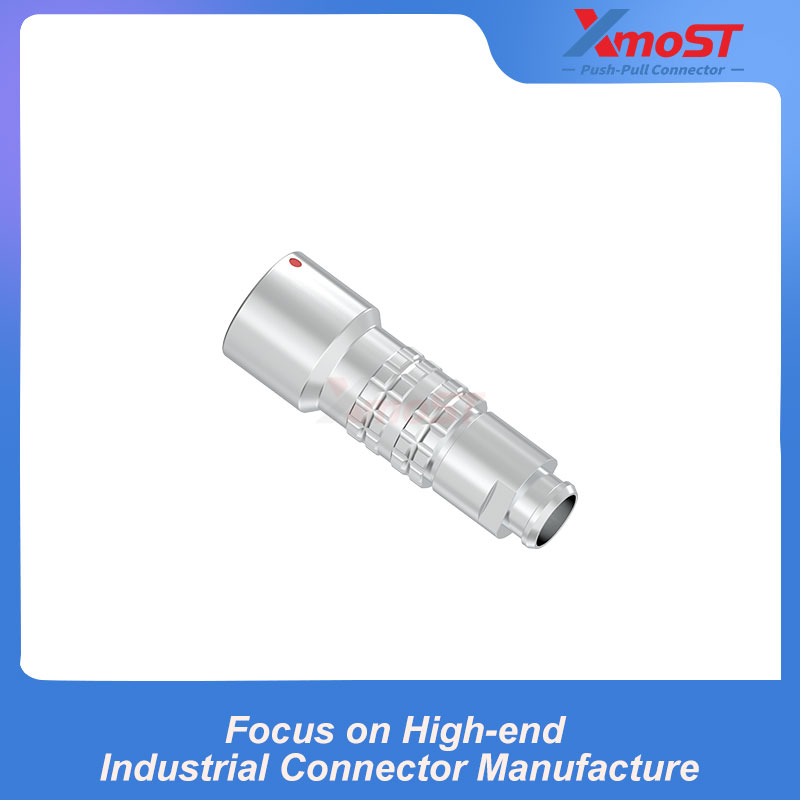

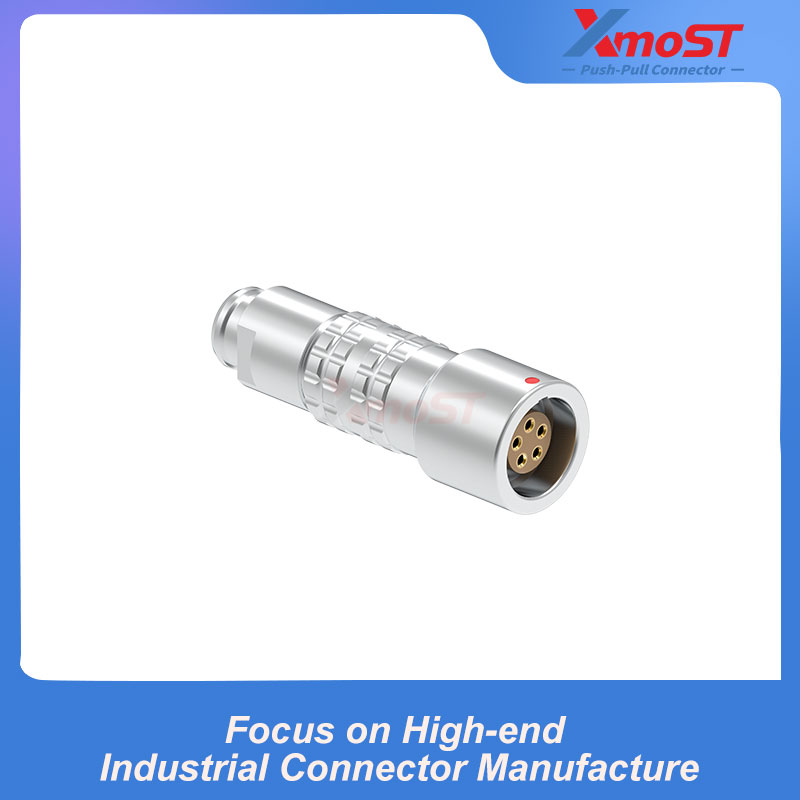

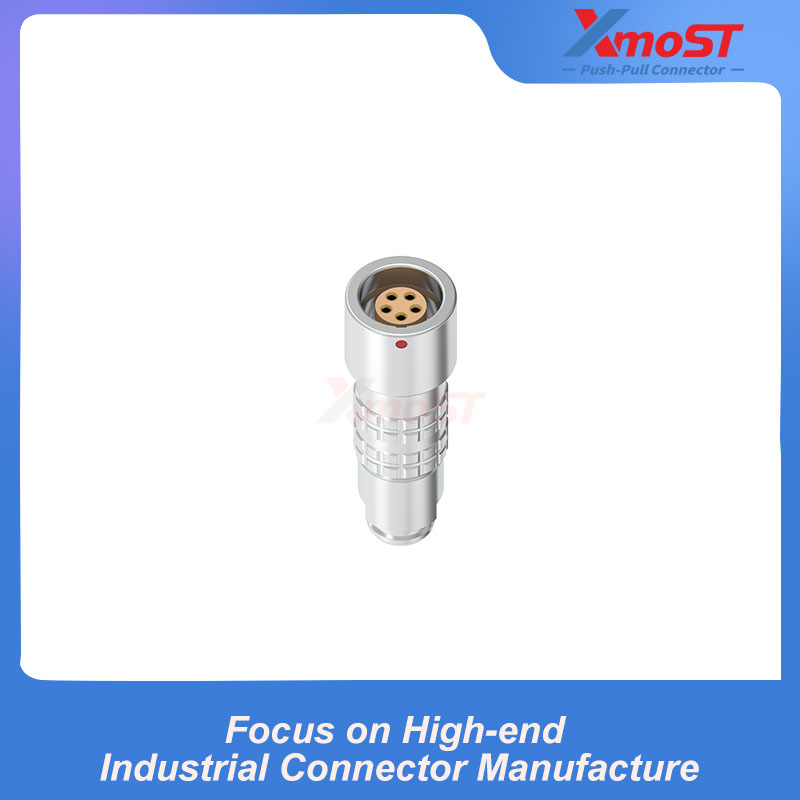

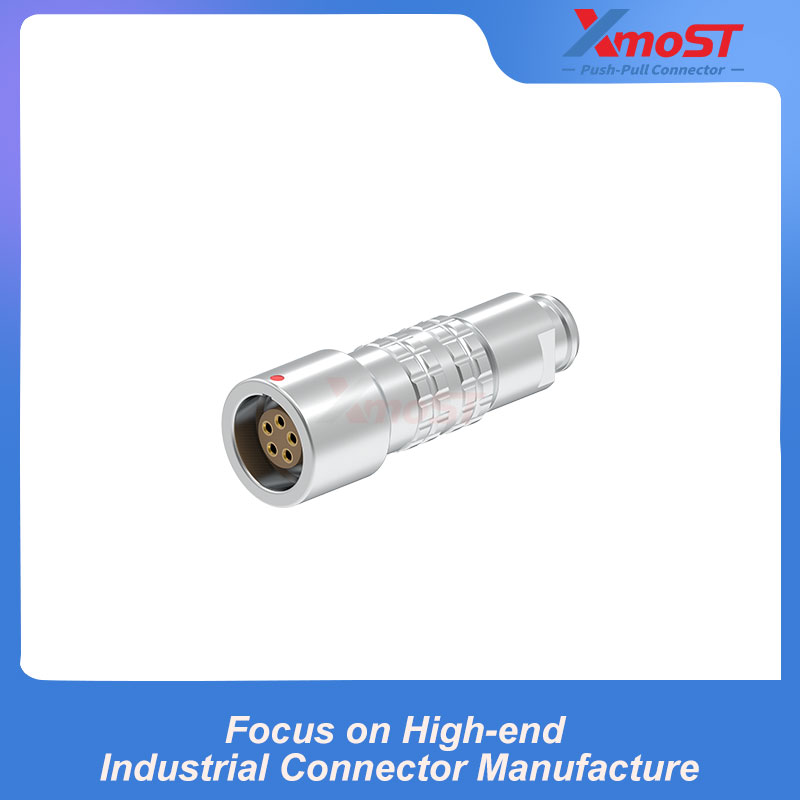

XM-LPHG is a floating female receptacle designed for cable-to-cable connections. Its floating structure provides flexibility during mating and helps maintain reliable alignment between connector components.
Compared with the standard floating receptacle, this version features a backshell with strain relief at the cable end, providing additional protection and support for the connected cable. The cable clamp and backshell help improve cable retention and reduce mechanical stress on the cable and connector assembly.
Connector uses a Push-Pull self-locking mechanism with a standard G alignment key. Multiple keying options are available within the K Series to help prevent cross-mating between similar connector configurations.
As a K Series connector, XM-LPHG combines a rugged metal housing with IP66/IP68 watertight protection, 360° EMC shielding, PEEK insulation, gold-plated copper alloy contacts and FKM sealing. The series supports 2 to 64 contacts, more than 5,000 mating cycles, and an operating temperature range of -55°C to +200°C.
Product Features & Advantages
- Floating receptacle for cable-to-cable connections
- Female connector interface
- Backshell with strain relief
- Additional protection for the cable connection
- Improved cable retention and strain management
- Cable clamp design
- Straight connector configuration
- Standard G alignment key
- Multiple keying options to prevent cross-mating
- Secure Push-Pull self-locking mechanism
- Rugged metal housing
- IP66/IP68 watertight protection
- 360° EMC shielding
- 2 to 64 contact configurations
- High contact packing density for space saving
- More than 5,000 mating cycles
- PEEK insulating material
- Gold-plated copper alloy contacts
- FKM sealing
Dimensions
| Series | A (mm) | L1 (mm) | SW2 |
|---|---|---|---|
| 0K | 13 | 34 | 7 |
| 1K | 15 | 45 | 9 |
| 2K | 19 | 53 | 13 |
| 3K | 23 | 65 | 15 |
All dimensions are in millimetres.
Applications
- Cable-to-cable industrial connections
- Industrial automation equipment
- Industrial control systems
- Test and measurement equipment
- Communication equipment
- Outdoor electronic equipment
- Professional electronic systems
- Applications requiring additional cable protection and strain relief
