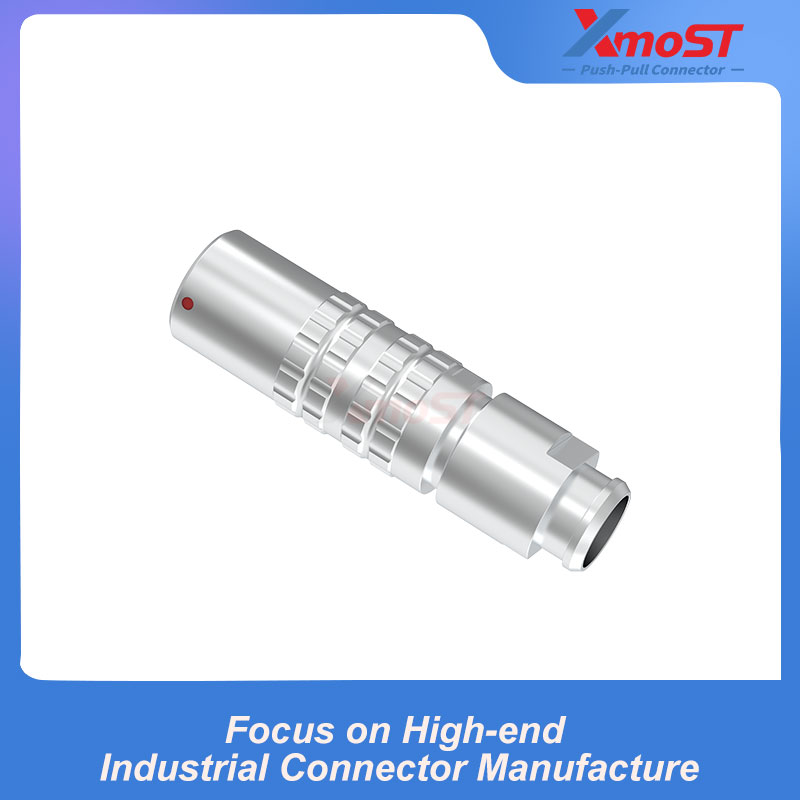

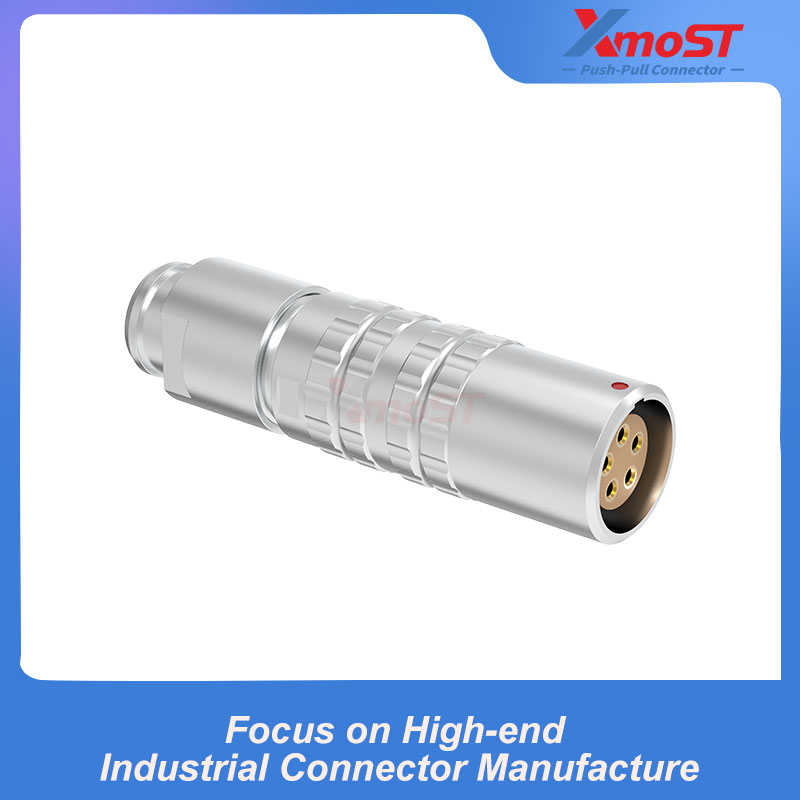

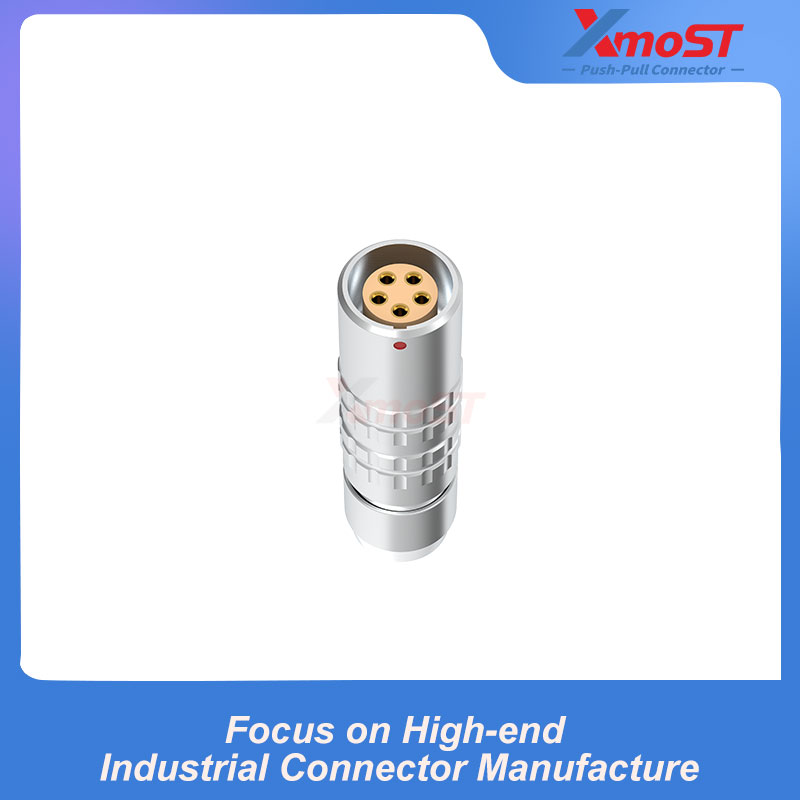

XM-LPHG T Series Floating Receptacle

XM-LPHG is a T Series floating female receptacle with a cable clamp and backshell with strain relief. It is designed for miniature outdoor equipment and compact electrical connection applications where flexible installation and reliable cable protection are required.

Floating receptacle design provides installation flexibility and helps accommodate alignment between the connector and equipment interface. The cable clamp securely holds the cable, while the backshell with strain relief provides additional mechanical protection at the cable exit.

Push-Pull self-latching system enables quick and secure mating. Mechanical keying helps prevent cross-mating, while high contact density saves installation space. 360° shielding provides full EMC shielding for reliable signal and power connections.

XM-LPHG is compatible with existing B sockets and uses the same mounting hole as B sockets. The T Series supports 2 to 32 contacts, cable diameters from 1.0 to 10.5 mm, and solder, crimp, or print contacts.

Product Features & Advantages

• IP68 mated
• Push-Pull self-latching system
• Mechanical key (FGG) with multiple keys to avoid cross-mating
• High packing density for space savings
• 360° shielding for full EMC shielding
• Compatible with existing B sockets
• Same mounting hole as B sockets
• Black-chrome plated brass and plastic outer shell available
• Multipole types 2 to 32 contacts
• For cables 1.0 up to 10.5 mm
• Solder, crimp or print contacts
• Inner sleeve and multiple sealing rings for enhanced ingress protection
• Specifically designed for miniature outdoor applications and suitable for connecting precision equipment in confined spaces

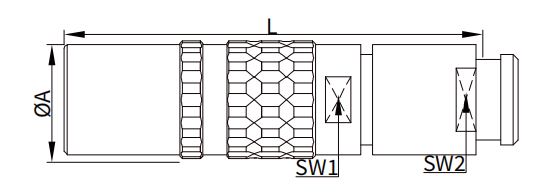

Dimensions
