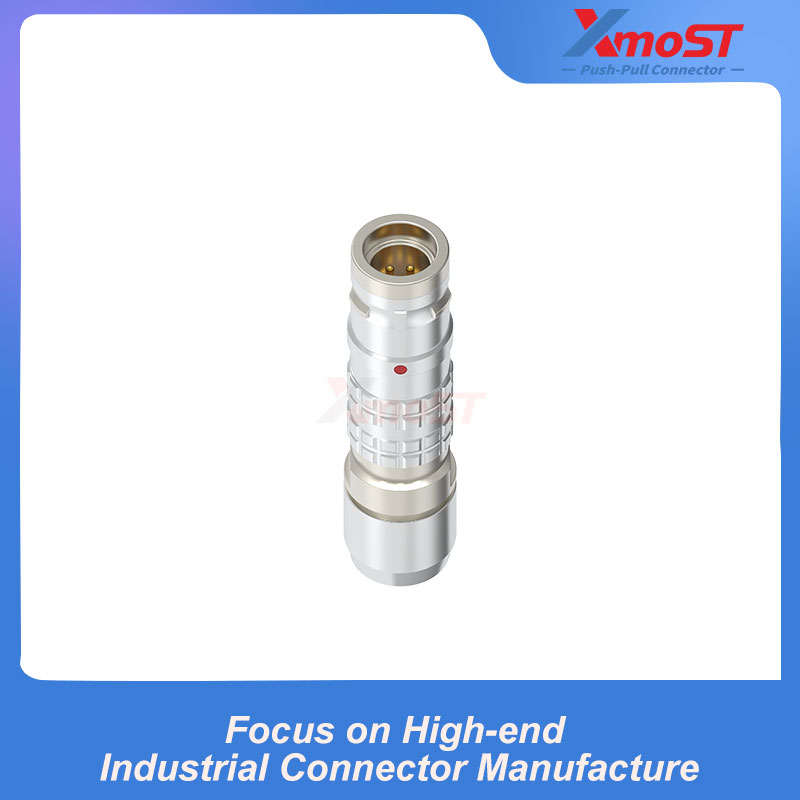

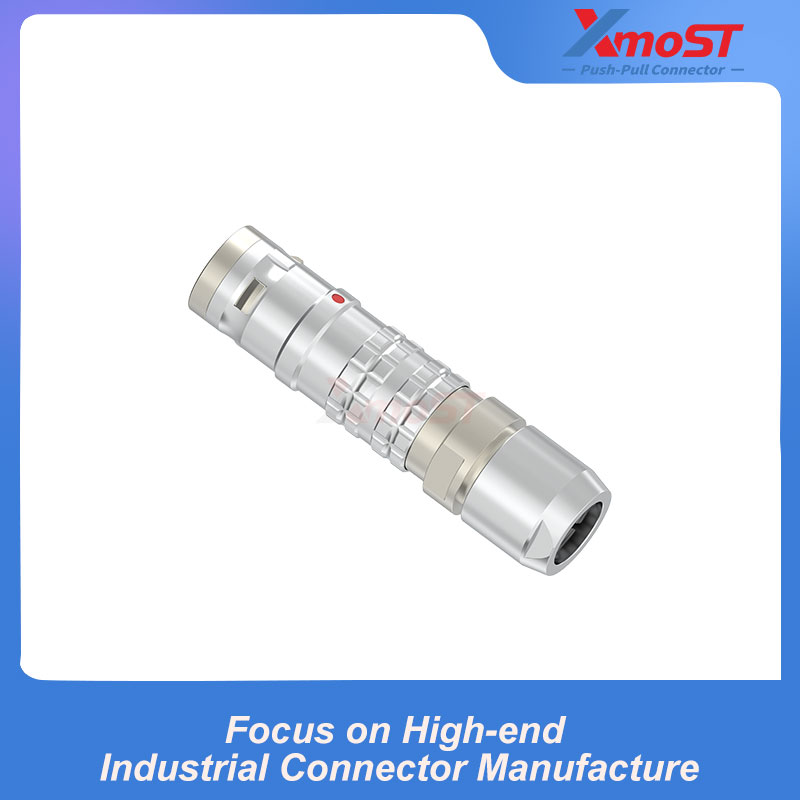

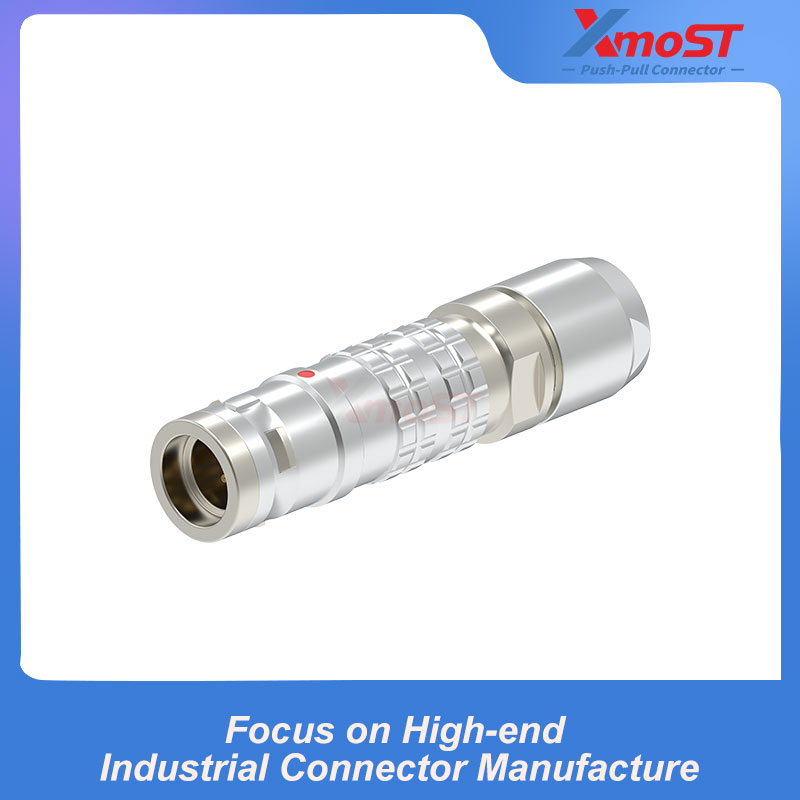

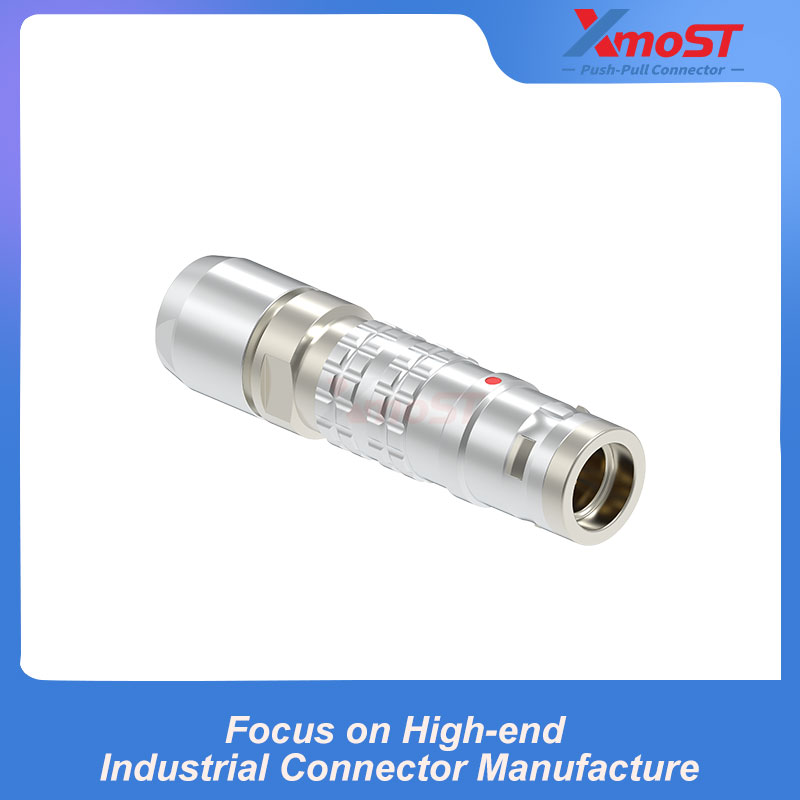

XM-LFGG 2K waterproof straight plug is a male Push-Pull connector designed for reliable cable connection in demanding industrial environments. It features a straight connector body, G alignment key, self-locking mechanism, and an oversized cable clamp with backshell and strain relief. The robust construction provides secure cable retention and reliable protection for industrial equipment and outdoor electronic applications.
- 2K size — Compact connector size for space-efficient installation.
- Male connector — Designed for secure cable-side connection.
- Straight design — Suitable for conventional cable routing.
- Push-Pull self-locking — Fast mating and secure locking without additional tools.
- G alignment key — Provides correct connector orientation during mating.
- Oversized cable clamp — Provides enhanced cable retention.
- Backshell with strain relief — Helps protect the cable termination from mechanical stress.

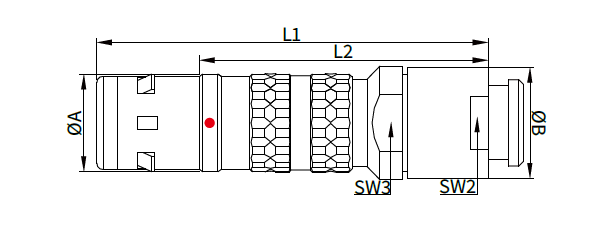

Dimensions (mm)
| Series | A | L1 | L2 | B | SW2 | SW3 |
|---|---|---|---|---|---|---|
| 0K | 11 | 46 | 35 | 11 | 9 | 10 |
| 1K | 13 | 60 | 46 | 14.5 | 13 | 13 |
| 2K | 16 | 68 | 52 | 17 | 15 | 16 |
| 3K | 18.9 | 85 | 65 | 21.5 | 19 | 19 |
Applications ：
- Industrial control equipment
- Industrial automation systems
- Outdoor electronic equipment
- Test and measurement equipment
