Description

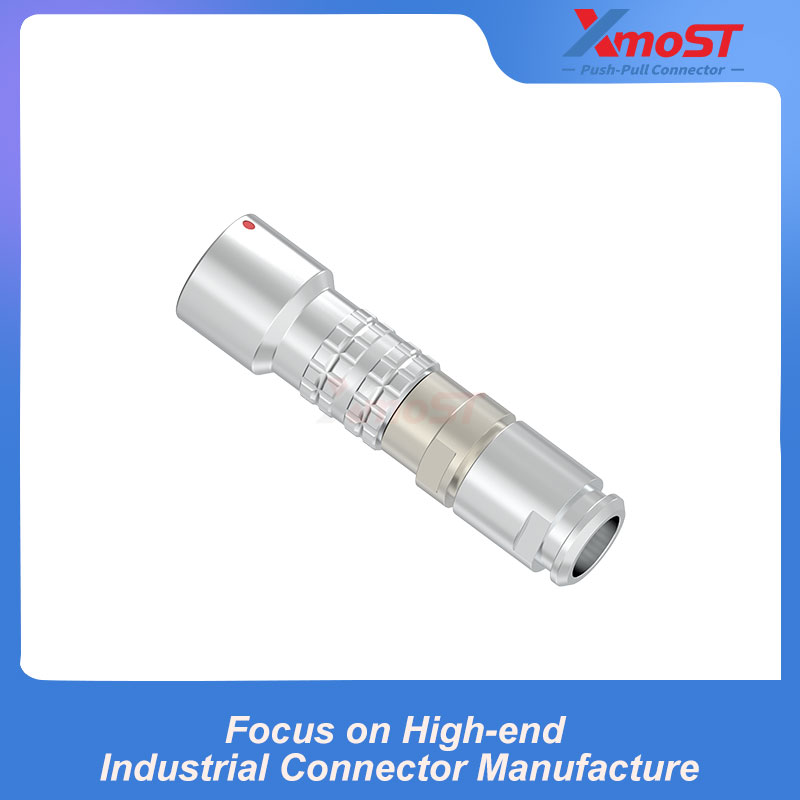

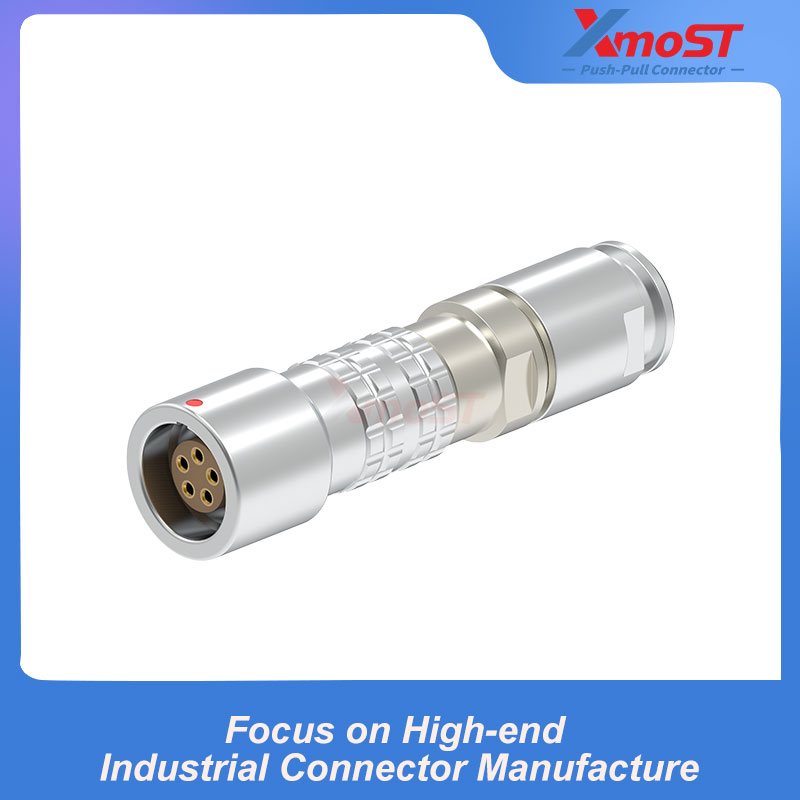

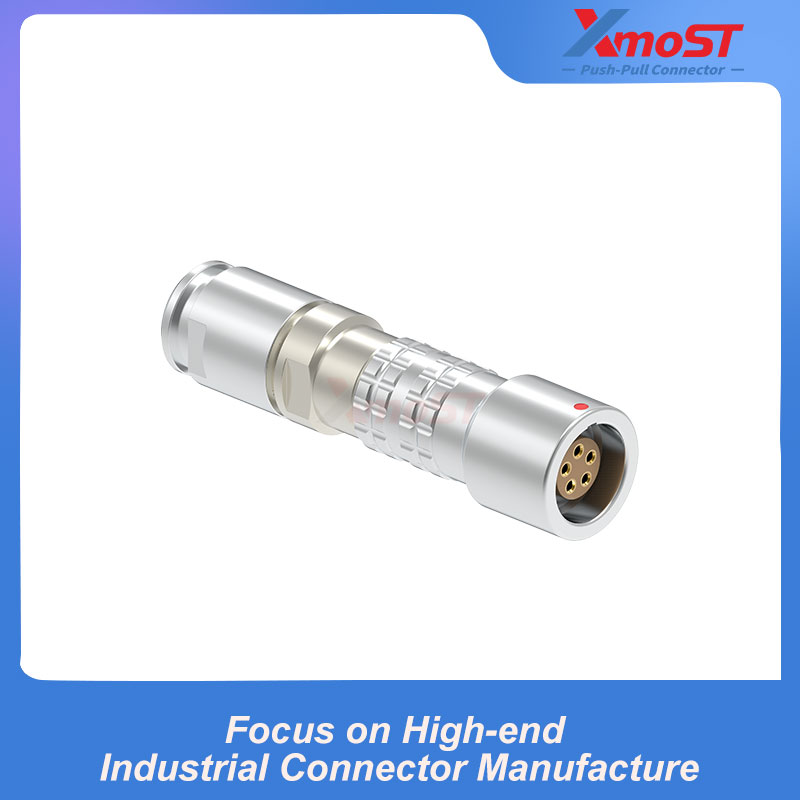

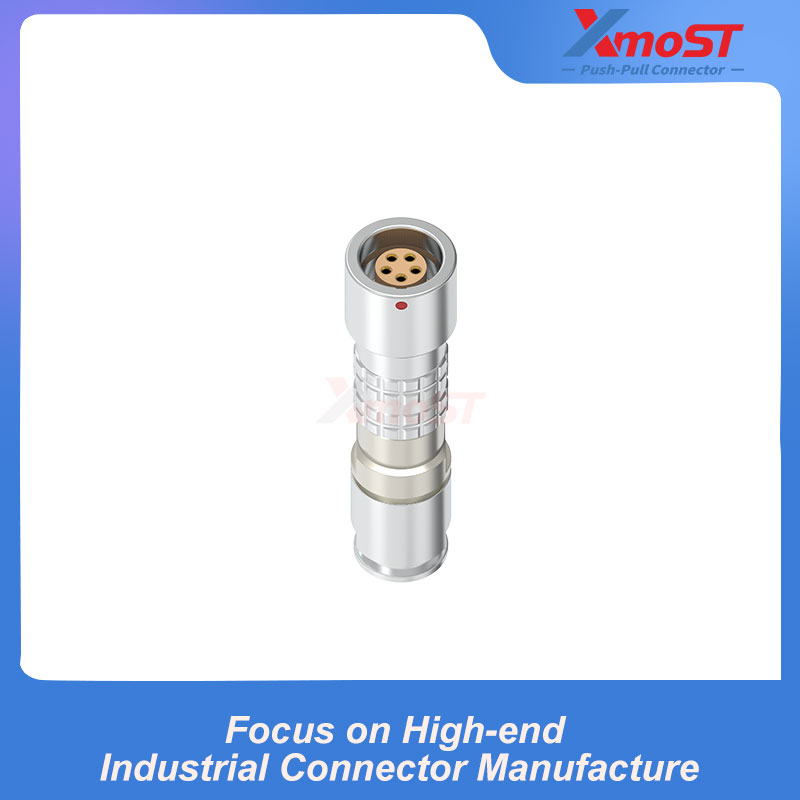

XM-LPHG is a straight floating receptacle designed for cable-to-cable connections. It features a larger cable clamp structure to accommodate applications requiring increased cable retention space.
Connector uses a Push-Pull self-locking mechanism and a standard G alignment key for secure and properly oriented mating. The floating design provides greater flexibility during cable-to-cable assembly.
Available in 0K, 1K, 2K and 3K sizes, the XM-LPHG is designed for industrial connector applications where reliable mechanical connection, compact installation and cable management are required.
As part of the K Series, it benefits from the series’ rugged metal housing, IP66/IP68 protection, 360° EMC shielding, high packing density and support for 2–64 contact configurations.
Product Features & Advantages
- Oversized cable clamp for larger cable retention requirements
- Floating design for flexible cable-to-cable assembly
- Secure Push-Pull self-locking system
- G alignment key for reliable connector orientation
- Multiple keying options to prevent cross-mating
- Rugged metal housing for demanding industrial environments
- IP66/IP68 protection with 360° EMC shielding

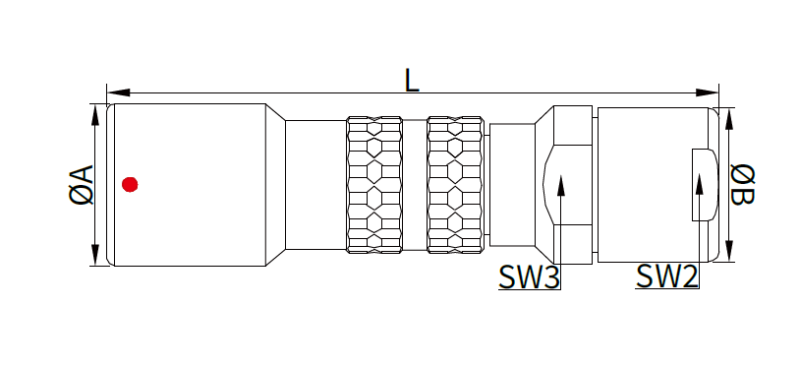

Dimensions
| Series | A (mm) | B (mm) | L (mm) | SW2 | SW3 |
|---|---|---|---|---|---|
| 0K | 15 | 14.5 | 63 | 13 | 13 |
| 1K | 19 | 17 | 70 | 15 | 15 |
| 2K | 23 | 23 | 89 | 20 | 20 |
| 3K | 29 | 36 | 124 | 32 | 30 |
All dimensions are in millimetres.
Applications
- Industrial automation
- Industrial control equipment
- Cable-to-cable equipment connections
- Test and measurement equipment
- Communication equipment
- Outdoor electronic equipment
- Applications requiring larger cable retention capacity
