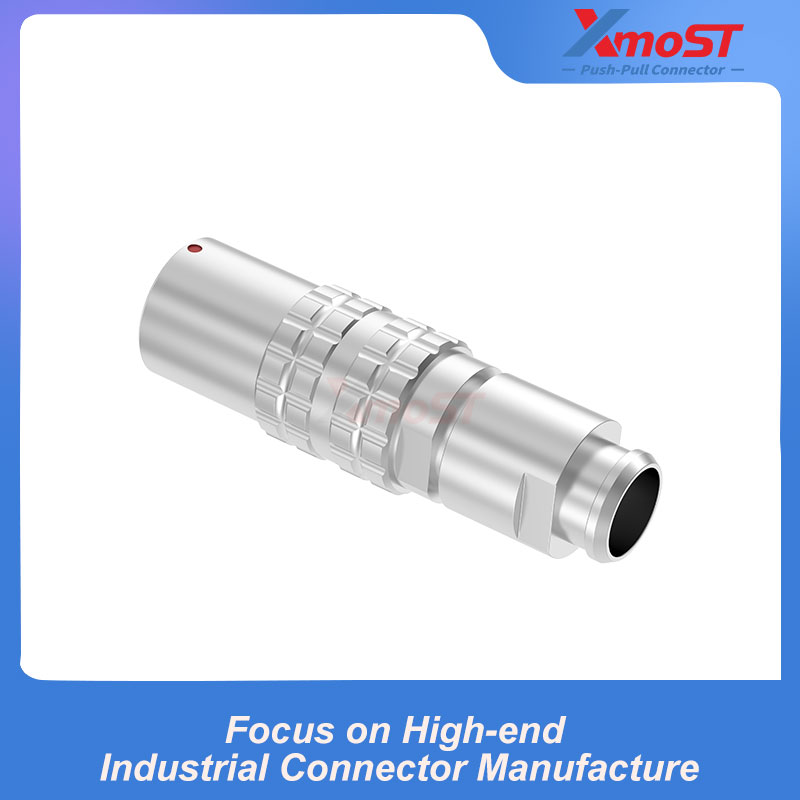

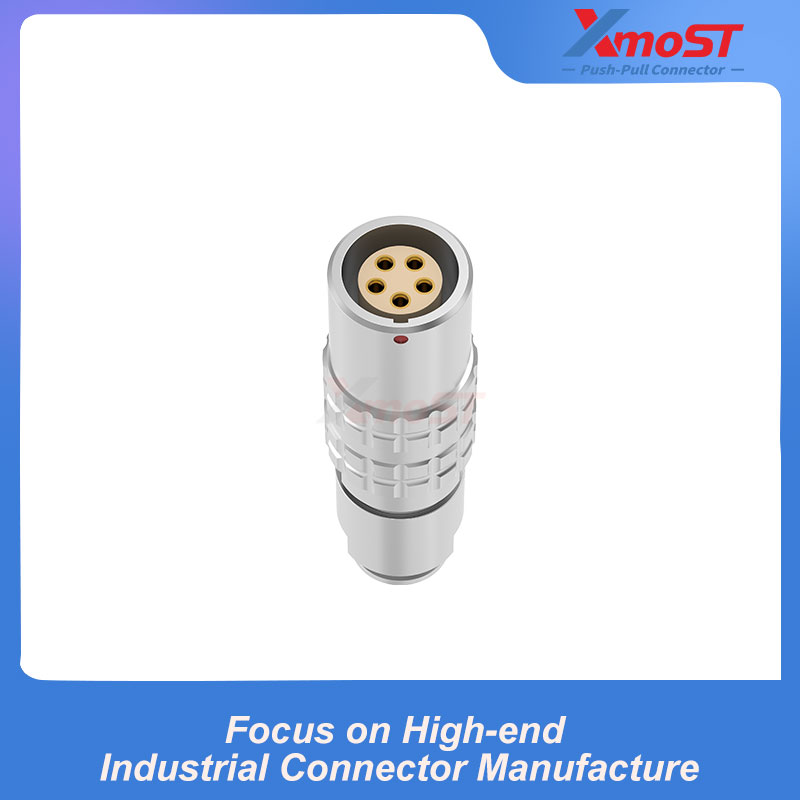

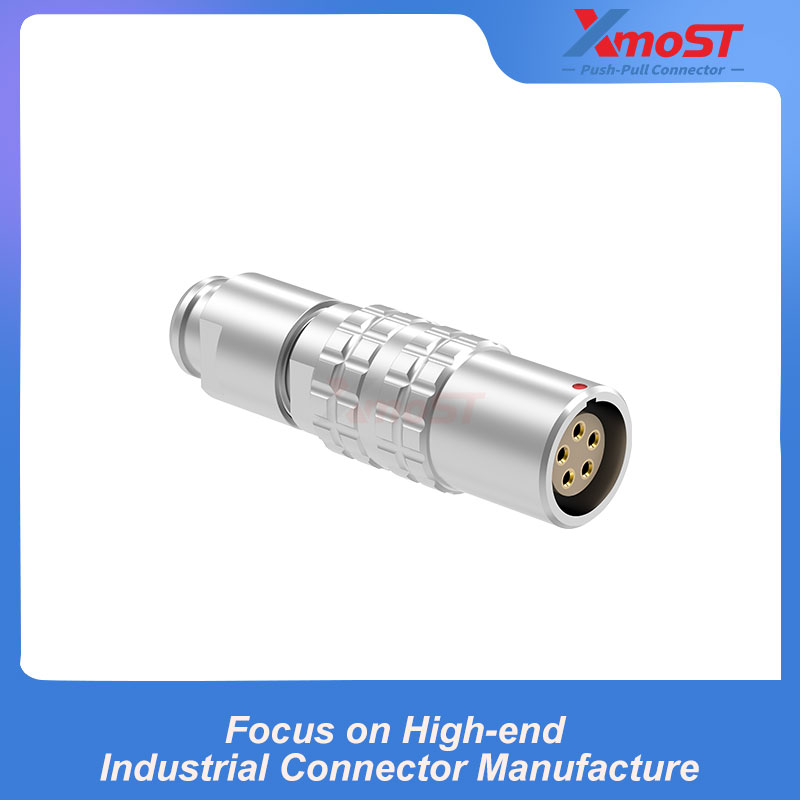

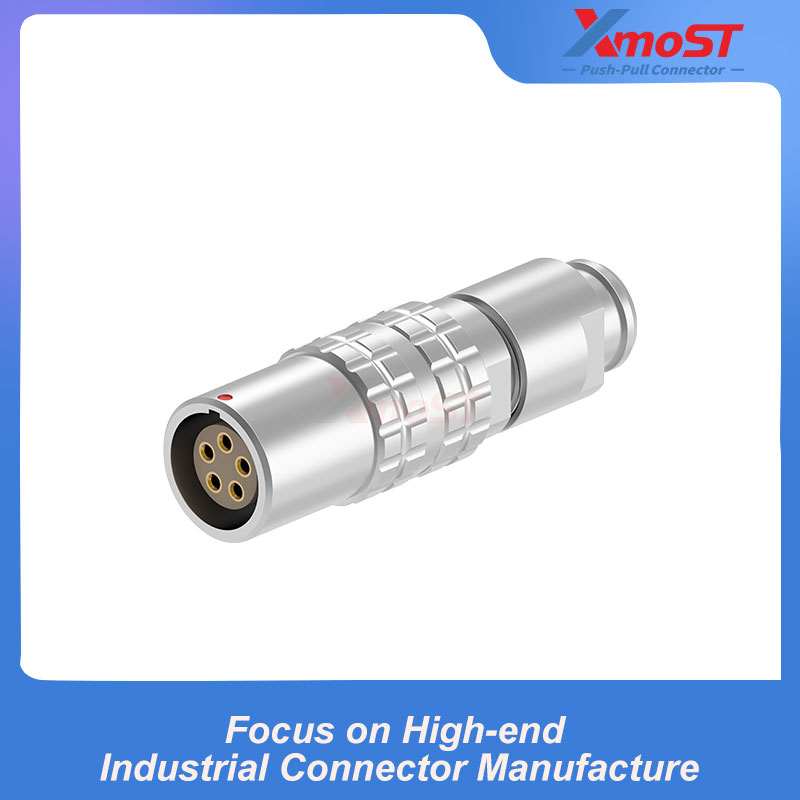

XM-LPHG is a cable-mounted floating female receptacle developed for inline cable-to-cable connections. Unlike a fixed panel receptacle, it is installed directly on a cable, allowing two cable assemblies to be securely connected without panel mounting.
The integrated cable clamp provides secure cable retention, while the strain-relief backshell helps reduce mechanical stress at the cable entry. Its Push-Pull self-latching mating system enables fast, secure and tool-free connection with a compatible B Series male plug.
A standard G key ensures correct connector alignment. Optional A–M key configurations are available to help prevent cross-mating between similar connectors used in the same equipment or cable system.
Product Features
- Cable-mounted floating female receptacle
- Designed for cable-to-cable connections
- Integrated cable clamp for secure cable retention
- Backshell with strain relief for cable-entry protection
- Secure Push-Pull self-latching mating system
- Fast, tool-free connection and disconnection
- Standard G key for correct connector alignment
- Optional A–M key configurations
- Available in shell sizes from 00B to 4B
- Metal shell supporting 360° EMC shielding when correctly assembled and mated
Dimensions
All dimensions are in millimetres.
| Shell Size | ØA | L1 | SW1 | SW2 |
| 00B | 6.8 | 34 | 5.5 | 6 |
| 0B | 9.6 | 35 | 8 | 8 |
| 1B | 11.8 | 39.5 | 10 | 9 |
| 2B | 16.5 | 47 | 13 | 13 |
| 3B | 18.8 | 54.5 | 15 | 15 |
| 4B | 26.0 | 69 | 21 | 20 |
Typical Applications
- Cable-to-cable extension assemblies
- Industrial sensor and actuator cables
- Test and measurement equipment
- Medical and laboratory equipment
- Automation and robotic systems
- Communication equipment
- Portable industrial devices
- Inline signal transmission systems
Final contact configuration, keying option, cable diameter, termination method and dimensional requirements should be confirmed according to the selected part number before ordering.
