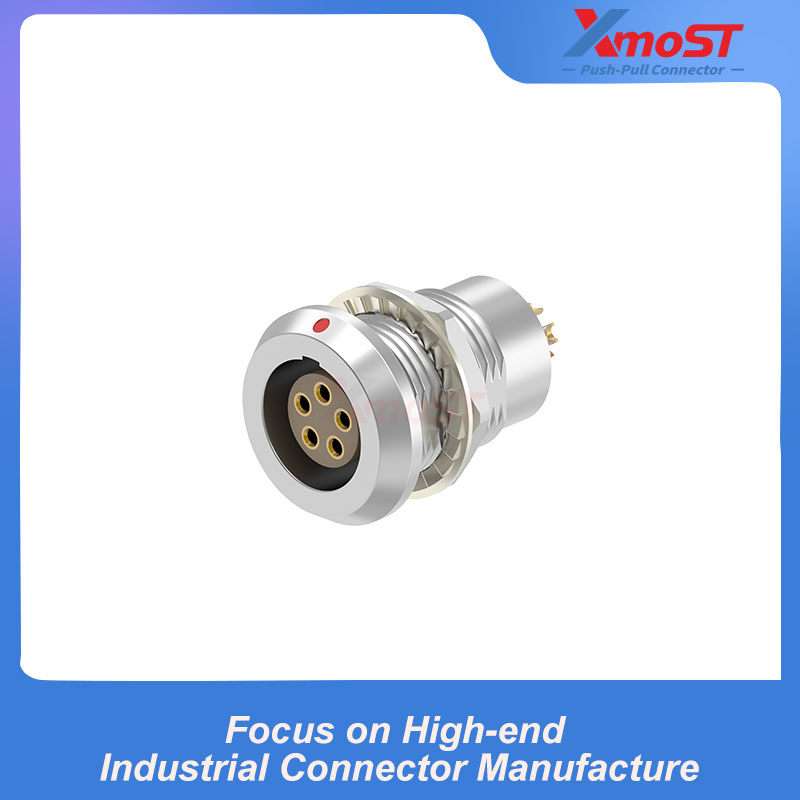

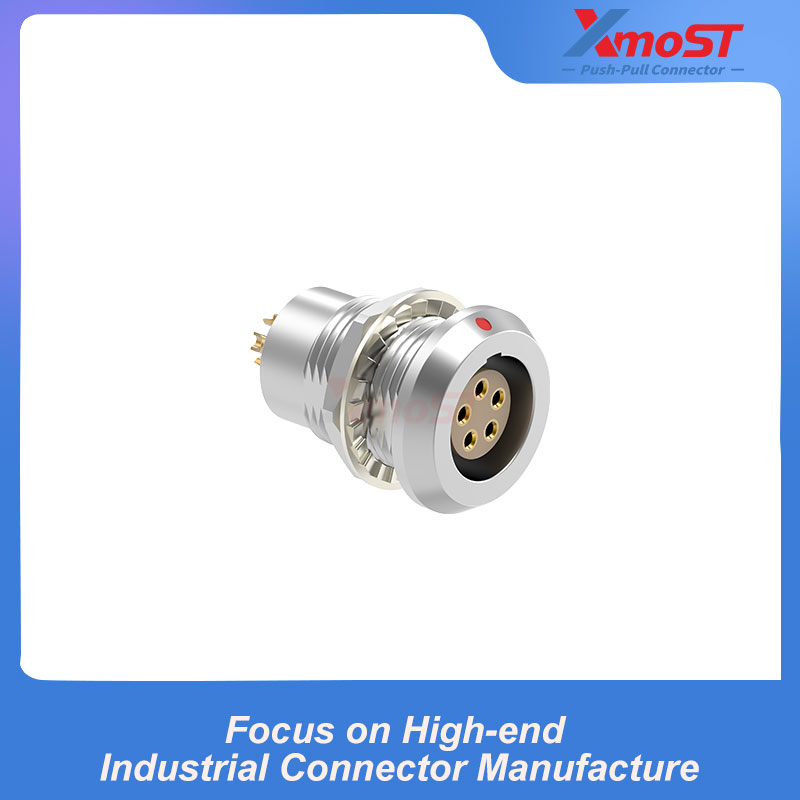

XM-LHGG is a B Series fixed female receptacle designed for secure installation through an equipment panel. Its threaded mounting body and retaining nut provide stable mechanical retention, while the alignment pin helps maintain the correct mounting orientation and prevents connector rotation.

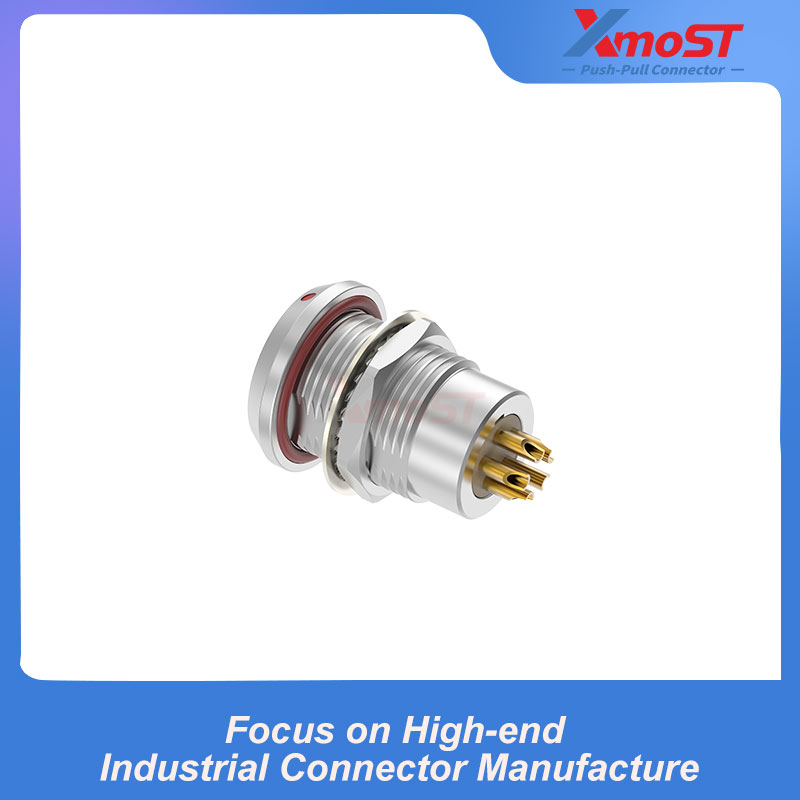

This model is available with a watertight or vacuum-sealed construction, making it suitable for equipment requiring a sealed connector interface or controlled internal environment.

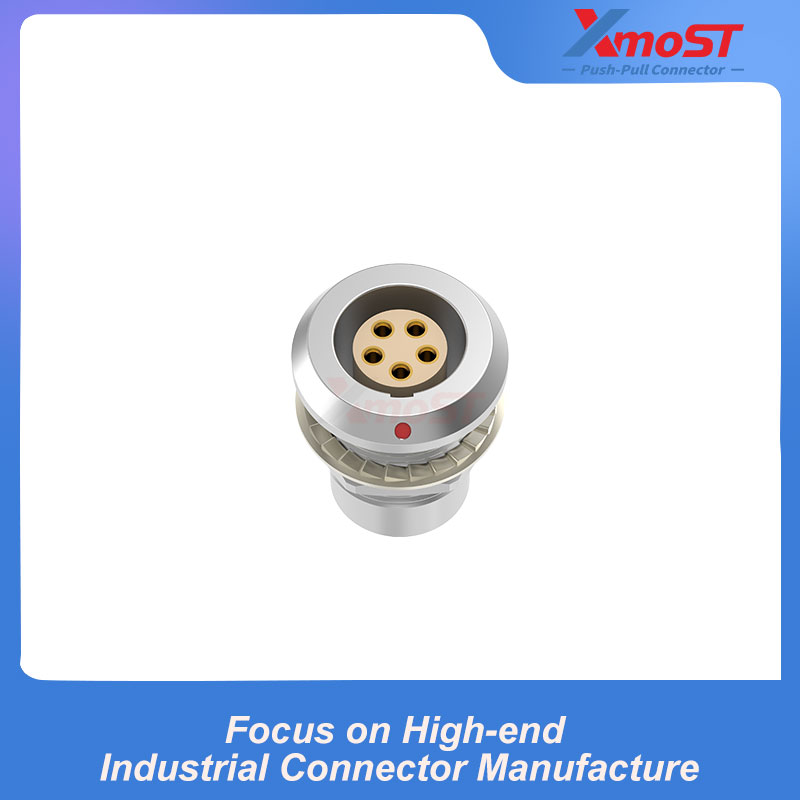

The straight female mating interface is compatible with corresponding B Series Push-Pull male plugs, enabling fast, secure and tool-free connection. Standard G keying ensures correct connector alignment, while optional A–M key configurations help prevent cross-mating between similar connectors.
Product Features
- Fixed female receptacle for panel installation
- Secure nut-mounted retention
- Alignment pin for accurate positioning and anti-rotation
- Watertight or vacuum-sealed construction
- Straight female mating interface
- Compatible with the B Series Push-Pull self-latching system
- Fast, secure and tool-free mating
- Standard G key for correct connector alignment
- Optional A–M key configurations
- Available in shell sizes from 00B to 4B
- Suitable for sealed industrial and electronic equipment

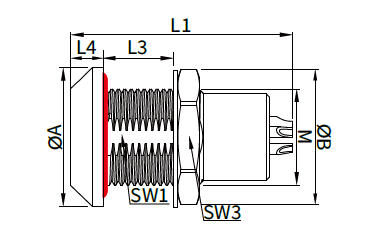

Dimensions
All dimensions are in millimetres.
| Shell Size | A | B | Mounting Thread M | L1 | L3 | L4 | SW1 | SW3 |
|---|---|---|---|---|---|---|---|---|
| 00B | 11 | 10 | M7 × 0.5 | 13.7 | 6.0 | 1.5 | 6.3 | 9 |
| 0B | 13 | 12.7 | M9 × 0.6 | 16.6 | 5.5 | 3 | 8.2 | 11 |
| 1B | 18 | 15.8 | M12 × 1.0 | 18.7 | 6.0 | 4.5 | 10.5 | 14 |
| 2B | 20 | 19.5 | M15 × 1.0 | 18.0 | 8.0 | 4 | 13.5 | 17 |
| 3B | 25 | 25.0 | M18 × 1.0 | 22.5 | 10 | 4 | 16.5 | 22 |
| 4B | 34 | 34.0 | M25 × 1.0 | 22.5 | 11 | 4 | 23.5 | 30 |
Recommended Panel Cutout
| Shell Size | Flat Width SW | Cutout Diameter |
|---|---|---|
| 00B | 6.4 mm | Ø7.1 mm |
| 0B | 8.3 mm | Ø9.1 mm |
| 1B | 10.6 mm | Ø12.1 mm |
| 2B | 13.6 mm | Ø15.1 mm |
| 3B | 16.6 mm | Ø18.1 mm |
| 4B | 16.6 mm | Ø18.1 mm |
Typical Applications
- Sealed industrial control panels
- Test and measurement instruments
- Medical and laboratory equipment
- Vacuum equipment and chambers
- Automation and robotic systems
- Communication equipment
- Environmental monitoring instruments
- Enclosed electronic systems
Final contact configuration, keying option, sealing specification, panel thickness and dimensional requirements should be confirmed according to the selected part number before ordering.
