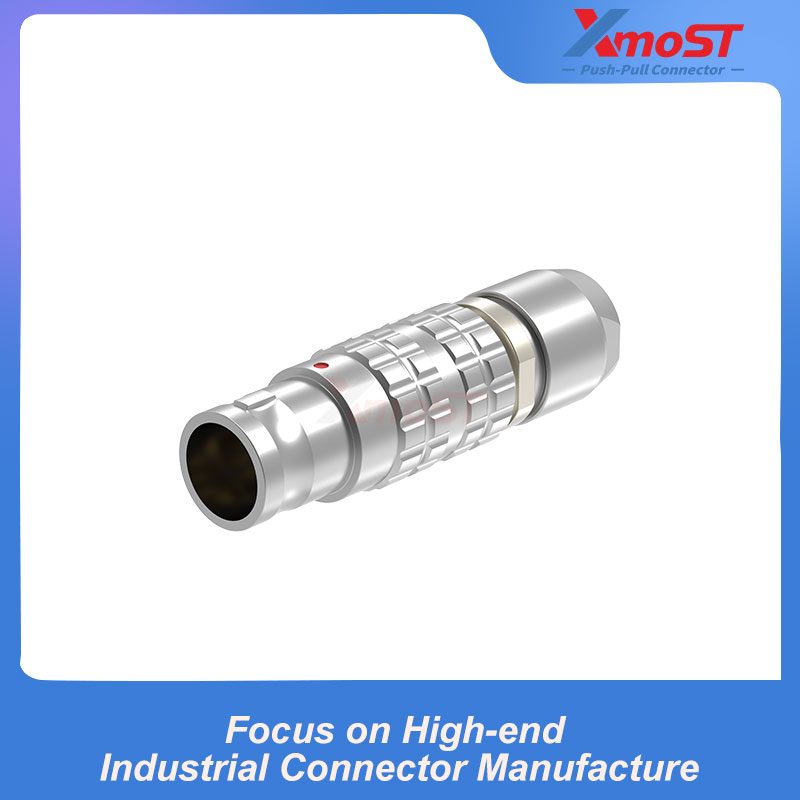

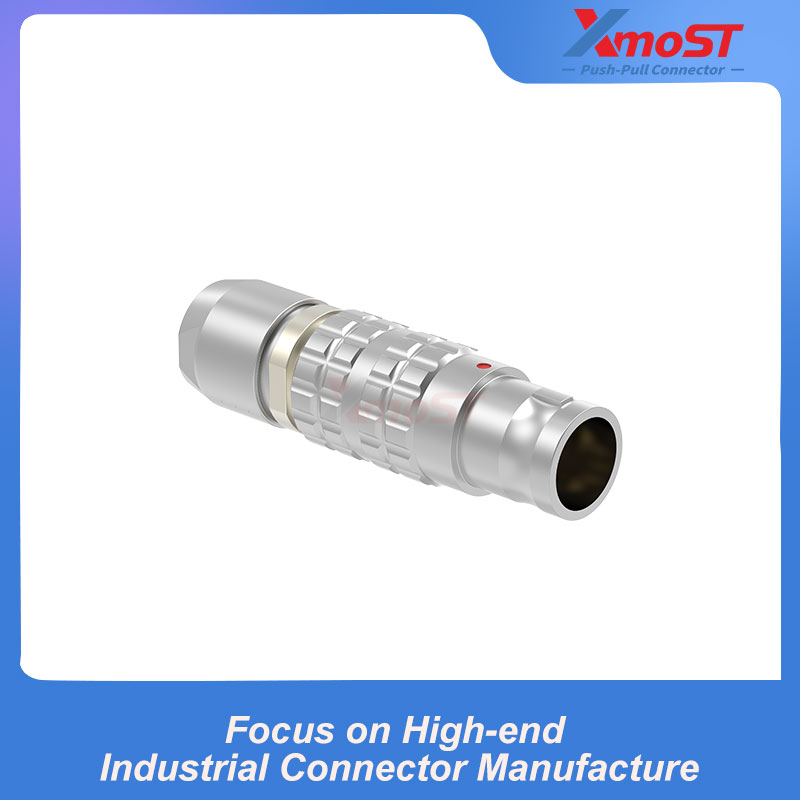

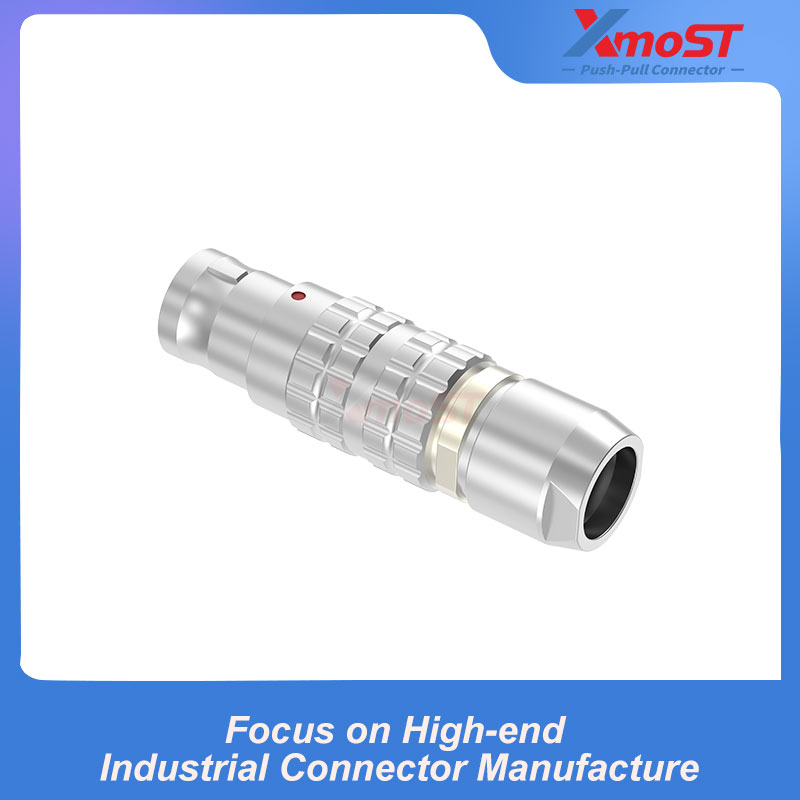

XM-LFGG short version is a compact straight cable-mounted male plug from the XMOST B Series. It is designed for equipment requiring a reduced connector length and limited cable-installation space.

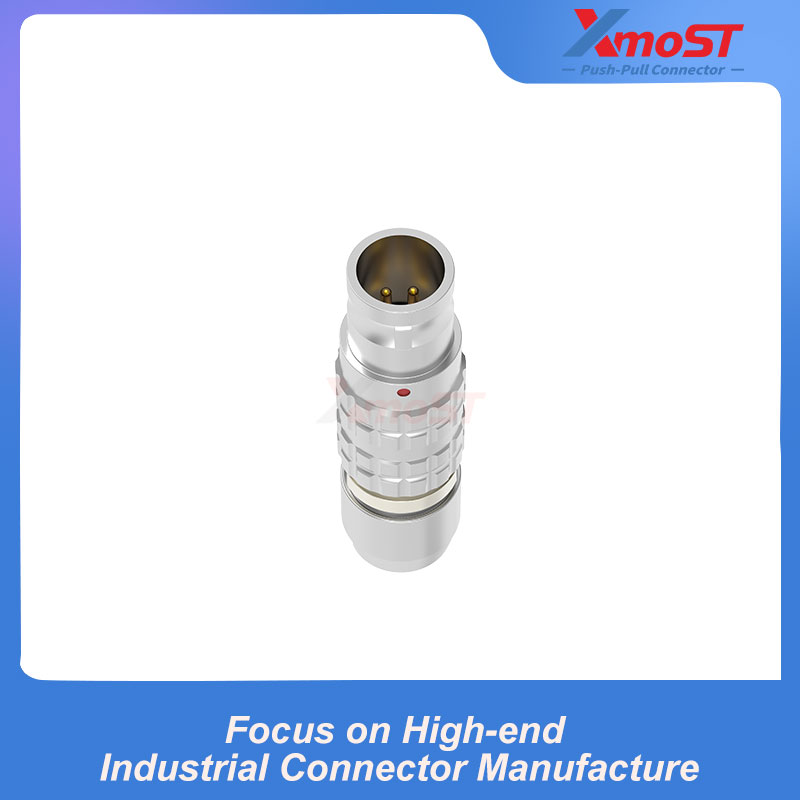

The Push-Pull self-latching mechanism enables fast, tool-free mating and unmating while maintaining secure mechanical retention during operation. The integrated cable clamp provides reliable cable holding and helps support the cable at the connector entry.
The standard G key ensures accurate connector alignment and helps prevent incorrect mating. This short version is available in the 0B shell size, with an overall L1 dimension of 32 mm.
Product Features
- Short-body design for space-constrained installations
- Compact 0B shell configuration
- Straight cable-mounted male plug
- Secure Push-Pull self-latching mechanism
- Fast, tool-free mating and unmating
- Integrated cable clamp
- Standard G key for accurate alignment
- 360° screening for effective EMC shielding
- High-density contact configurations within the B Series
- Multiple contact and termination options depending on configuration

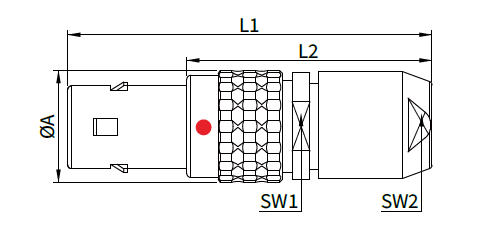

Dimensions
| Shell Size | A | L1 | L2 | SW1 | SW2 |
| 0B | 9.5 | 32 | 22 | 8 | 7 |
All dimensions are in millimetres. Dimensions should be confirmed against the approved product drawing before final equipment design.
Applications
The XM-LFGG short straight plug is suitable for:
- Compact industrial equipment
- Portable test and measurement instruments
- Medical devices
- Communication equipment
- Small electronic enclosures
- Robotics and automation systems
- Applications with limited installation depth
- Equipment requiring a reduced connector length
Contact arrangements, termination types, cable diameters and materials may vary according to the selected configuration.
