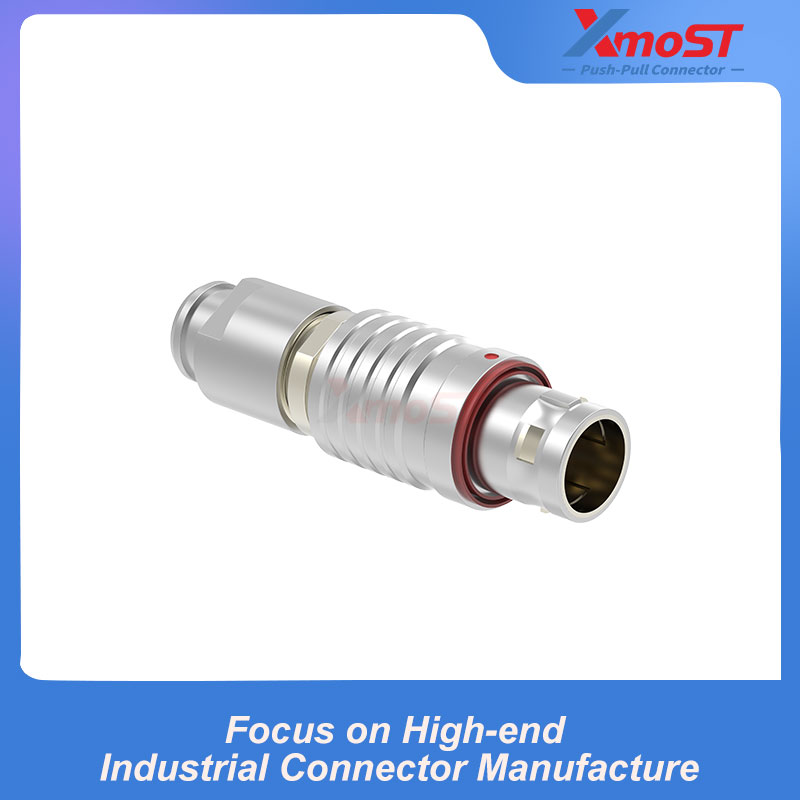

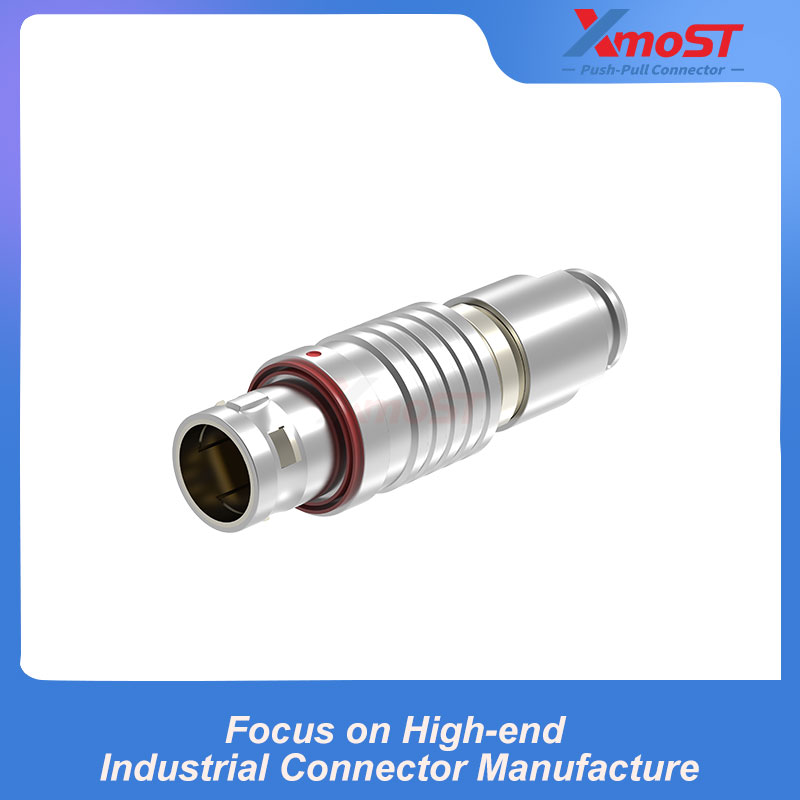

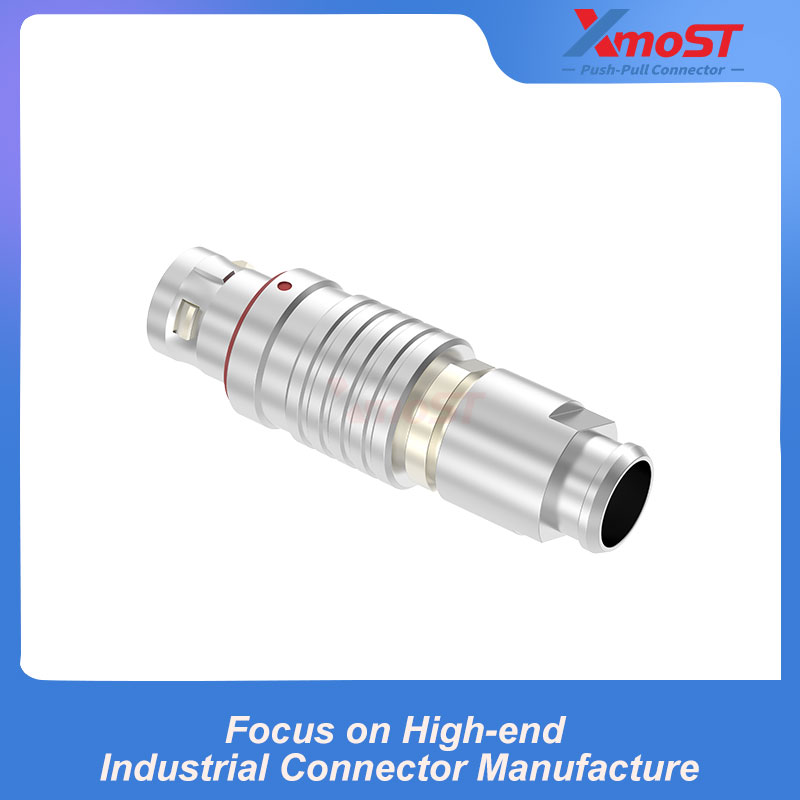

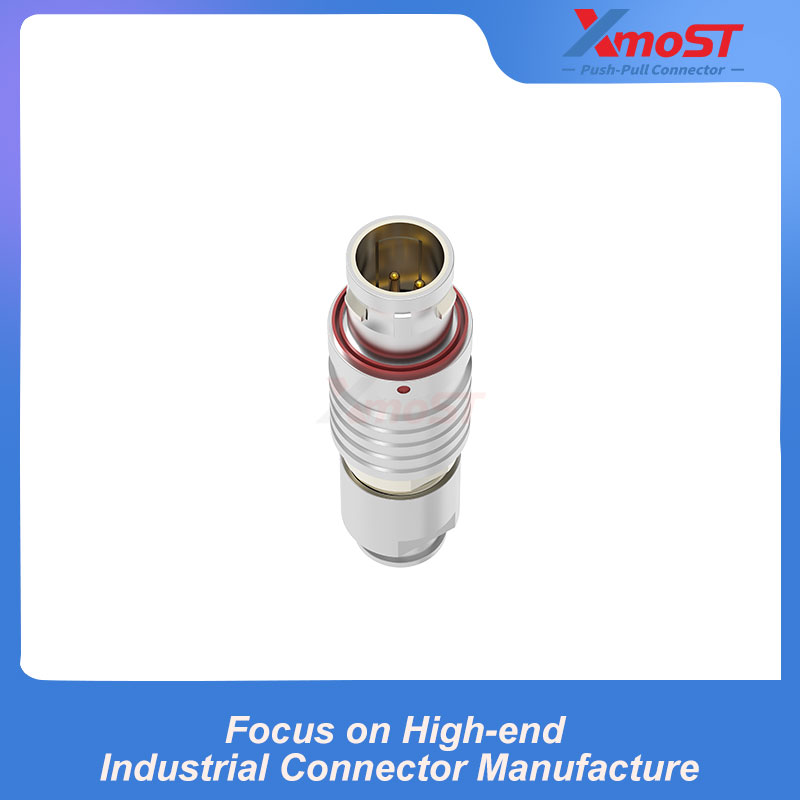

XM-LFEG is a front-sealed straight cable-mounted male plug from the XMOST B Series. It combines a secure Push-Pull self-latching mechanism with keyed alignment, a cable clamp and a strain-relief backshell.
The front sealing structure improves environmental protection at the mating interface when the connector is correctly assembled and mated. The Push-Pull mechanism enables fast, tool-free connection and disconnection while maintaining reliable mechanical retention during operation.
The standard G key ensures accurate connector alignment. Alternative A–M and R keying options are available to help prevent cross-mating when several similar connectors are installed on the same equipment.
Product Features
- Front-sealed mating interface
- Secure Push-Pull self-latching mechanism
- Fast, tool-free mating and unmating
- Straight cable-mounted male plug
- Cable clamp with strain-relief backshell
- Standard G key for accurate alignment
- Alternative A–M and R keying options
- Available in shell sizes from 0B to 3B
- 360° screening for effective EMC shielding
- Multiple contact and termination options across the B Series

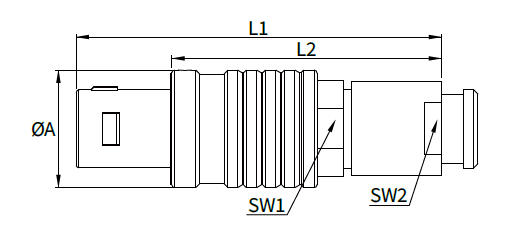

Dimensions
| Shell Size | A | L1 | L2 | SW1 | SW2 |
| 0B | 11 | 38 | 28 | 8 | 7 |
| 1B | 13.5 | 46 | 35 | 10 | 9 |
| 2B | 16.5 | 48 | 36 | 13 | 13 |
| 3B | 19 | 56 | 41 | 16 | 15 |
All dimensions are in millimetres.
Applications
XM-LFEG front-sealed straight plug is suitable for:
- Industrial automation equipment
- Test and measurement instruments
- Medical equipment
- Robotics and motion-control systems
- Communication equipment
- Broadcast and audiovisual systems
- Equipment requiring improved sealing when mated
- Cable assemblies requiring additional strain protection
