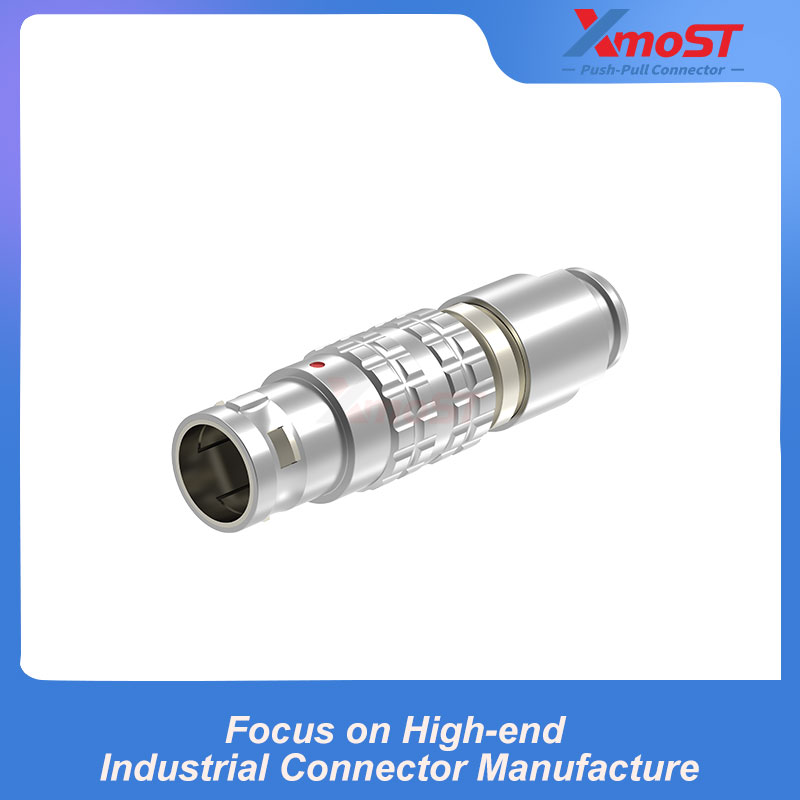

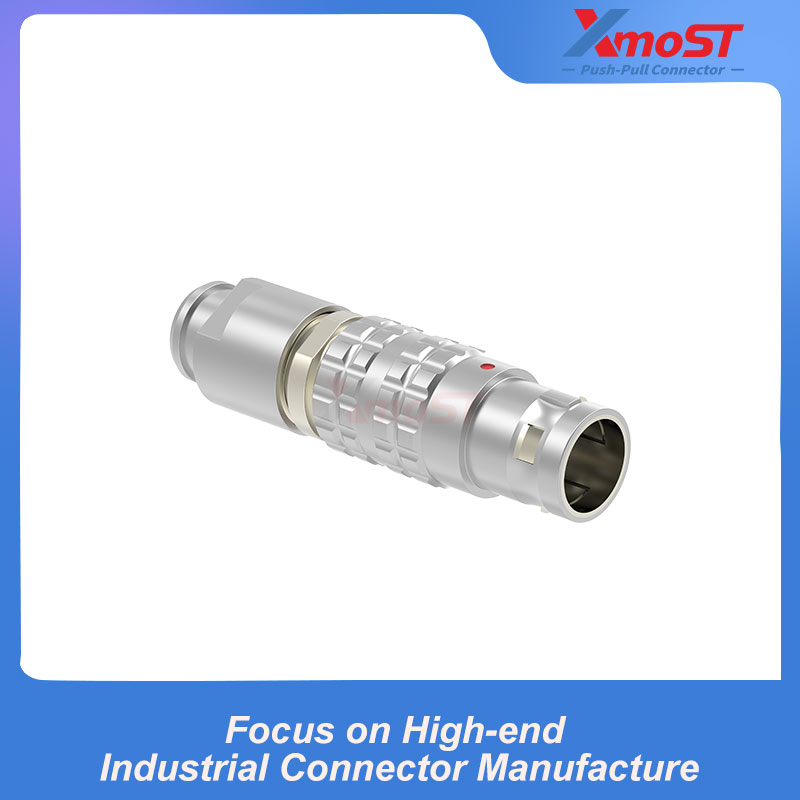

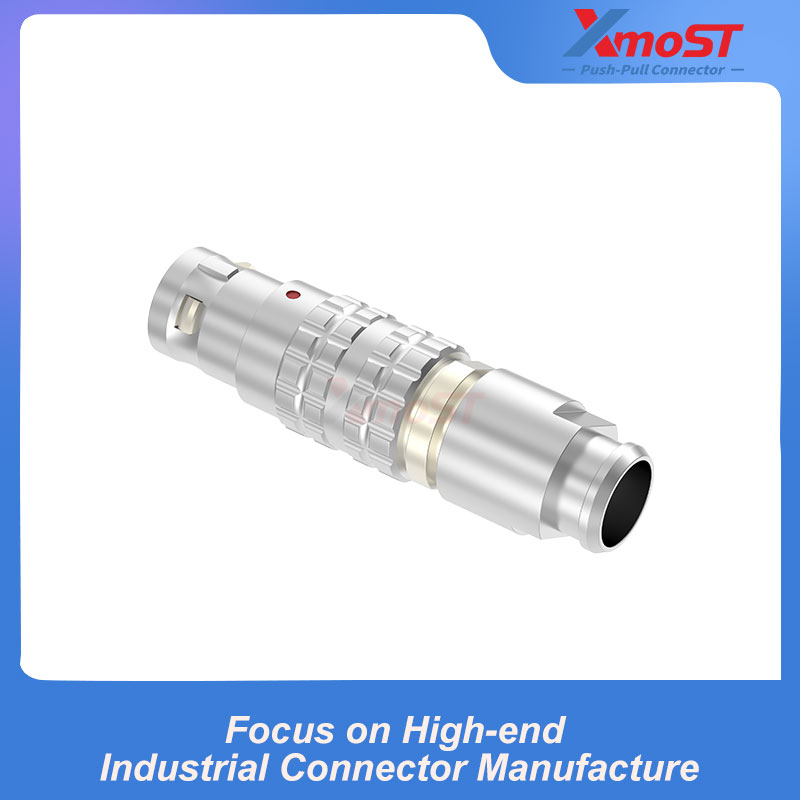

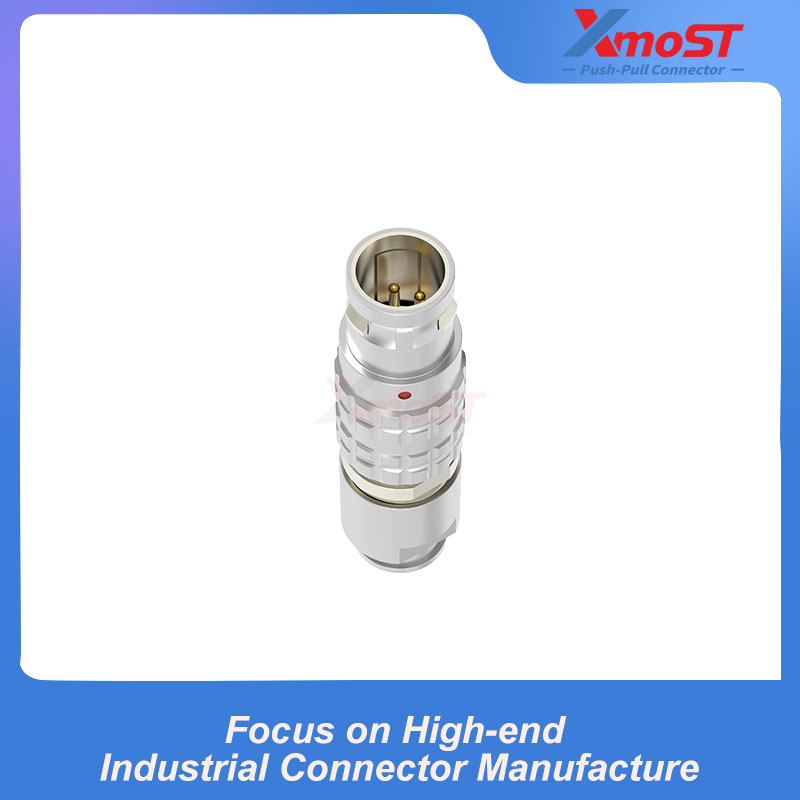

XM-LFGG is a straight cable-mounted male plug from the XMOST B Series. It combines a secure Push-Pull self-latching mechanism with keyed alignment, a cable clamp and a backshell with strain relief.
The connector can be mated quickly without tools and remains securely engaged during operation. Pulling the outer release sleeve enables fast disconnection when required. The integrated strain-relief backshell helps reduce cable bending and mechanical stress near the cable entry, making this configuration suitable for equipment requiring frequent connection and disconnection.
The standard G key ensures accurate connector alignment. Alternative A–M and R keying options are available to help prevent cross-mating when several similar connectors are installed on the same equipment.
Product Features
- Secure Push-Pull self-latching mechanism
- Fast, tool-free mating and unmating
- Straight cable-mounted male plug
- Standard G key for accurate alignment
- Alternative A–M and R keying options
- Cable clamp with strain-relief backshell
- Multiple shell sizes from 00B to 5B
- 360° screening for effective EMC shielding
- High-density multipole configurations across the B Series
- Solder, crimp and PCB contact options depending on the selected configuration

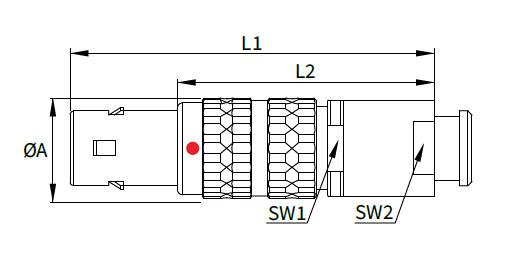

Dimensions
| Shell Size | A | L1 | L2 | SW1 | SW2 |
| 00B | 6.5 | 27 | 19 | 5 | 5 |
| 0B | 9.5 | 35 | 25 | 8 | 7 |
| 1B | 12 | 42 | 31 | 10 | 9 |
| 2B | 15 | 48 | 36 | 13 | 13 |
| 3B | 18 | 58 | 43 | 16 | 15 |
| 4B | 25 | 74 | 56 | 21 | 20 |
| 5B | 35 | 103 | 78 | 31 | 30 |
All dimensions are in millimetres.
Applications
The XM-LFGG straight plug with strain relief is suitable for:
- Industrial automation equipment
- Test and measurement instruments
- Medical equipment
- Robotics and motion-control systems
- Communication equipment
- Broadcast and audiovisual systems
- Compact electronic equipment
- Equipment requiring frequent mating and reliable cable protection
