Description

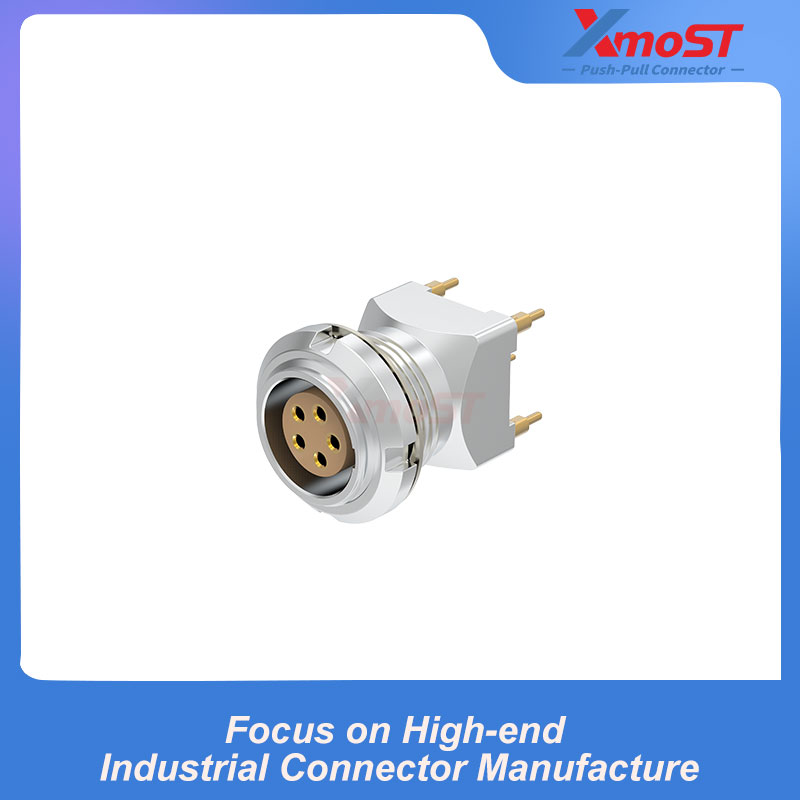

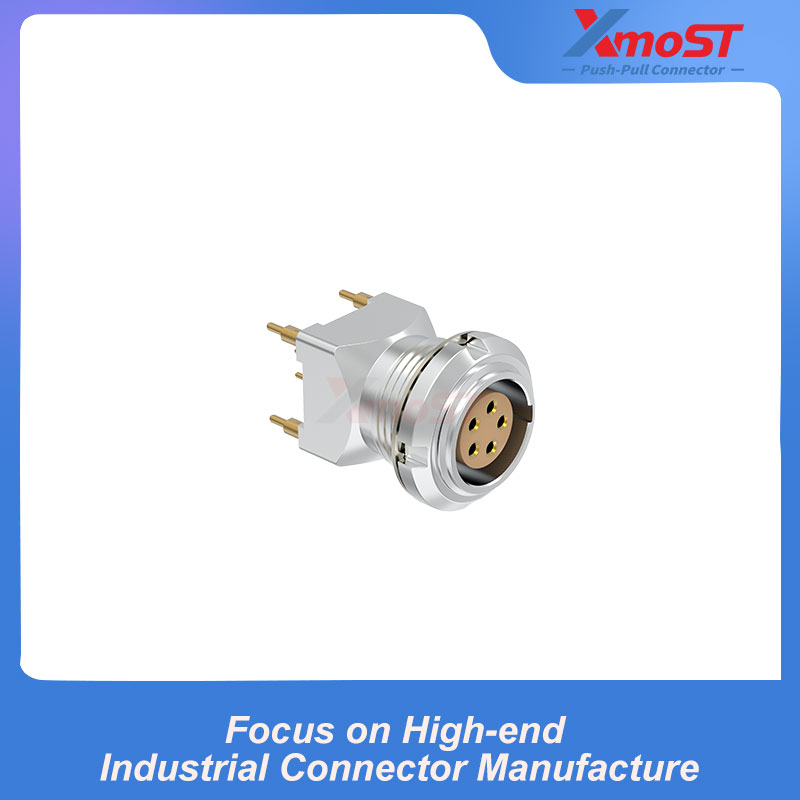

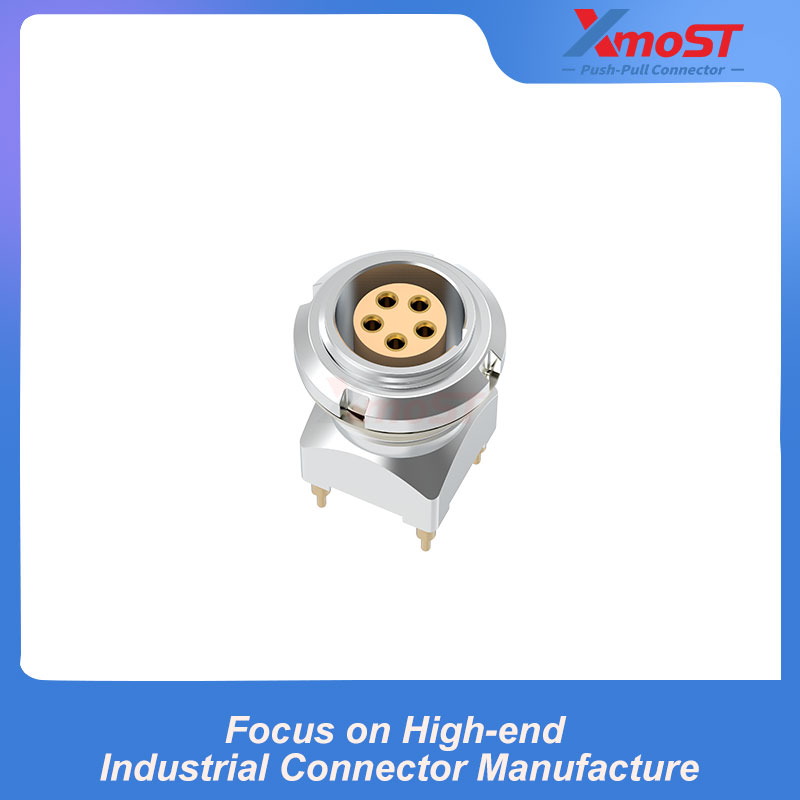

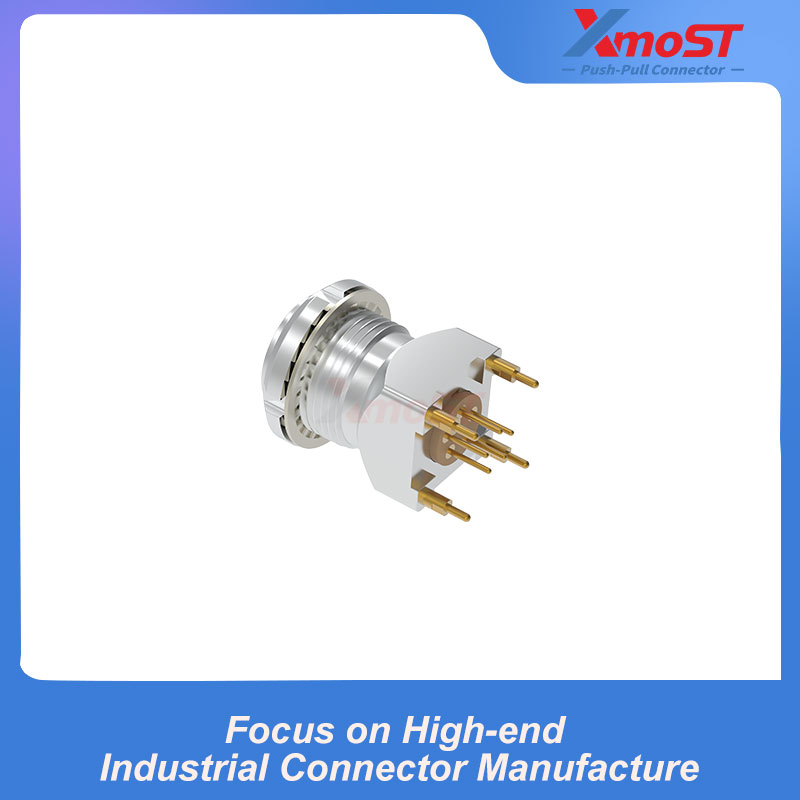

XM-LZYG is a straight female receptacle designed for direct PCB installation. Its appearance combines a cylindrical threaded front housing with a square rear mounting structure and straight PCB contacts.
The female mating interface is compatible with a corresponding male push-pull plug. The receptacle features push-pull self-locking mating, a standard G alignment key and optional A–M keying configurations.
Product Features
- Straight female PCB receptacle
- Female mating interface
- Cylindrical threaded front housing
- Square rear PCB support structure
- Straight PCB contacts
- Direct printed circuit board connection
- Push-pull self-locking mating system
- Standard G alignment key
- Alternative A–M keying options
Dimensions
| Series | A (mm) | B (mm) | D (mm) | e | E (mm) | M (mm) | N (mm) | SW1 (mm) |
|---|---|---|---|---|---|---|---|---|
| 0B | 12 | 10 | 7.62 | M9 × 0.6 | 2.6 | 2.5 | 15 | 8.2 |
| 1B | 14 | 12 | 7.62 | M11 × 0.5 | 5 | 3.5 | 19 | — |
| 2B | 20 | 15 | 10.16 | M15 × 1.0 | 7.5 | 3.5 | 22.5 | 13.5 |

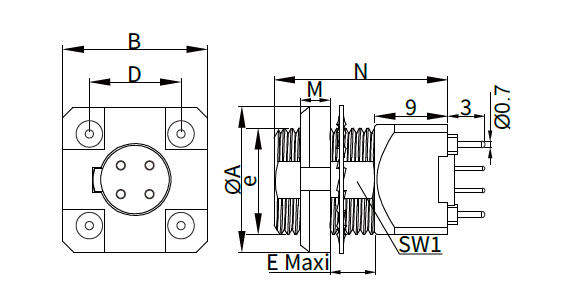

The rear PCB pins extend approximately 3 mm and have a diameter of Ø0.7 mm, as shown in the product drawing. All dimensions are in millimetres.
Applications
- Industrial control equipment
- Automation and sensor systems
- Robotics and motion-control equipment
- Test and measurement instruments
- Medical and diagnostic devices
- Communication equipment
- Professional audio/video systems
- PCB-based electronic equipment
