Description

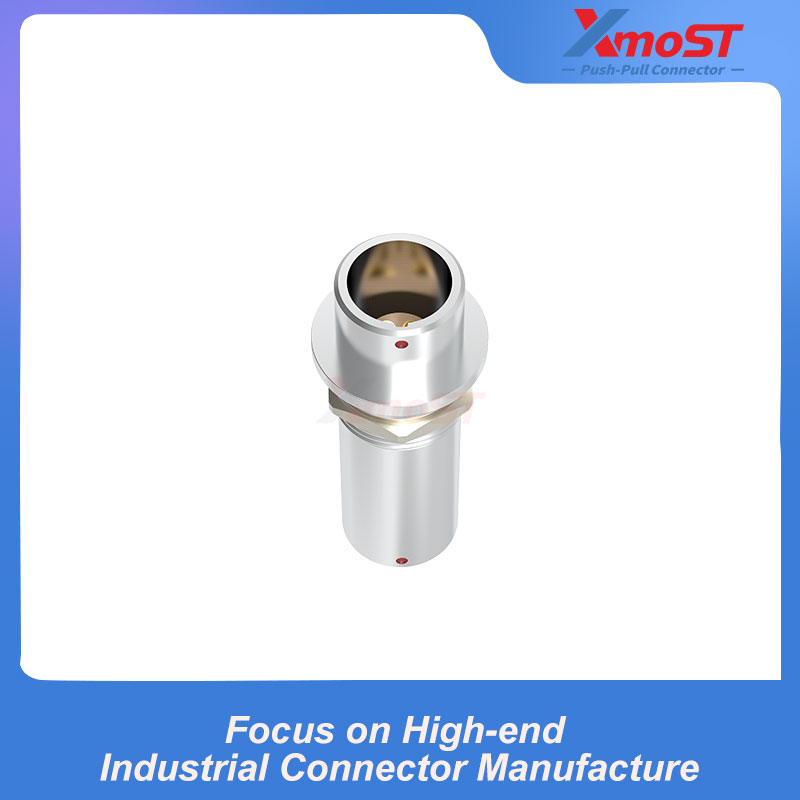

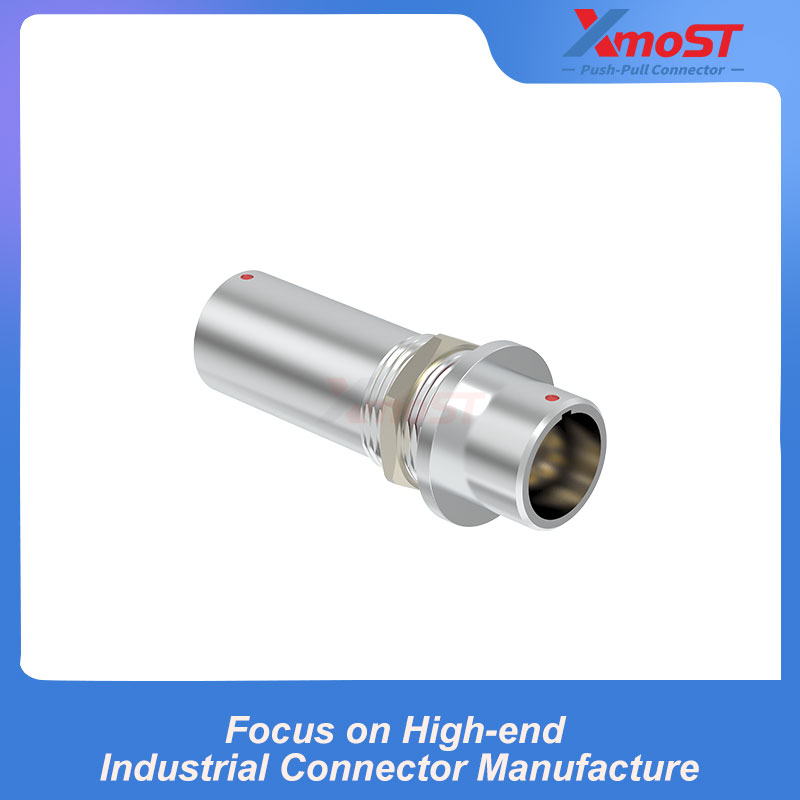

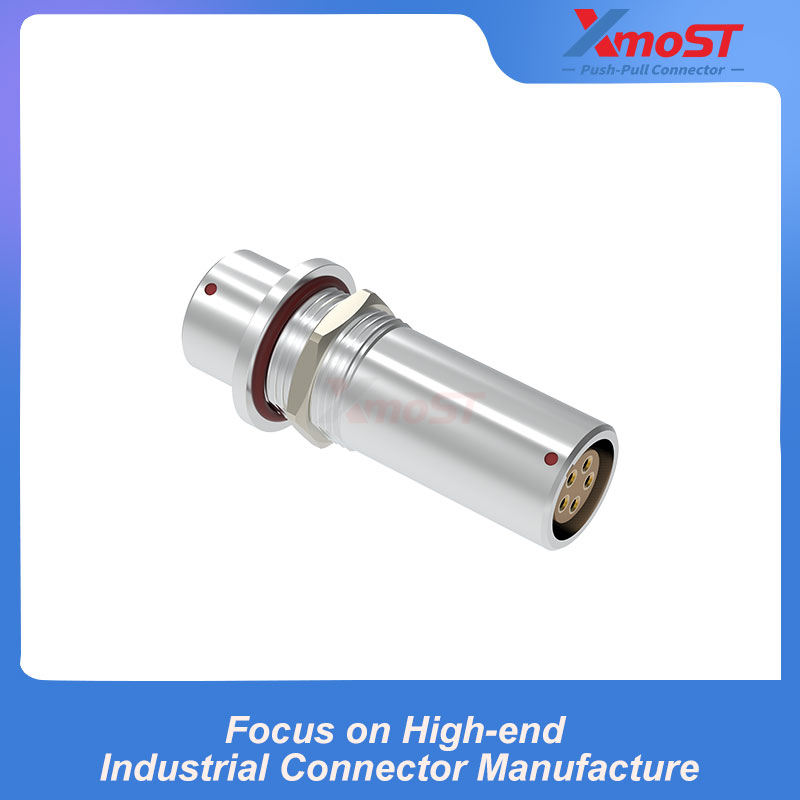

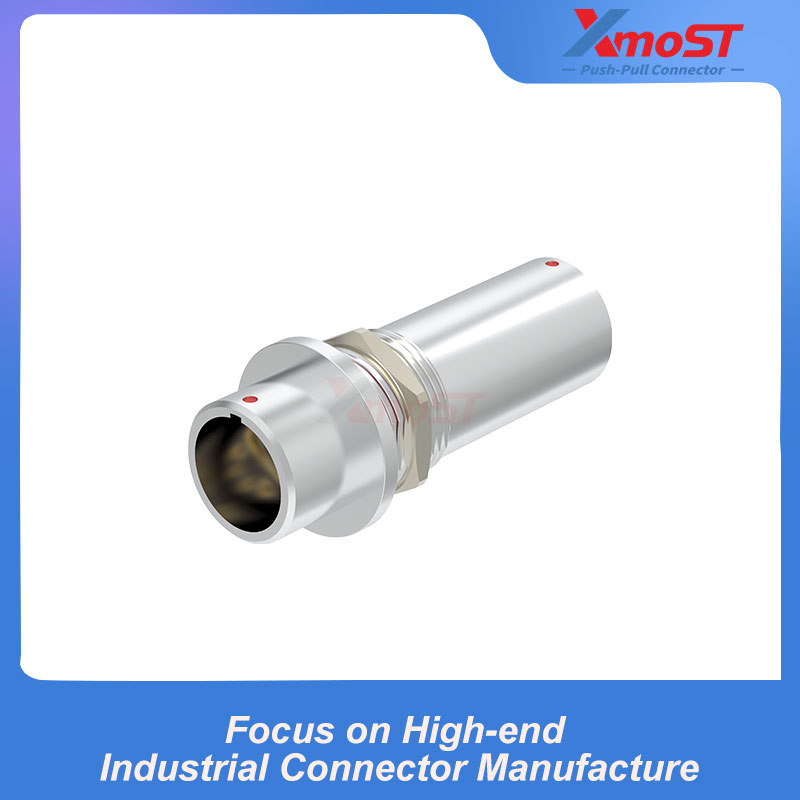

XM-LSGG is a straight double-ended bulkhead receptacle with a distinctive long cylindrical appearance. Female push-pull interfaces are positioned at both ends, allowing two compatible cable plugs to connect through an equipment panel or sealed enclosure.
A threaded section and fixing nut in the centre of the body provide secure bulkhead installation. Both ends use the standard G alignment key and support push-pull self-locking mating. The watertight or vacuum-type construction makes the connector suitable for sealed feedthrough applications.
Product Features
- Long cylindrical double-ended structure
- Female mating interface on both ends
- Fixed bulkhead feedthrough design
- Central threaded nut mounting
- Push-pull self-locking mating on both ends
- Standard G alignment key on both ends
- Watertight or vacuum-type construction
- Straight connector configuration
- 2B shell size
- Anti-rotation panel cutout

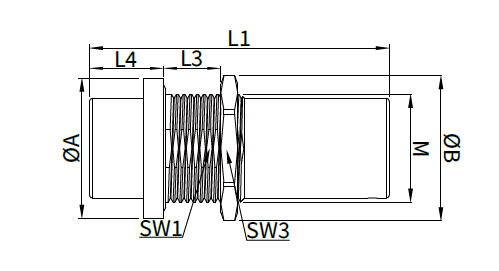

Dimensions
| Series | A (mm) | B (mm) | Mounting thread M | L1 (mm) | L3 (mm) | L4 (mm) | SW1 (mm) | SW3 (mm) |
|---|---|---|---|---|---|---|---|---|
| 2B | 20.8 | 21.5 | M16 × 1.0 | 44.5 | 8 | 11 | 15 | 19 |
All dimensions are in millimetres.
Recommended Panel Cutout
| Series | Flat width SW (mm) | Cutout diameter Ø (mm) |
|---|---|---|
| 2B | 15.1 | 16.1 |
The flat section prevents the connector body from rotating after nut-mounted bulkhead installation.
Applications
- Watertight panel feedthroughs
- Vacuum systems and equipment
- Sealed industrial enclosures
- Test and measurement instruments
- Medical and laboratory equipment
- Communication systems
- Cable connections through equipment walls
- Systems requiring double-ended female connectivity
