Description

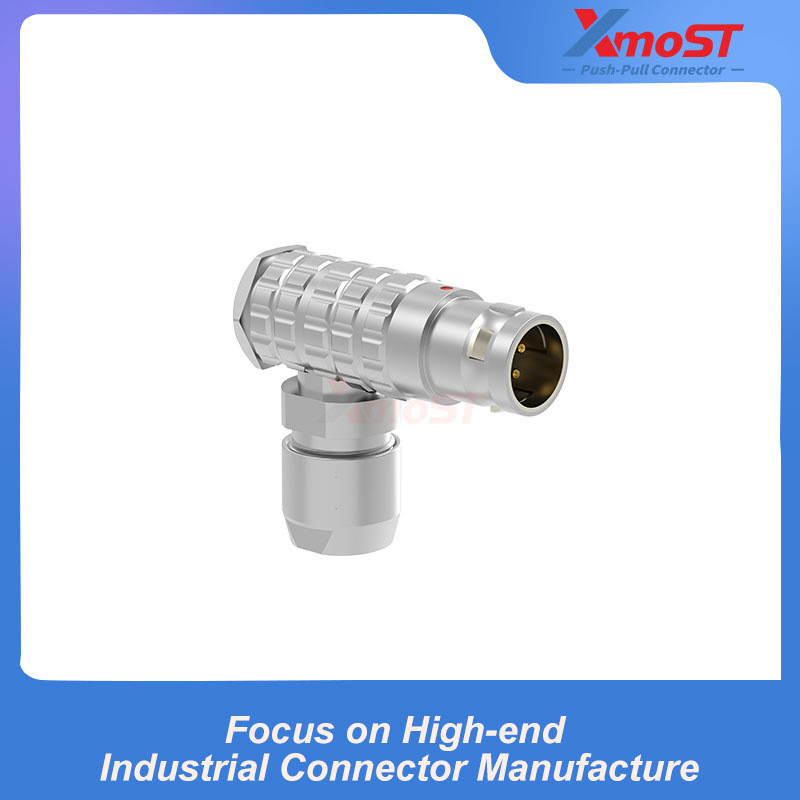

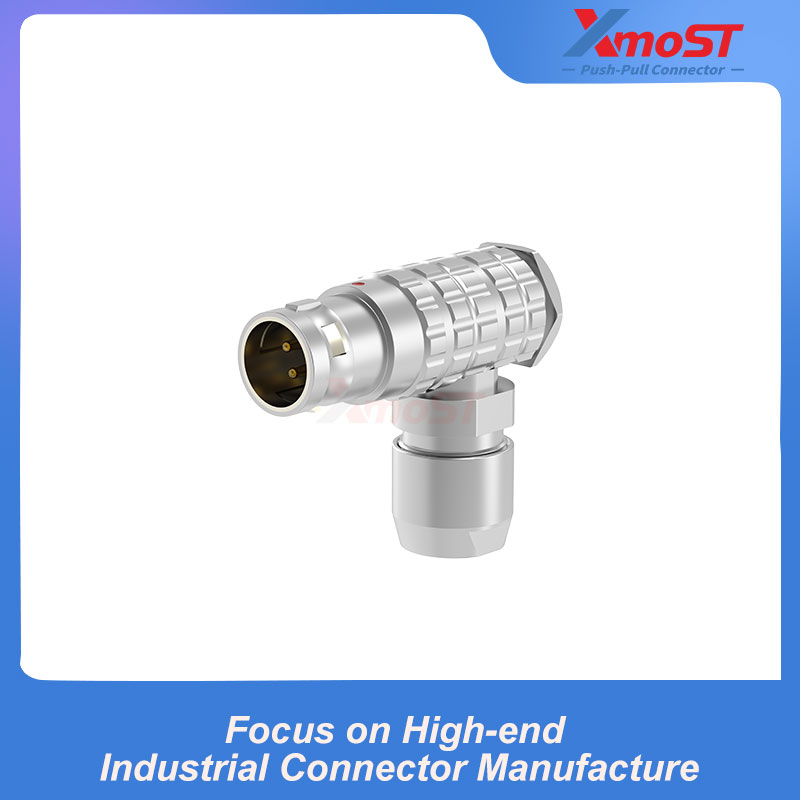

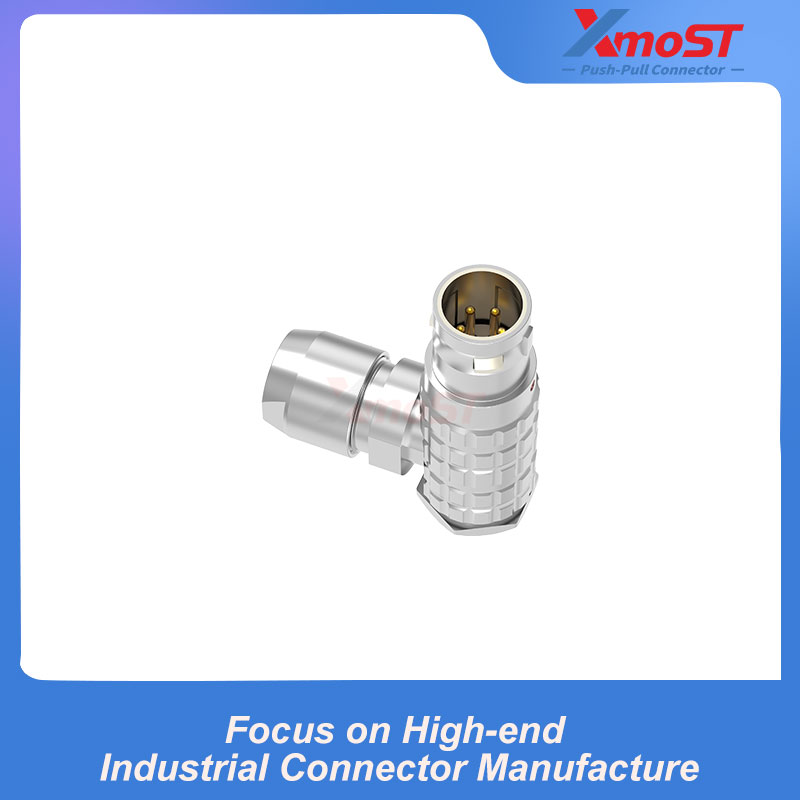

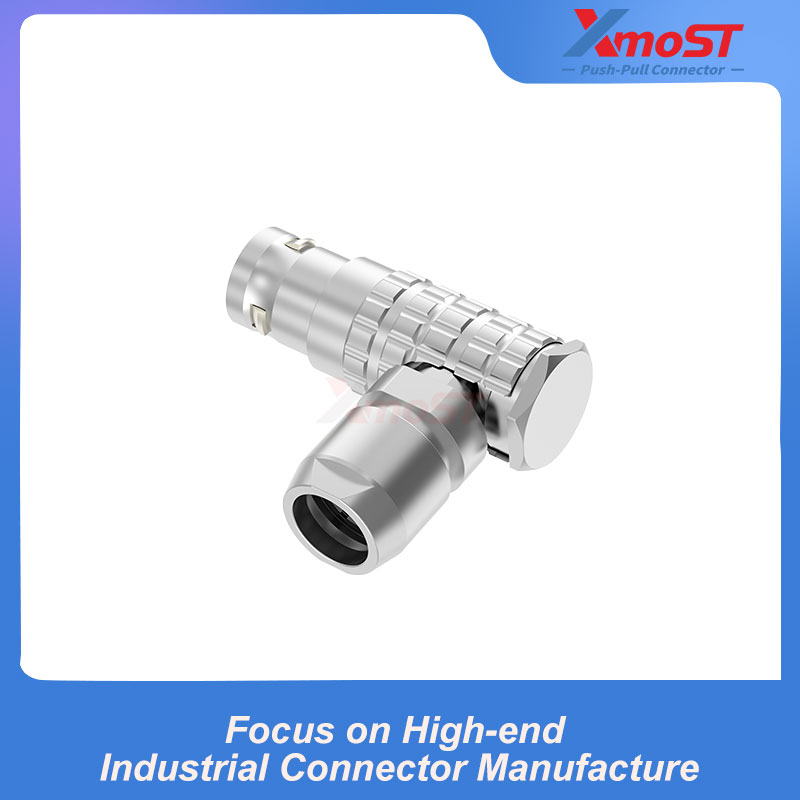

XM-LFPG is a fixed 90° right-angle male connector with a compact L-shaped appearance. Its male mating interface extends horizontally, while the rear cable outlet turns downward through 90°, supporting organized cable routing in equipment with limited rear clearance.
The connector features a push-pull self-locking mechanism for fast and secure mating. Its integrated cable clamp holds the cable firmly, while the backshell and strain-relief jacket help reduce bending stress at the 90° cable entry.
The standard G alignment key guides correct mating, while alternative A–M and R keying options help prevent cross-mating between similar connector configurations.
Product Features
- Fixed L-shaped 90° appearance
- Horizontal male mating interface
- Downward 90° cable outlet
- Push-pull self-locking mechanism
- Integrated cable clamp
- Backshell with strain relief
- Standard G alignment key
- Alternative A–M and R keying options
- Available in 00B to 4B shell sizes
- Suitable for restricted installation spaces

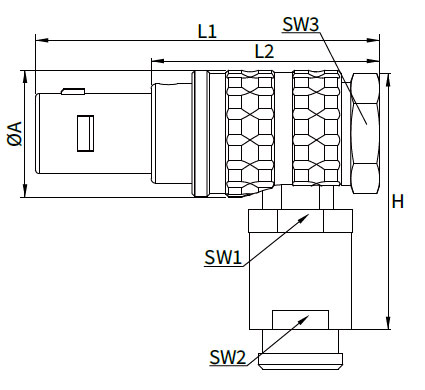

Dimensions
| Series | A (mm) | H (mm) | L1 (mm) | L2 (mm) | SW1 (mm) | SW2 (mm) | SW3 (mm) |
|---|---|---|---|---|---|---|---|
| 00B | 7.7 | 18 | 24 | 16 | 5.5 | 5 | 7 |
| 0B | 10.9 | 23 | 31.5 | 21.5 | 8 | 7 | 10 |
| 1B | 13.5 | 27.5 | 37 | 27 | 10 | 9 | 12 |
| 2B | 16.5 | 34 | 41.5 | 29.5 | 13 | 13 | 15.2 |
| 3B | 19 | 37 | 50 | 35 | 16 | 15 | 17 |
| 4B | 26 | 52 | 67 | 49 | 21 | 20 | 22 |
All dimensions are in millimetres. Refer to the drawing when selecting the connector and planning the required 90° cable-routing space.
Applications
- Industrial automation equipment
- Robotics and motion-control systems
- Test and measurement instruments
- Medical and diagnostic equipment
- Communication systems
- Professional audio/video equipment
- Compact devices with limited rear clearance
- Cable assemblies requiring 90° routing
