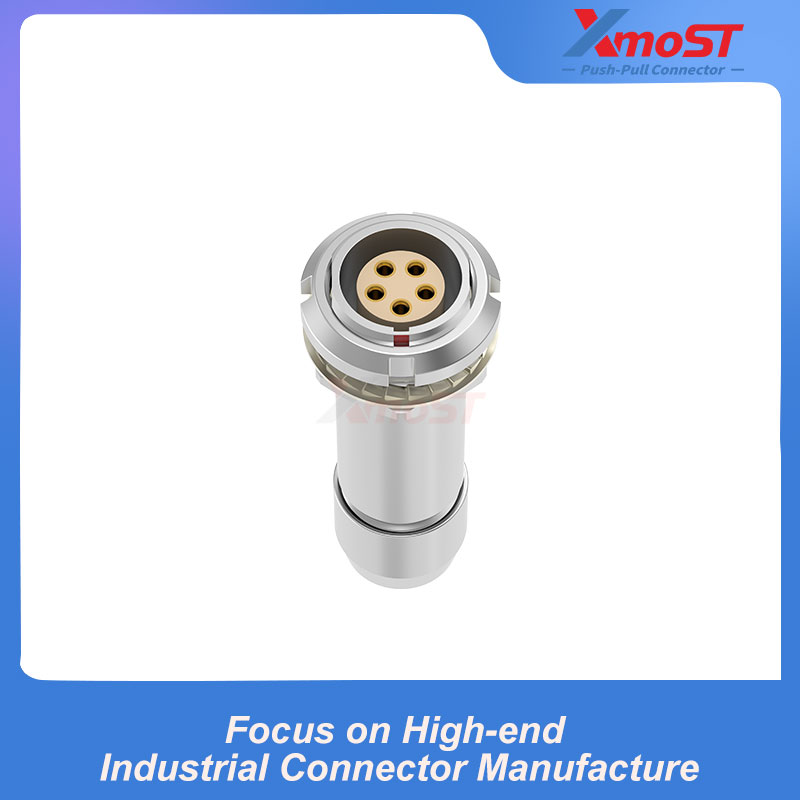

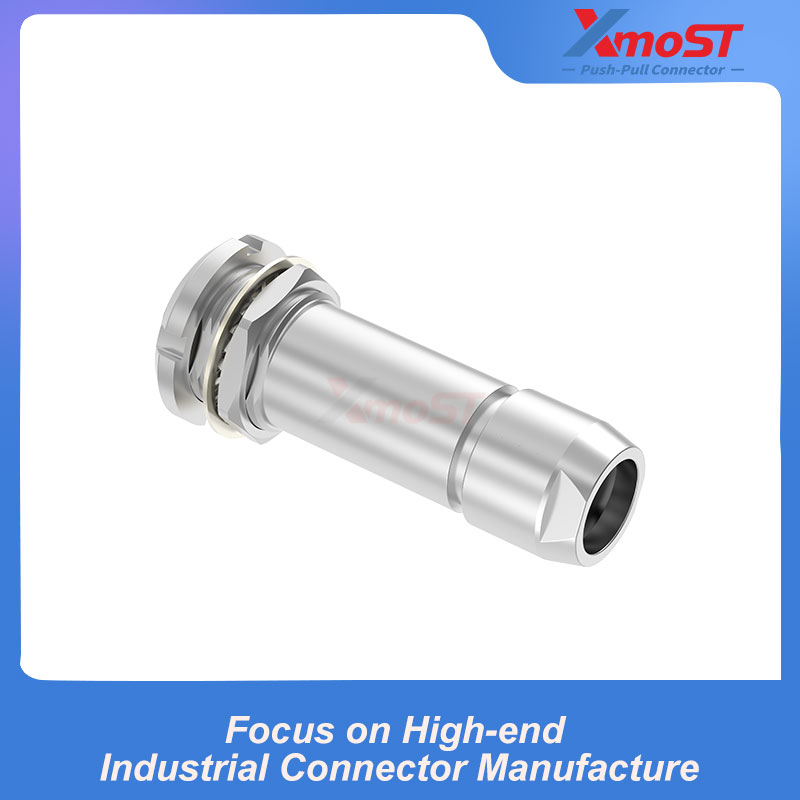

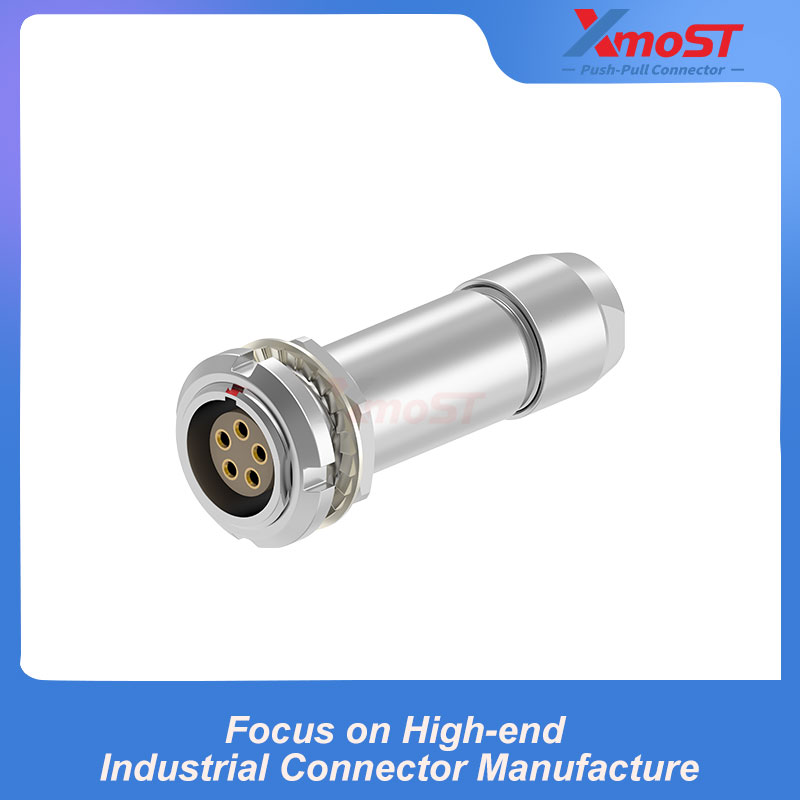

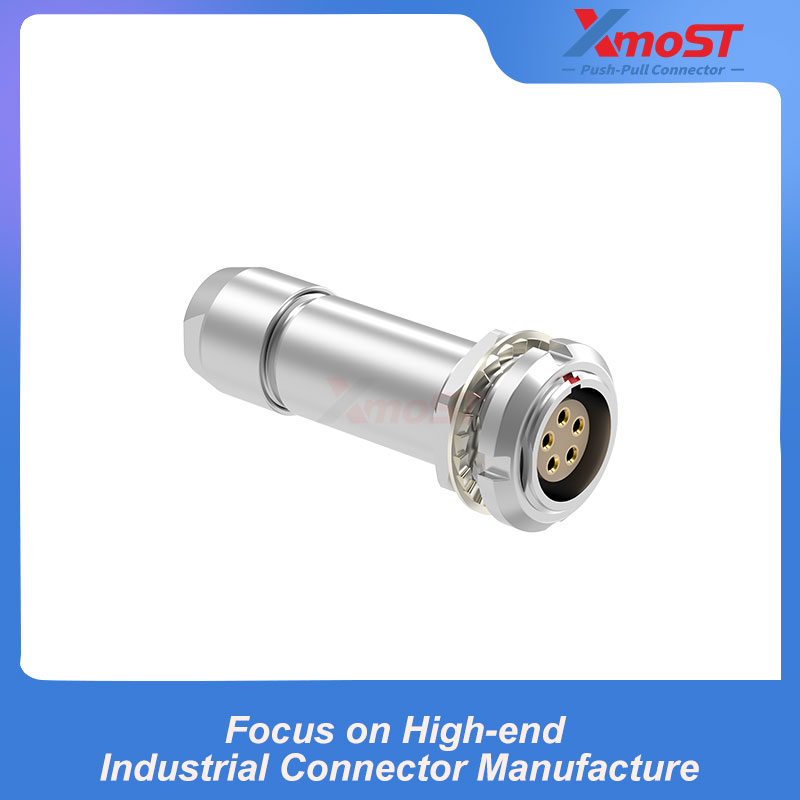

XM-LPFG is a B Series fixed male receptacle designed for secure twin-nut panel mounting. The two mounting nuts provide stable mechanical retention on the equipment panel, while the integrated rear cable clamp securely holds the connected cable and helps reduce movement at the cable entry.
Its straight male mating interface is compatible with corresponding B Series Push-Pull female connectors, enabling fast, secure and tool-free connection.
A standard G key ensures correct connector alignment. Optional A–M and R key configurations are available to help prevent cross-mating between similar connectors installed in the same equipment or connection system.
Product Features
- Fixed male receptacle for panel installation
- Secure twin-nut mounting structure
- Integrated rear cable clamp
- Straight male mating interface
- Compatible with the B Series Push-Pull self-latching system
- Fast and tool-free mating and unmating
- Standard G key for correct connector alignment
- Optional A–M and R key configurations
- Available in shell sizes from 00B to 3B
- Metal shell supporting 360° EMC shielding when correctly assembled and mated

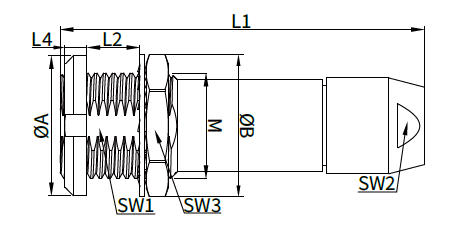

Dimensions
All dimensions are in millimetres.
| Shell Size | A | B | Mounting Thread M | L1 | L2 | L4 | SW1 | SW2 | SW3 |
| 00B | 10 | 10.2 | M7 × 0.5 | 26 | 5.3 | 2.5 | 6.3 | 5 | 9 |
| 0B | 12 | 12.5 | M9 × 0.6 | 35 | 5 | 2.5 | 8.2 | 7 | 11 |
| 1B | 16 | 16 | M12 × 1.0 | 40 | 5 | 3.5 | 10.5 | 9 | 14 |
| 2B | 20 | 19.2 | M15 × 1.0 | 47 | 6.5 | 3.5 | 13.5 | 13 | 17 |
| 3B | 24 | 25 | M18 × 1.0 | 56 | 9 | 4.5 | 16.5 | 15 | 22 |
Recommended Panel Cutout
| Shell Size | Flat Width SW | Cutout Diameter |
| 00B | 6.4 mm | Ø7.1 mm |
| 0B | 8.3 mm | Ø9.1 mm |
| 1B | 10.6 mm | Ø12.1 mm |
| 2B | 13.6 mm | Ø15.1 mm |
| 3B | 16.6 mm | Ø18.1 mm |
Typical Applications
- Industrial control panels
- Test and measurement instruments
- Medical and laboratory equipment
- Automation and robotic systems
- Communication equipment
- Panel-mounted cable assemblies
- Industrial signal transmission systems
Final contact configuration, keying option, cable diameter, termination method and dimensional requirements should be confirmed according to the selected part number before ordering.
