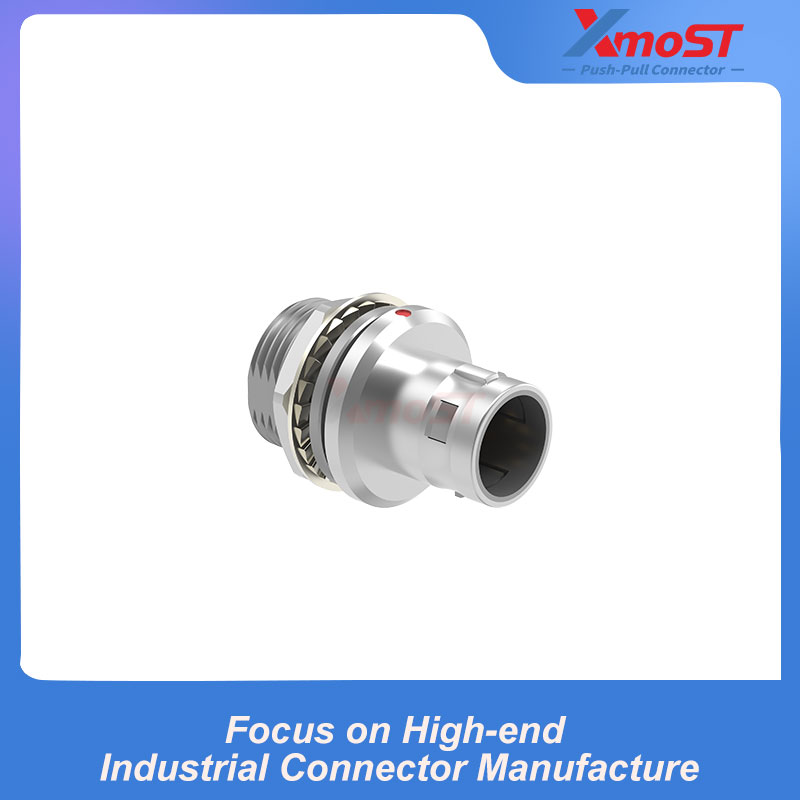

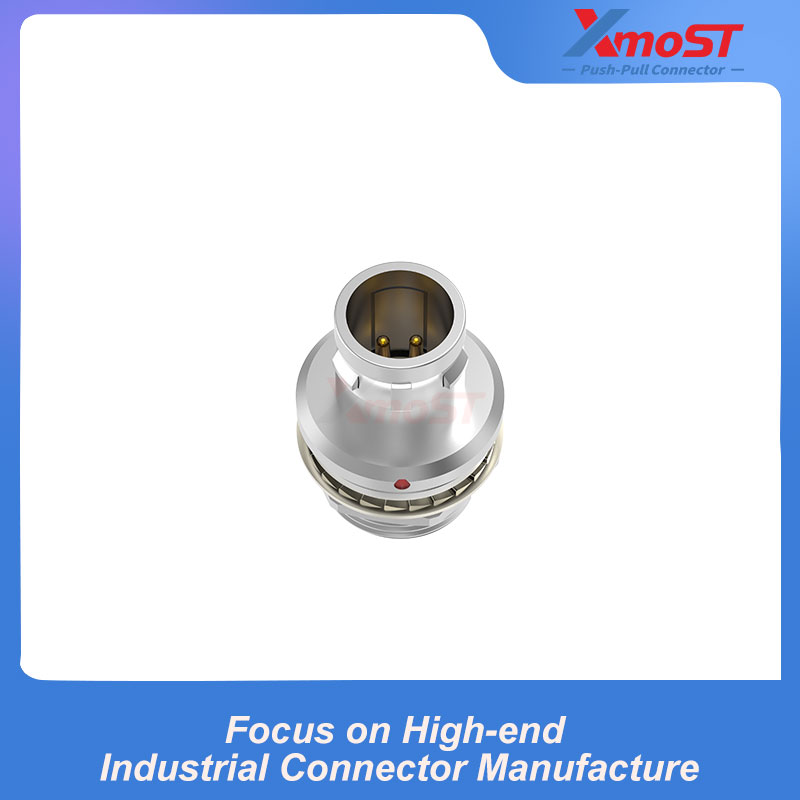

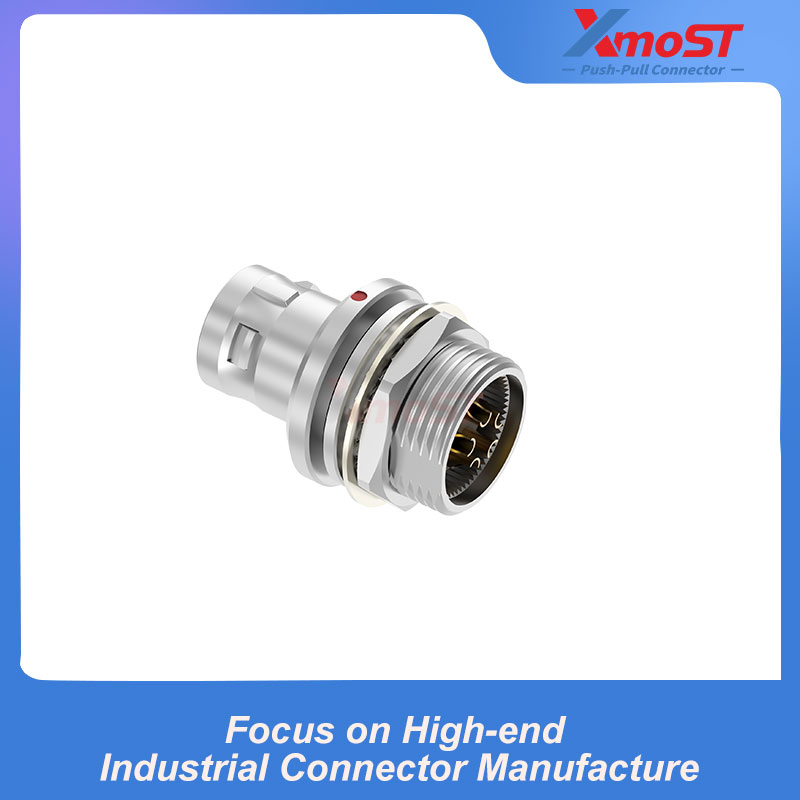

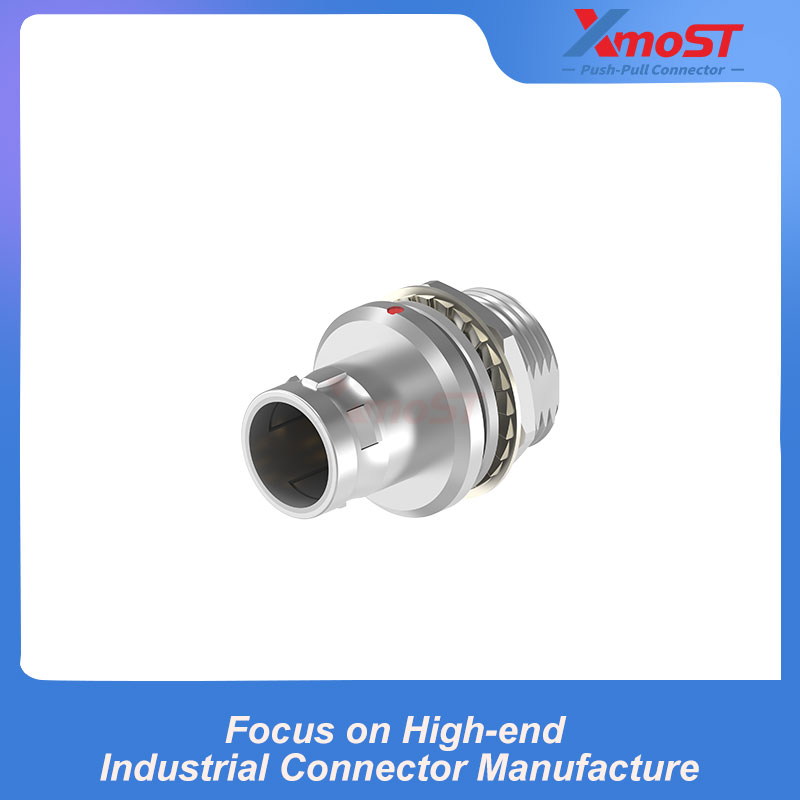

XM-LFWG is a fixed male connector from the XMOST B Series, designed for installation through an equipment panel or housing using a threaded nut-mounting system.
The connector body passes through the prepared panel opening and is secured with a mounting nut. This provides a compact and stable connection point for compatible Push-Pull self-latching connectors while requiring minimal external panel space.
The standard G key ensures accurate connector alignment. Alternative A–M keying options are available to help prevent incorrect mating when multiple similar connectors are installed on the same equipment.
Product Features
- Fixed male connector for panel installation
- Secure threaded nut-mounting system
- Compact panel and bulkhead interface
- Compatible with Push-Pull self-latching connectors
- Standard G key for accurate alignment
- Alternative A–M keying options
- Available in 1B and 2B shell sizes
- 360° screening for effective EMC shielding
- Suitable for equipment panels and instrument housings

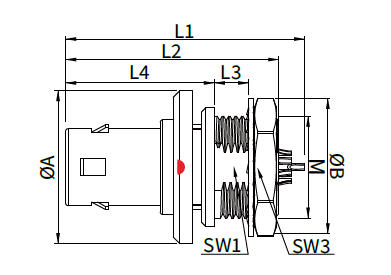

Dimensions
| Shell Size | A | B | Mounting Thread M | L1 | L2 | L3 | L4 | SW1 | SW3 |
| 1B | 18.0 | 16.0 | M12 × 1.0 | 27.8 | 24.8 | 3 | 14.8 | 10.5 | 14 |
| 2B | 19.5 | 19.2 | M15 × 1.0 | 28.0 | 26.0 | 4 | 18.0 | 13.5 | 17 |
Recommended Panel Cutout
| Shell Size | Flat-to-Flat Width | Cutout Diameter |
| 1B | SW 10.6 | Ø12.1 |
| 2B | SW 13.6 | Ø15.1 |
All dimensions are in millimetres.
Applications
XM-LFWG fixed male connector is suitable for:
- Industrial control panels
- Test and measurement instruments
- Medical equipment housings
- Communication equipment
- Broadcast and audiovisual systems
- Robotics and automation equipment
- Compact panel-mounted interfaces
- Equipment requiring a secure nut-mounted connection point
