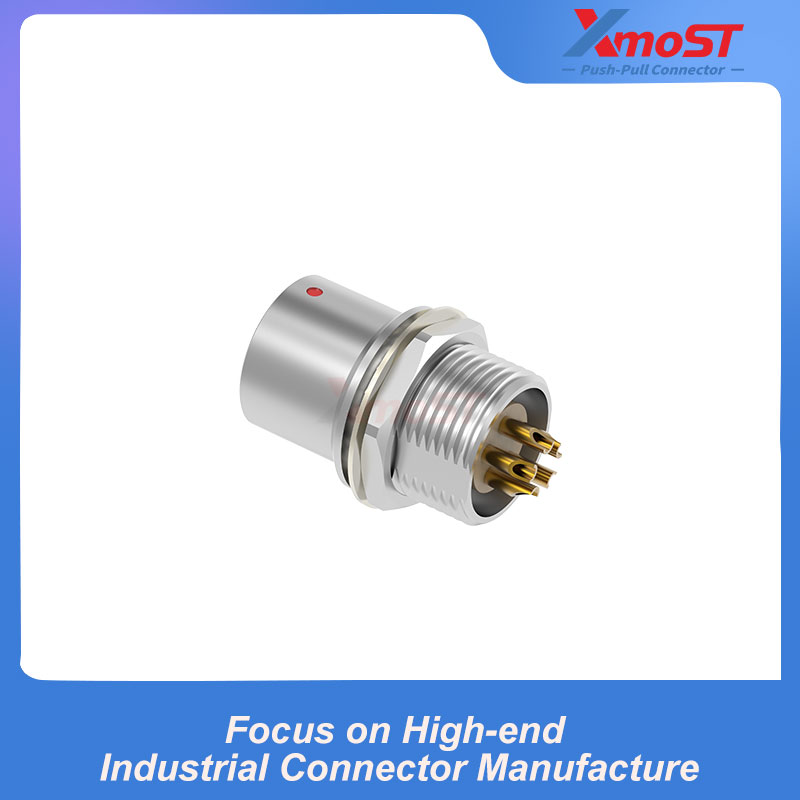

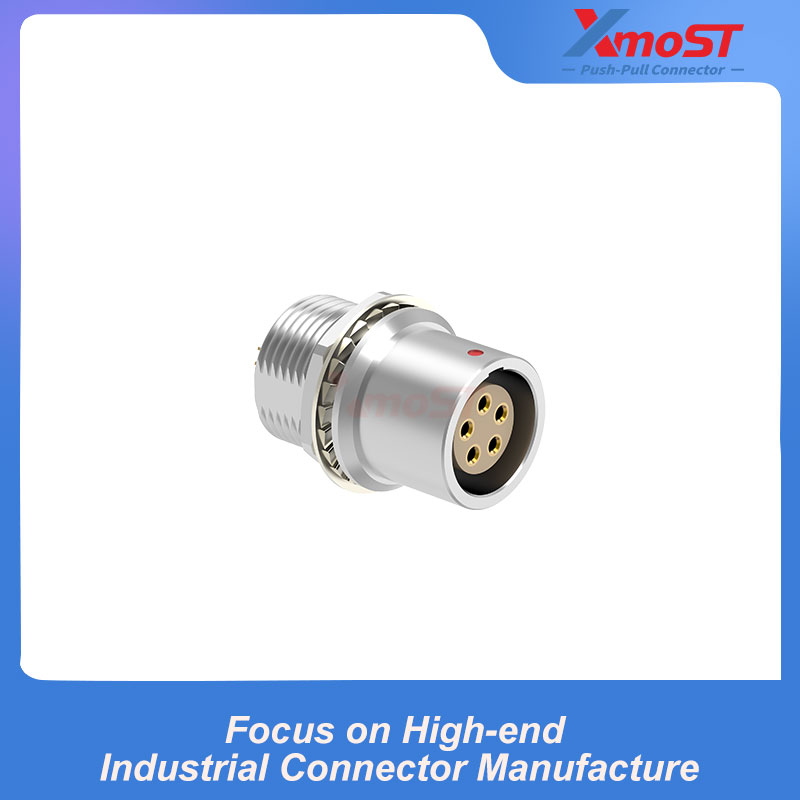

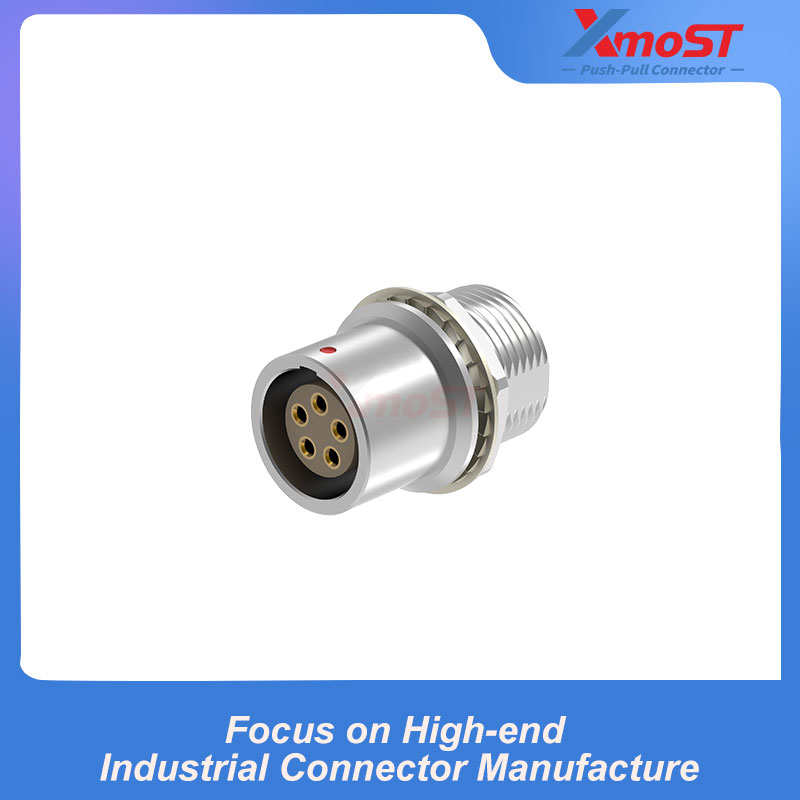

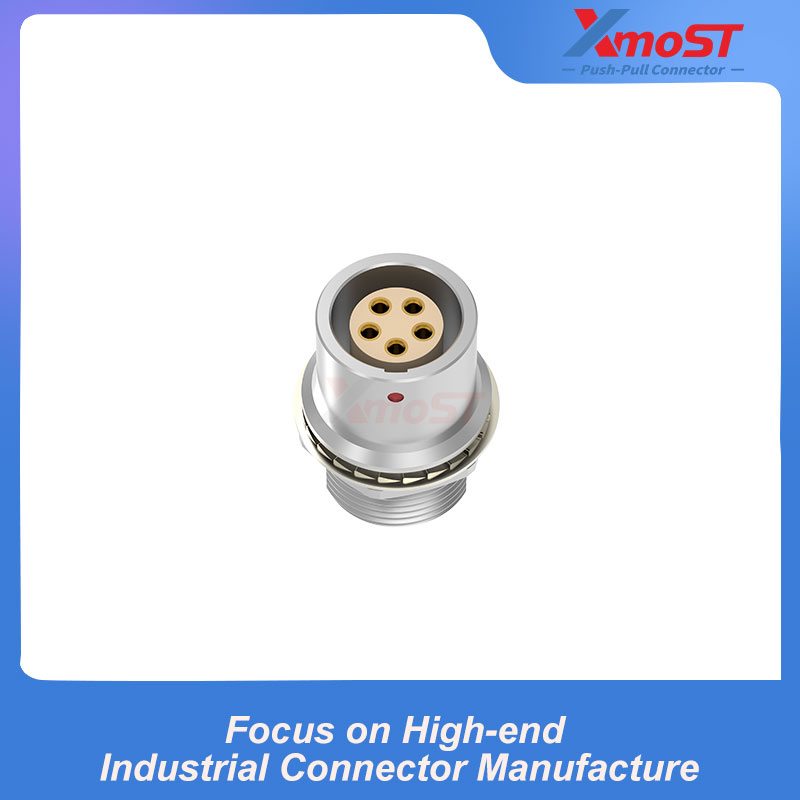

XM-LEHG is a B Series fixed female receptacle designed with a protruding front housing. The extended housing positions the mating interface forward of the mounting surface, providing convenient connector access on industrial equipment and enclosed electronic systems.
The receptacle is securely retained on the equipment panel by a mounting nut. Its straight female interface mates with compatible B Series Push-Pull plugs, providing fast, secure and tool-free connection.
A standard G key ensures correct connector alignment. Optional A–M and R key configurations are available to prevent cross-mating between similar connectors installed in the same system.
Product Features
- Fixed female receptacle with protruding front housing
- Secure nut-mounted panel installation
- Compatible with the B Series Push-Pull self-latching system
- Straight mating interface for convenient front-panel access
- Standard G key for reliable connector alignment
- Optional A–M and R key configurations
- Available in shell sizes from 00B to 3B
- Compact metal construction for industrial equipment integration
- Supports 360° EMC shielding when correctly assembled and mated

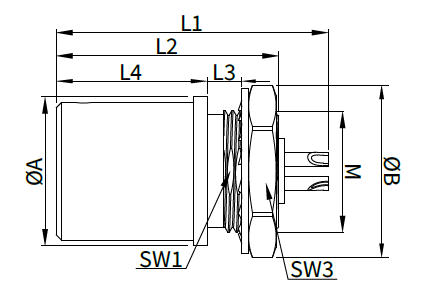

Dimensions
All dimensions are in millimetres.
| Shell Size | A | B | Mounting Thread M | L1 | L2 | L3 | L4 | SW1 | SW2* |
| 00B | 8 | 10.2 | M7 × 0.5 | 15.9 | 13.7 | 2 | 9.5 | 6.3 | 9 |
| 0B | 10.8 | 12.3 | M9 × 0.6 | 19.7 | 16.2 | 2 | 11 | 8.2 | 11 |
| 1B | 13.8 | 16 | M12 × 1.0 | 22.5 | 21 | 4 | 11.75 | 10.5 | 14 |
| 2B | 18 | 19.2 | M15 × 1.0 | 24.8 | 24.8 | 5 | 11.75 | 13.5 | 17 |
| 3B | 21 | 25 | M18 × 1.0 | 30.7 | 30.7 | 7 | 16.5 | 16.5 | 22 |
Recommended Panel Cutout
| Shell Size | Flat Width SW | Cutout Diameter |
| 00B | 6.4 mm | Ø7.1 mm |
| 0B | 8.3 mm | Ø9.1 mm |
| 1B | 10.6 mm | Ø12.1 mm |
| 2B | 13.6 mm | Ø15.1 mm |
| 3B | 16.6 mm | Ø18.1 mm |
Typical Applications
- Industrial control panels
- Test and measurement instruments
- Medical and laboratory equipment
- Automation and robotic systems
- Communication equipment
- Compact electronic enclosures
Final contact configuration, termination type, keying option and dimensional requirements should be confirmed according to the selected part number before ordering.
