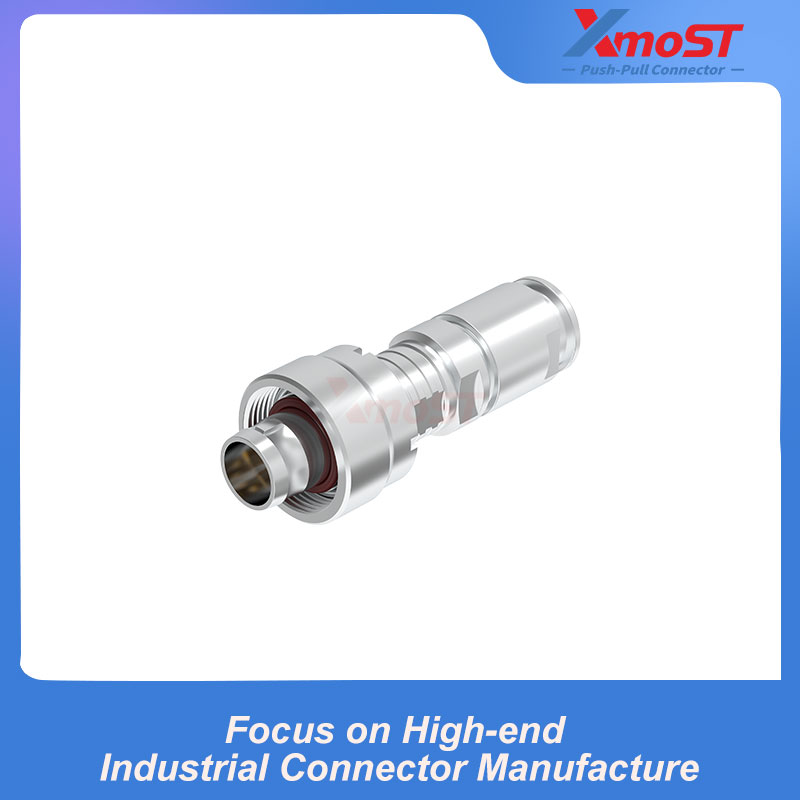

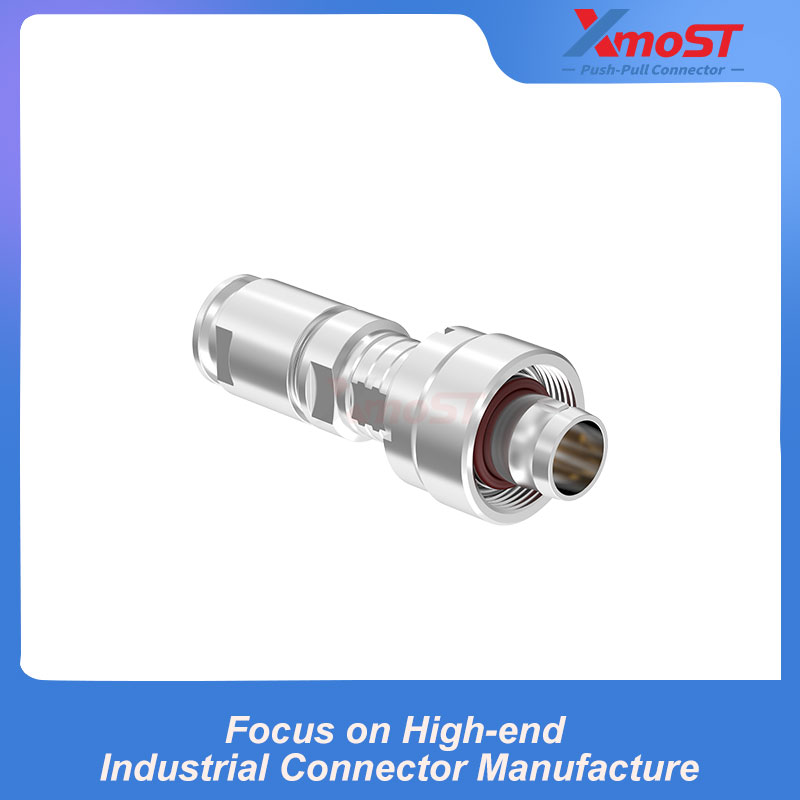

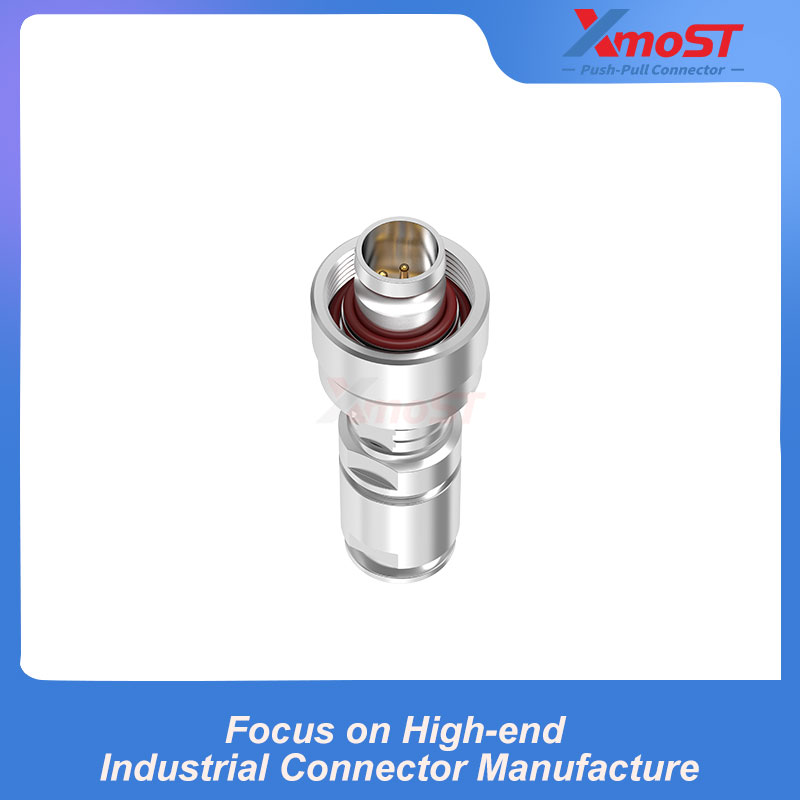

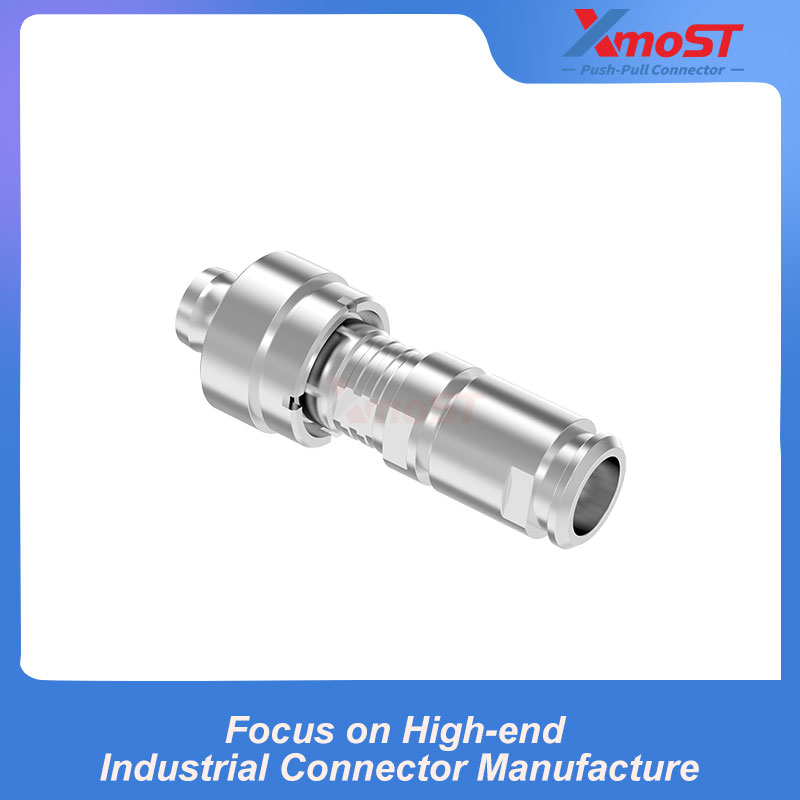

XM-LFVG is a W Series straight plug with G keying, with A, B, and L keying options available. It features an oversized cable clamp designed for secure cable termination and is suitable for high-density, space-saving applications. The connector uses a rugged housing and supports solder or crimp contacts, providing reliable performance in demanding industrial and electronic environments.
Product Features & Advantages
- Straight plug configuration
- G keying with A, B, and L options available
- Oversized cable clamp for secure cable retention
- High-density, space-saving design
- Solder and crimp contact options
- Rugged housing for demanding environments
- IP68 protection and EMC shielding

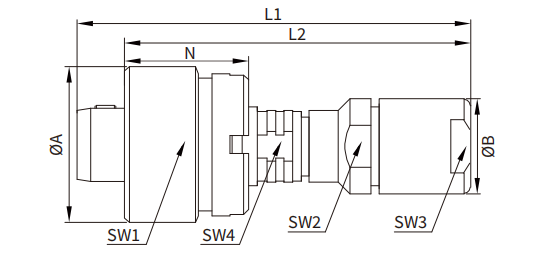

Dimensions (mm)
| Series | A | B | L1 | L2 | N | SW1 | SW2 | SW3 | SW4 |
|---|---|---|---|---|---|---|---|---|---|
| 0W | 19.3 | 14.5 | 56.5 | 48.3 | 14.0 | 18 | 12 | 12 | 10 |
| 1W | 23.5 | 17.0 | 68.5 | 56.0 | 15.5 | 22 | 15 | 15 | 13 |
| 2W | 27.8 | 22.0 | 80.5 | 67.0 | 16.5 | 26 | 19 | 19 | – |
| 3W | 34.3 | 36.0 | 105.5 | 91.5 | 17.5 | 32 | 30 | 32 | – |
Technical Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | -20°C ~ +200°C |
| Mating Cycles | >5000 |
| Insulator Material | PEEK |
| Contact Material | Copper Alloy, Gold-Plated |
| Hydrostatic Pressure | 30 bar (mated) |
| Main Material | Brass, Nickel-Plated |
| Seal / O-Ring | FKM |
| Protection Grade | IP68 |
| Salt Spray Test | Over 144 hours |
| Environmental Test | 20/200/21 |
| Vibration Resistance | 10–2000 Hz, 15g |
| Shock Resistance | 100g, 6ms |
| Shielding Performance | 75dB (10MHz) / 40dB (1GHz) |
Applications
- Industrial Automation & Control Systems
- Test & Measurement Equipment
- Outdoor Electronic Equipment
- Industrial Instrumentation
