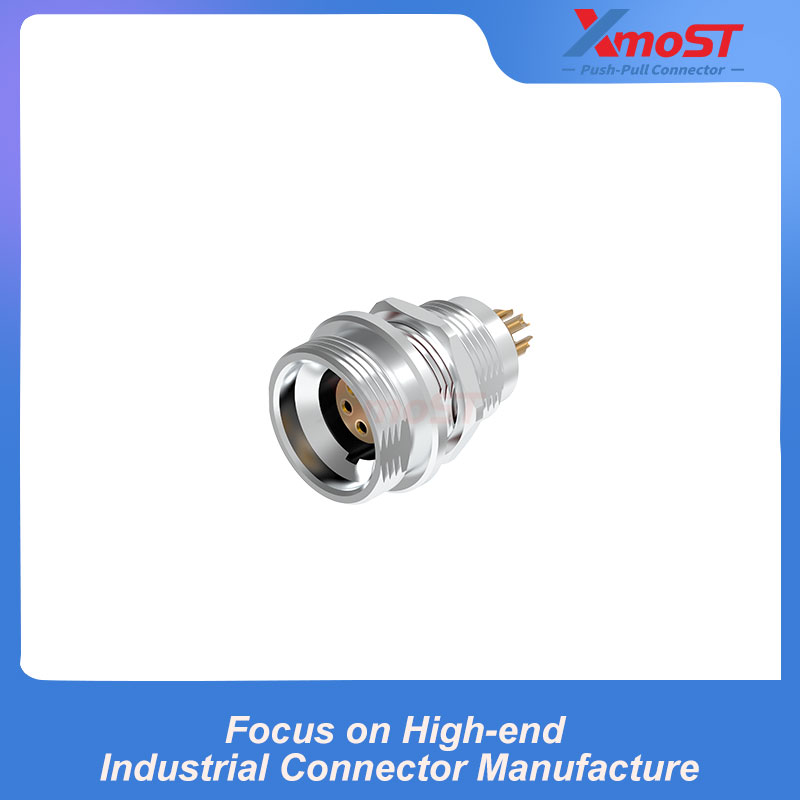

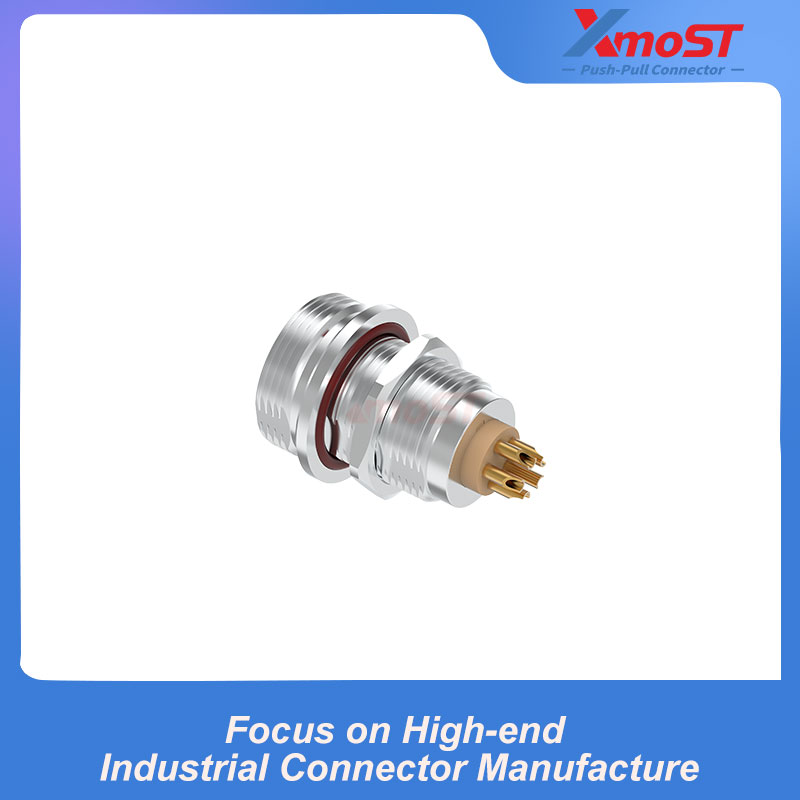

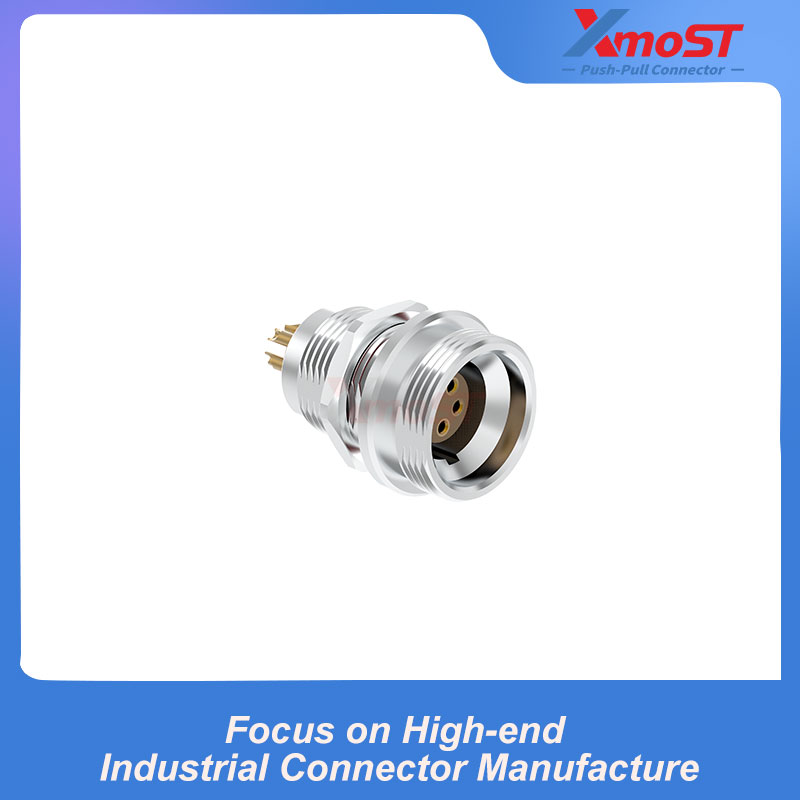

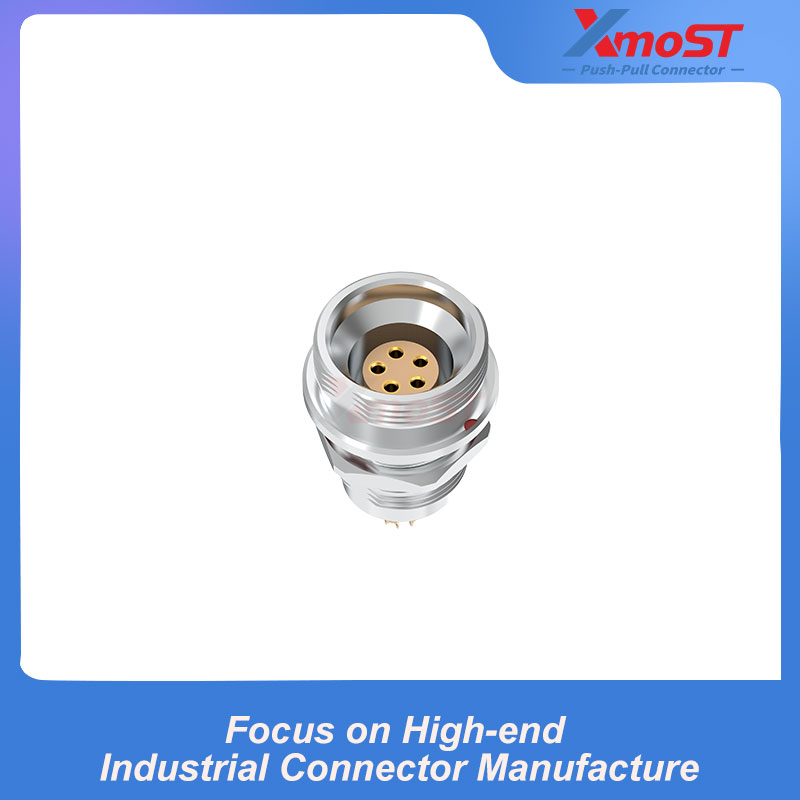

XM-LEVG 2W is a straight fixed receptacle with a nut-mounted structure and rear-locking design. The connector is a female type with a G alignment pin and self-locking mechanism. It is designed for fixed installation and provides IP68 protection, hydrostatic pressure resistance up to 30 bar when mated, and shielding performance of 75 dB at 10 MHz and 40 dB at 1 GHz.
Product Features & Advantages
- 2W shell size
- Fixed receptacle design
- Nut mounting structure
- Rear-locking design
- Female connector type
- G alignment pin
- Self-locking mechanism

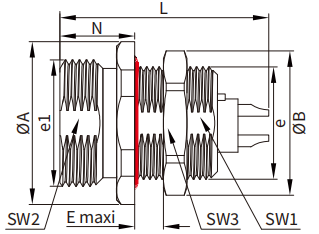

Dimensions (mm)
| Series | A | B | e | e1 | L | N | E | SW1 | SW2 | SW3 |
|---|---|---|---|---|---|---|---|---|---|---|
| 0W | 16.2 | 16.0 | M12*1.0 | M14*1.0 | 21.7 | 8.0 | 4 | 10.5 | 12.5 | 14 |
| 1W | 18.3 | 19.5 | M14*1.0 | M16*1.0 | 27.0 | 8.0 | 8 | 12.5 | 14.5 | 17 |
| 2W | 22.5 | 21.8 | M16*1.0 | M20*1.0 | 30.7 | 9.0 | 9 | 14.5 | 18.5 | 19 |
| 3W | 26.6 | 27.0 | M20*1.0 | M24*1.0 | 36.2 | 9.5 | 13 | 18.5 | 22.5 | 24 |
Panel Cutout Drawing
| Shell Size | Flat Width (SW) | Cutout Diameter |
|---|---|---|
| 0W | 10.6 mm | Ø12.1 mm |
| 1W | 12.6 mm | Ø14.1 mm |
| 2W | 14.6 mm | Ø16.1 mm |
| 3W | 18.6 mm | Ø20.1 mm |
Technical Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | -20°C ~ +200°C |
| Mating Cycles | >5000 cycles |
| Insulator Material | PEEK |
| Contact Material | Copper Alloy, Gold-Plated |
| Hydrostatic Pressure | 30 bar (mated) |
| Main Material | Brass, Nickel-Plated |
| Seal / O-Ring | FKM |
| Protection Grade | IP68 |
| Salt Spray Test | Over 144 hours |
| Environmental Test | 20 / 200 / 21 |
| Vibration Resistance | 10–2000 Hz, 15g |
| Shock Resistance | 100g, 6 ms |
| Shielding Performance | 75 dB (10 MHz) / 40 dB (1 GHz) |
