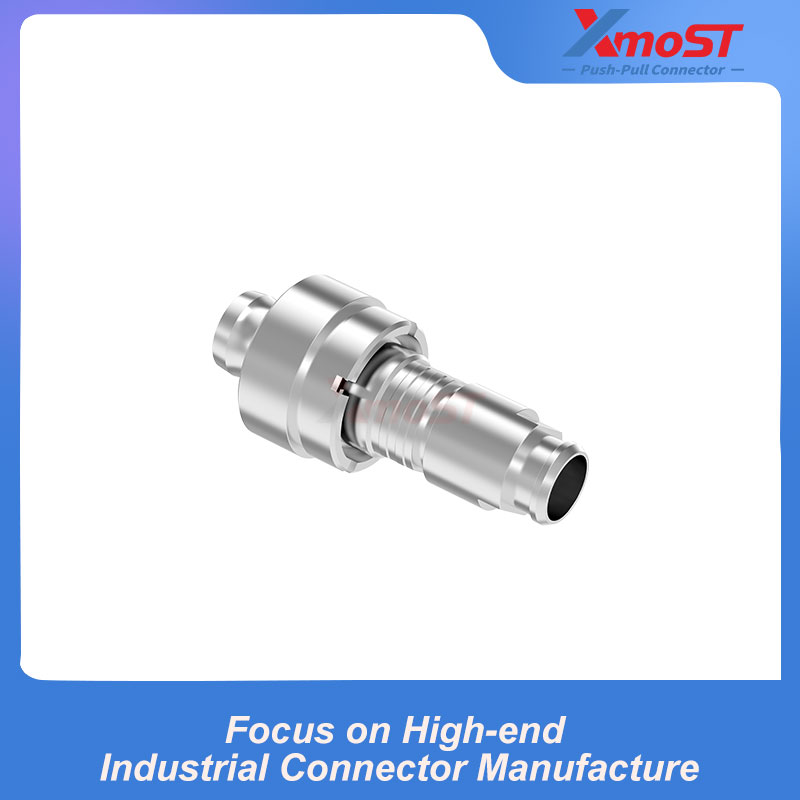

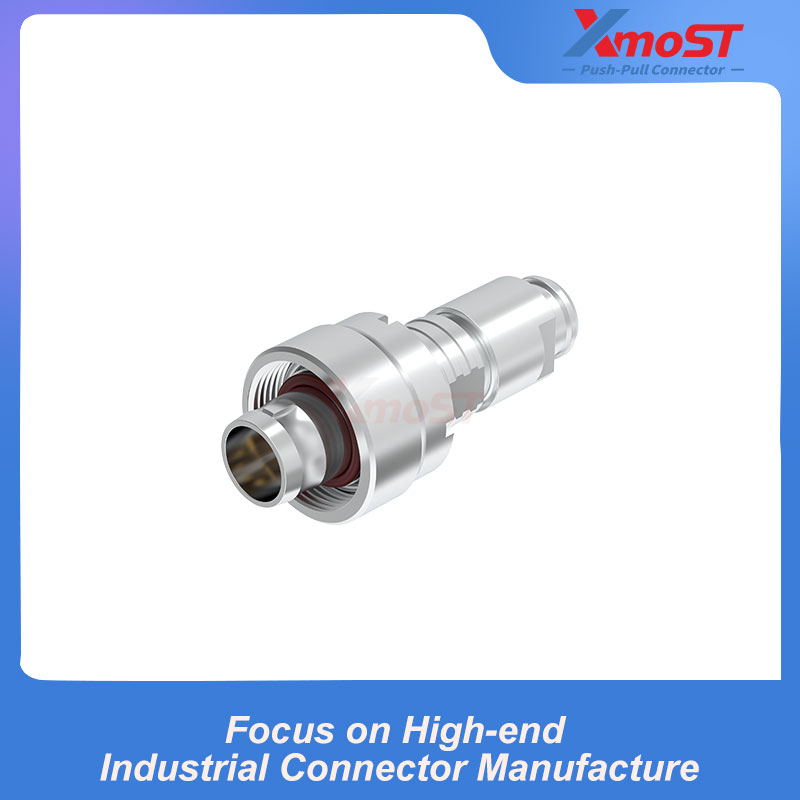

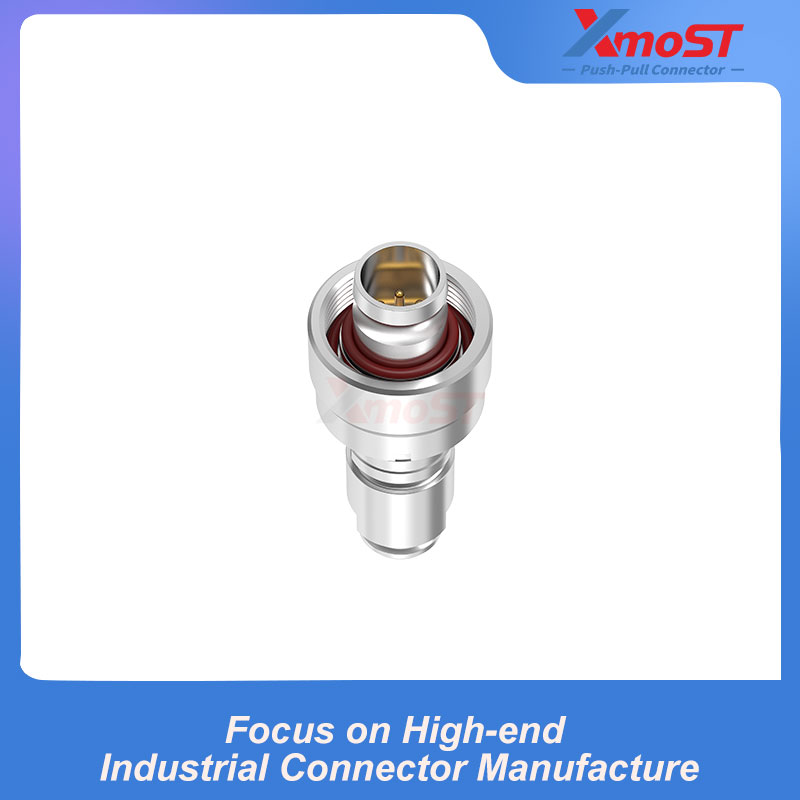

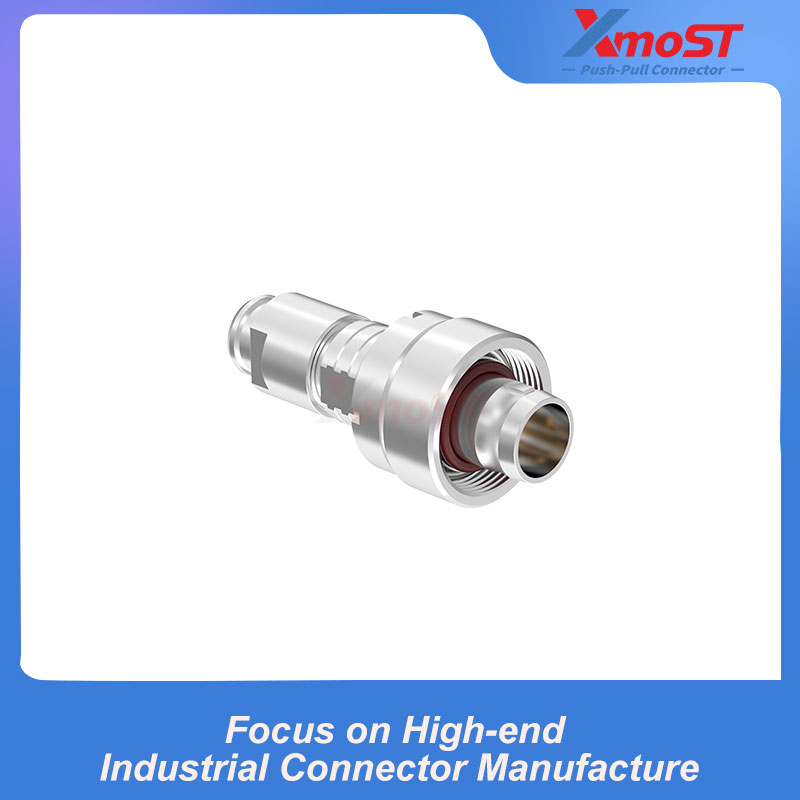

XM-LFVG is a W Series straight male plug featuring a self-locking mechanism and G alignment. Designed for high-density, space-saving applications, it supports solder or crimp contacts and is equipped with a cable clamp and jacketed rear cover. Its rugged construction, IP68 protection, EMC shielding, and wide operating temperature range make it suitable for industrial and demanding electronic environments.
Product Features & Advantages
- W Series standard connector design
- Straight male plug configuration
- Self-locking mechanism for secure mating
- G alignment for reliable connector orientation
- Solder and crimp contact options
- Cable clamp with jacketed rear cover
- High-density, space-saving design for demanding applications

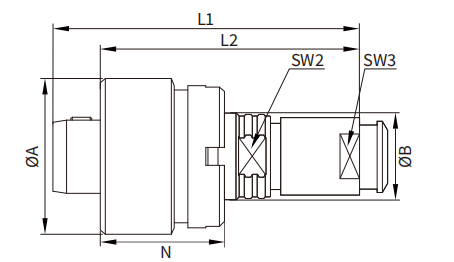

Dimensions (mm)
| Series | A | B | L1 | L2 | N | SW2 | SW3 |
|---|---|---|---|---|---|---|---|
| 0W | 17.2 | 10 | 36 | 30.8 | 16 | 8 | 8 |
| 1W | 19.3 | 12 | 43.2 | 35.1 | 18 | 9 | 10 |
| 2W | 23.5 | 16 | 52.5 | 43 | 22 | 12 | 13 |
| 3W | 27.5 | 17 | 61.5 | 48 | 26 | 15 | – |
Technical Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | -20°C ~ +200°C |
| Mating Cycles | >5000 |
| Insulator Material | PEEK |
| Contact Material | Copper Alloy, Gold-Plated |
| Hydrostatic Pressure | 30 bar (mated) |
| Main Material | Brass, Nickel-Plated |
| Seal / O-Ring | FKM |
| Protection Grade | IP68 |
| Salt Spray Test | Over 144 hours |
| Environmental Test | 20/200/21 |
| Vibration Resistance | 10–2000 Hz, 15g |
| Shock Resistance | 100g, 6ms |
| Shielding Performance | 75dB (10MHz) / 40dB (1GHz) |
Applications
- Industrial Automation & Control Systems
- Test & Measurement Equipment
- Outdoor Electronic Equipment
- Industrial Instrumentation
