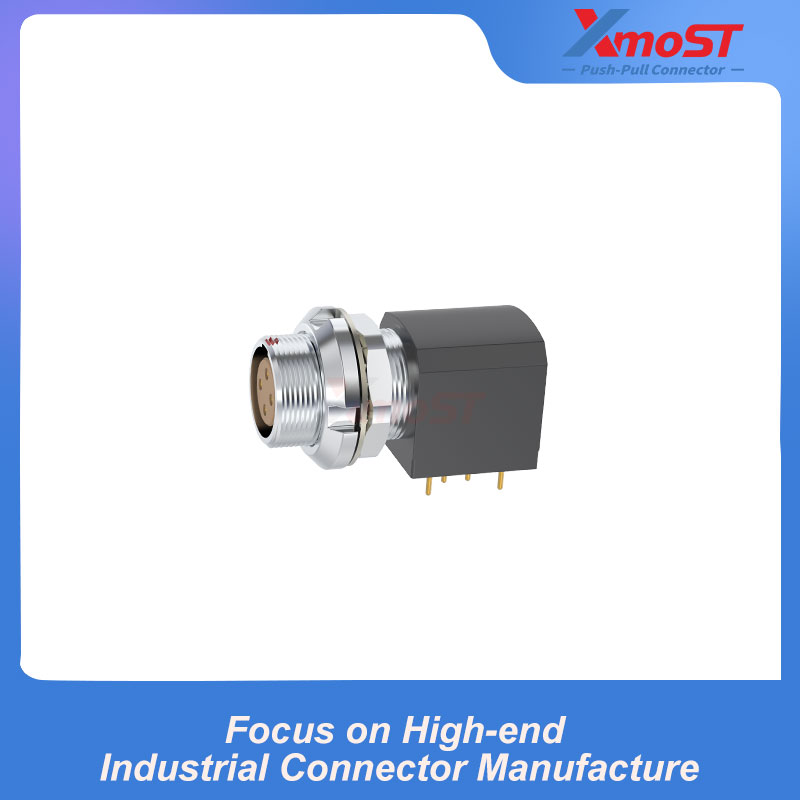

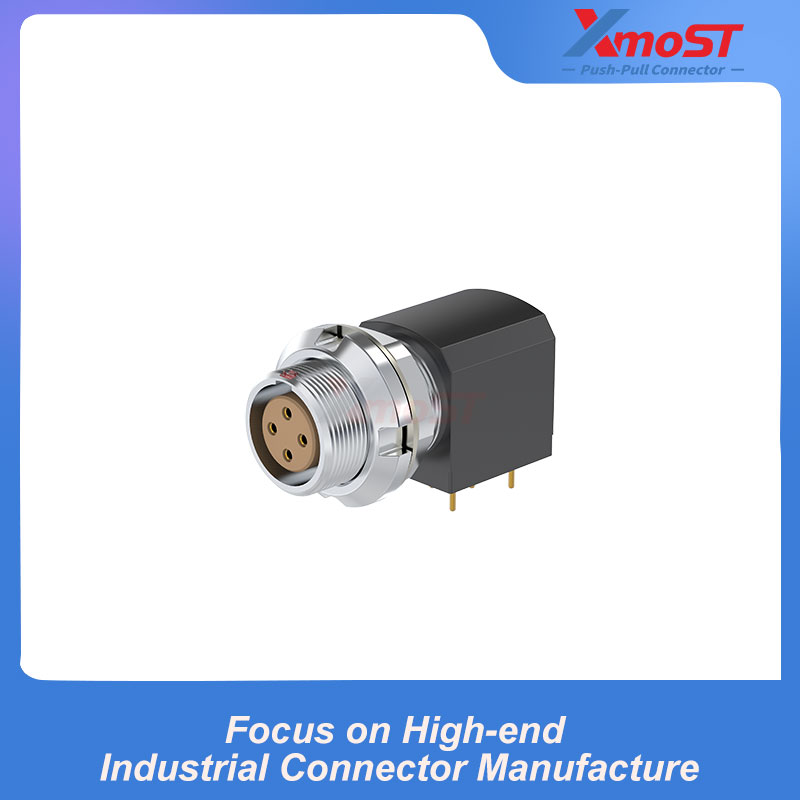

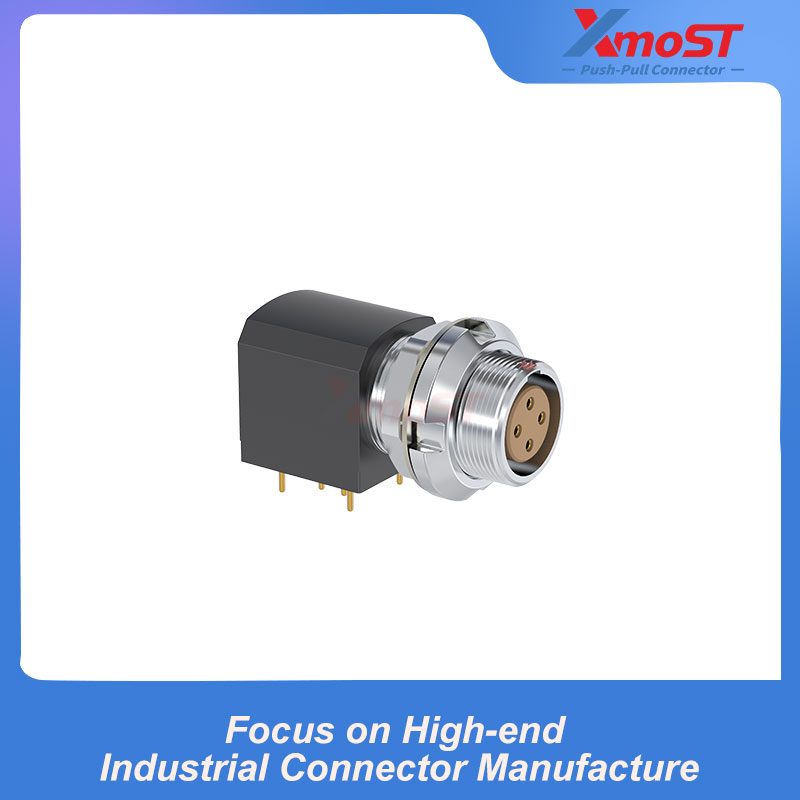

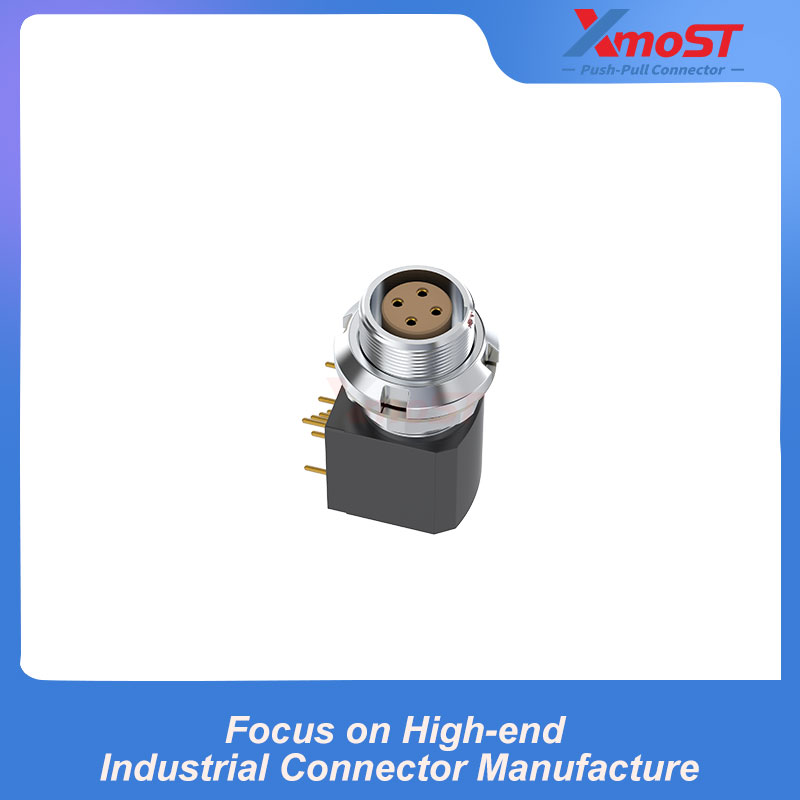

XM-LEXG is a B Series right-angle female receptacle designed for direct mounting on a printed circuit board. Its 90° PCB terminals allow the mating direction to remain parallel to the board, making it suitable for side-entry connections and equipment with limited internal installation height.
The receptacle uses a twin-nut mounting structure for secure retention on the equipment panel. Alignment positioning helps maintain the correct installation orientation and improves mechanical stability during PCB assembly.
Its female mating interface is compatible with corresponding B Series Push-Pull male plugs, enabling fast, secure and tool-free connection. Standard G keying ensures correct mating orientation, while optional A–M key configurations help prevent cross-mating between similar connectors installed in the same system.
Product Features
- Right-angle female receptacle for PCB mounting
- 90° through-hole PCB terminals
- Twin-nut structure for secure panel mounting
- Alignment positioning for accurate installation
- Compatible with the B Series Push-Pull self-latching system
- Fast, secure and tool-free mating and unmating
- Standard G key for correct connector orientation
- Optional A–M key configurations
- Available in 00, 0B and 1B sizes
- Space-saving design for side-entry PCB connections

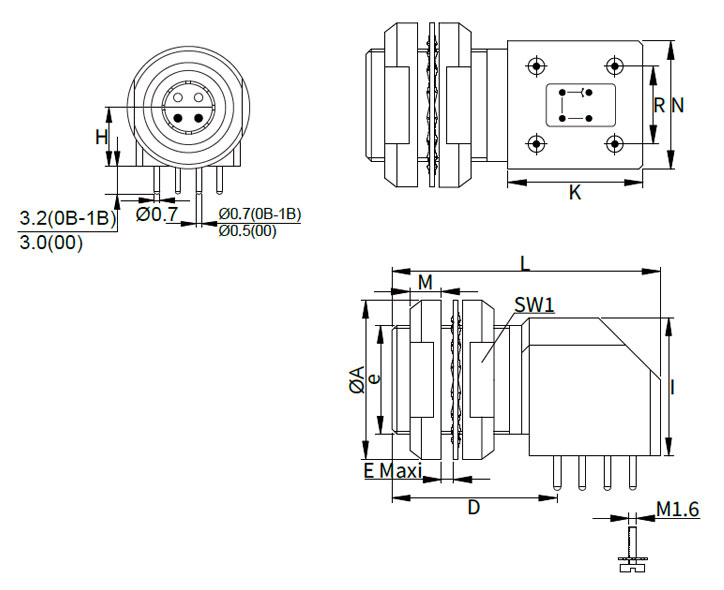

Dimensions
All dimensions are in millimetres.
| Size | A | B | D | Mounting Thread e | E | H | I | K | L | M | N | R | SW1 |
| 00 | 10 | 10.2 | 11.5 | M7 × 0.5 | 2.1 | 3.5 | 7.0 | 8.7 | 19 | 2.5 | 7.1 | 5.08 | 9 |
| 0B | 12 | 12.4 | 14.6 | M9 × 0.6 | 6.0 | 6.7 | 12.7 | 13.3 | 25 | 2.5 | 11.7 | 7.62 | 11 |
| 1B | 14 | 15 | 16.6 | M11 × 0.5 | 7.5 | 7.5 | 14 | 13.3 | 27 | 3.5 | 12.6 | 7.62 | 13 |
PCB Terminal Reference
| Size | PCB Terminal Length | PCB Terminal Diameter |
| 00 | 3.0 mm | Ø0.5 mm |
| 0B–1B | 3.2 mm | Ø0.7 mm |
PCB drawing also shows M1.6 mechanical mounting features. Their exact location and the solder-side-to-socket-side contact correspondence should be confirmed against the official PCB footprint drawing before board layout.
Typical Applications
- Industrial control electronics
- Test and measurement instruments
- Medical and laboratory devices
- Communication equipment
- Embedded control systems
- Automation and robotic equipment
- Compact PCB assemblies
- Side-entry equipment interfaces
Final contact configuration, keying option, panel thickness, PCB footprint and electrical requirements should be confirmed according to the selected part number before PCB design and ordering.
