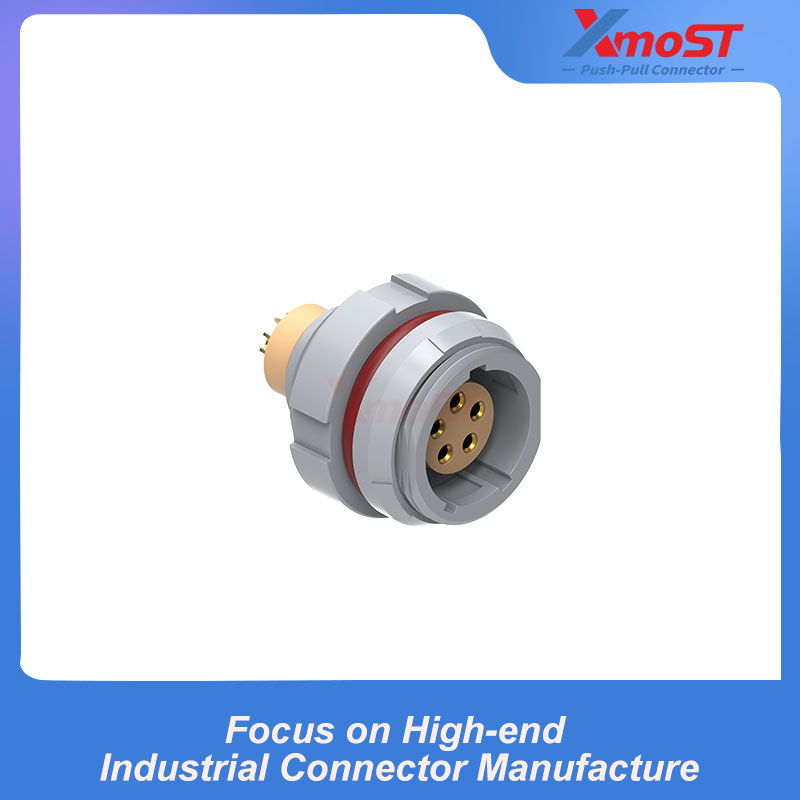

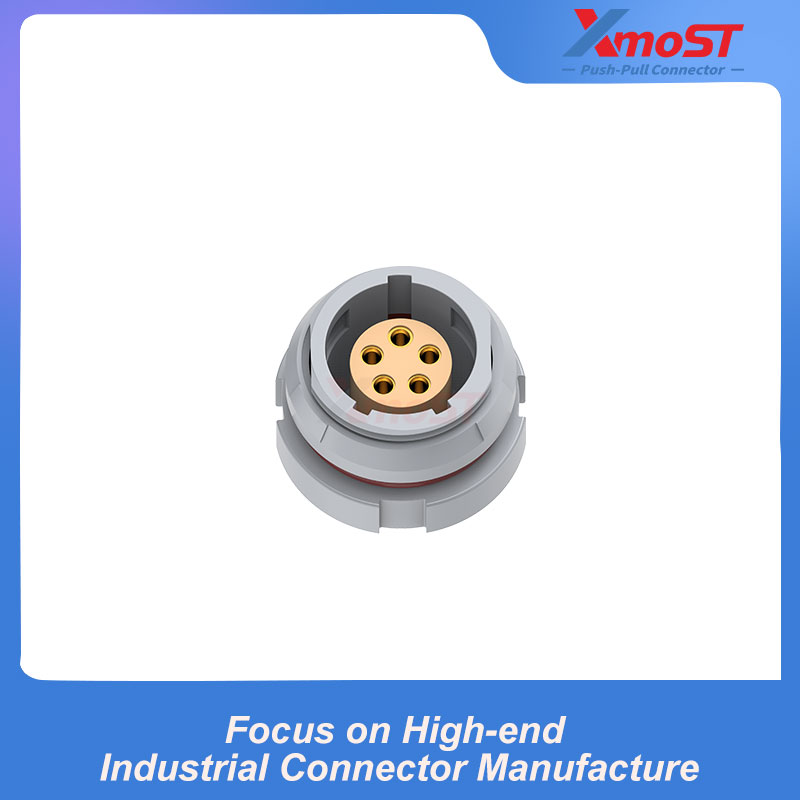

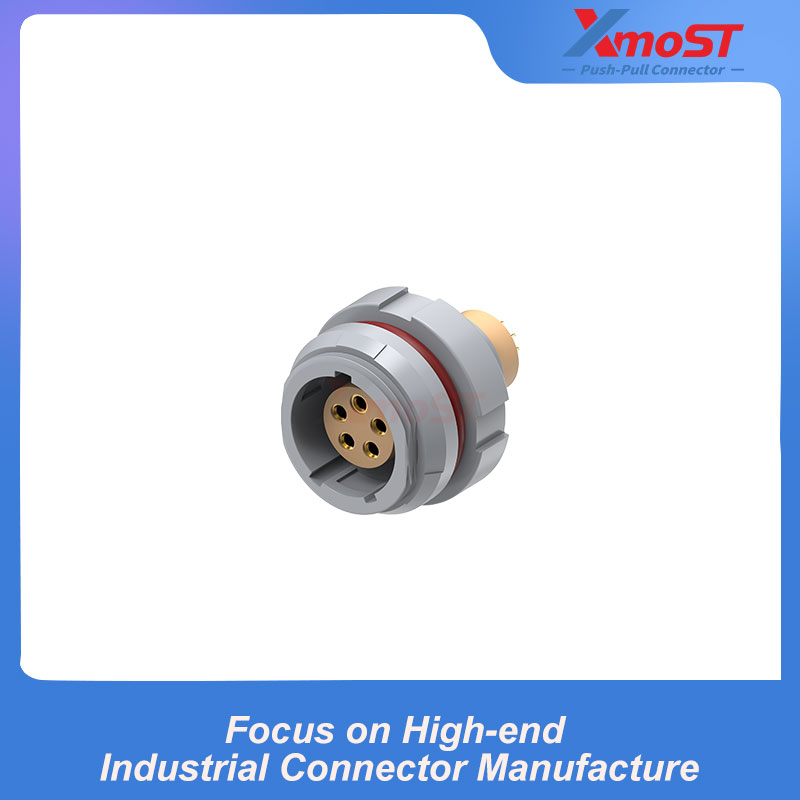

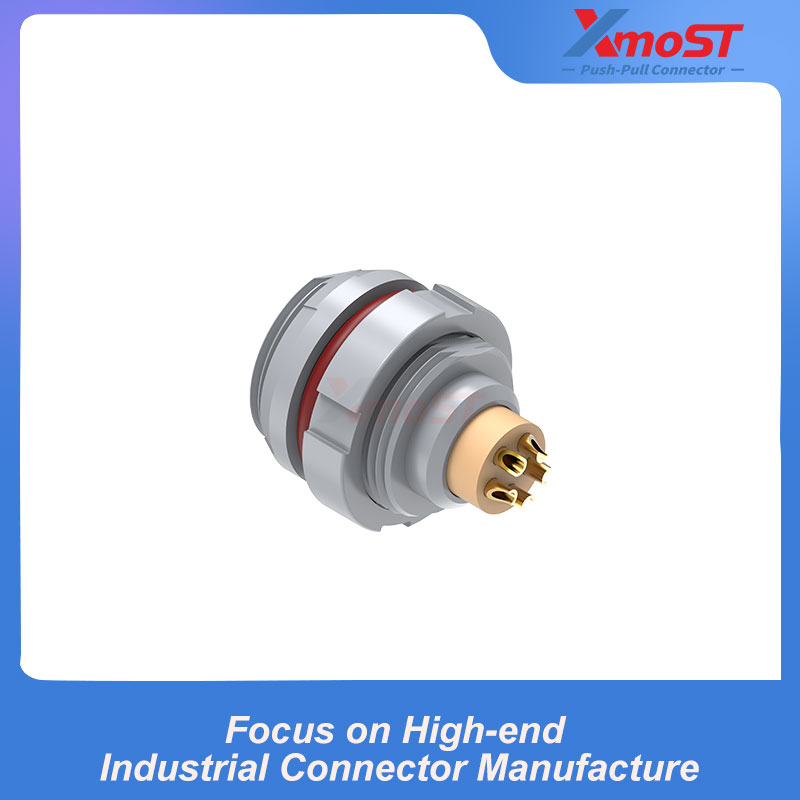

XM-LCLB is a 2P Series fixed female receptacle designed for panel installation with an internal nut mount. It features a G alignment pin and a Push-Pull self-locking mechanism for quick and secure connection. The fixed straight receptacle design provides reliable panel mounting for compact connector applications.
Product Features & Advantages
- Compact 2P Series connector design
- Push-Pull self-locking system
- G alignment pin for correct connector orientation
- Fixed female receptacle configuration
- Internal nut mount for panel installation
- Straight connector configuration
- Lightweight and robust construction
- Supports solder and PCB mount contact configurations
- Suitable for applications requiring reliable panel-mounted connections

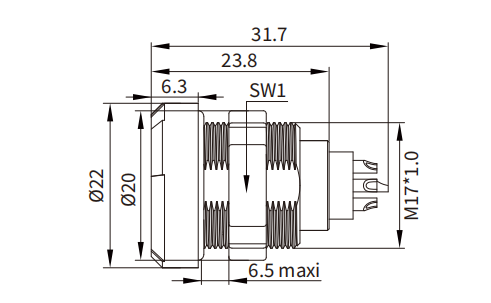

Dimensions
| Series | A (mm) | B (mm) | e | L1 (mm) | L2 (mm) | L3 (mm) | L4 (mm) | SW1 (mm) |
|---|---|---|---|---|---|---|---|---|
| 2P | 20 | 22 | M17×1.0 | 31.7 | 23.8 | 6.5 | 6.3 | 15.5 |
Technical Parameters
| Parameter | Specification |
|---|---|
| Usage Temperature | -40°C ~ +120°C |
| Mating Cycles | >1000 |
| Rubber Core Material | PEEK |
| Terminal Material | Copper Alloy, Gold-Plated |
| Screw / Nut Material | High-Performance Engineering Plastic, with Material Options |
| Main Material | High-Performance Engineering Plastic, with Material Options |
| Seal / O-Ring | FKM |
| Protection Grade | IP64 |
| Salt Spray Test | Over 96 hours |
| Humidity | Max. 95% Relative Humidity at 60°C |
| Vibration Resistance | 10–2000Hz, 15g |
| Shock Resistance | 100g, 6ms |
| Insulation Resistance | ≥100MΩ |
Product Industry Applications
- Industrial Equipment
- Electronic Equipment
- Test & Measurement Equipment
- Control Systems
- Automation Equipment
- Medical and Technical Equipment
