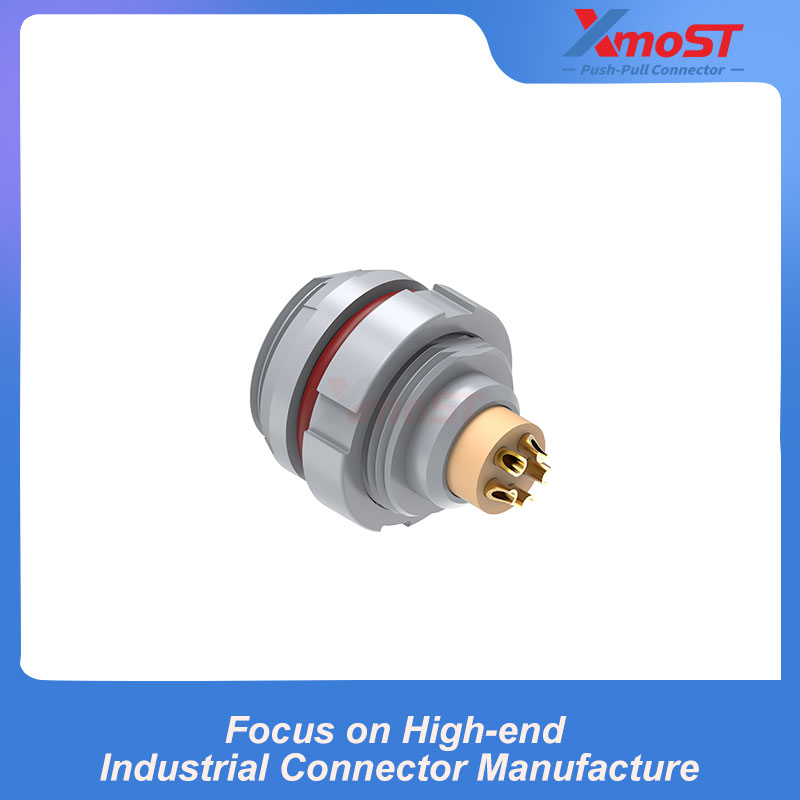

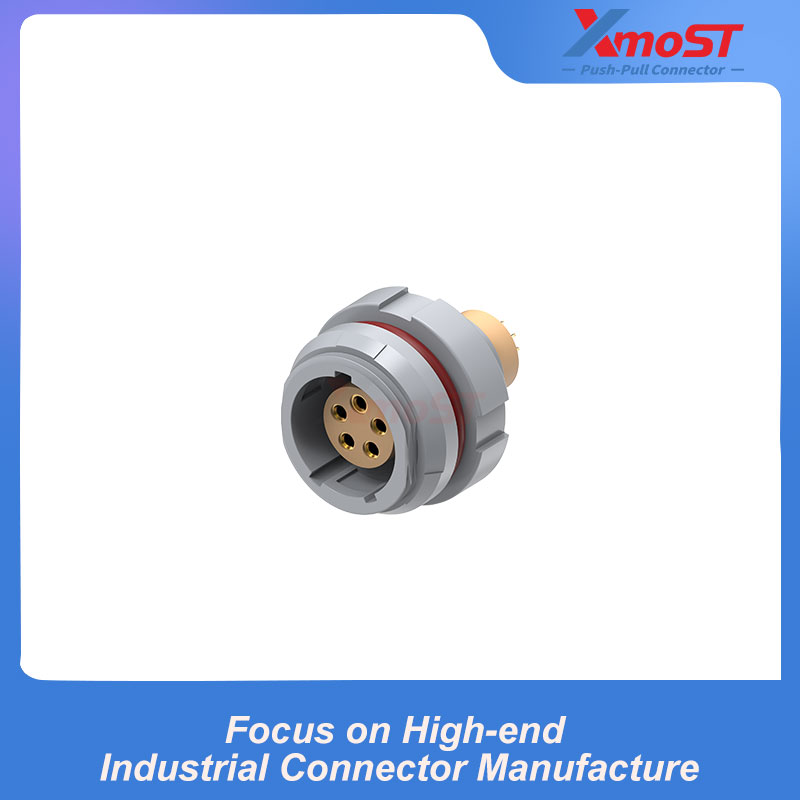

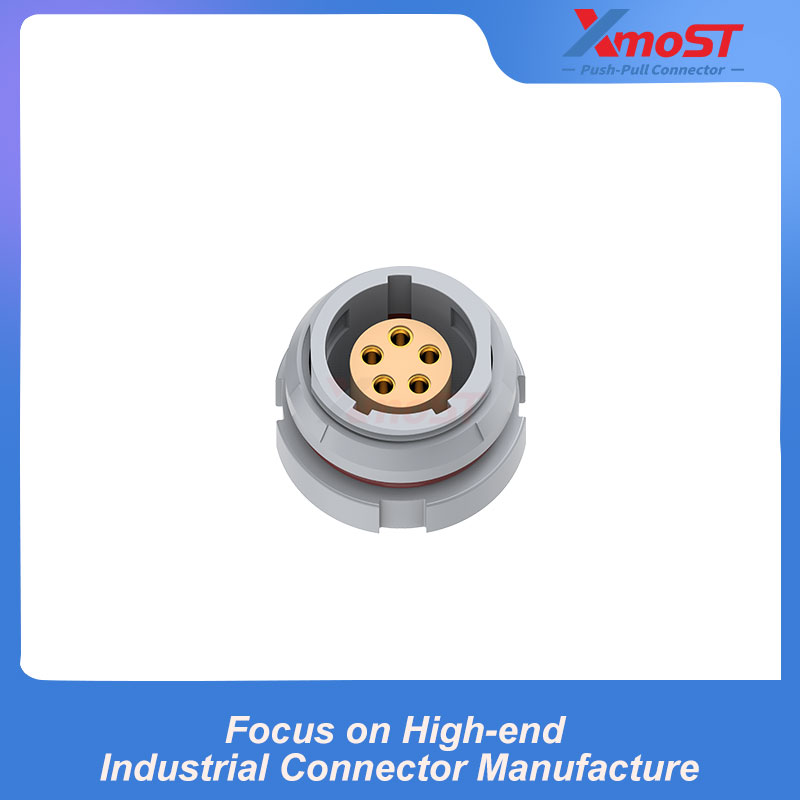

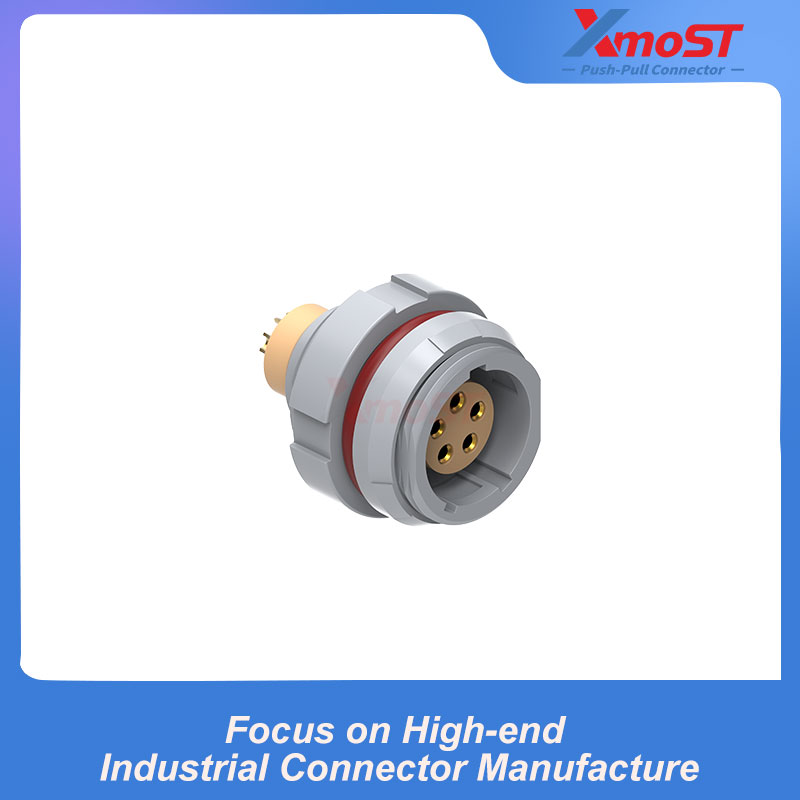

XM-LCKB is a 2P Series fixed female receptacle designed for panel installation with internal and external nut mounting. It features a G alignment pin and a Push-Pull self-locking mechanism for quick and secure mating. The straight receptacle design provides a compact connection solution for equipment requiring reliable panel-mounted connectors.
Product Features & Advantages
- Compact 2P Series connector design
- Push-Pull self-locking system
- G alignment pin for correct connector orientation
- Fixed receptacle for panel installation
- Internal and external nut mounting
- Lightweight and robust construction
- Straight receptacle configuration
- Supports up to 32 solder or crimp contacts
- Supports solder and PCB mount contacts in straight and angled configurations
- Color-coded nuts for anti-mismating

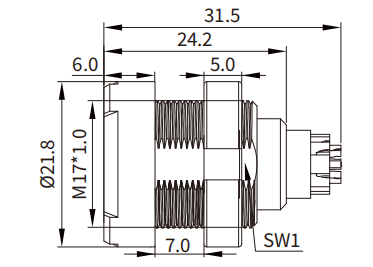

Dimensions
| Series | A (mm) | F (mm) | e | L1 (mm) | L2 (mm) | L3 (mm) | D (mm) | SW1 (mm) |
|---|---|---|---|---|---|---|---|---|
| 2P | 21.8 | 7.0 | M17*1.0 | 31.5 | 24.2 | 5.0 | 6.0 | 15.5 |
Технические параметры
| Параметр | Характеристика |
|---|---|
| Рабочая температура | -40°C ~ +120°C |
| Ресурс подключения | >1000 циклов |
| Материал изолятора | PEEK |
| Материал контактов | Медный сплав, позолоченный |
| Материал винта / гайки | Высокопрочный инженерный пластик, доступны варианты материалов |
| Основной материал | Высокопрочный инженерный пластик, доступны варианты материалов |
| Уплотнение / O-кольцо | FKM |
| Степень защиты | IP64 |
| Испытание соляным туманом | Более 96 часов |
| Влажность | Макс. 95% относительной влажности при 60°C |
| Устойчивость к вибрации | 10–2000 Гц, 15g |
| Устойчивость к удару | 100g, 6 мс |
| Сопротивление изоляции | ≥100MΩ |
Product Industry Applications
- Medical Equipment
- Dental Equipment
- Industrial Equipment
- Electronic Equipment
- Precision Instrumentation
- Test & Measurement Equipment
- Control Systems
