Description

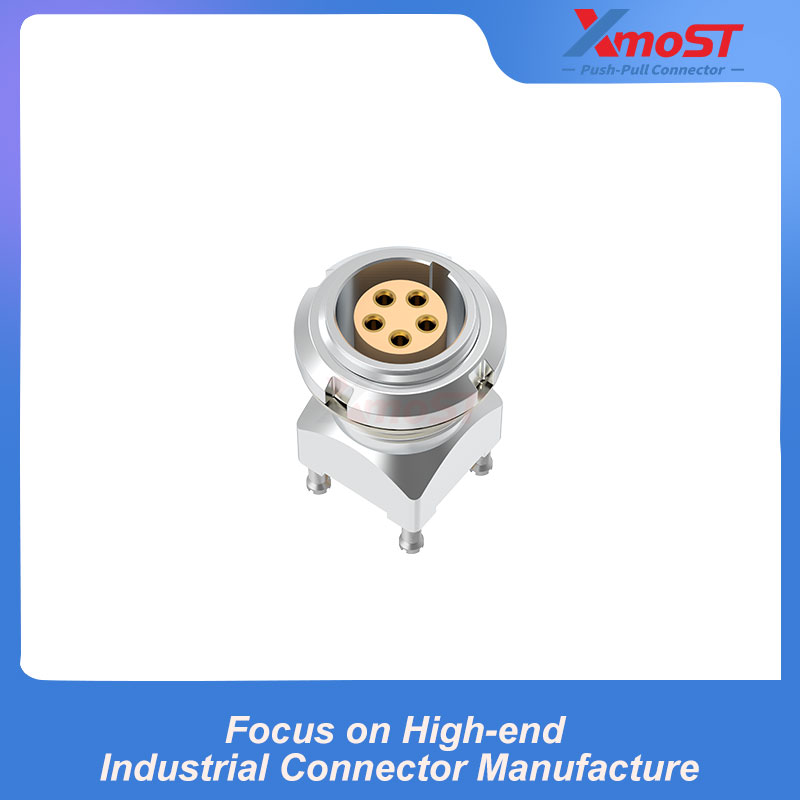

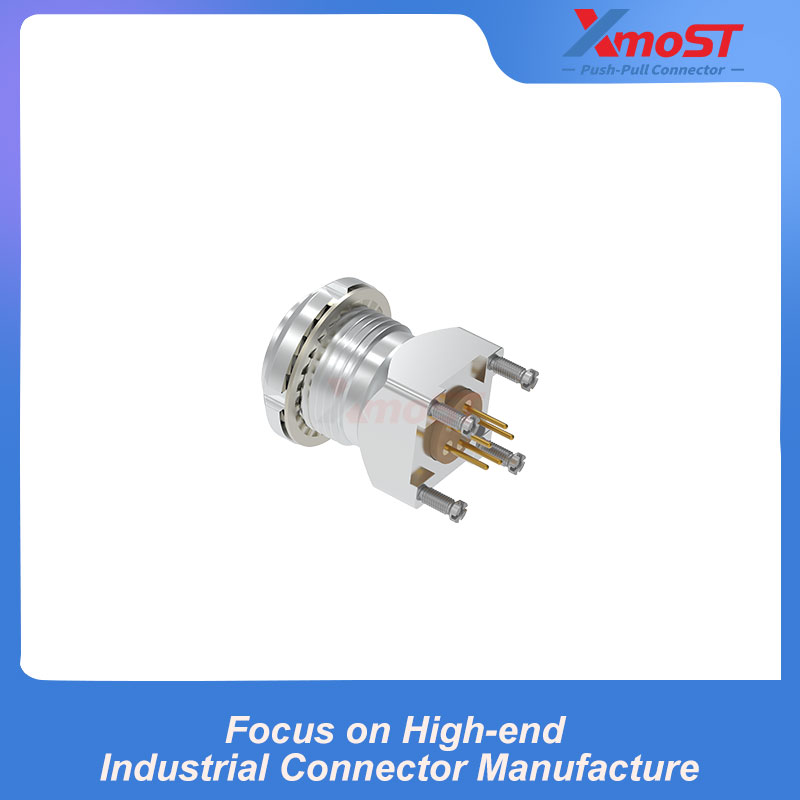

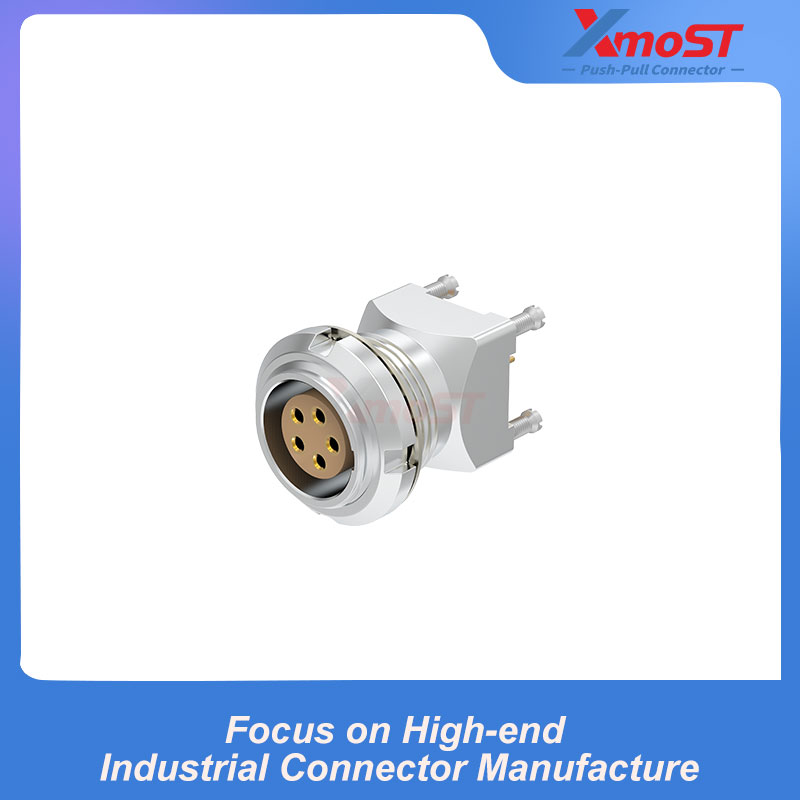

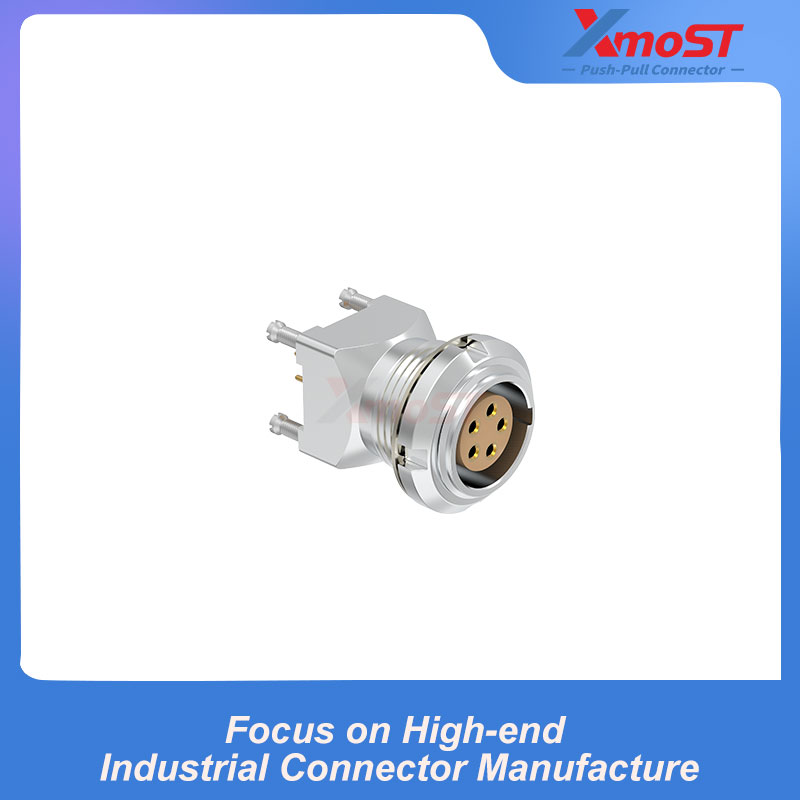

XM-LZYG is a straight female receptacle designed for direct PCB installation. Its appearance combines a cylindrical threaded front housing with a square rear support structure and four protruding mounting screws.
The four M1.6 screws provide additional mechanical support and help secure the receptacle to the equipment or printed circuit board. Straight rear contacts provide direct PCB connection.
The female mating interface supports push-pull self-locking connection with a compatible male plug. The standard G alignment key guides correct mating, while alternative A–M keying options help prevent cross-mating between similar connectors.
Product Features
- Straight female PCB receptacle
- Female mating interface
- Cylindrical threaded front housing
- Square rear support structure
- Four-point screw mounting
- Four M1.6 mounting screws
- Straight PCB contacts
- Direct printed circuit board connection
- Push-pull self-locking mating system
- Standard G alignment key
- Alternative A–M keying options
- Available in 0B, 1B and 2B shell sizes

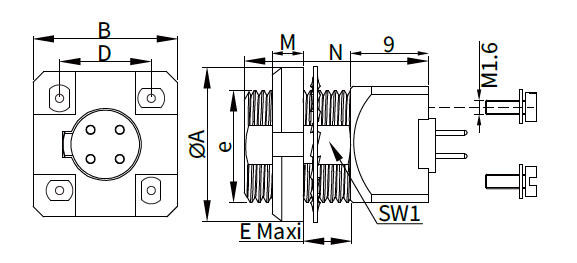

Dimensions
| Series | A (mm) | B (mm) | D (mm) | e | E (mm) | M (mm) | N (mm) | SW1 (mm) |
|---|---|---|---|---|---|---|---|---|
| 0B | 12 | 10 | 7.62 | M9 × 0.6 | 2.6 | 2.5 | 15 | 8.2 |
| 1B | 14 | 12 | 7.62 | M11 × 0.5 | 5 | 3.5 | 19 | — |
| 2B | 20 | 15 | 10.16 | M15 × 1.0 | 7.5 | 3.5 | 22.5 | 13.5 |
Mounting-screw specification: M1.6.
All dimensions are in millimetres. Dimensions B and D should be used when preparing the four-point screw-mounting layout.
Applications
- Industrial control equipment
- Automation and sensor systems
- Robotics and motion-control equipment
- Test and measurement instruments
- Medical and diagnostic devices
- Communication equipment
- Professional audio/video systems
- PCB assemblies requiring additional screw support
