Description

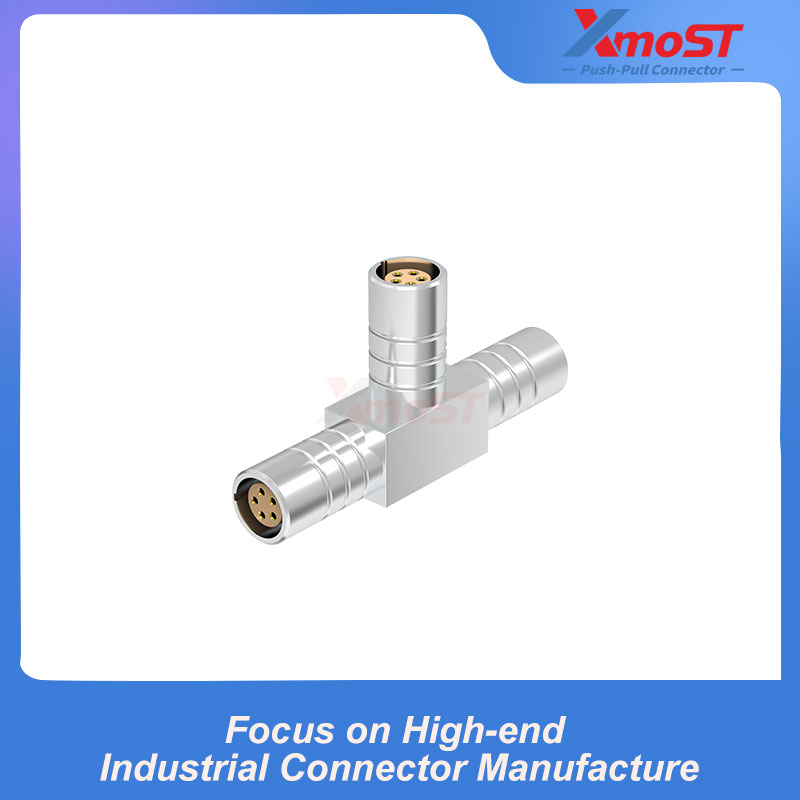

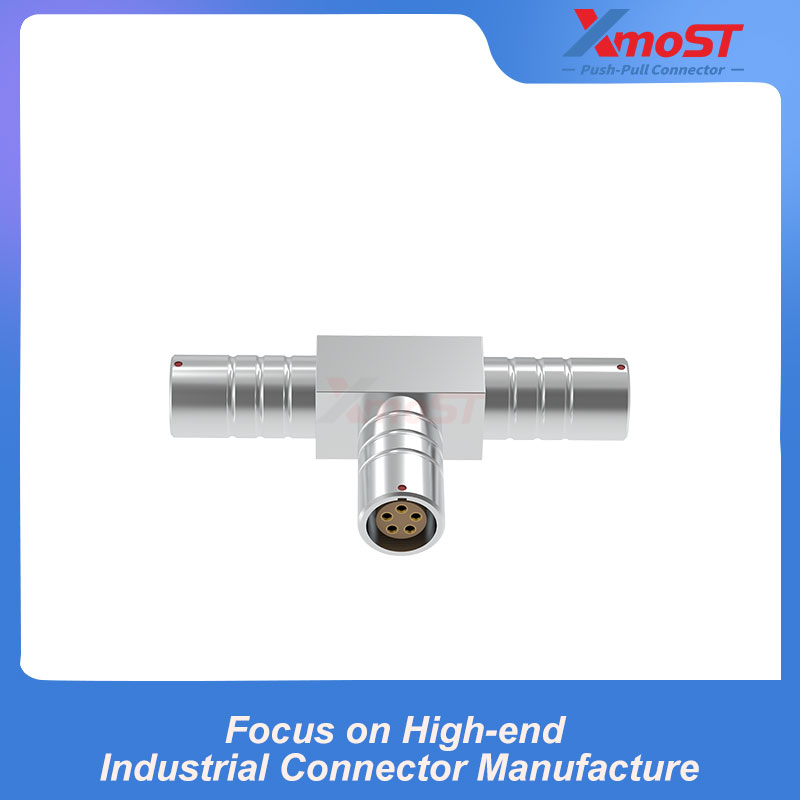

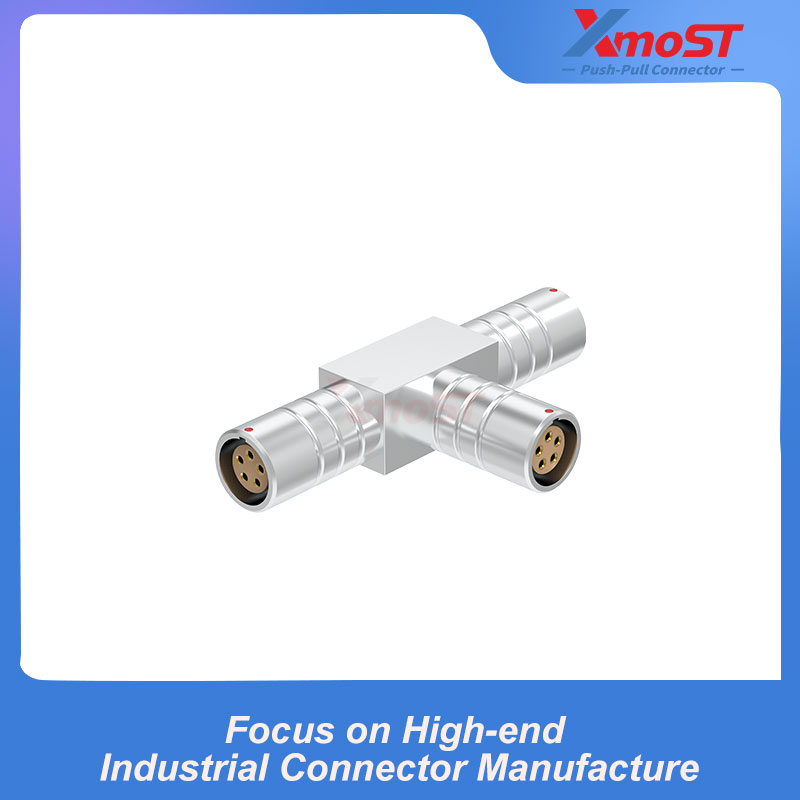

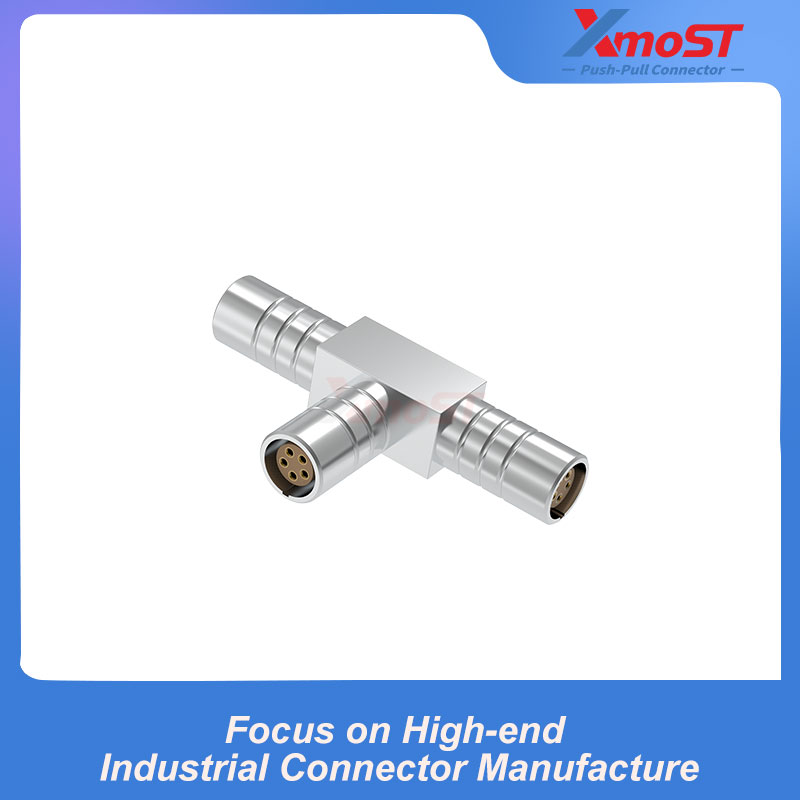

XM-LPTG is a T-shaped female cable connector featuring two horizontally opposed connection ends and one downward-facing branch. Its compact three-way structure supports cable-to-cable interconnection and organized cable routing in multiple directions.
Each connection end features a female mating interface. The connector also incorporates cable clamps and a push-pull self-locking mechanism for secure cable retention and reliable mating. The standard G alignment key supports correct positioning, with alternative A–M keying options available.
Product Features
- T-shaped three-way female connector
- Female mating interfaces
- Two horizontal connections and one downward branch
- Designed for cable-to-cable connections
- Integrated cable clamps
- Push-pull self-locking mechanism
- Standard G alignment key
- Alternative A–M keying options
- 1B shell size

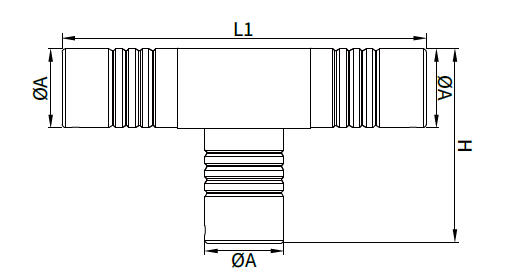

Dimensions
| Series | A (mm) | L1 (mm) | H (mm) |
|---|---|---|---|
| 1B | 11.8 | 55 | 29.4 |
All dimensions are in millimetres.
Applications
- Industrial cable interconnection
- Automation and sensor networks
- Robotics and motion-control equipment
- Test and measurement systems
- Communication equipment
- Professional audio/video systems
- Equipment requiring T-shaped cable routing
