XM-LEEG T Series Fixed Receptacle

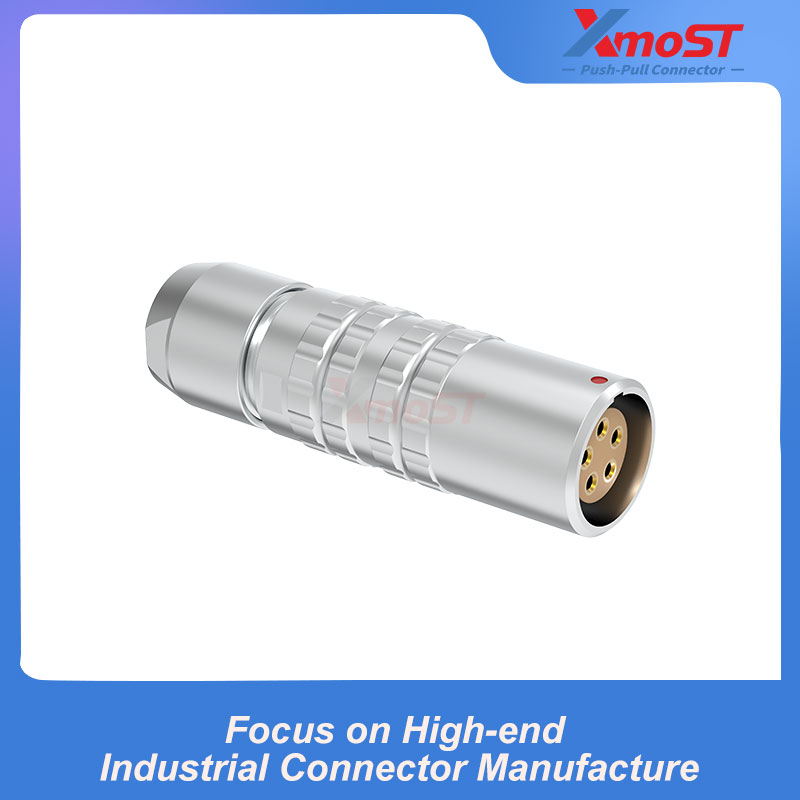

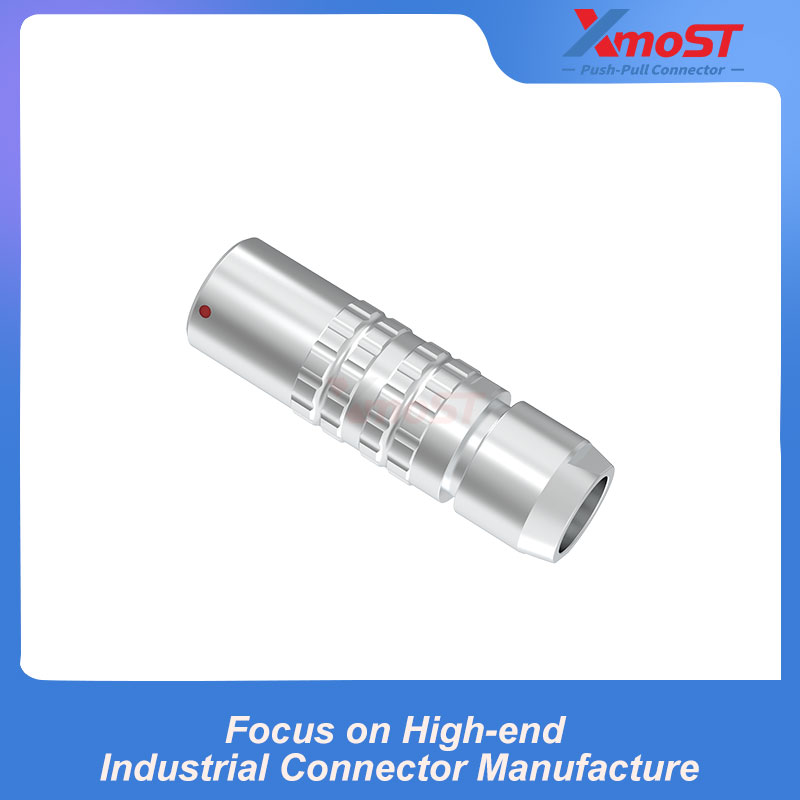

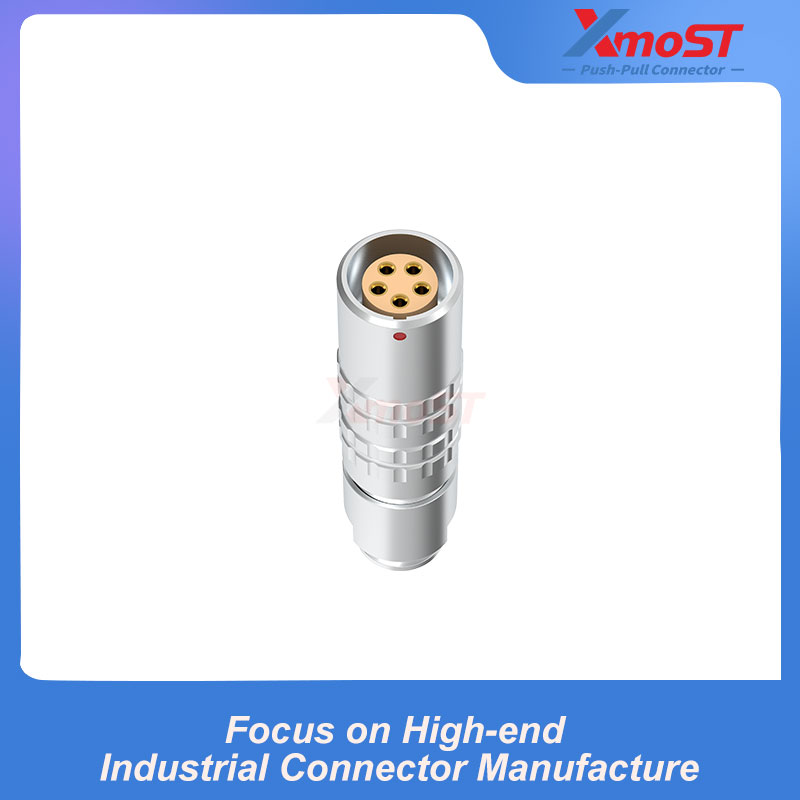

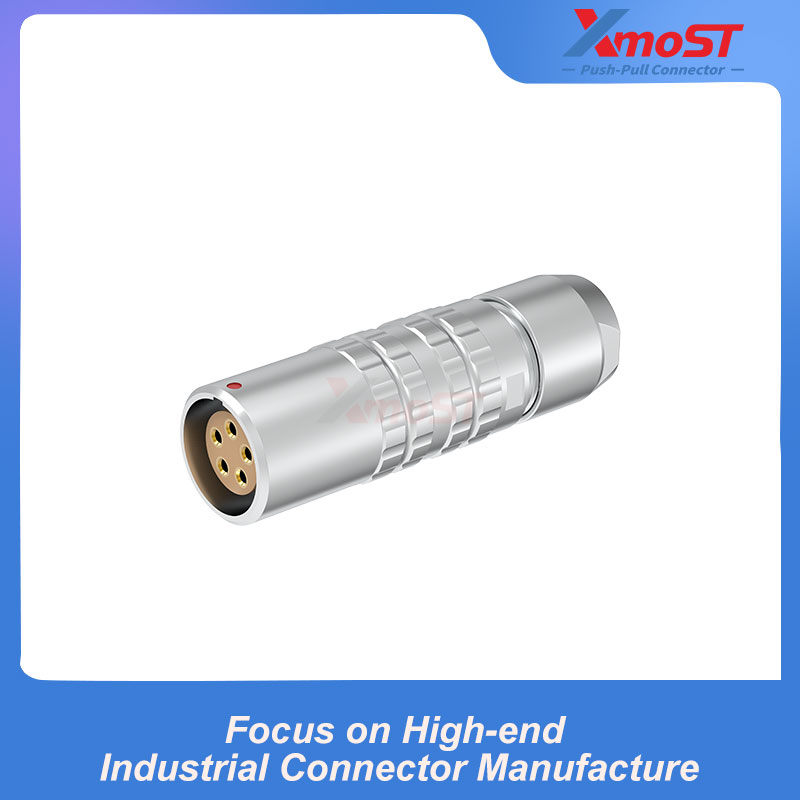

XM-LPHG is a T Series floating female receptacle designed for miniature outdoor equipment and compact electrical connection applications. It features a straight receptacle configuration, G alignment pin, self-locking mechanism, and cable clamp for secure cable connection.

The floating receptacle design provides greater installation flexibility where precise alignment between the connector and equipment interface is required. Its compact construction is suitable for applications with limited installation space.

The Push-Pull self-latching system enables quick and secure mating, while mechanical keying helps prevent cross-mating. High contact density helps save installation space, and 360° shielding provides full EMC shielding for reliable electrical and signal connections.

XM-LPHG is compatible with existing B sockets and uses the same mounting hole as B sockets. The T Series supports 2 to 32 contacts, cable diameters from 1.0 to 10.5 mm, and solder, crimp, or print contacts.

Product Features & Advantages

• IP68 mated
• Push-Pull self-latching system
• Mechanical key (FGG) with multiple keys to avoid cross-mating
• High packing density for space savings
• 360° shielding for full EMC shielding
• Compatible with existing B sockets
• Same mounting hole as B sockets
• Black-chrome plated brass and plastic outer shell available
• Multipole types 2 to 32 contacts
• For cables 1.0 up to 10.5 mm
• Solder, crimp or print contacts

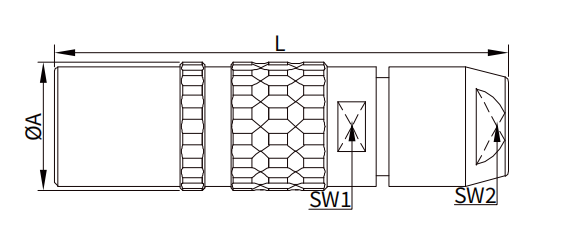

Dimensions
