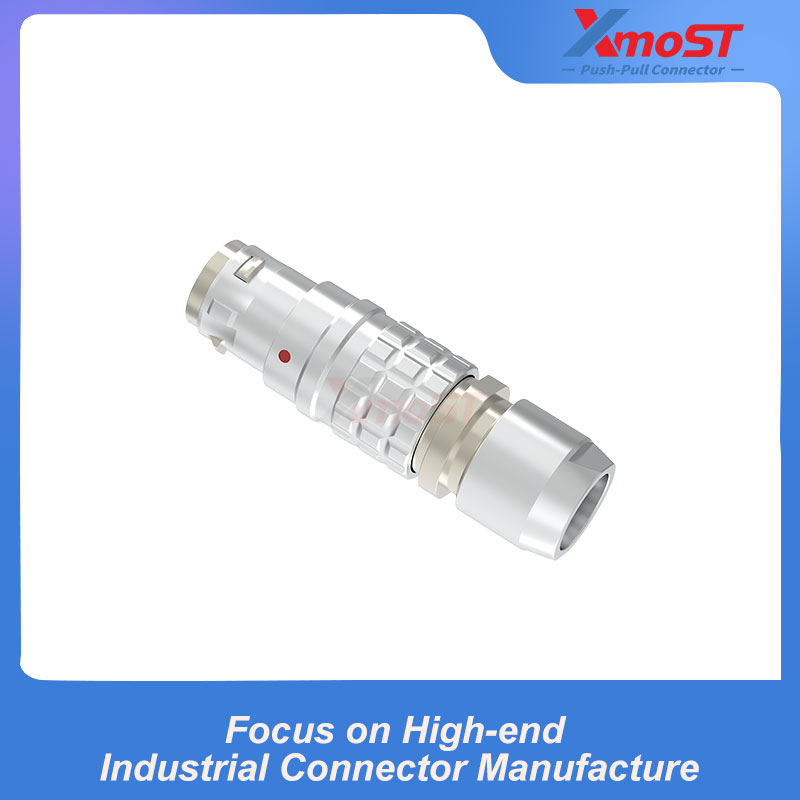

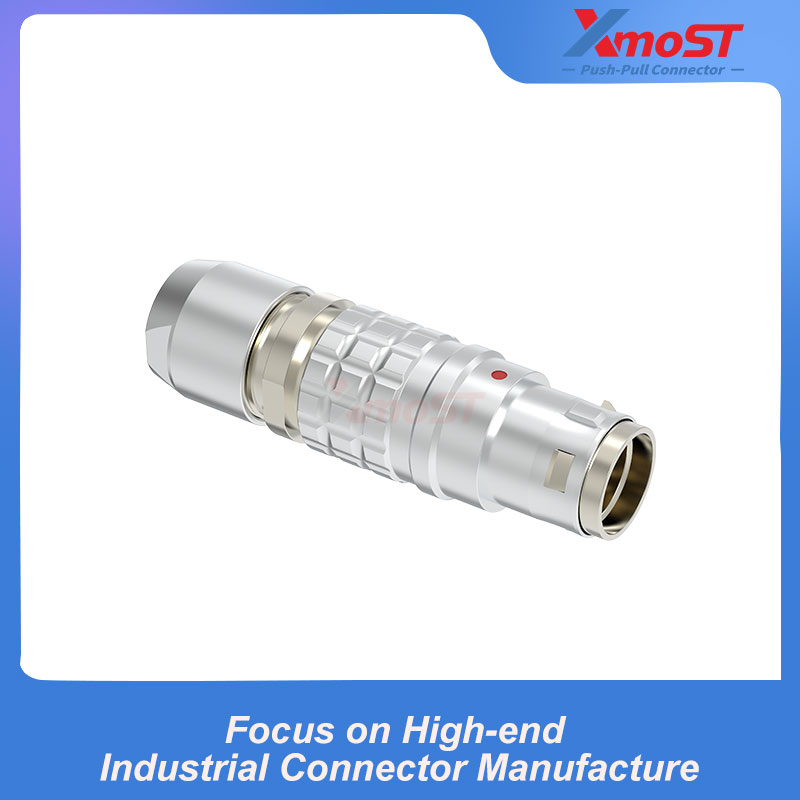

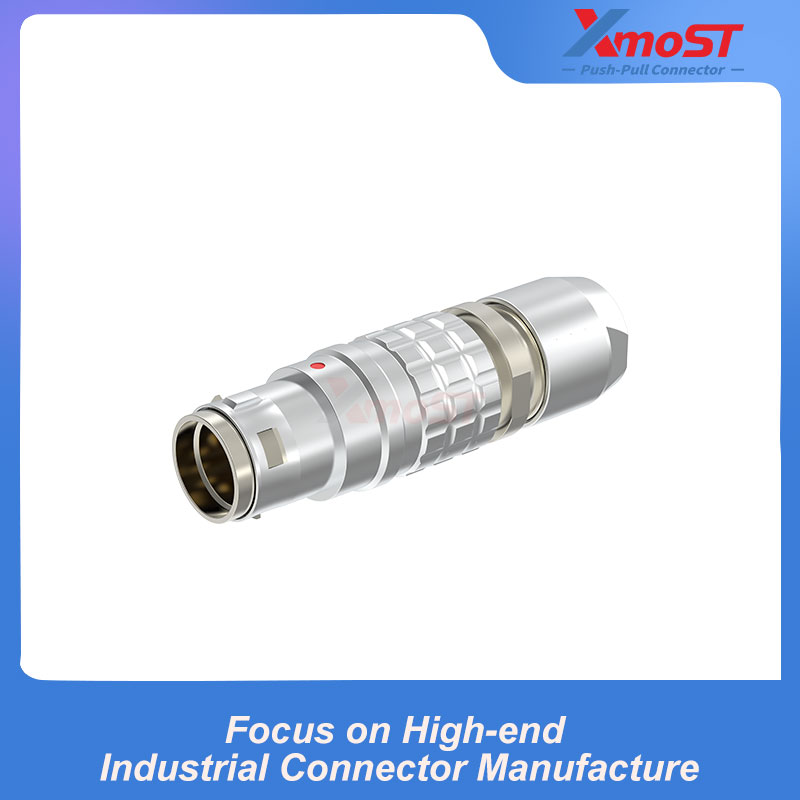

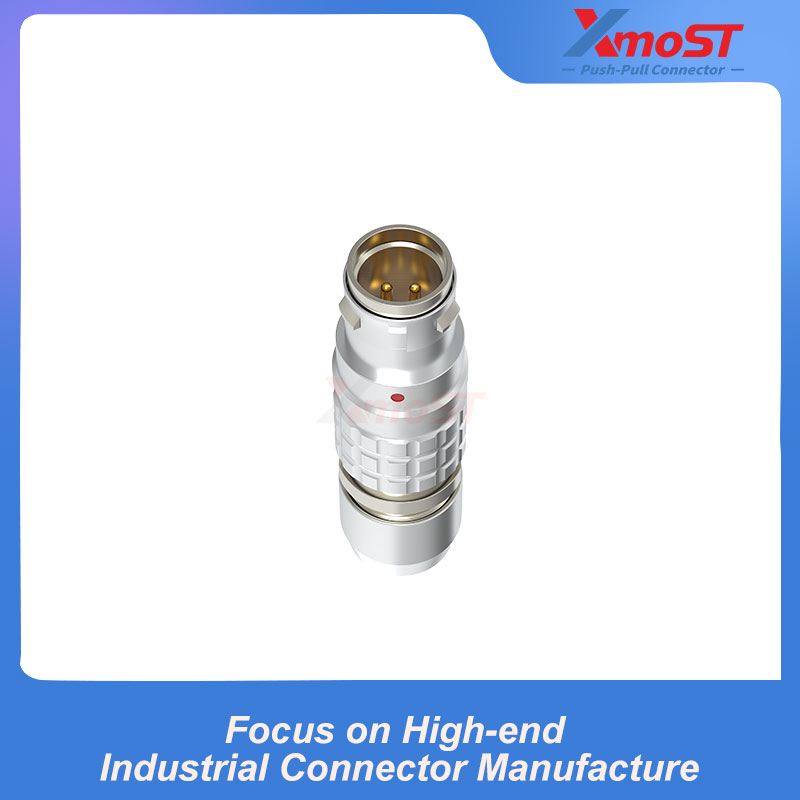

XM-LFGG is a standard T Series waterproof straight plug with a cable clamp and G/A-M alignment options. It features a Push-Pull self-latching system for quick and secure mating and is designed for miniature outdoor applications. The connector incorporates the T Series sealing and shielding design, providing IP68 protection when mated and 360° EMC shielding. Its compact construction is suitable for precision equipment where installation space is limited.
Product Features & Advantages
- IP68 protection when mated
- Push-Pull self-latching system
- Mechanical keying with multiple options to prevent cross-mating
- High packing density for space savings
- 360° shielding for full EMC protection
- Compatible with existing B sockets
- Same mounting hole as B sockets
- Black-chrome plated brass and plastic outer shell options
- Multipole configurations from 2 to 32 contacts
- Suitable for cables from 1.0 to 10.5 mm
- Solder, crimp, or print contact options

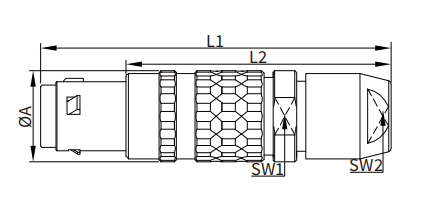

Dimensions (mm)
| Series | A | L1 | L2 | SW1 | SW2 |
|---|---|---|---|---|---|
| 00T | 7 | 32.7 | 24.7 | 5.5 | 6 |
| 0T | 9.5 | 38 | 28 | 7.5 | 7 |
| 1T | 12 | 45 | 34 | 11 | 9 |
| 2T | 15 | 54 | 42 | 14 | 12 |
| 3T | 18.8 | 62 | 47 | 16 | 15 |
| Parameter | Specification |
|---|---|
| Operating Temperature | -55°C ~ +200°C |
| Mating Cycles | >3000 |
| Insulator Material | PEEK |
| Contact Material | Copper Alloy, Gold-Plated |
| Screw Material | Brass, Nickel-Plated |
| Main Material | Brass, Chrome-Plated |
| Seal / O-Ring | FKM |
| Protection Grade | IP66 / IP68 |
| Shielding Efficiency | >75dB (10MHz) / >40dB (1GHz) |
| Salt Spray Test | Over 144 hours |
| Humidity | Max. 95% Relative Humidity at 60°C |
| Vibration Resistance | 10–2000Hz, 15g |
| Shock Resistance | 100g, 6ms |
| Environmental Test | 55/175/21 |
| Insulation Resistance | >1000Ω |
Applications
- Outdoor Electronic Equipment
- Portable Wireless Devices
- Military Equipment
- Test & Measurement Equipment
- Aviation Equipment
- Precision Equipment
- Industrial Electronic Systems
