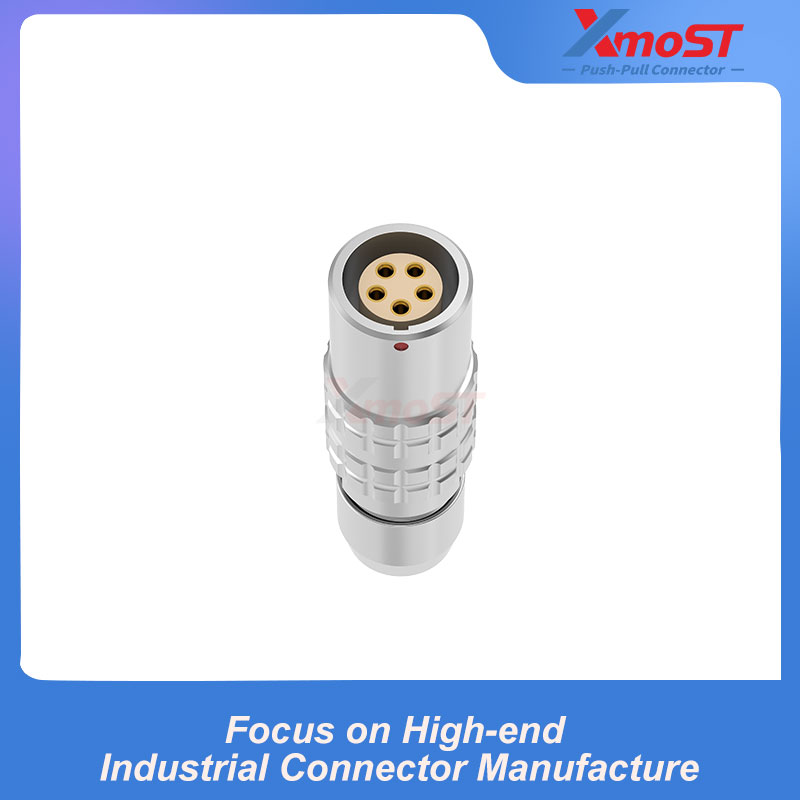

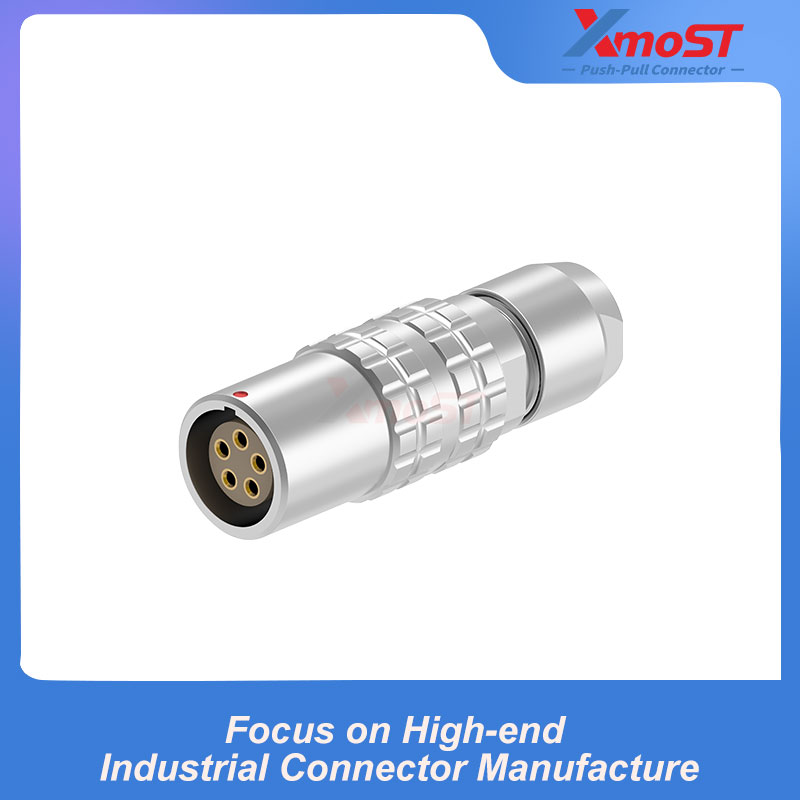

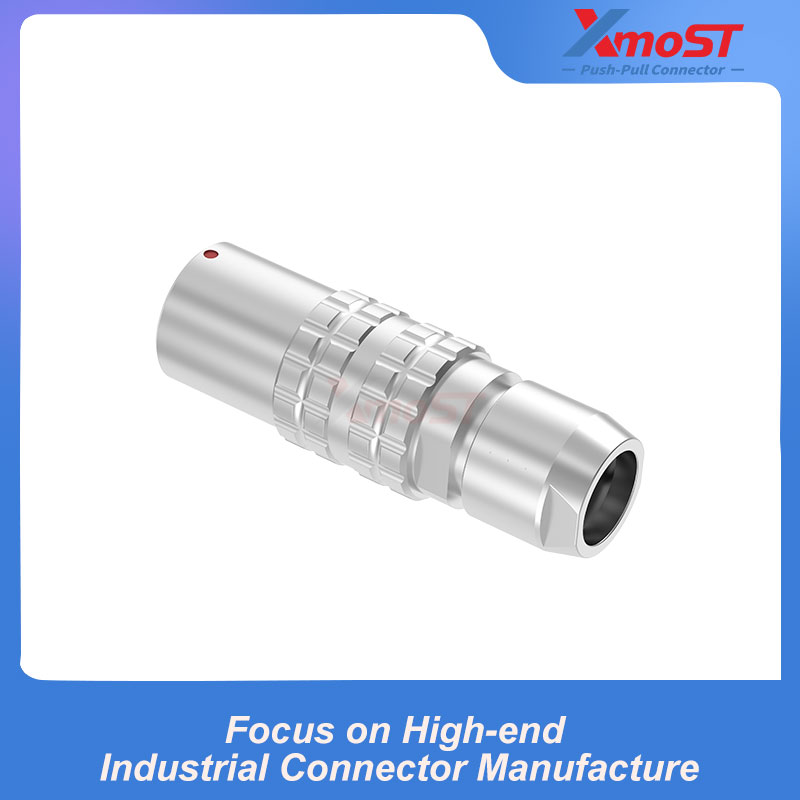

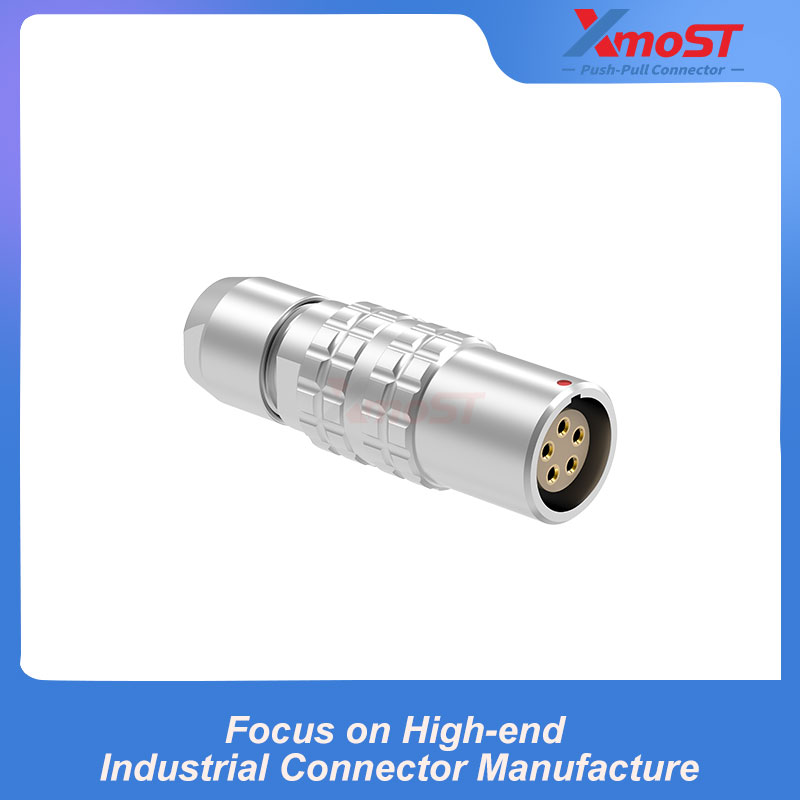

XM-LPHG is a straight male cable plug developed for the XMOST B Series Push-Pull connector system. Its extended cylindrical metal housing provides a robust and easy-to-handle connector body for cable-mounted industrial connections.
The Push-Pull self-latching mechanism enables fast, secure and tool-free mating with a compatible B Series female receptacle. A standard G alignment key ensures correct connector orientation and helps prevent incorrect mating.
XM-LPHG is available in shell sizes from 00B to 4B, allowing the appropriate connector size and contact configuration to be selected for different equipment requirements.
Product Features
- Straight male cable plug
- Extended cylindrical metal housing
- Secure Push-Pull self-latching mating system
- Fast, tool-free connection and disconnection
- Standard G key for accurate connector alignment
- Available in shell sizes from 00B to 4B
- Compact design supporting high-density contact arrangements
- Metal shell supporting 360° EMC shielding when correctly assembled and mated

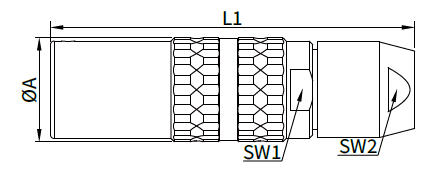

Dimensions
All dimensions are in millimetres.
| Shell Size | ØA | L1 | SW1 | SW2 |
| 00B | 6.8 | 27.5 | 5.5 | 5 |
| 0B | 9.5 | 34 | 8 | 7 |
| 1B | 11.8 | 40 | 10 | 9 |
| 2B | 16.5 | 48 | 13 | 13 |
| 3B | 18.8 | 55 | 15 | 15 |
| 4B | 26.0 | 73 | 21 | 20 |
Typical Applications
- Industrial control systems
- Test and measurement instruments
- Medical and laboratory equipment
- Automation and robotic systems
- Communication equipment
- Portable electronic devices
- Industrial signal transmission systems
Final contact configuration, termination method, cable compatibility and dimensional requirements should be confirmed according to the selected part number before ordering.
