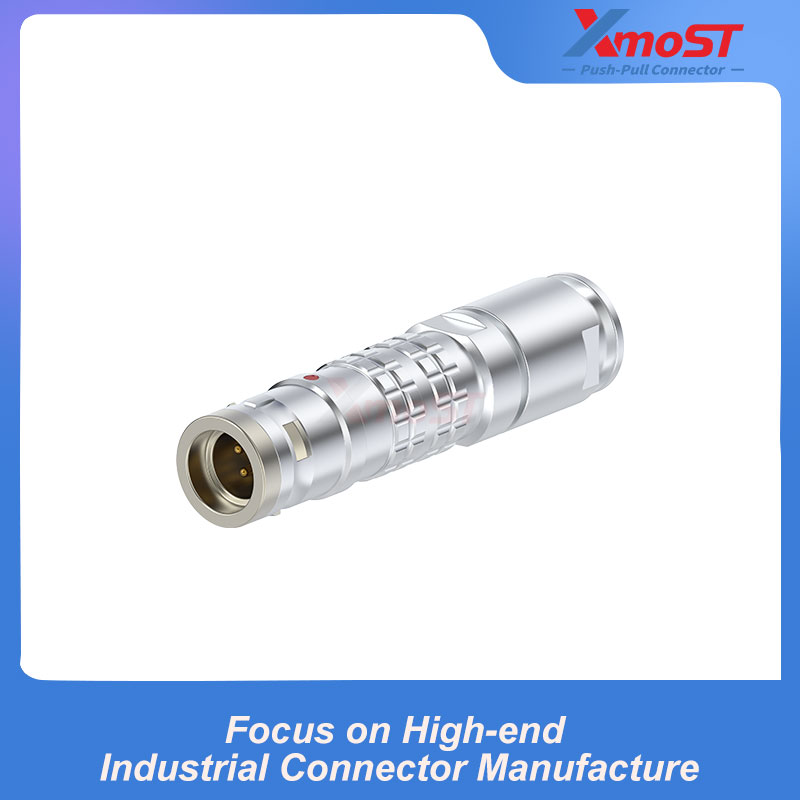

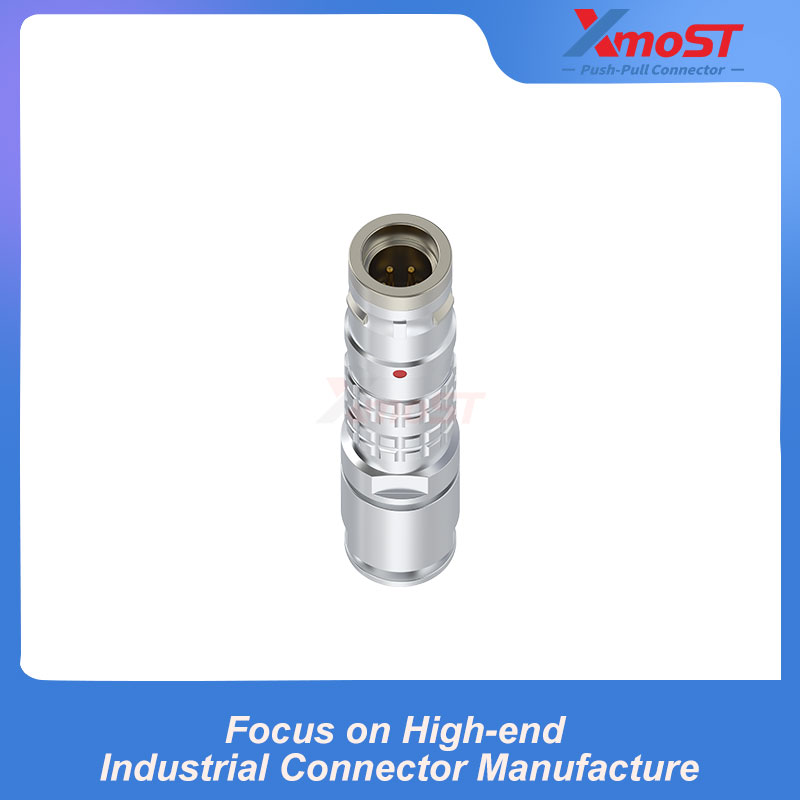

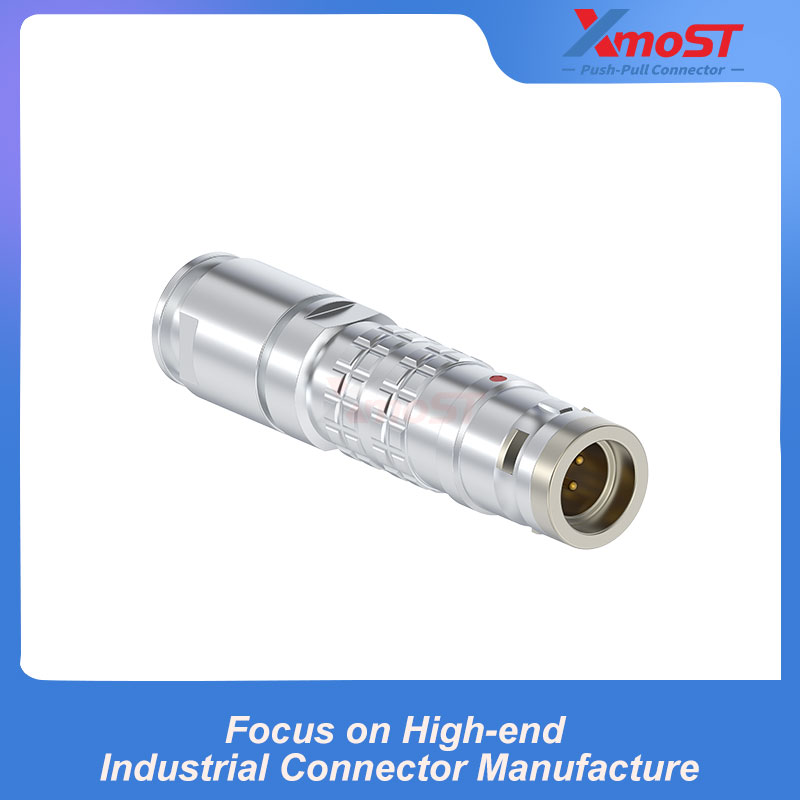

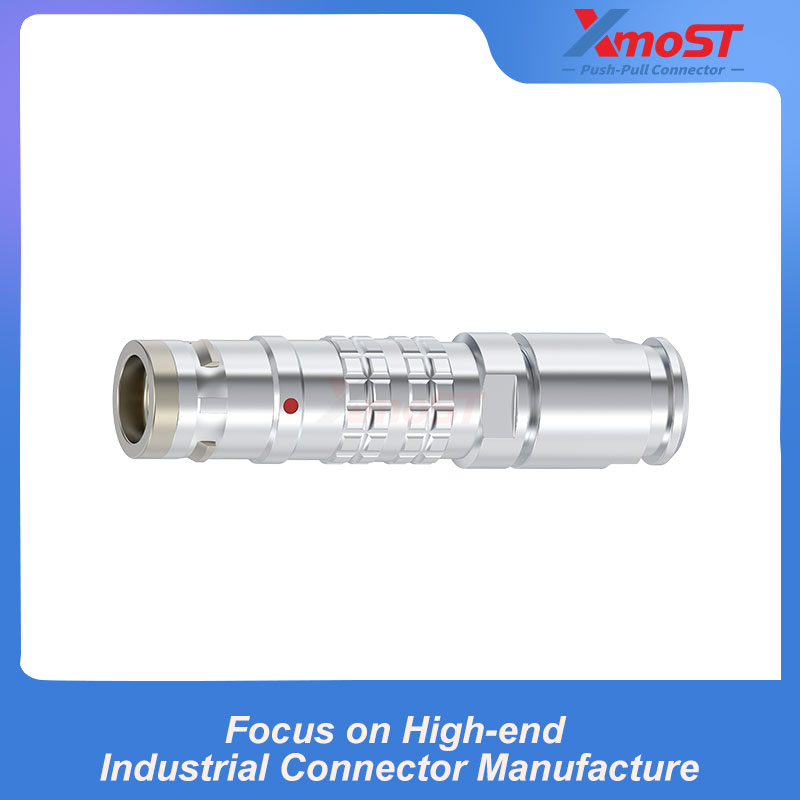

XM-LFGG is a K Series waterproof straight plug with an oversized cable clamp and backshell with strain relief. It features a Push-Pull self-latching mechanism and G alignment pin for reliable connection and cable fixation.
Product Features & Advantages
- Waterproof straight plug design
- Oversized cable clamp for larger cable sizes
- Backshell with strain relief for cable protection
- Push-Pull self-latching mechanism
- G alignment pin for reliable polarization
- K Series design for industrial connector applications

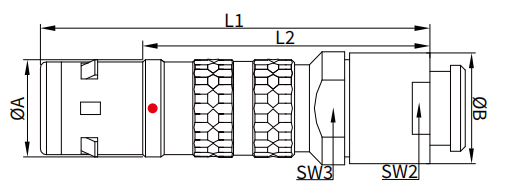

Dimensions
| Series | A (mm) | L1 (mm) | L2 (mm) | B (mm) | SW2 (mm) | SW3 (mm) |
|---|---|---|---|---|---|---|
| 0K | 11 | 46 | 35 | 11 | 9 | 10 |
| 1K | 13 | 60 | 46 | 14.5 | 13 | 13 |
| 2K | 16 | 68 | 52 | 17 | 15 | 16 |
| 3K | 18.9 | 85 | 65 | 21.5 | 19 | 19 |
Technical Parameters
| Parameter | Specification |
|---|---|
| Usage Temperature | -55℃ ~ +200℃ |
| Mating Cycles | >5000 |
| Rubber Core Material | PEEK |
| Terminal Material | Copper Alloy, Gold-Plated |
| Screw/Nut Material | Brass, Nickel-Plated |
| Main Material | Brass, Chrome-Plated |
| Seal/O-Ring | FKM |
| Protection Grade | IP66 / IP68 |
| Shielding Efficiency | 10MHz > 75dB / 1GHz > 40dB |
| Salt Spray Test | Over 144 hours |
| Humidity | Max. 95% Relative Humidity at 60℃ |
| Vibration Resistance | 10-2000Hz, 15g |
| Shock Resistance | 100g, 6ms |
| Environmental Test | 50/175/21 |
| Insulation Resistance | ≥1000Ω |
