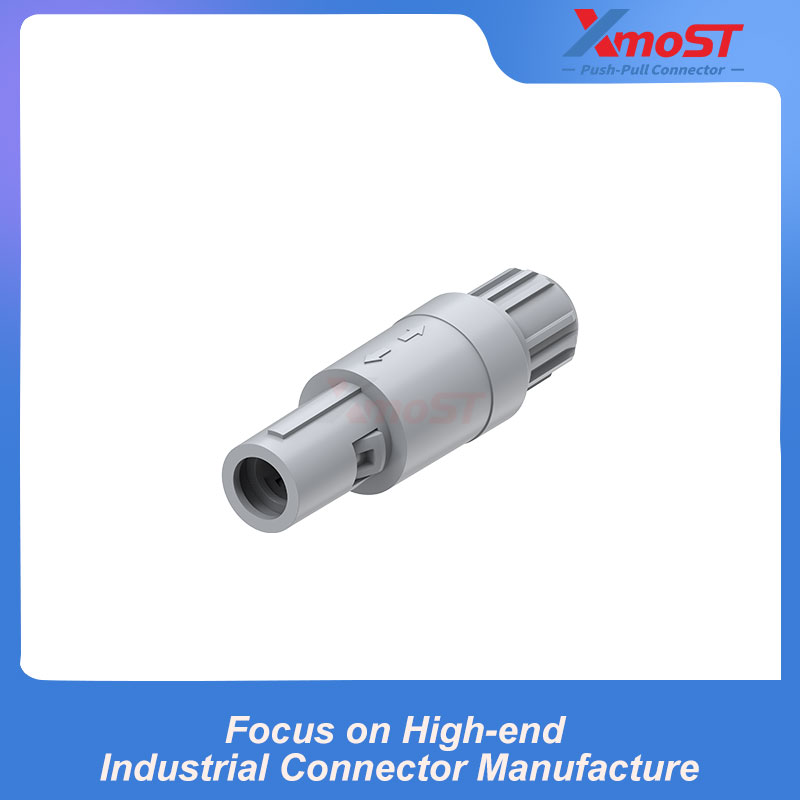

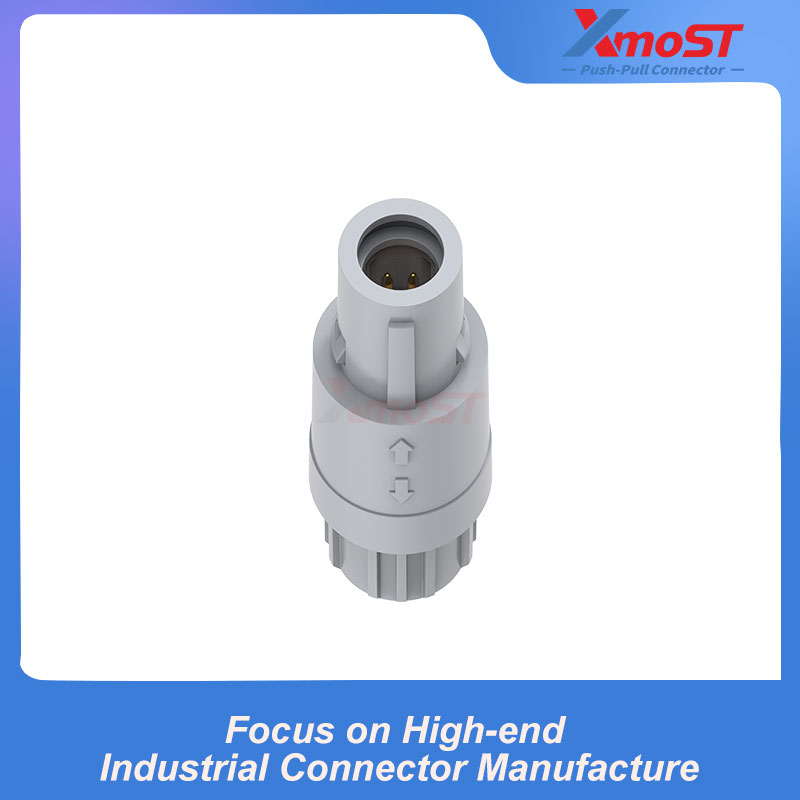

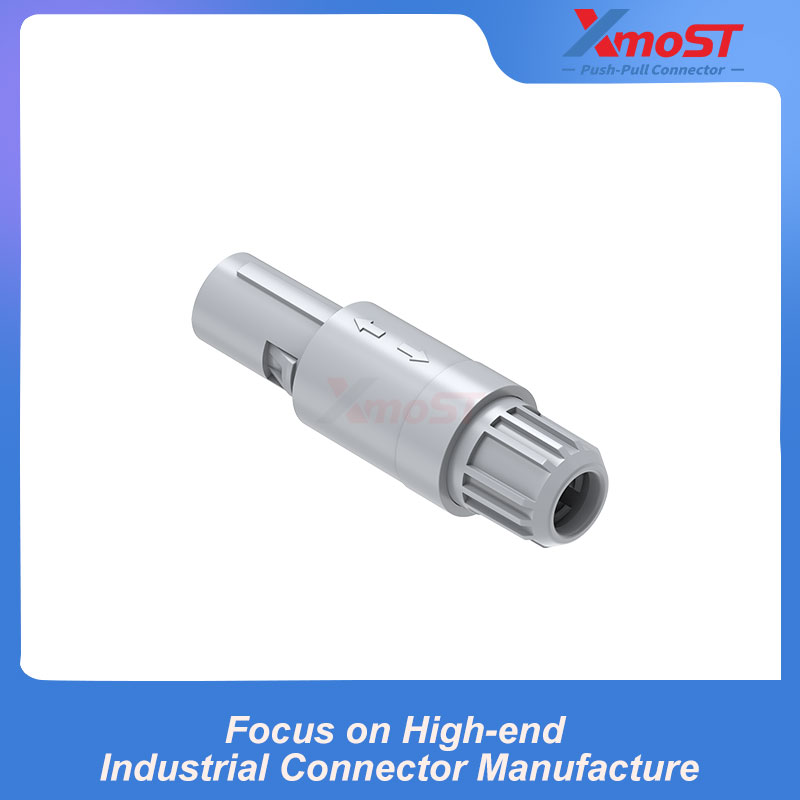

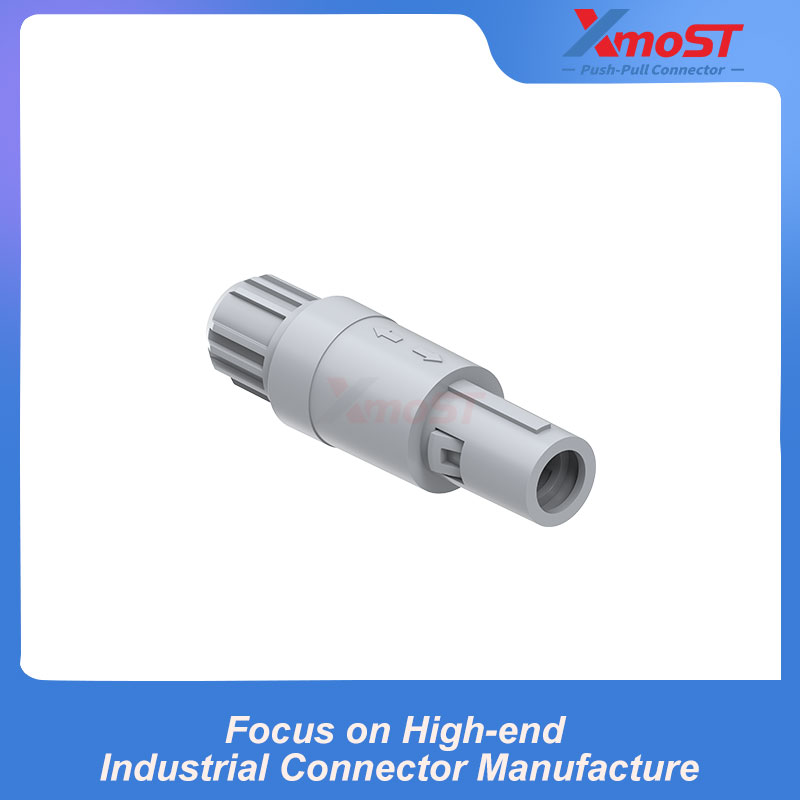

XM-LPAG is a 1P Series standard straight plug with a cable clamp and G alignment pin. Its internal parts help prevent cable rotation and maintain secure cable positioning during use. The Push-Pull self-locking mechanism provides quick and reliable connection. As part of the P Series fluid connector range, it is designed for medical and dental equipment, primarily for transmitting air and inert gases.
Product Features & Advantages
- Compact 1P Series connector design
- Push-Pull self-locking system
- G alignment pin for connector polarization
- Cable clamp for secure cable fixation
- Internal parts help prevent cable rotation
- Lightweight and robust construction
- Straight plug configuration
- Color-coded design for anti-mismating
- Suitable for solder and PCB mount contact configurations
- Designed for medical and dental fluid applications
Dimensions
| Series | A (mm | L1 (mm) | L2 (mm) |
|---|---|---|---|
| 1P | 14 | 44.5 | 29.4 |
Технические параметры
| ParameterSpecification | |
|---|---|
| Usage Temperature | -20°C ~ +150°C |
| Mating Cycles | >1000 |
| Fluid Tube Material | Brass Ni / Nickel-Plated Brass |
| Screw / Nut Material | High-Performance Engineering Plastic, with Material Options |
| Main Material | High-Performance Engineering Plastic, with Material Options |
| Seal / O-Ring | FPM |
| Protection Grade | IP50 |
| Humidity | Max. 95% Relative Humidity at 60°C |
| Vibration Resistance | 10–2000Hz, 15g |
| Shock Resistance | 100g, 6ms |
| Inner Fluid Diameter | 2.6mm |
| Inner / Outer Diameter | 4mm / 6mm |
| Leakage Rate | Leakage ≤ 3mmHg/min (0.4kPa/min) at 400mmHg |
| Max. Working Pressure | 2 bar |
| Operating Current | 2–10A |
| Rated Voltage | 200–400V |
Product Industry Applications
- Medical Equipment
- Dental Equipment
- Air Transmission Systems
- Inert Gas Transmission Systems
- Fluid and Gas Connection Systems
