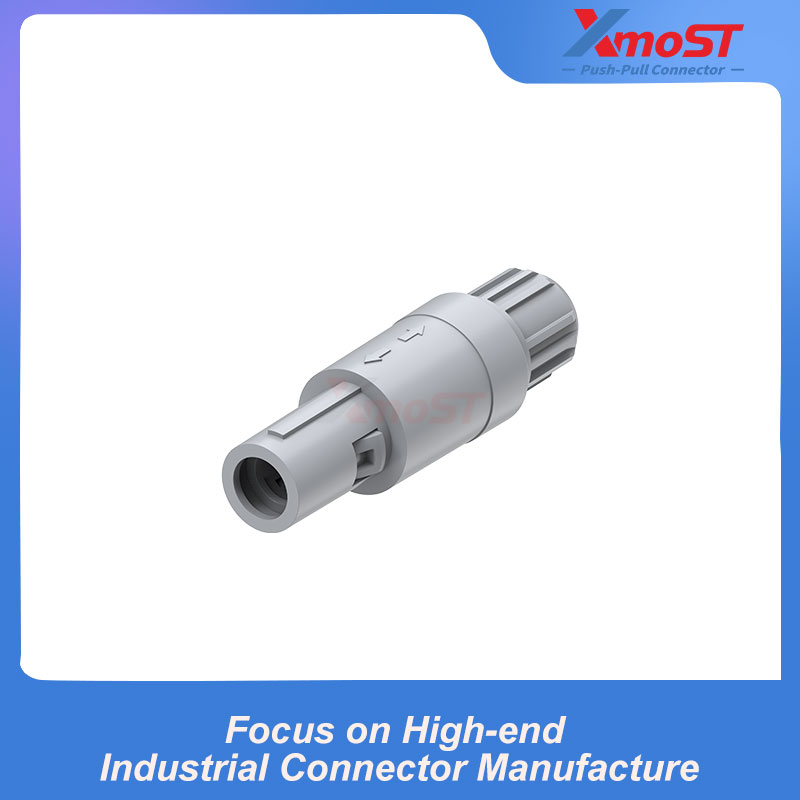

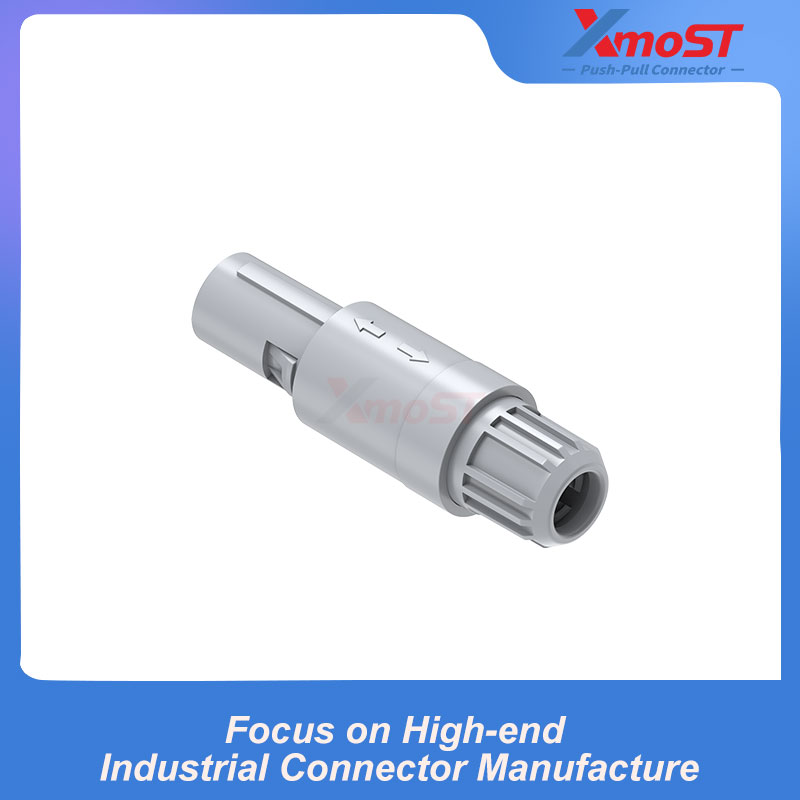

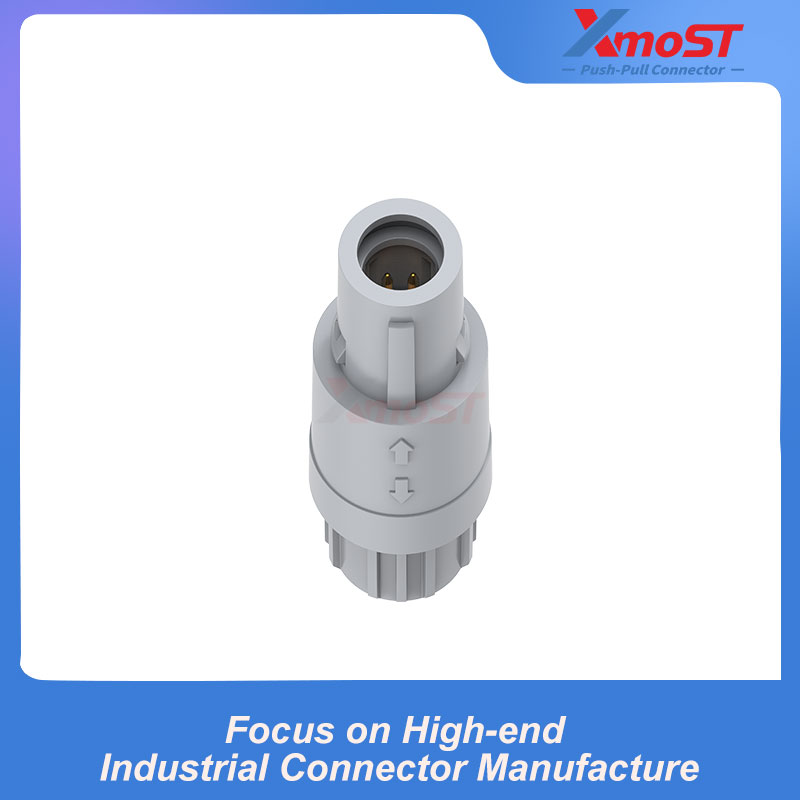

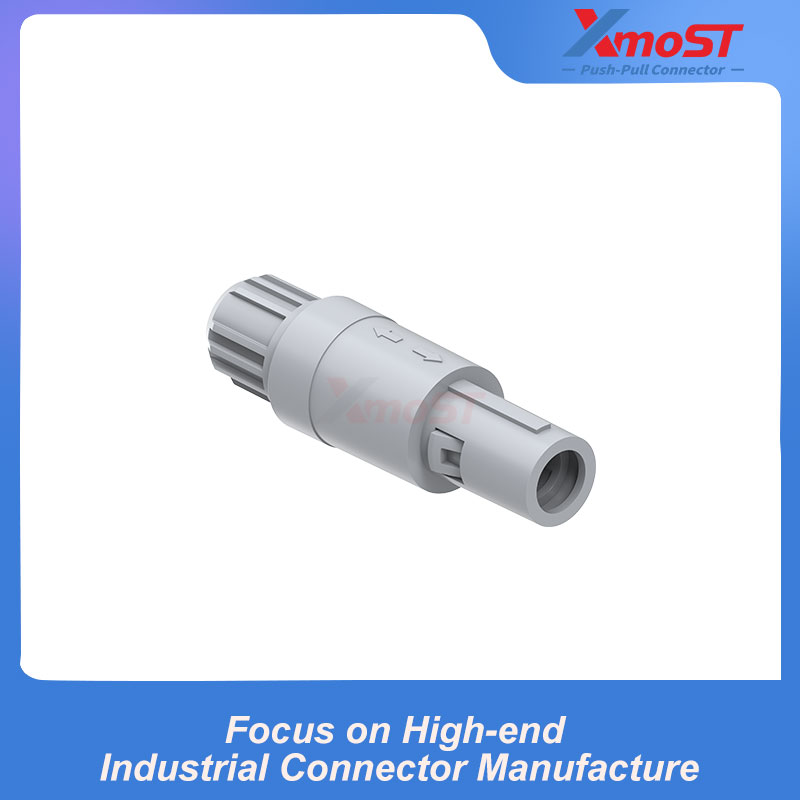

XM-LPAG is a 1P Series standard straight plug with a cable clamp and G alignment pin. Its internal parts help prevent cable rotation, providing secure cable positioning during use. The Push-Pull self-locking design enables quick and reliable connection.
Product Features & Advantages
- Compact 1P Series connector design
- Push-Pull self-locking system
- G alignment pin for connector polarization
- Cable clamp for secure cable fixation
- Internal parts help prevent cable rotation
- Lightweight and robust construction
- Straight plug configuration
- Solder contacts
- Suitable for solder and PCB mount contact configurations
Dimensions
| Series | A (mm) | L1 (mm) | L2 (mm) |
|---|---|---|---|
| 1P | 14 | 44.5 | 29.4 |
Technical Parameters
| Parameter | Specification |
|---|---|
| Usage Temperature | -40°C ~ +120°C |
| Mating Cycles | >1000 |
| Rubber Core Material | PEEK |
| Terminal Material | Copper Alloy, Gold-Plated |
| Screw / Nut Material | High-Performance Engineering Plastic, with Material Options |
| Main Material | High-Performance Engineering Plastic, with Material Options |
| Seal / O-Ring | FKM |
| Protection Grade | IP50 |
| Salt Spray Test | Over 96 hours |
| Humidity | Max. 95% Relative Humidity at 60°C |
| Vibration Resistance | 10–2000Hz, 15g |
| Shock Resistance | 100g, 6ms |
| Insulation Resistance | ≥100MΩ |
