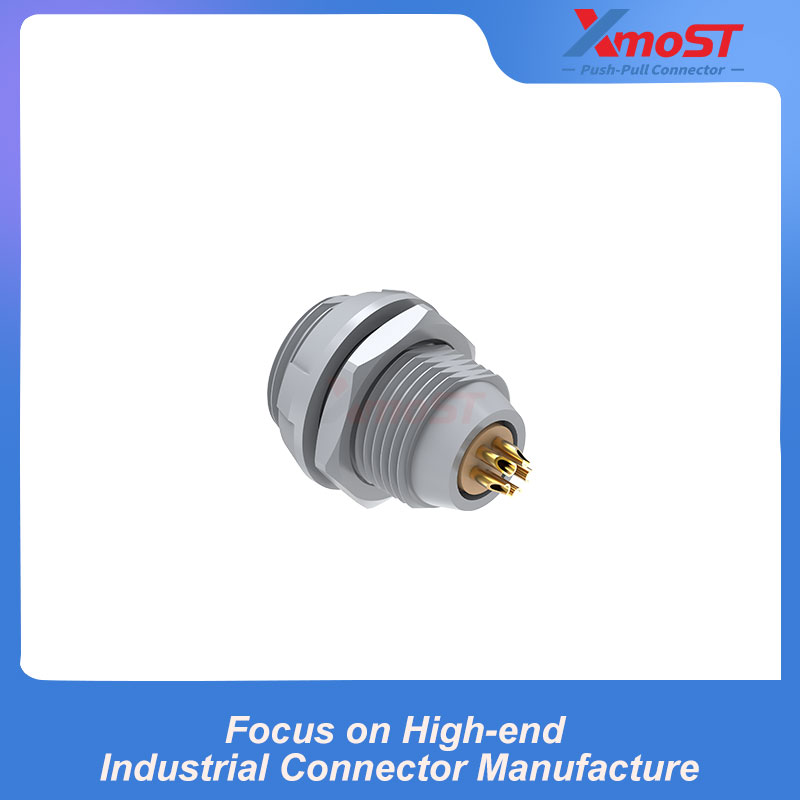

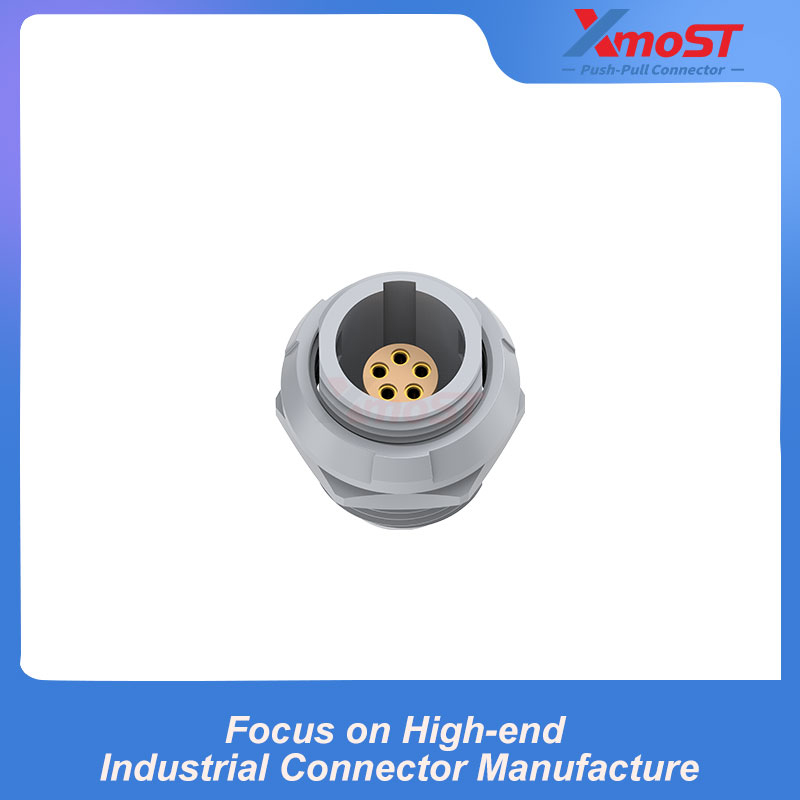

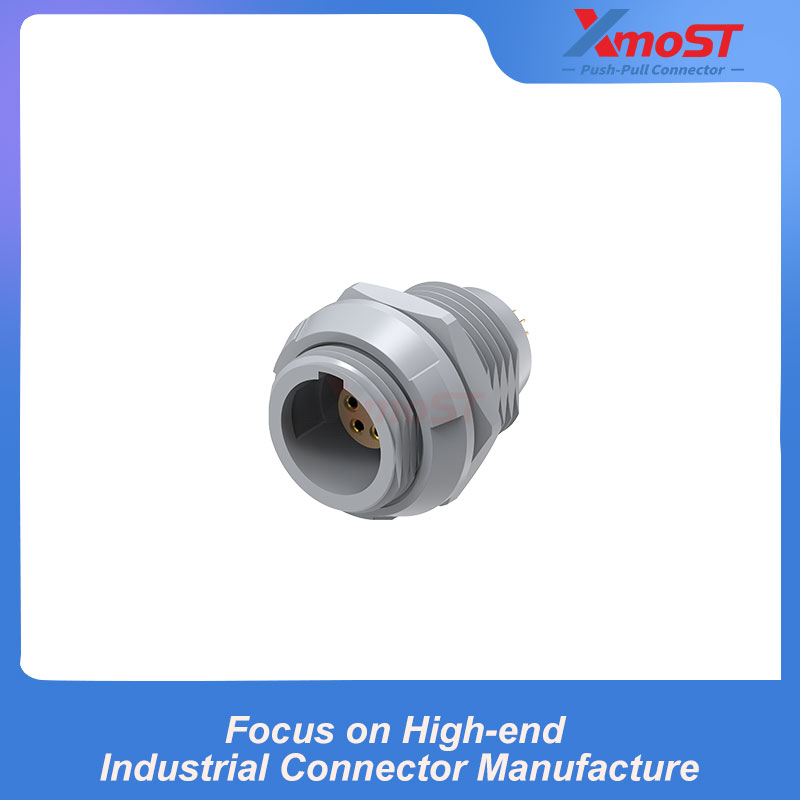

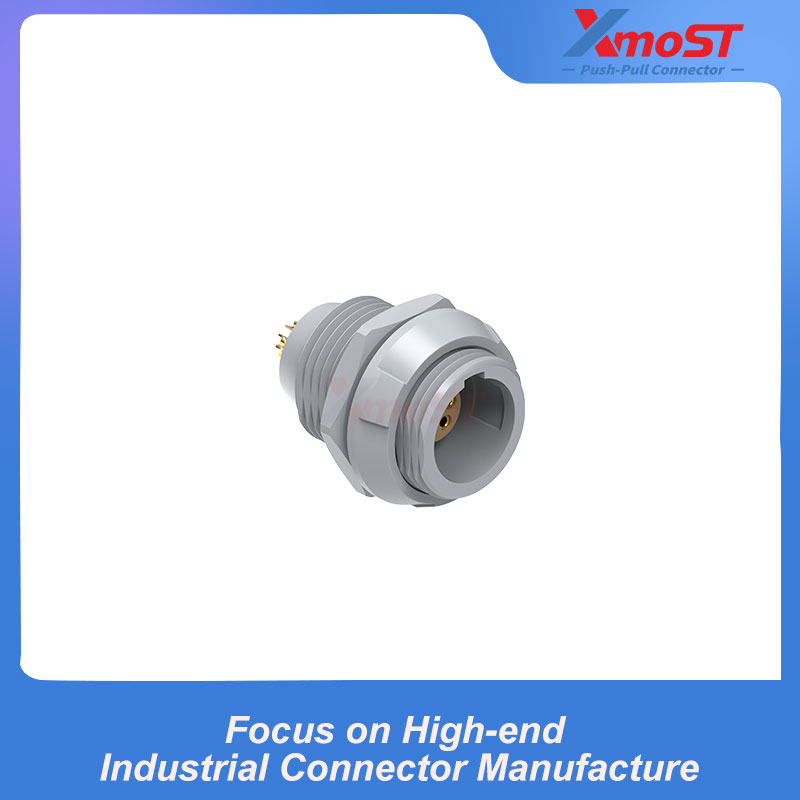

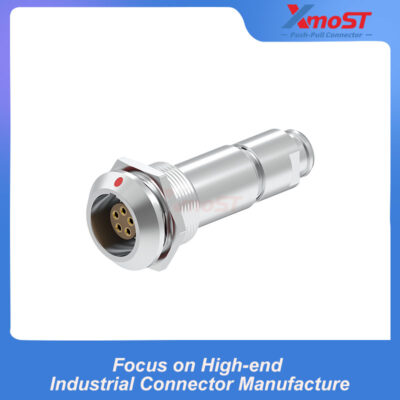

XM-LPKG 1P is a compact fixed female receptacle designed for panel installation with internal and external nut mounting. It features a G alignment pin and a Push-Pull self-locking mechanism for secure and convenient mating. The straight receptacle design is suitable for compact equipment and space-limited applications.
Product Features & Advantages
- Compact 1P connector design
- Fixed female receptacle
- Internal and external nut mounting
- G alignment pin
- Push-Pull self-locking mechanism
- Straight connector shape
- Suitable for compact and space-limited equipment

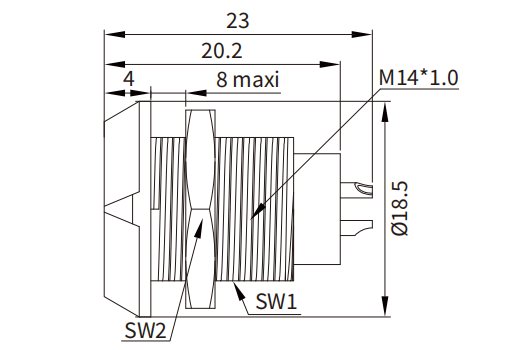

Dimensions
| Series | A (mm) | B (mm) | L1 (mm) | L2 (mm) | e | D (mm) | SW1 (mm) | SW2 (mm) |
|---|---|---|---|---|---|---|---|---|
| 1P | 18.5 | 4 | 23 | 20.2 | M14×1.0 | 28 | 12.5 | 17 |
Technical Parameters
| Parameter | Specification |
|---|---|
| Usage Temperature | -40°C ~ +120°C |
| Mating Cycles | >1000 |
| Rubber Core Material | PEEK |
| Terminal Material | Copper Alloy, Gold-Plated |
| Screw / Nut Material | High-Performance Engineering Plastic, with Material Options |
| Main Material | High-Performance Engineering Plastic, with Material Options |
| Seal / O-Ring | FKM |
| Protection Grade | IP50 |
| Salt Spray Test | Over 96 hours |
| Humidity | Max. 95% Relative Humidity at 60°C |
| Vibration Resistance | 10–2000Hz, 15g |
| Shock Resistance | 100g, 6ms |
| Insulation Resistance | ≥100MΩ |
Product Industry Applications
- Industrial Equipment
- Electronic Equipment
- Precision Instrumentation
- Test & Measurement Equipment
- Control Systems
