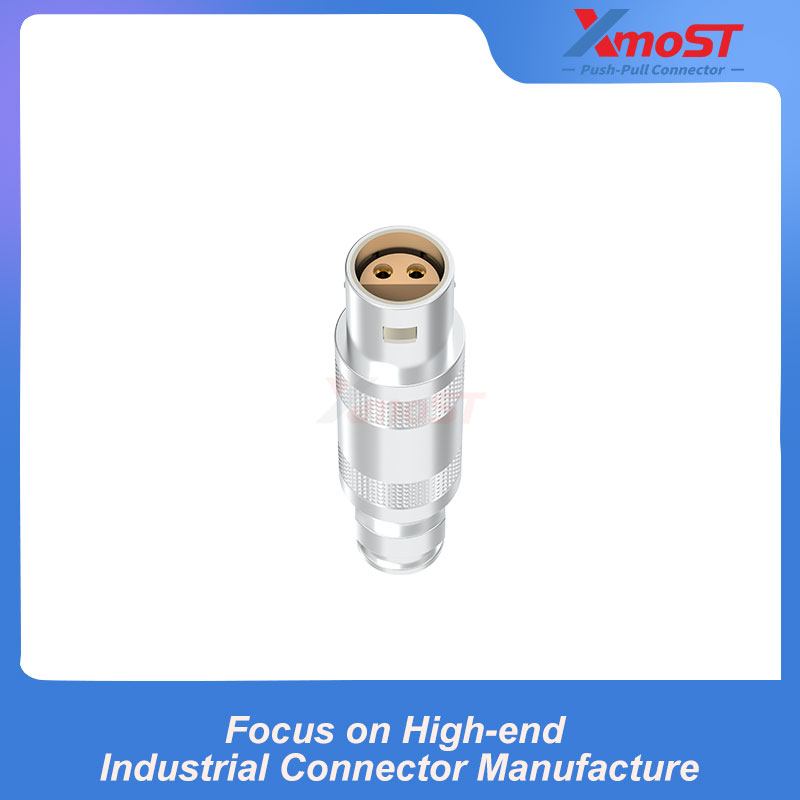

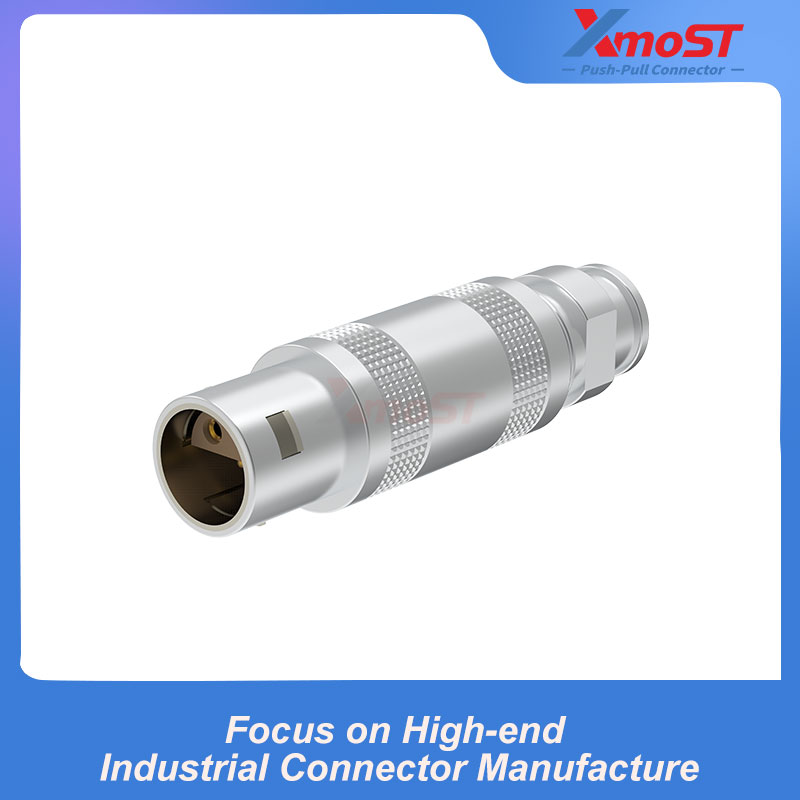

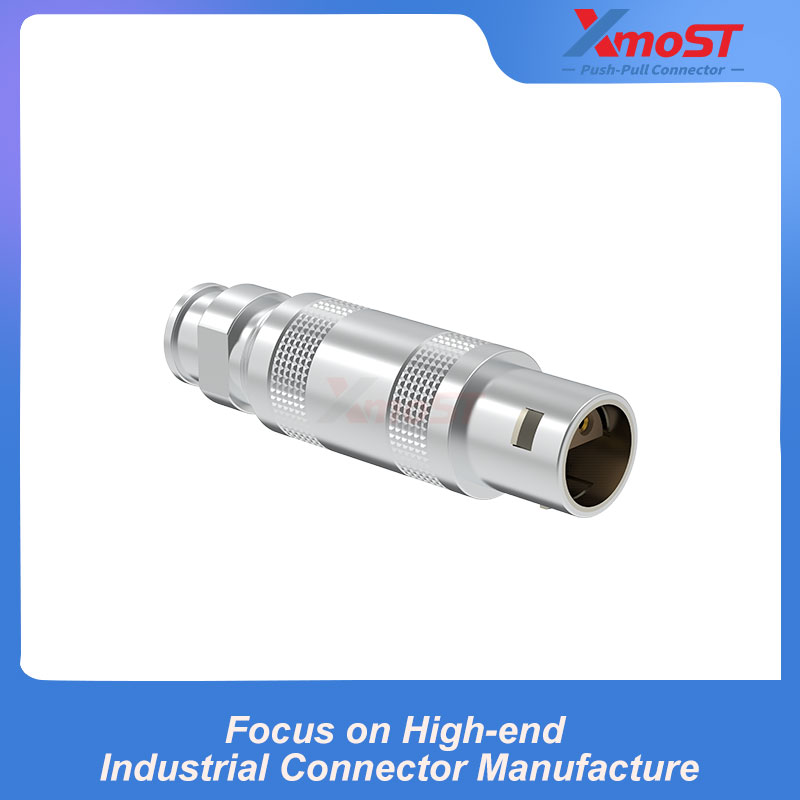

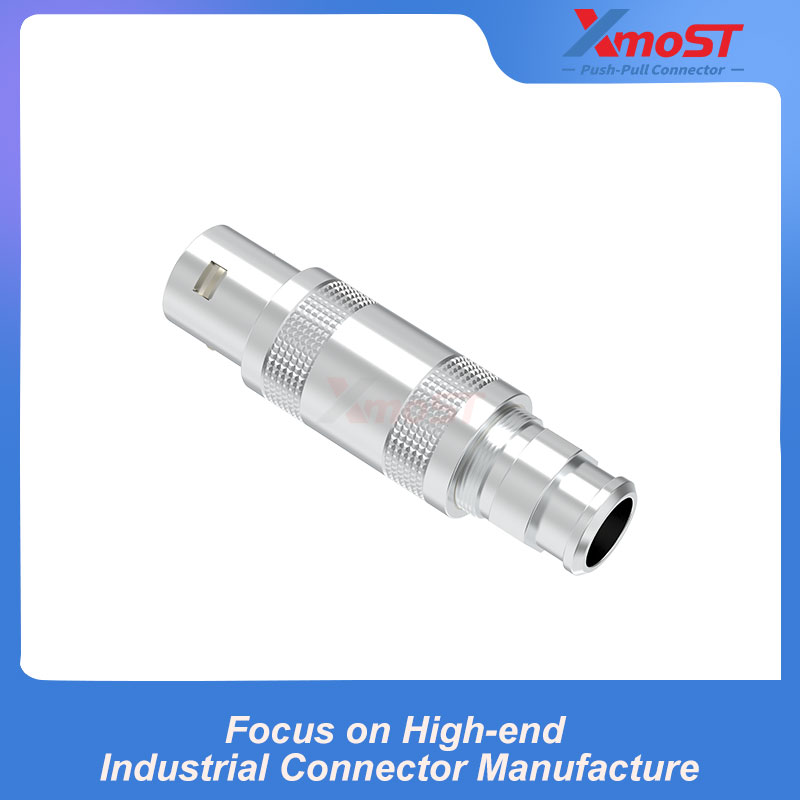

XM-LFFA is an S Series straight plug featuring a cable clamp and a backshell with strain relief. It uses a half-moon polarization structure for reliable connector alignment and a Push-Pull self-latching mechanism for secure connection. The integrated backshell provides cable protection and strain relief for reliable cable connection in industrial and precision equipment.
Product Features & Advantages
- Push-Pull self-latching system for secure and reliable connection
- Half-moon polarization for reliable connector alignment
- Straight plug design
- Cable clamp for secure cable connection
- Backshell with strain relief for cable protection and strain relief
- 360° shielding for full EMC protection
- Solder or print contacts, available in straight or elbow configurations

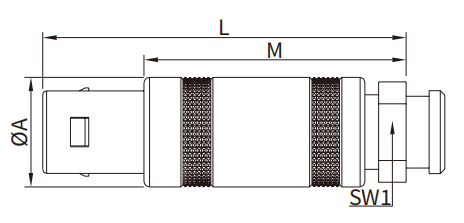

Dimensions
| Series | A (mm) | L (mm) | M (mm) | SW1 (mm) |
|---|---|---|---|---|
| 00S | 6.4 | 26 | 18 | 6 |
| 0S | 9 | 34.5 | 24.5 | 7.3 |
| 1S | 12 | 39.5 | 28 | 9 |
| 2S | 15 | 52 | 40 | 12 |
| 3S | 17.8 | 61 | 46 | 14 |
Technical Parameters
| Parameter | Specification |
|---|---|
| Usage Temperature | -55℃ / +250℃ |
| Mating Cycles | >5000 |
| Rubber Core Material | PEEK |
| Terminal Material | Copper Alloy, Gold-Plated |
| Screw/Nut Material | Brass, Nickel-Plated |
| Main Material | Brass, Chrome-Plated |
| Seal/O-Ring | FKM |
| Protection Grade | IP50 |
| Shielding Efficiency | 10MHz > 75dB / 1GHz > 40dB |
| Salt Spray Test | Over 144 hours |
| Humidity | Max. 95% Relative Humidity at 60℃ |
| Vibration Resistance | 10-2000Hz, 15g |
| Shock Resistance | 100g, 6ms |
| Environmental Test | 55/175/21 |
| Insulation Resistance | ≥1000Ω |
Product Industry Applications
- Industrial Equipment
- Industrial Control Systems
- Precision Instrumentation
- Test & Measurement Equipment
- Electronic Equipment
- Communication Equipment
