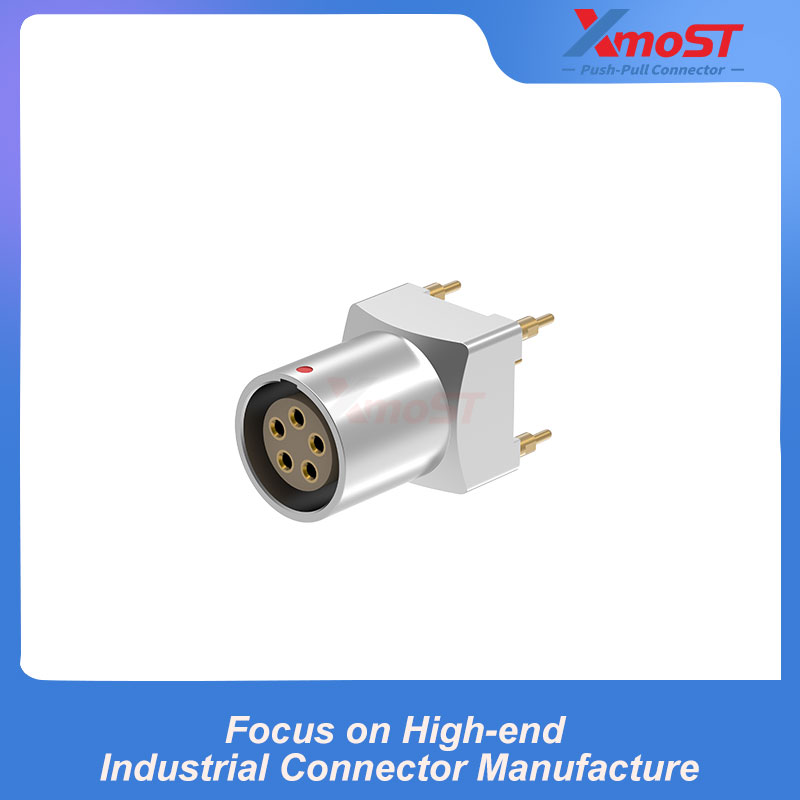

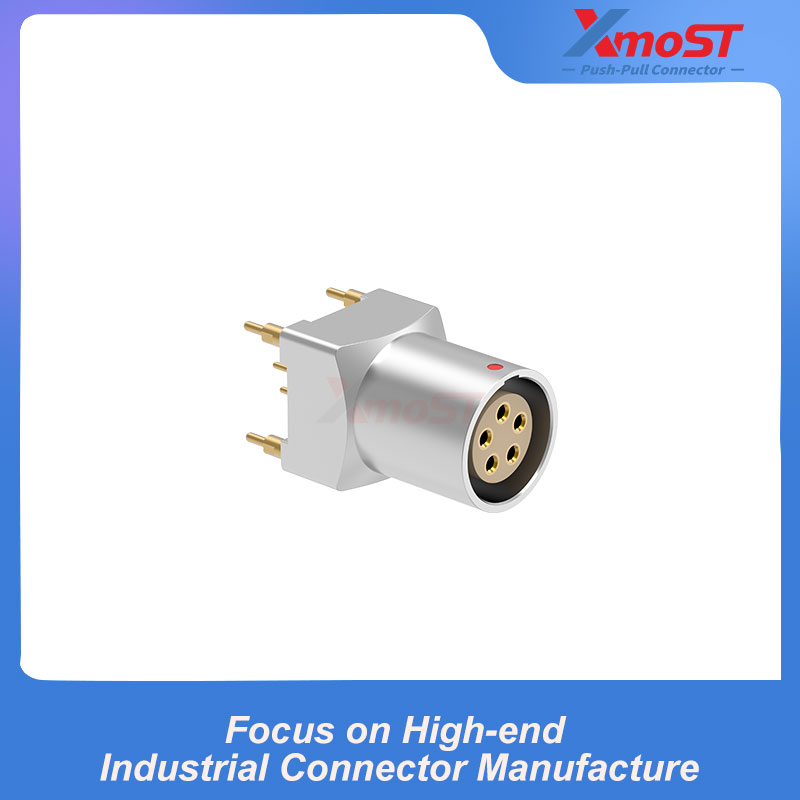

XM-LEZG is a B Series straight male receptacle designed for direct installation on a printed circuit board. It features a male mating interface and straight rear PCB terminals, providing a compact external connector solution for electronic equipment.
The receptacle is compatible with corresponding B Series Push-Pull female connectors, enabling fast, secure and tool-free mating. A standard G key ensures correct connector orientation, while optional A or B key configurations help prevent cross-mating between similar connectors used in the same system.
The XM-LEZG is available in 0B, 1B and 2B shell sizes to support different PCB layouts and contact configurations.
Product Features

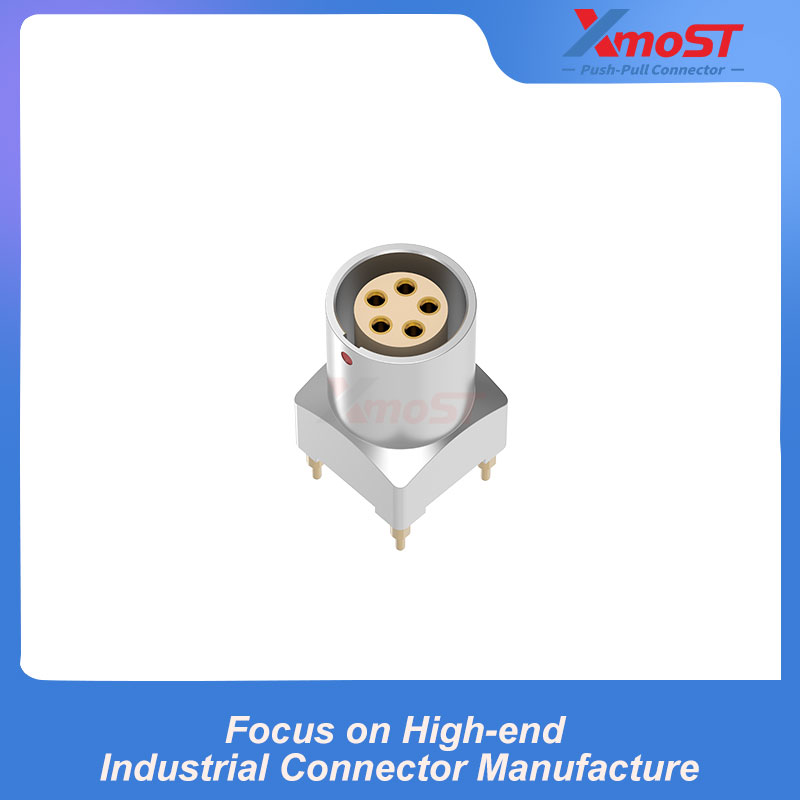

- Straight male receptacle for direct PCB mounting
- Straight through-hole PCB terminals
- Compatible with the B Series Push-Pull self-latching system
- Fast, secure and tool-free mating
- Standard G key for correct connector alignment
- Optional A or B key configurations
- Available in 0B, 1B and 2B shell sizes
- Compact design for space-constrained electronic equipment
- Metal housing for reliable industrial connections

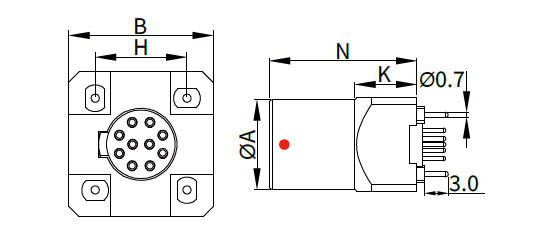

Dimensions
All dimensions are in millimetres.
| Shell Size | ØA | B | H | K | N |
| 0B | 9 | 10 | 7.62 | 8 | 15 |
| 1B | 11 | 12 | 7.62 | 8 | 19 |
| 2B | 14 | 15 | 10.16 | 9 | 22.5 |

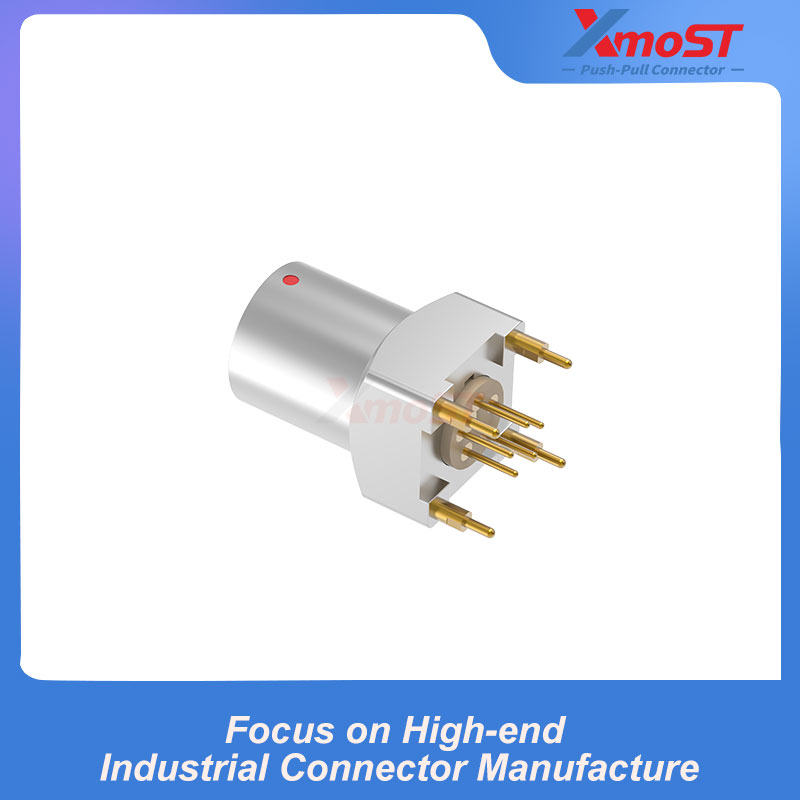

PCB Terminal Details
| Item | Dimension |
| PCB Terminal Length | 3.0 mm |
| PCB Terminal Diameter | Ø0.7 mm |
Typical Applications
- Industrial control electronics
- Test and measurement instruments
- Medical and laboratory devices
- Communication equipment
- Embedded control systems
- Compact PCB assemblies
- Automation equipment
Contact arrangement shown in the drawing is illustrative. Final contact count, keying option, PCB footprint and electrical configuration should be confirmed according to the selected part number before PCB design and ordering.
