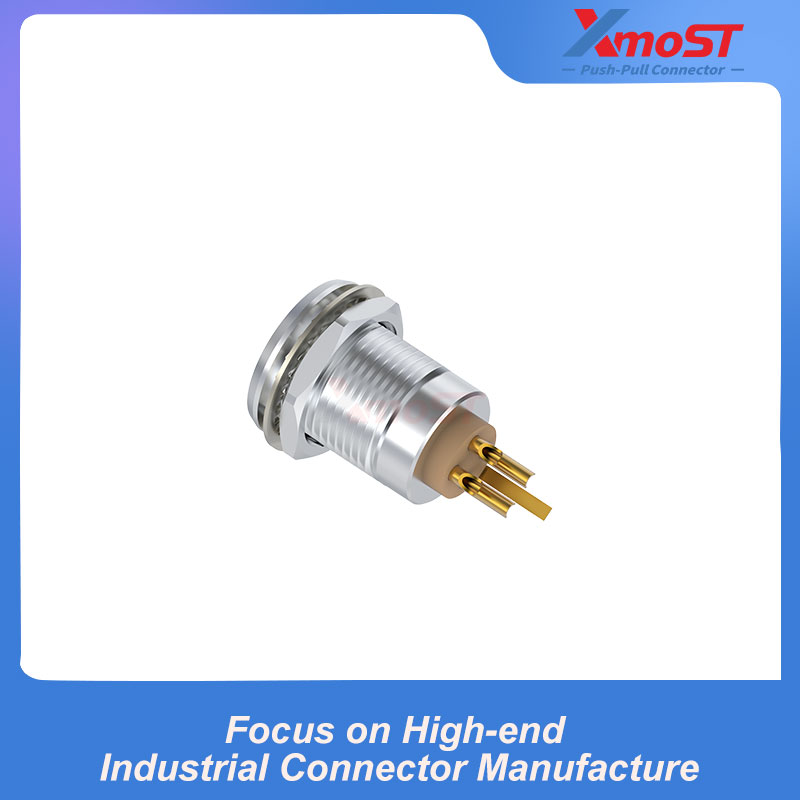

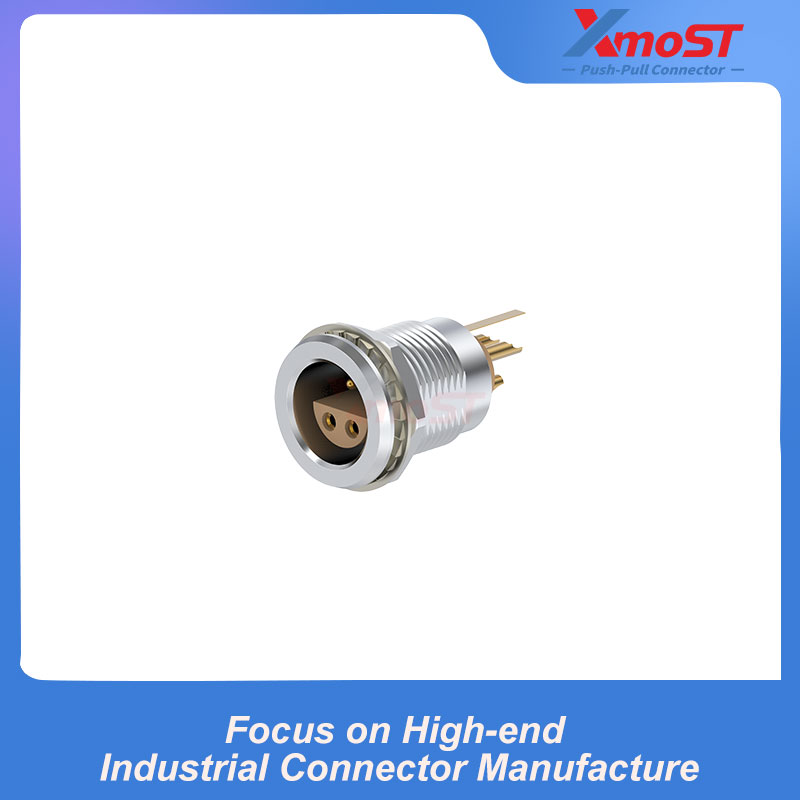

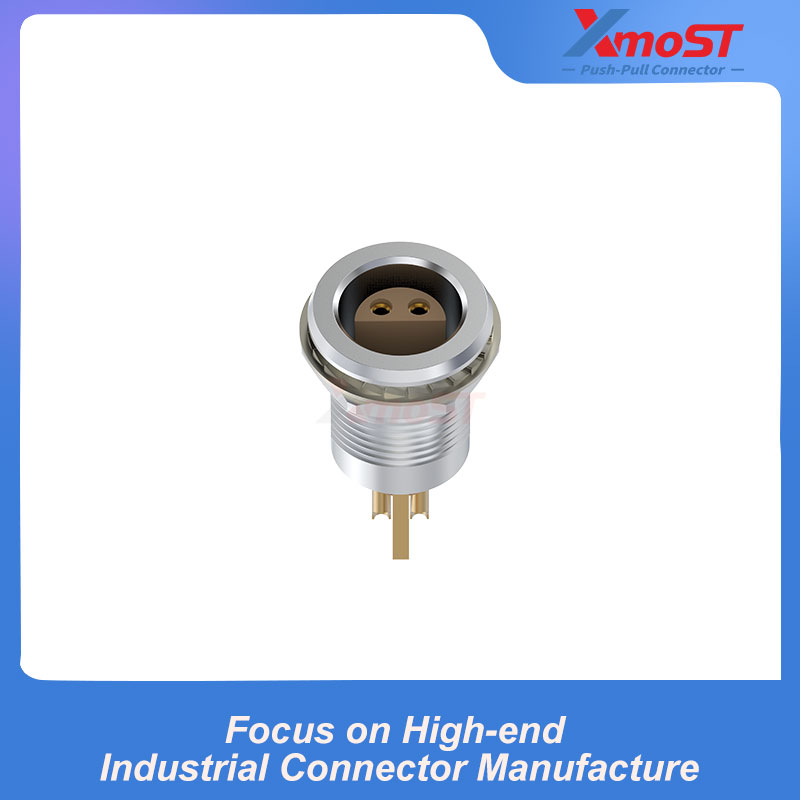

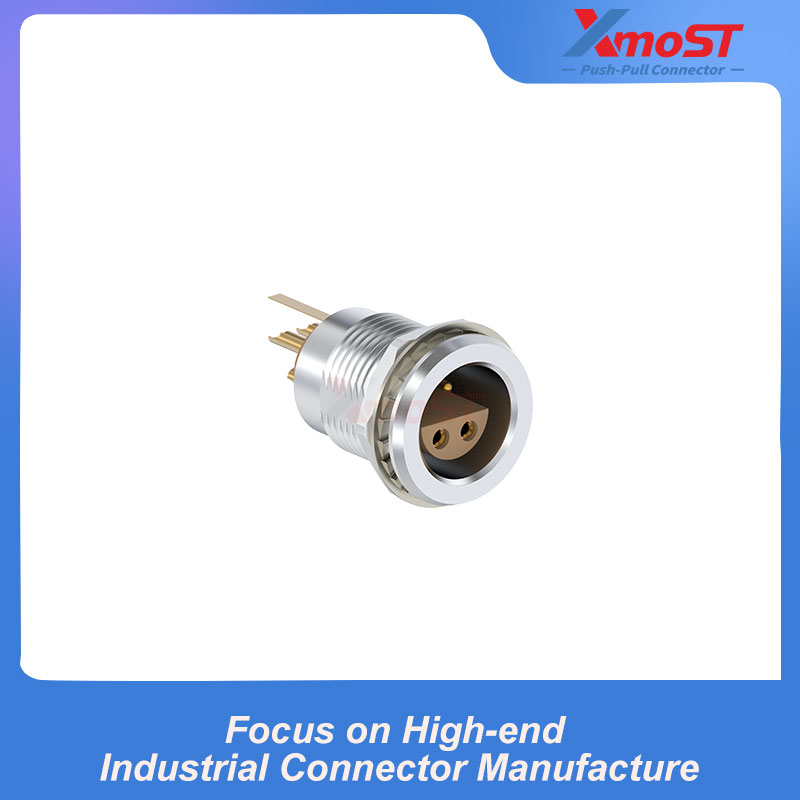

XM-LERN is an S Series fixed female receptacle with nut mounting and a grounding pin. It features a half-moon polarization structure and a Push-Pull self-latching mechanism for secure and reliable connection. The grounding pin provides a dedicated grounding connection for equipment applications.
Product Features & Advantages
- Push-Pull self-latching system for secure and reliable connection
- Half-moon polarization for reliable connector alignment
- Fixed female receptacle with nut mounting
- Dedicated grounding pin for grounding connection
- Straight connector design
- 360° shielding for full EMC protection
- Solder or print contacts, available in straight or elbow configurations

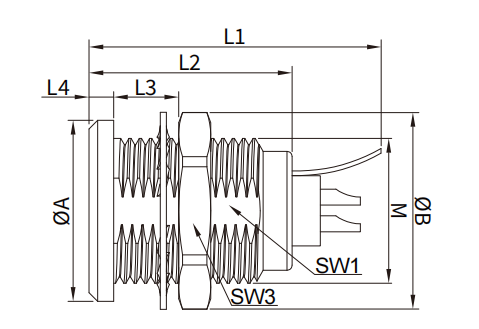

Dimensions
| Series | A (mm) | B (mm) | M | L1 (mm) | L2 (mm) | L3 (mm) | L4 (mm) | SW1 (mm) | SW3 (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 0S | 10 | 12.5 | M9×0.6 | 19.3 | 14.5 | 7.0 | 1.2 | 8.2 | 11 |
| 1S | 14 | 15.5 | M12×1.0 | 22.4 | 16.5 | 7.5 | 1.5 | 10.5 | 14 |
| 2S | 18 | 19.2 | M15×1.0 | 26.3 | 18.0 | 8.5 | 2.0 | 13.5 | 17 |
| 3S | 22¹ | 25.0 | M18×1.0 | 29.8 | 20.0 | 11.5 | 2.0 | 16.5 | 22 |
Panel Cutout
| Series | Flat Width SW (mm) | Cutout Diameter Ø (mm) |
|---|---|---|
| 0S | 8.3 | 9.1 |
| 1S | 10.6 | 12.1 |
| 2S | 13.6 | 15.1 |
| 3S | 16.6 | 18.1 |
Technical Parameters
| Parameter | Specification |
|---|---|
| Usage Temperature | -55℃ / +250℃ |
| Mating Cycles | >5000 |
| Rubber Core Material | PEEK |
| Terminal Material | Copper Alloy, Gold-Plated |
| Screw/Nut Material | Brass, Nickel-Plated |
| Main Material | Brass, Chrome-Plated |
| Seal/O-Ring | FKM |
| Protection Grade | IP50 |
| Shielding Efficiency | 10MHz > 75dB / 1GHz > 40dB |
| Salt Spray Test | Over 144 hours |
| Humidity | Max. 95% Relative Humidity at 60℃ |
| Vibration Resistance | 10-2000Hz, 15g |
| Shock Resistance | 100g, 6ms |
| Environmental Test | 55/175/21 |
| Insulation Resistance | ≥1000Ω |
Product Industry Applications
- Industrial Equipment
- Industrial Control Systems
- Precision Instrumentation
- Test & Measurement Equipment
- Electronic Equipment
