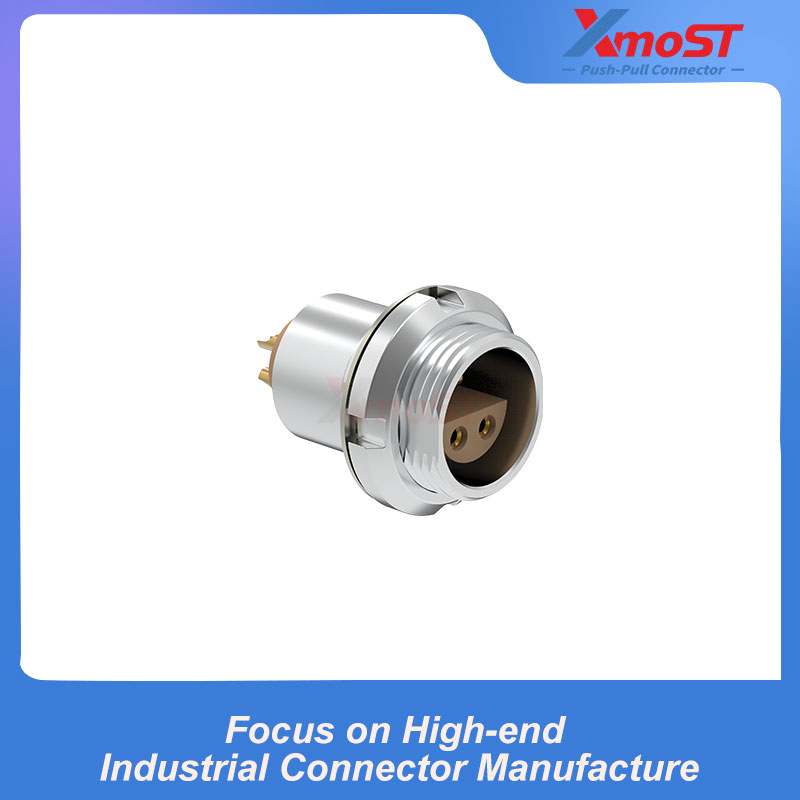

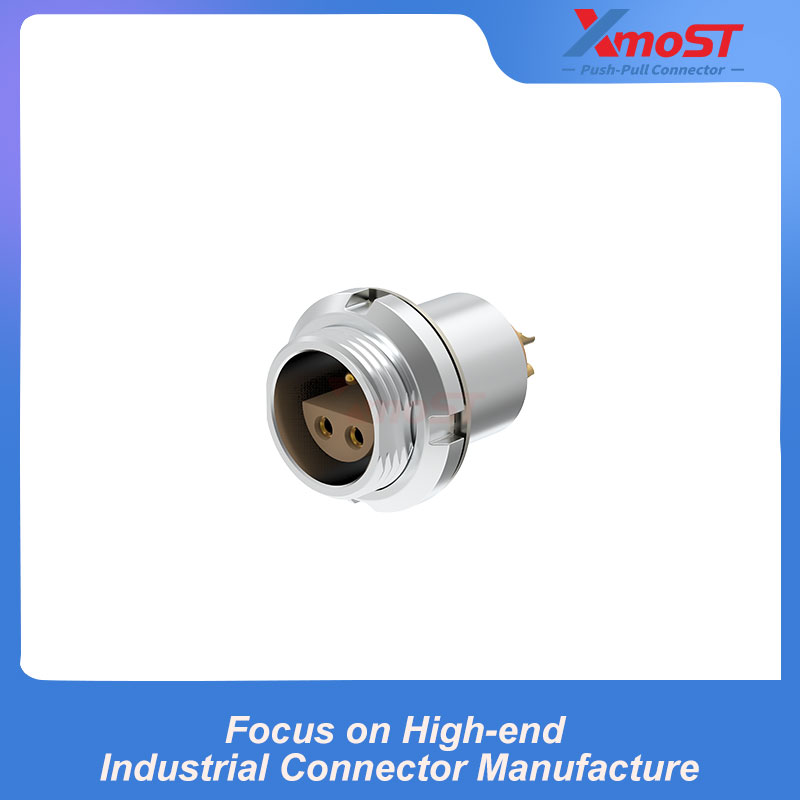

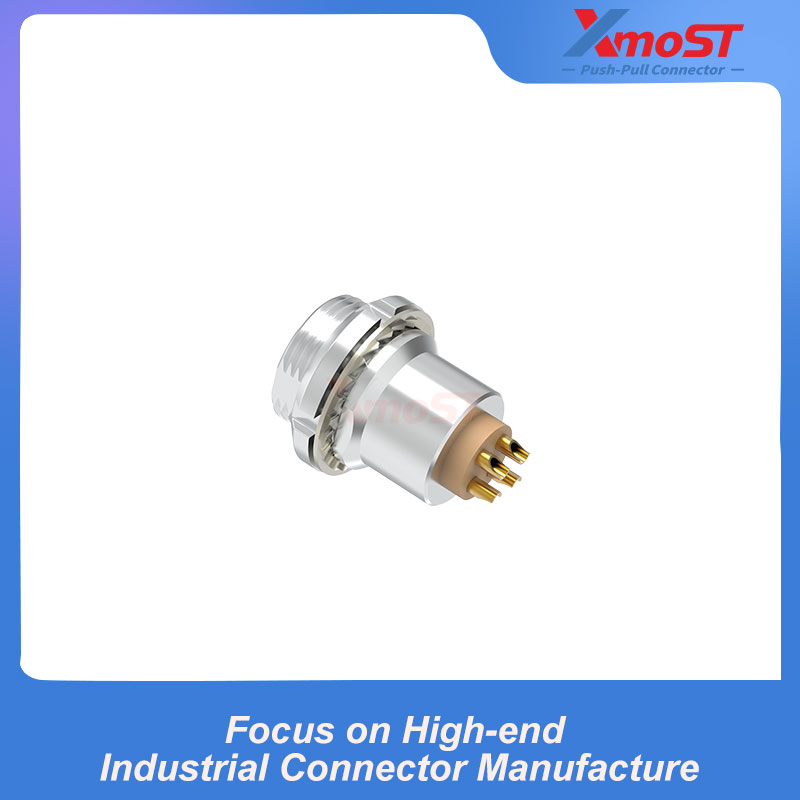

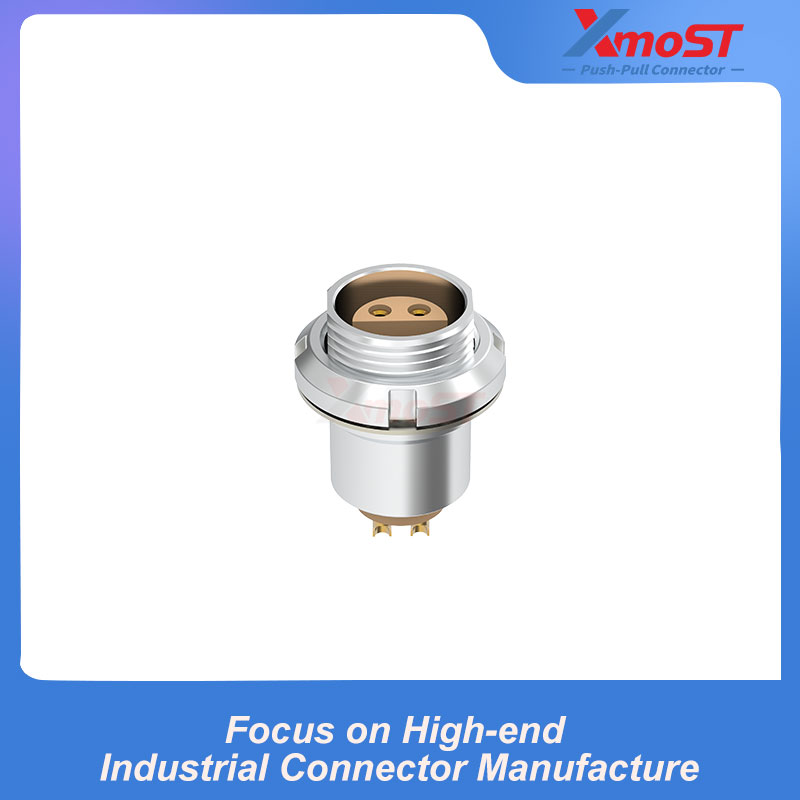

XM-LEEP is an S Series fixed female receptacle designed for external chassis mounting. It features a half-moon polarization structure and a Push-Pull self-latching mechanism for secure and reliable connection. The external chassis mount design is suitable for panel and equipment integration where the receptacle is mounted from the outside of the chassis.
Product Features & Advantages
- Push-Pull self-latching system for secure and reliable connection
- Half-moon polarization for reliable connector alignment
- Fixed female receptacle design
- External chassis mounting
- Straight connector design
- 360° shielding for full EMC protection
- Solder or print contacts, available in straight or elbow configurations

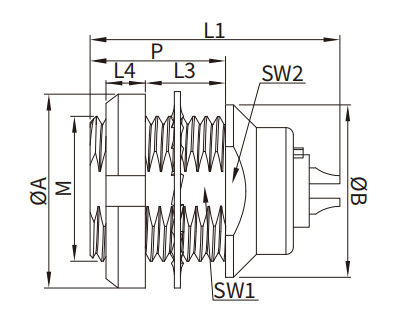

Dimensions
| Series | A (mm) | B (mm) | M | L1 (mm) | L3 (mm) | L4 (mm) | P (mm) | SW1 (mm) | SW3 (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 1S | 16 | 16.0 | M11×1.0 | 20.2 | 6.5 | 3.5 | 11 | 10.5 | 13 |
| 2S | 20 | 19.5 | M15×1.0 | 24.5 | 4.3 | 3.5 | 9 | 13.5 | 15 |
Panel Cutout
| Series | Flat Width SW (mm) | Cutout Diameter Ø (mm) |
|---|---|---|
| 1S | 10.6 | 11.1 |
| 2S | 13.6 | 15.1 |
Technical Parameters
| Parameter | Specification |
|---|---|
| Usage Temperature | -55℃ / +250℃ |
| Mating Cycles | >5000 |
| Rubber Core Material | PEEK |
| Terminal Material | Copper Alloy, Gold-Plated |
| Screw/Nut Material | Brass, Nickel-Plated |
| Main Material | Brass, Chrome-Plated |
| Seal/O-Ring | FKM |
| Protection Grade | IP50 |
| Shielding Efficiency | 10MHz > 75dB / 1GHz > 40dB |
| Salt Spray Test | Over 144 hours |
| Humidity | Max. 95% Relative Humidity at 60℃ |
| Vibration Resistance | 10-2000Hz, 15g |
| Shock Resistance | 100g, 6ms |
| Environmental Test | 55/175/21 |
| Insulation Resistance | ≥1000Ω |
Product Industry Applications
- Industrial Equipment
- Industrial Control Systems
- Precision Instrumentation
- Test & Measurement Equipment
- Electronic Equipment
