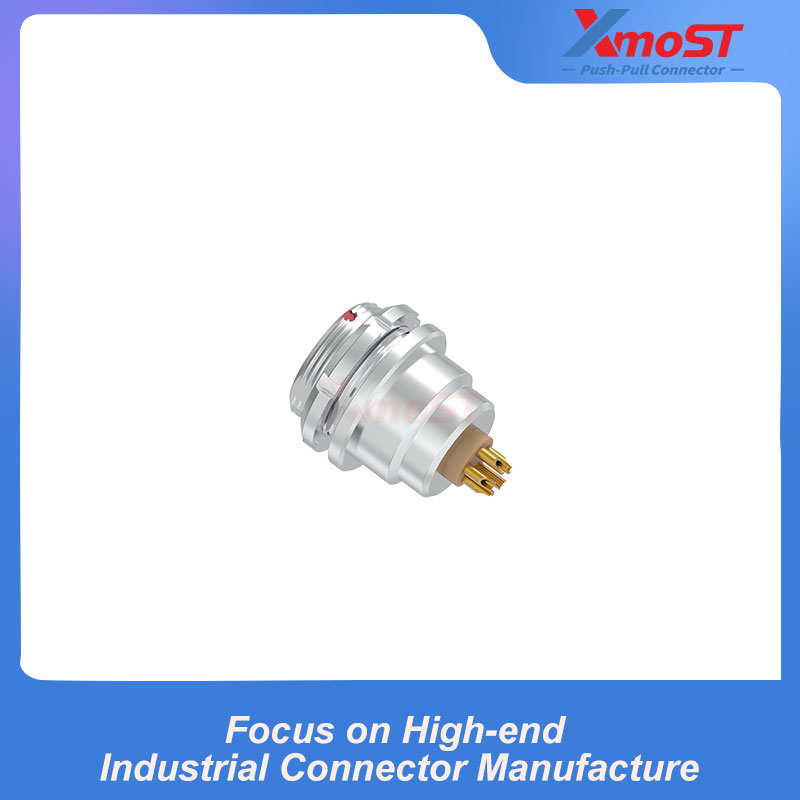

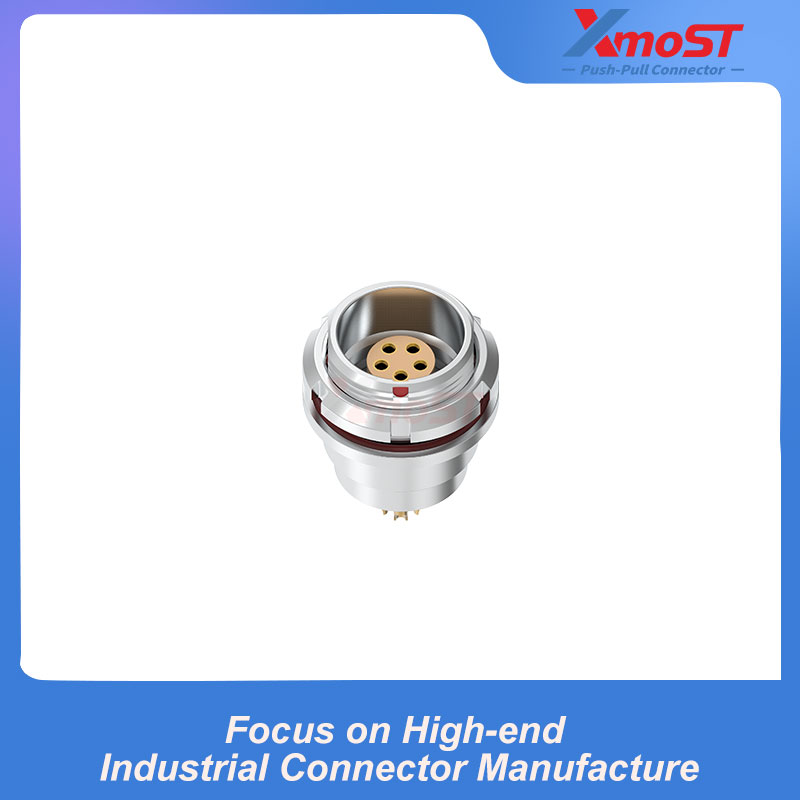

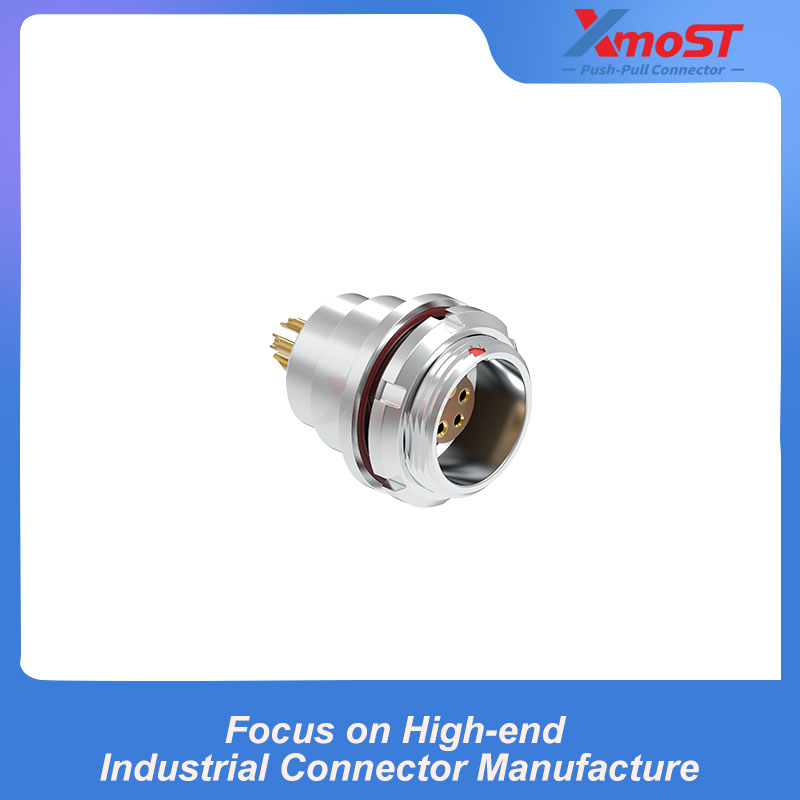

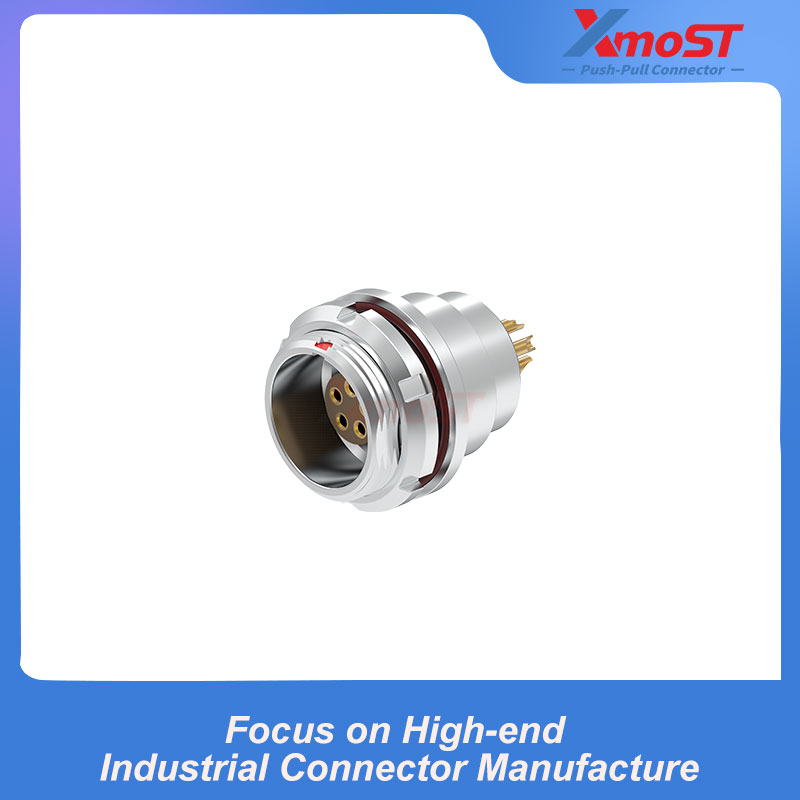

XM-LEEG is a fixed receptacle with nut mounting, self-locking mechanism and straight connector shape. It is available with alignment pin options G/A-F/L/R. The series covers 0K to 4K shell sizes, with different dimensions and panel cutout requirements. The 2K version uses an M20×1.0 thread.
Product Features & Advantages
- Fixed receptacle design for panel installation
- Nut mounting structure
- Self-locking mechanism
- Straight connector shape
- Alignment pin G
- Alignment options A/F/L/R
- Available in 0K–4K shell sizes

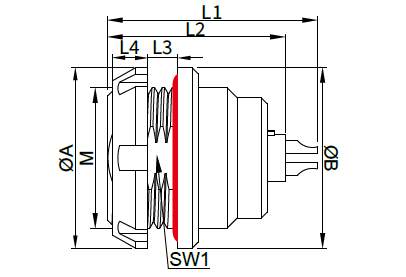

Dimensions
| Shell Size | A | B | M | L1 | L2 | L3 | L4 | SW1 |
|---|---|---|---|---|---|---|---|---|
| 0K | 18.0 mm | 18.0 mm | M14×1.0 | 21.0 mm | 17.8 mm | 3.5 mm | 3.5 mm | 12.5 mm |
| 1K | 20.0 mm | 20.0 mm | M16×1.0 | 26.2 mm | 24.3 mm | 6.0 mm | 3.5 mm | 14.5 mm |
| 2K | 25.0 mm | 25.0 mm | M20×1.0 | 25.9 mm | 23.9 mm | 5.5 mm | 3.5 mm | 18.5 mm |
| 3K | 30.3 mm | 31.0 mm | M24×1.0 | 33.7 mm | 30.7 mm | 7.5 mm | 4.5 mm | 22.5 mm |
| 4K | 41.5 mm | 37.0 mm | M30×1.0 | 39.0 mm | 36.0 mm | 6.0 mm | 7.0 mm | 28.5 mm |
Recommended Panel Cutout
| Shell Size | Flat Width (SW) | Cutout Diameter |
|---|---|---|
| 0K | 12.6 mm | Ø14.1 mm |
| 1K | 14.6 mm | Ø16.1 mm |
| 2K | 18.6 mm | Ø20.1 mm |
| 3K | 22.6 mm | Ø24.1 mm |
| 4K | 28.6 mm | Ø30.1 mm |
Technical Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | -55°C ~ +200°C |
| Mating Cycles | >5000 cycles |
| Insulator Material | PEEK |
| Contact Material | Copper Alloy, Gold-Plated |
| Screw & Nut Material | Brass, Nickel-Plated |
| Main Body Material | Brass, Chrome-Plated |
| Seal / O-Ring | FKM |
| Protection Rating | IP66 / IP68 |
| Shielding Effectiveness | 10 MHz > 75 dB / 1 GHz > 40 dB |
| Salt Spray Test | >144 hours |
| Humidity | Max. 95% Relative Humidity at 60°C |
| Vibration Resistance | 10–2000 Hz, 15g |
| Shock Resistance | 100g, 6 ms |
| Environmental Test | 55 / 175 / 21 |
| Insulation Resistance | ≥1000 |
Applications
- Industrial control equipment
- Industrial automation systems
- Outdoor electronic equipment
- Test and measurement equipment
