Description

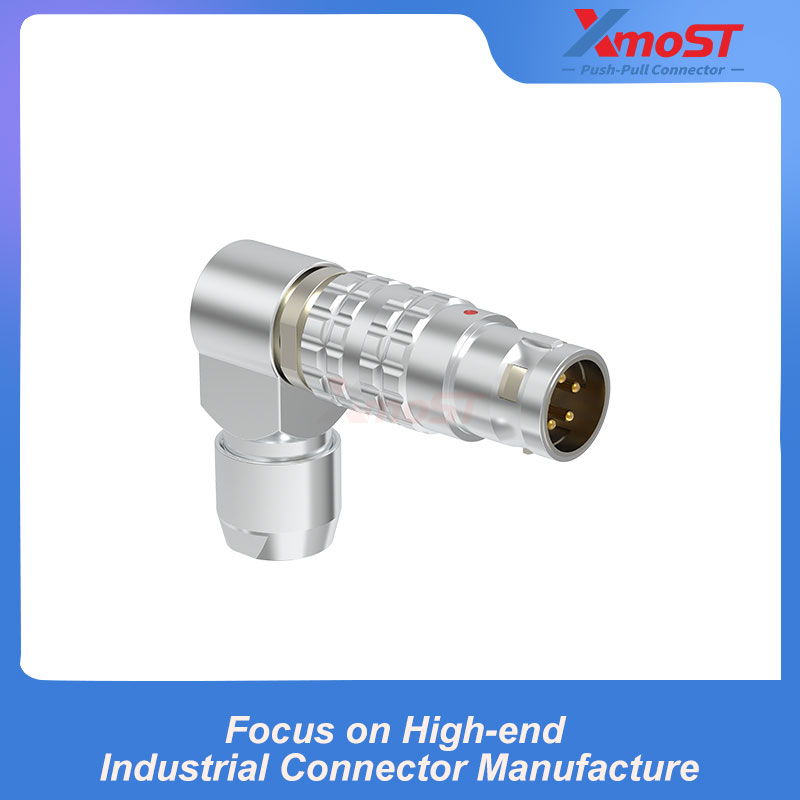

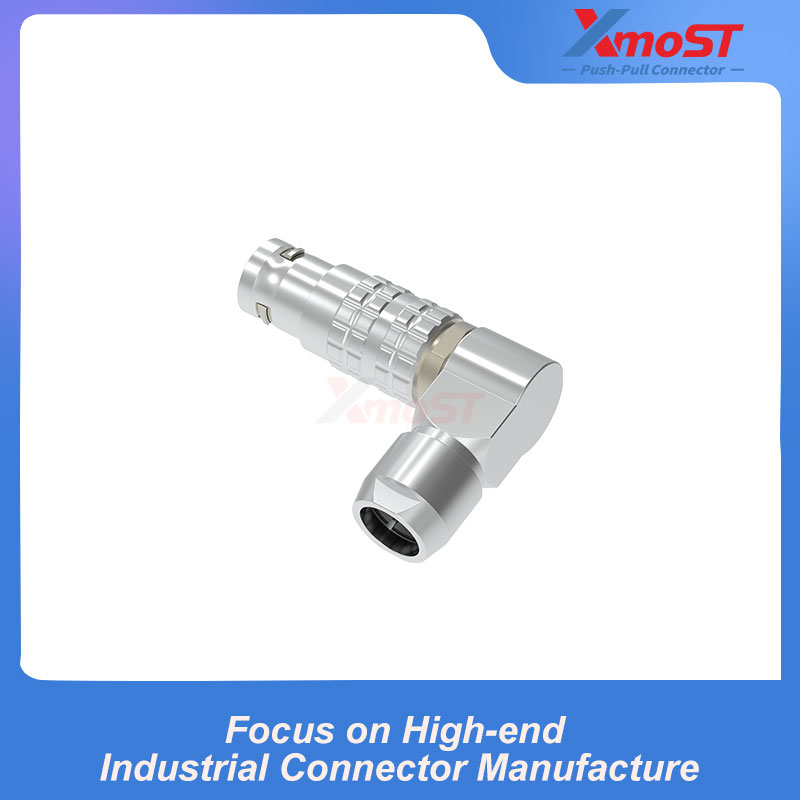

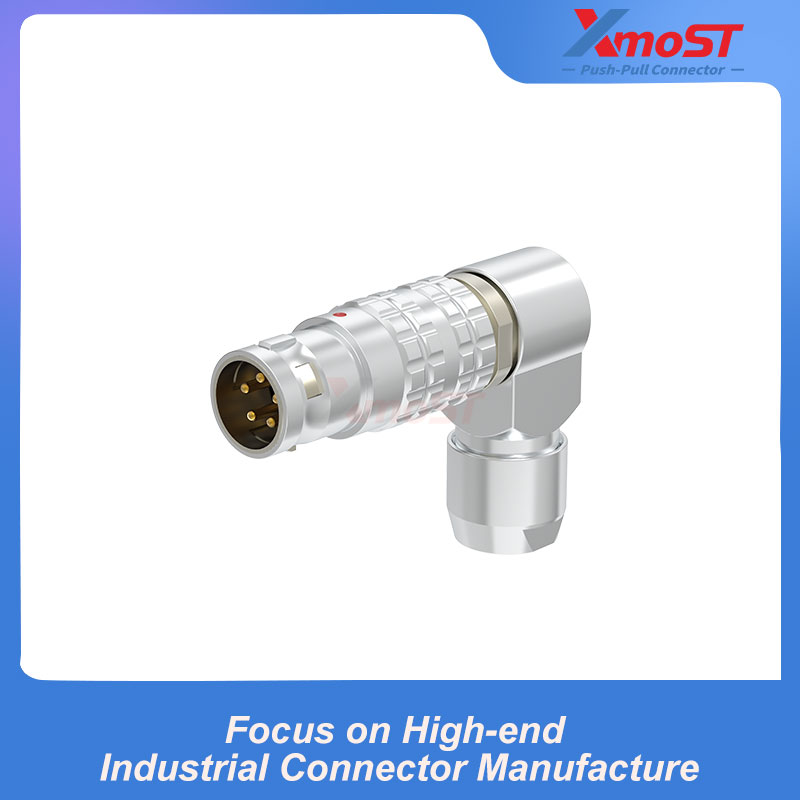

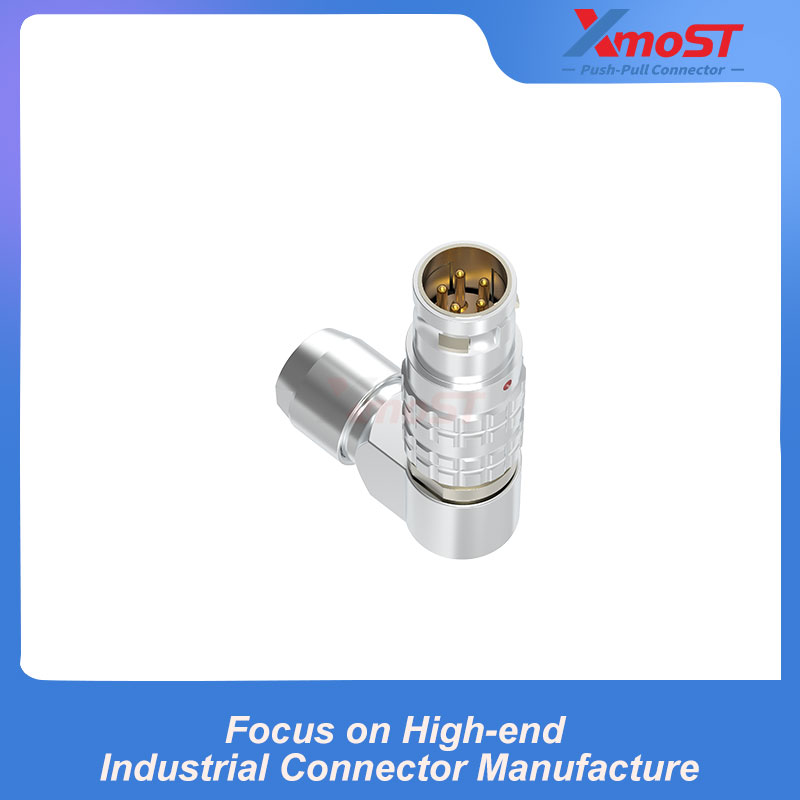

XM-LFSG is an adjustable 90° right-angle male connector featuring a compact L-shaped appearance. Its mating interface extends horizontally while the cable outlet turns through 90°, helping route the cable away from the connection point in space-restricted equipment.
Adjustable angled structure allows the cable-outlet orientation to be positioned according to the installation layout. It also features a push-pull self-locking mechanism, integrated cable clamp, standard G alignment key and optional A–M keying configurations.
Product Features
- Adjustable 90° right-angle structure
- Compact L-shaped appearance
- Horizontal male mating interface
- 90° angled cable outlet
- Adjustable cable-routing direction
- Push-pull self-locking mechanism
- Integrated cable clamp
- G or A–M alignment-key options

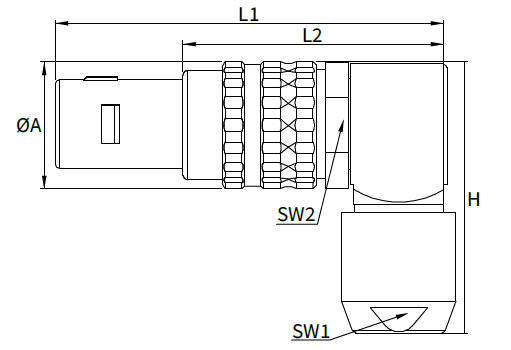

Dimensions
| Series | A (mm) | H (mm) | L1 (mm) | L2 (mm) | SW1 (mm) | SW2 (mm) |
|---|---|---|---|---|---|---|
| 00B | 8 | 18.1 | 24.8 | 16.8 | 5 | 7 |
| 0B | 10 | 21.0 | 30.3 | 20.3 | 7 | 9 |
| 1B | 12 | 26.4 | 36.5 | 25.5 | 9 | 11 |
| 2B | 16.5 | 34.5 | 44 | 32 | 12 | 15 |
All dimensions are in millimetres.
Applications
- Industrial automation equipment
- Robotics and motion-control systems
- Test and measurement instruments
- Medical and diagnostic equipment
- Professional audio/video equipment
- Compact devices requiring adjustable cable routing
