Description

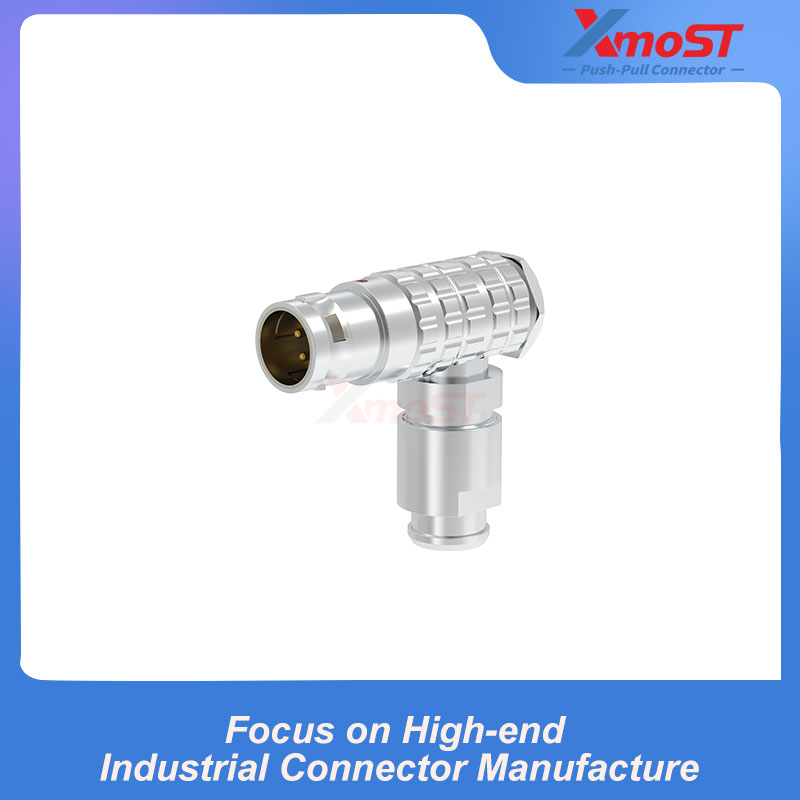

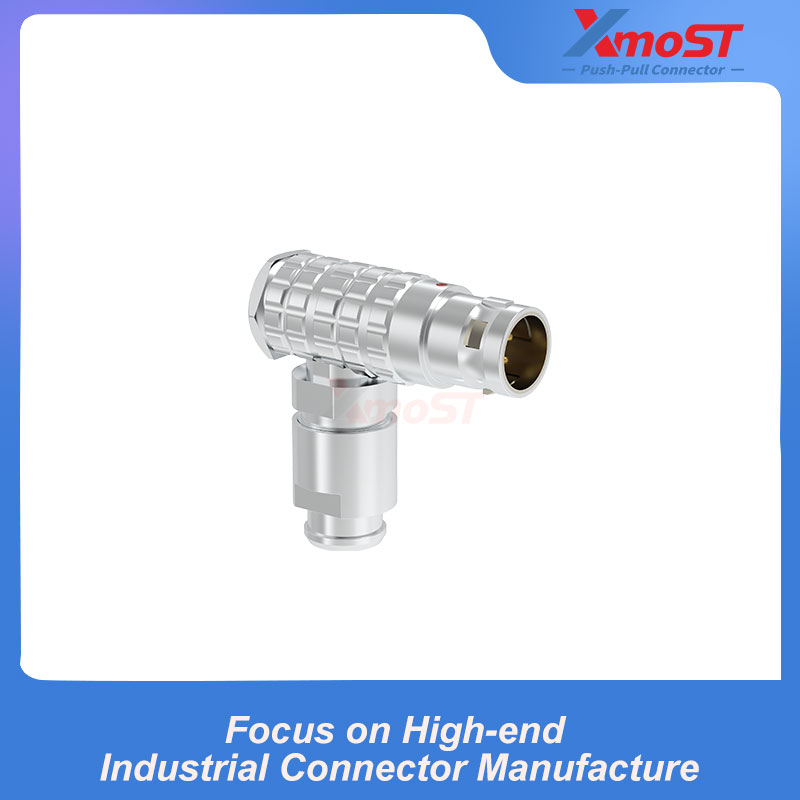

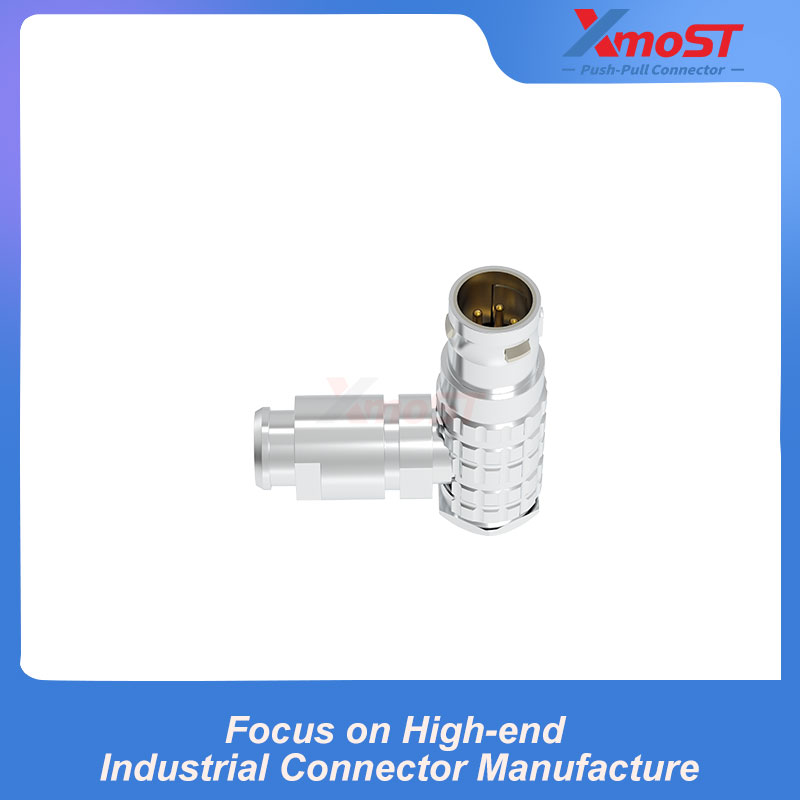

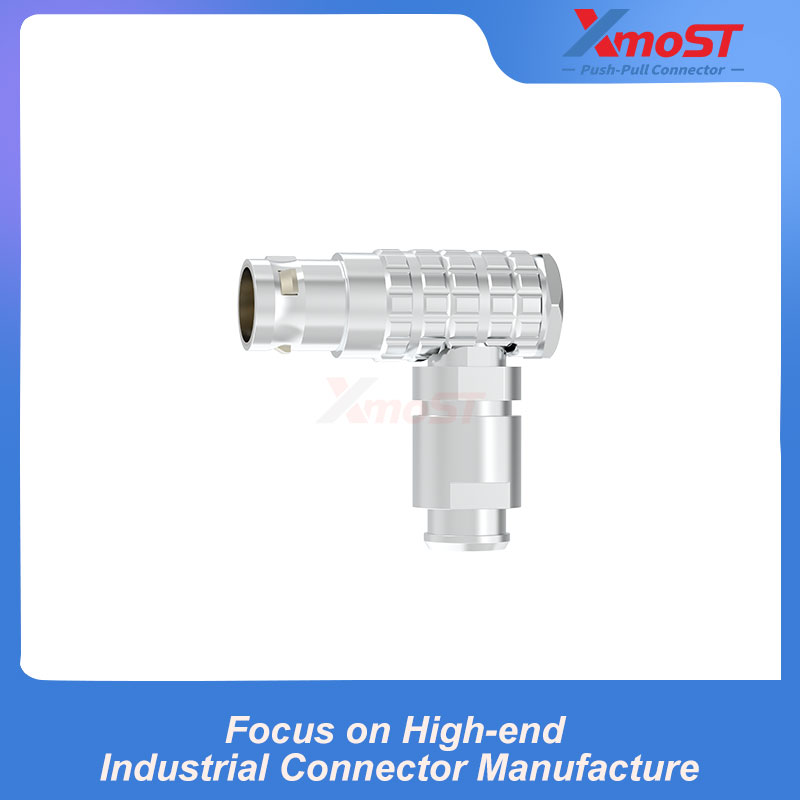

The XM-LFHG is distinguished by its compact L-shaped 90° right-angle appearance. The male mating end extends horizontally, while the cable outlet turns downward at a right angle, allowing the cable to be routed close to the equipment housing.
This male connector features a push-pull self-locking mechanism for fast and secure mating. An integrated cable clamp and strain-relief backshell support the cable at the 90° outlet and help reduce bending at the cable entry.
Product Features
- L-shaped 90° right-angle appearance
- Horizontal male mating interface
- Downward-facing cable outlet
- Push-pull self-locking mechanism
- Integrated cable clamp
- Backshell with strain relief
- G or A–M/R alignment-key options

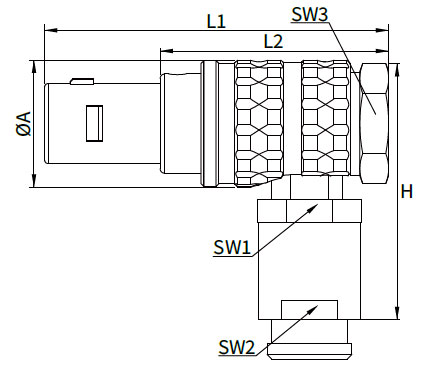

Dimensions
| Series | A (mm) | H (mm) | L1 (mm) | L2 (mm) | SW1 (mm) | SW2 (mm) | SW3 (mm) |
|---|---|---|---|---|---|---|---|
| 00B | 7.7 | 18 | 24 | 16 | 5.5 | 5 | 7 |
| 0B | 10.9 | 23 | 31.5 | 21.5 | 8 | 7 | 10 |
| 1B | 13.5 | 27.5 | 37 | 27 | 10 | 9 | 12 |
| 2B | 16.5 | 34 | 41.5 | 29.5 | 13 | 13 | 15.2 |
| 3B | 19 | 37 | 50 | 35 | 16 | 15 | 17 |
| 4B | 26 | 52 | 67 | 49 | 21 | 20 | 22 |
All dimensions are in millimetres.
Applications
- Industrial automation equipment
- Robotics and motion-control systems
- Test and measurement instruments
- Medical and diagnostic equipment
- Professional audio/video systems
- Communication equipment
- Laboratory instruments
- Compact equipment with limited rear clearance
- Cable assemblies requiring 90-degree routing
