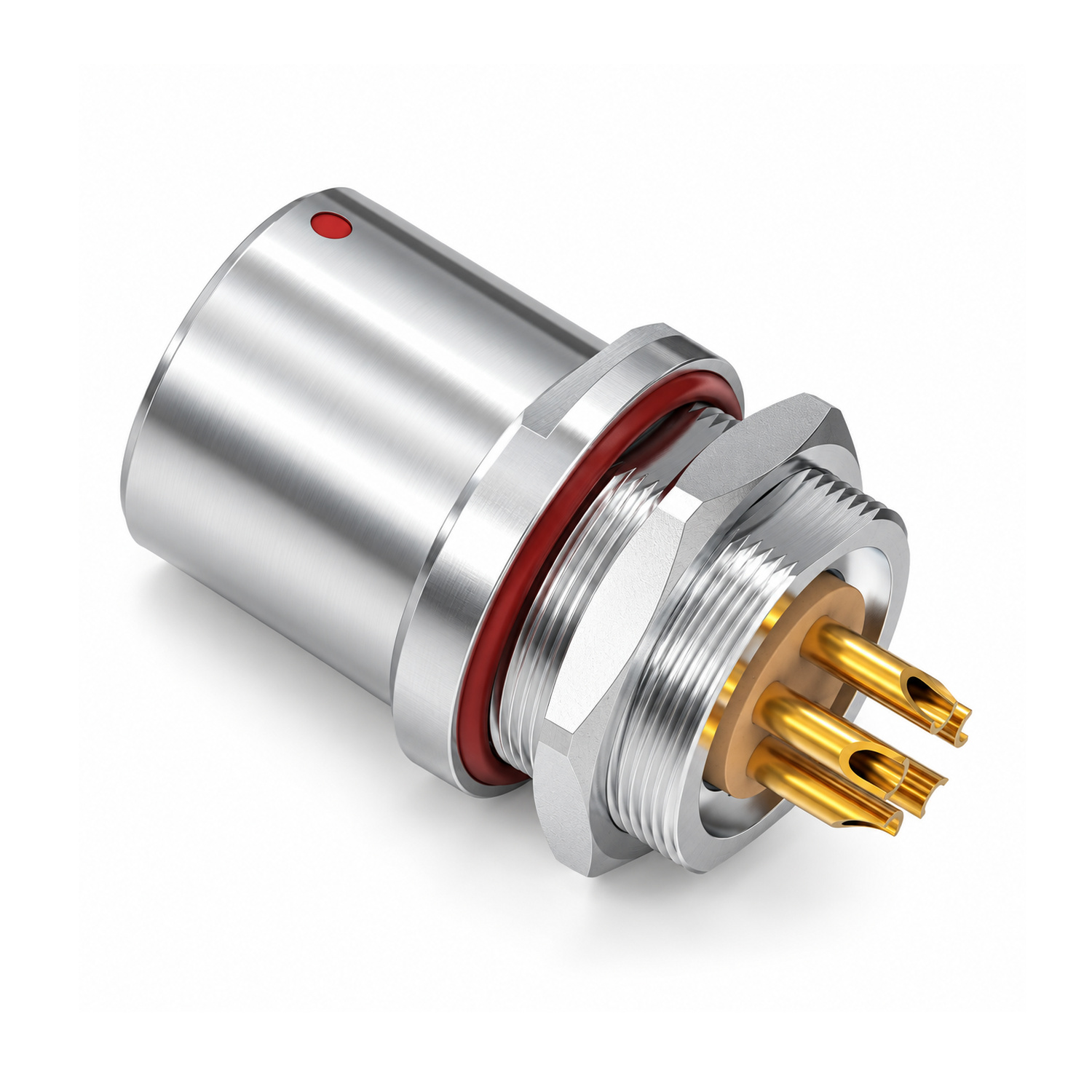

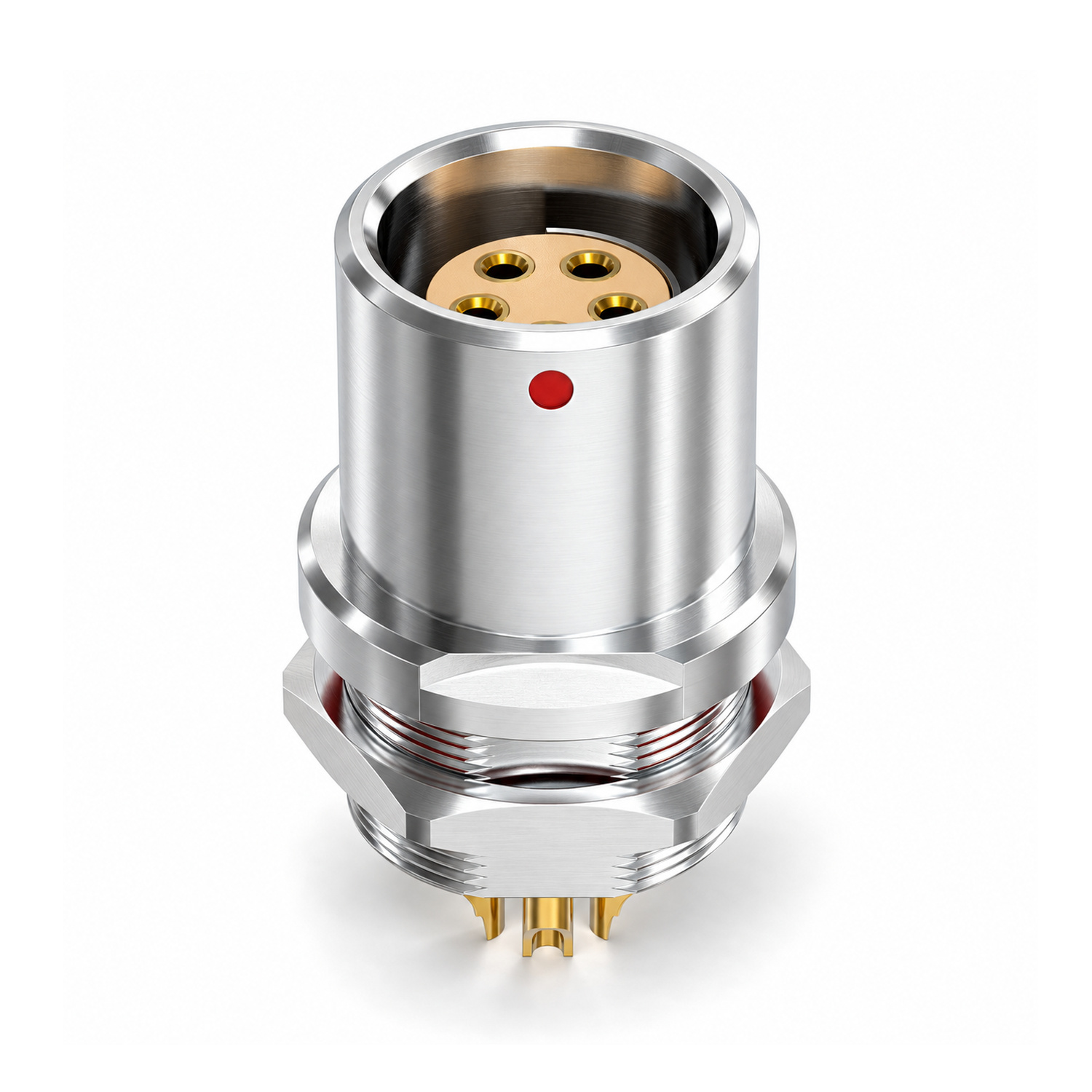

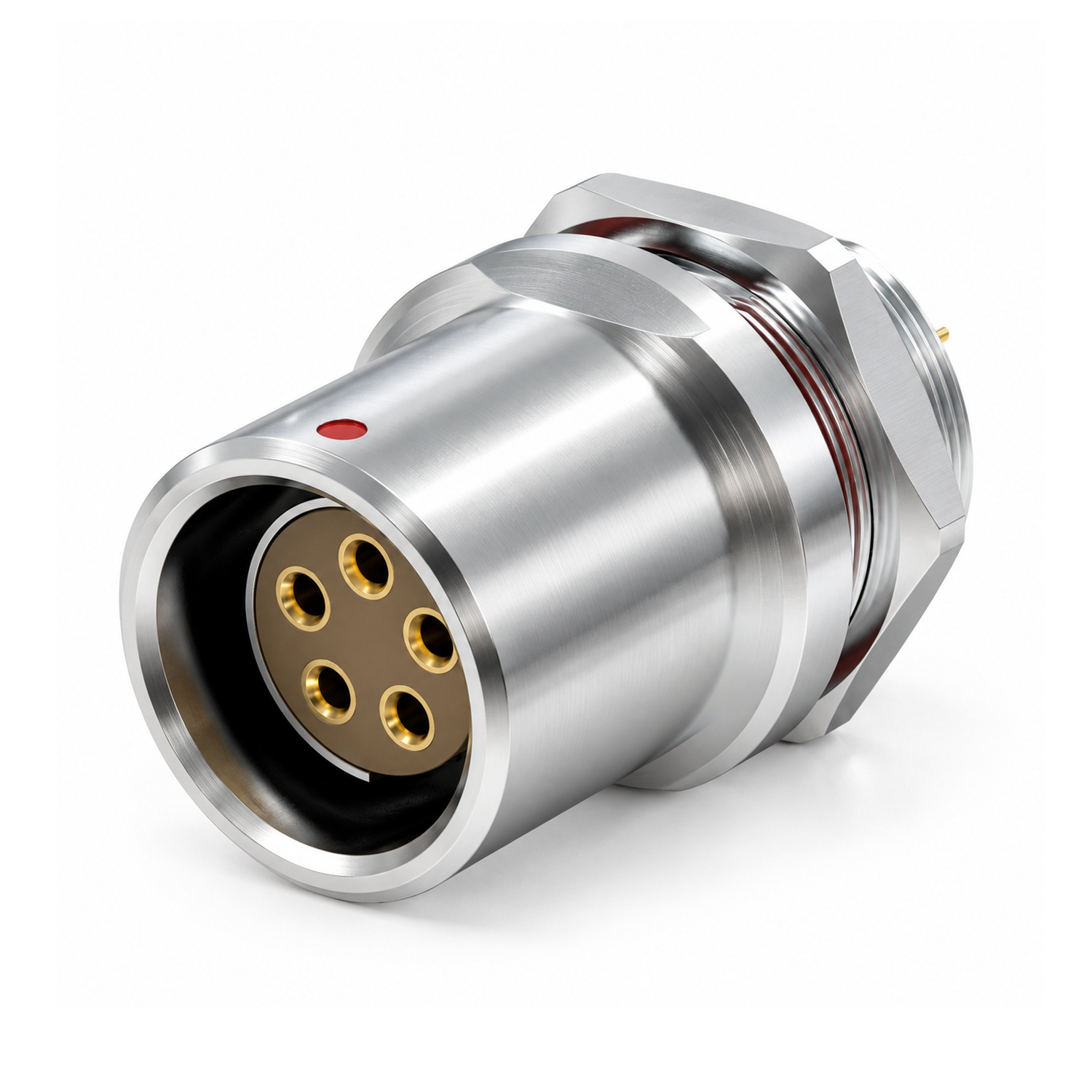

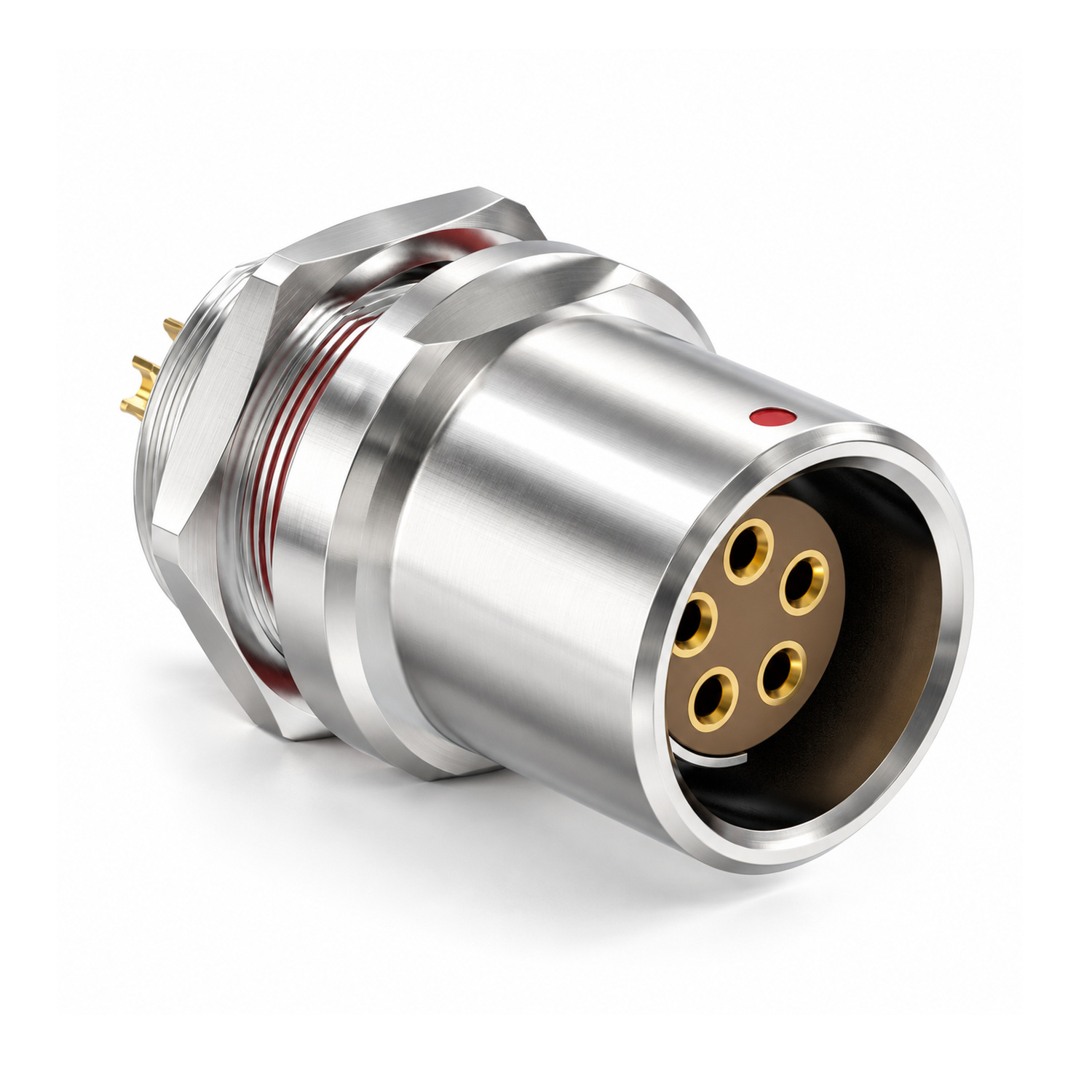

XM-OM41 is an F Series waterproof Push-Pull connector designed as a fixed female receptacle with a protruding housing. It features a half-moon ring positioning system with options 1 or 2 for accurate connector alignment. The Push-Pull self-latching mechanism provides secure and convenient mating, while the watertight/vacuum-sealed configuration is designed for applications requiring sealed connector performance.
Product Features & Advantages
- Fixed female waterproof connector configuration
- Protruding housing design for a defined connector interface
- Half-moon ring positioning with 1 or 2 options
- Push-Pull self-latching system for secure mating
- Watertight and vacuum-sealed configuration
- Compact metal connector construction
- Keyed positioning for reliable blind mating
- High resistance to shock and vibration
- IP68 protection for demanding sealed applications
- Suitable for equipment requiring protected panel connections

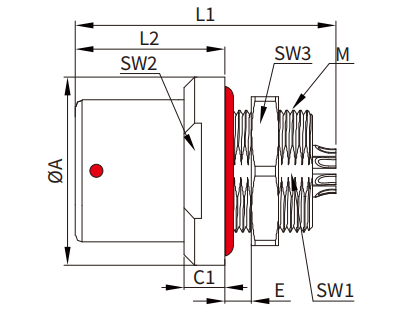

Dimensions
| Series | A (mm) | L1 (mm) | L2 (mm) | M | C1 (mm) | E (mm) | SW1 (mm) | SW2 (mm) | SW3 (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 0F | 14.5 | 22.5 | 11.0 | M9×0.5 | 2.5 | 5.0 | 8.2 | 12.0 | 11.0 |
| 1F | 18.0 | 26.0 | 15.5 | M14×1.0 | 3.0 | 4.0 | 12.0 | 14.0 | 17.0 |
| 1.5F | 19.0 | 28.0 | 13.6 | M14×1.0 | 3.0 | 5.0 | 12.0 | 15.0 | 17.0 |
| 2F | 21.0 | 30.0 | 15.5 | M16×1.0 | 4.0 | 4.1 | 14.0 | 17.0 | 19.0 |
| 3F | 22.0 | 30.0 | 19.0 | M18×1.0 | 4.0 | 5.0 | 16.5 | 22.0 | 22.0 |
Technical Parameters
| Parameter | Specification |
|---|---|
| Usage Temperature | -20°C ~ +100°C (0F–1.5F); -20°C ~ +80°C (2F–3F) |
| Mating Cycles | >5000 |
| Rubber Core Material | PEEK |
| Terminal Material | Copper Alloy, Gold-Plated |
| Humidity | Max. 95% Relative Humidity at 60°C |
| Main Material | Brass, Nickel-Plated |
| Seal / O-Ring | FKM |
| Protection Grade | IP68 |
| Salt Spray Test | Over 144 hours |
| Environmental Test | 20/80/21 |
| Vibration Resistance | 10–2000Hz, 15g |
| Shock Resistance | 100g, 6ms |
| Shielding Performance | 75dB (10MHz) / 40dB (1GHz) |
| Insulation Resistance | ≥1000Ω |
| Leakage Rate | <10⁻⁷ mbar·l·s⁻¹ for vacuum-sealed models only |
| Maximum Pressure | 60 bar (0F–1.5F); 40 bar (2F); 30 bar (3F) |
Product Industry Applications
- Portable Wireless Devices
- Military Equipment
- Laboratory Equipment
- Aviation Equipment
- Vacuum-Sealed Instruments
- Outdoor Electronic Equipment
