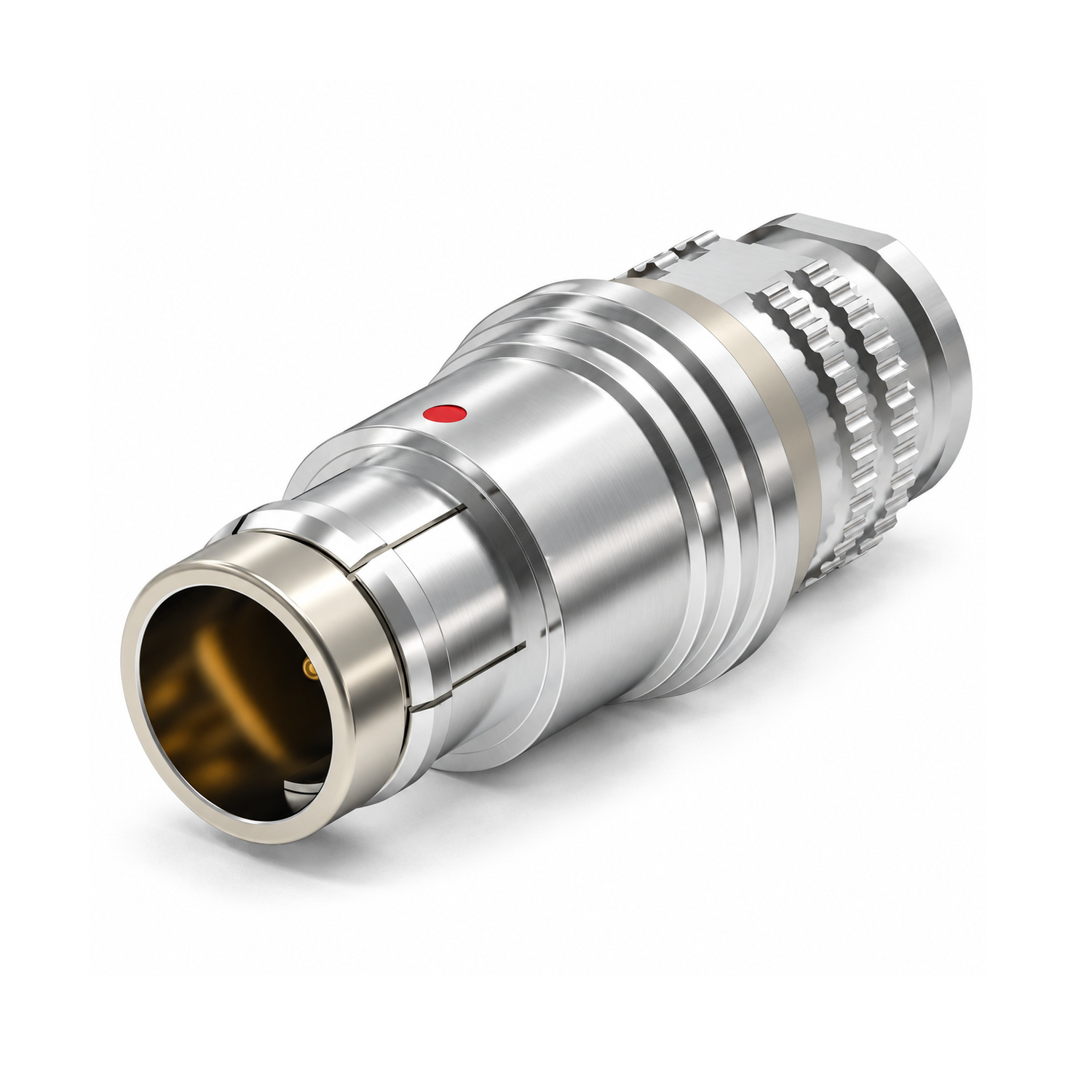

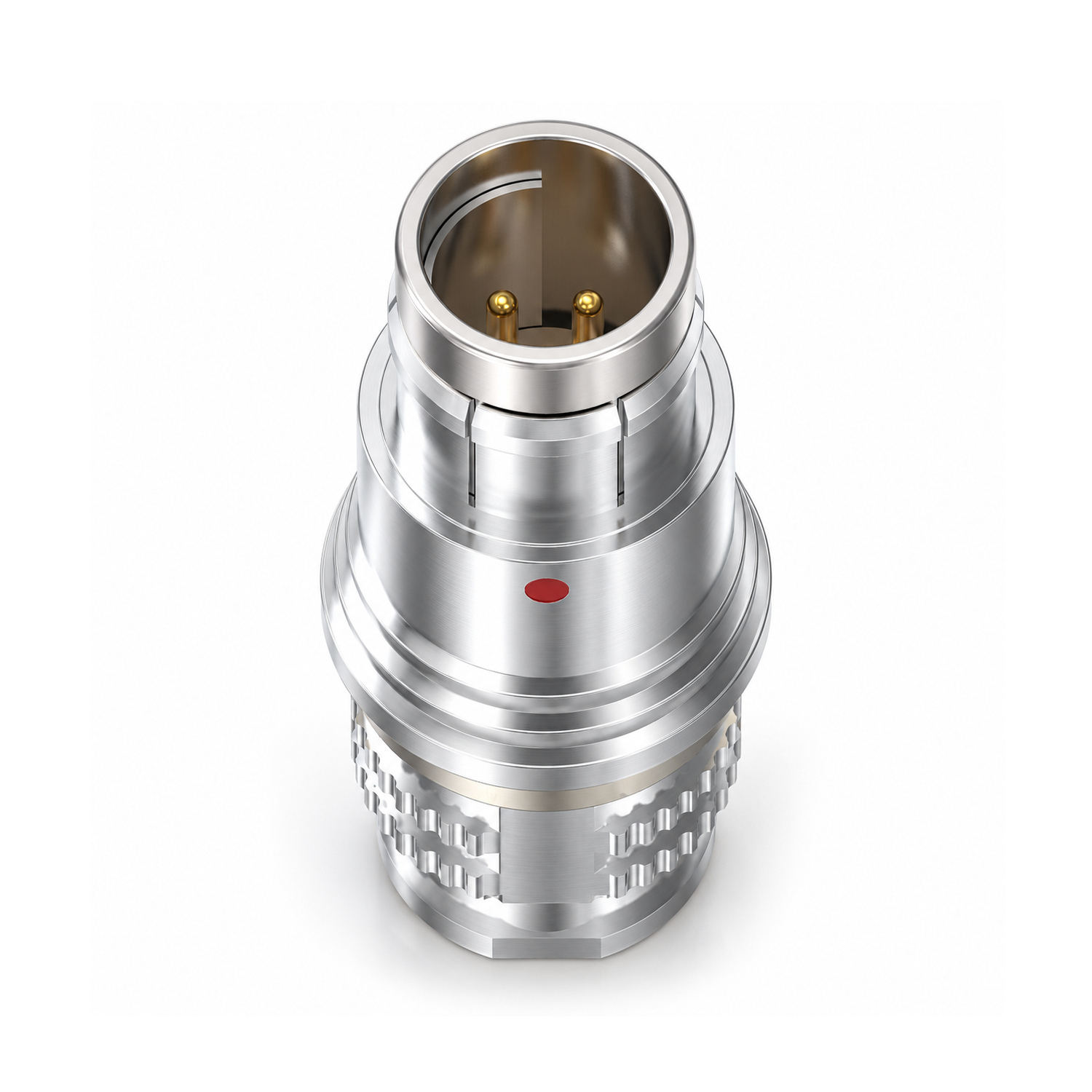

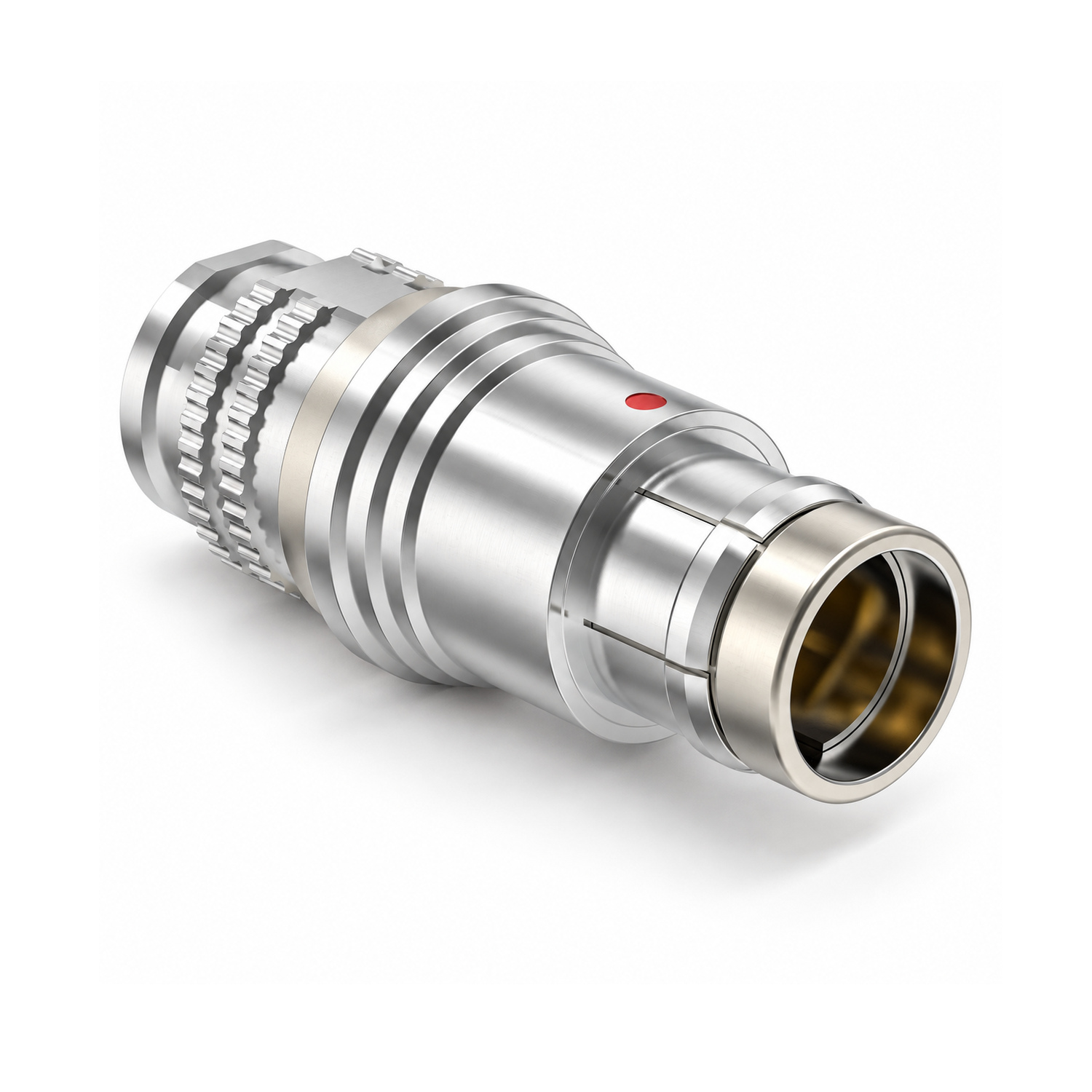

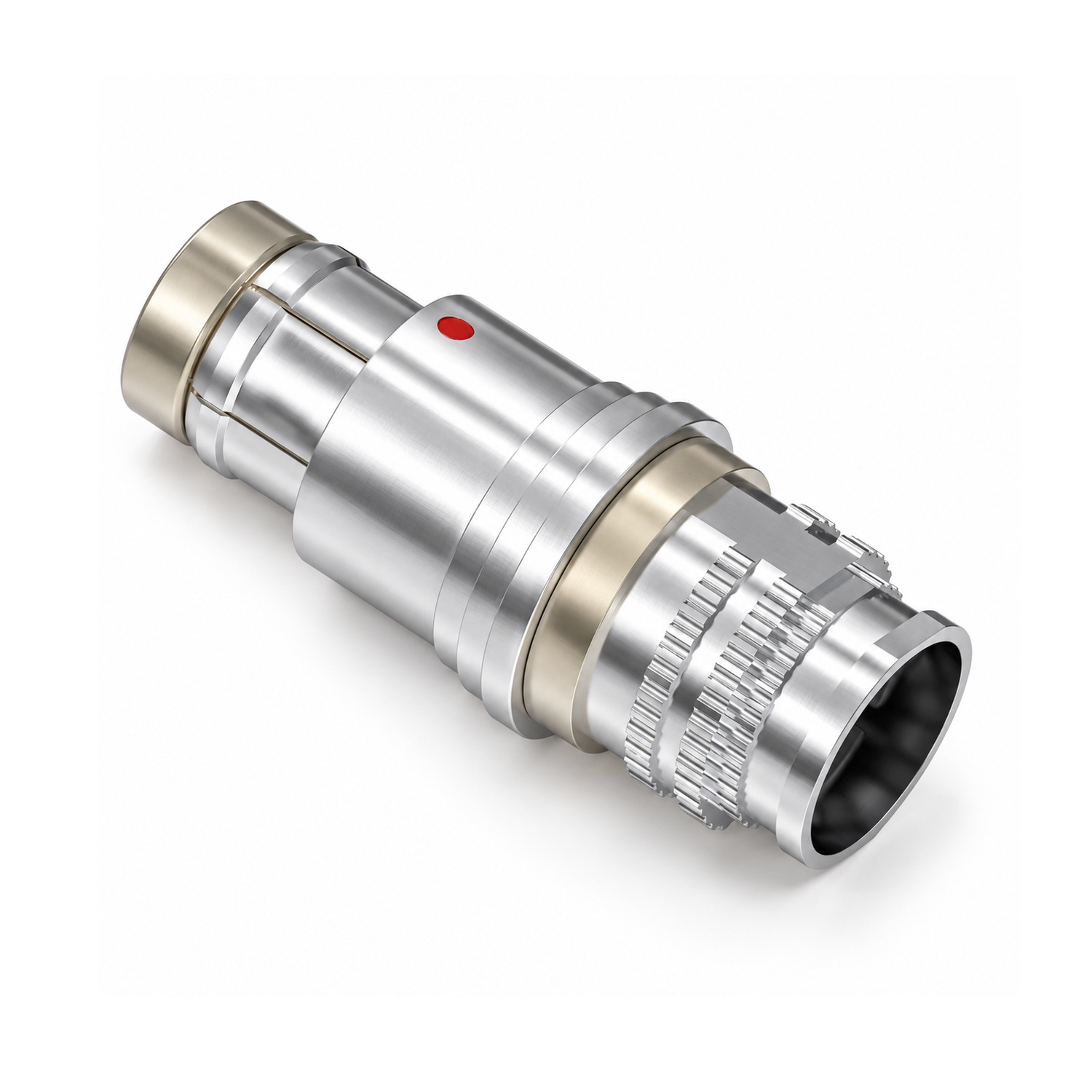

XM-OSS1 is an F Series Push-Pull connector designed as a short straight plug for overmolding applications. It features a half-moon ring positioning system with options 1 or 2, providing defined connector orientation during mating. The short-body configuration is designed for compact cable assemblies and overmolded connection structures where installation length needs to be minimized.
Product Features & Advantages
- Short straight Push-Pull connector configuration
- Designed specifically for overmolding applications
- Half-moon ring positioning with 1 or 2 options
- Defined connector orientation for reliable mating
- Compact body for short installation length
- Self-latching system for secure connection
- Metal housing for a robust connector structure
- High shock and vibration resistance
- Waterproof performance when properly mated and assembled with cables

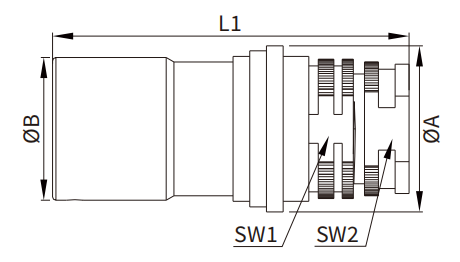

Размеры
| Series | A (mm) | B (mm) | L1 (mm) | L2 (mm) | SW1 (mm) | SW2 (mm) |
|---|---|---|---|---|---|---|
| 0F | 9.0 | 12.0 | 33 | 22 | 10 | 11 |
| 1F | 12.0 | 15.0 | 33 | 23 | 10 | 11 |
| 1.5F | 12.4 | 15.5 | 33 | 23 | 10 | 11 |
| 2F | 15.0 | 18.0 | 44 | 29 | 15 | 16 |
| 3F | 18.0 | 21.0 | 44 | 29 | 15 | 16 |
Технические параметры
| Parameter | Specification |
|---|---|
| Usage Temperature | -55°C ~ +250°C |
| Mating Cycles | >5000 |
| Rubber Core Material | PEEK |
| Terminal Material | Copper Alloy, Gold-Plated |
| Humidity | Max. 95% Relative Humidity at 60°C |
| Main Material | Brass, Nickel-Plated |
| Seal / O-Ring | FKM |
| Protection Grade | IP68 |
| Salt Spray Test | Over 144 hours |
| Environmental Test | 55/175/21 |
| Vibration Resistance | 10–2000Hz, 15g |
| Shock Resistance | 100g, 6ms |
| Shielding Performance | 75dB (10MHz) / 40dB (1GHz) |
| Insulation Resistance | ≥1000Ω |
