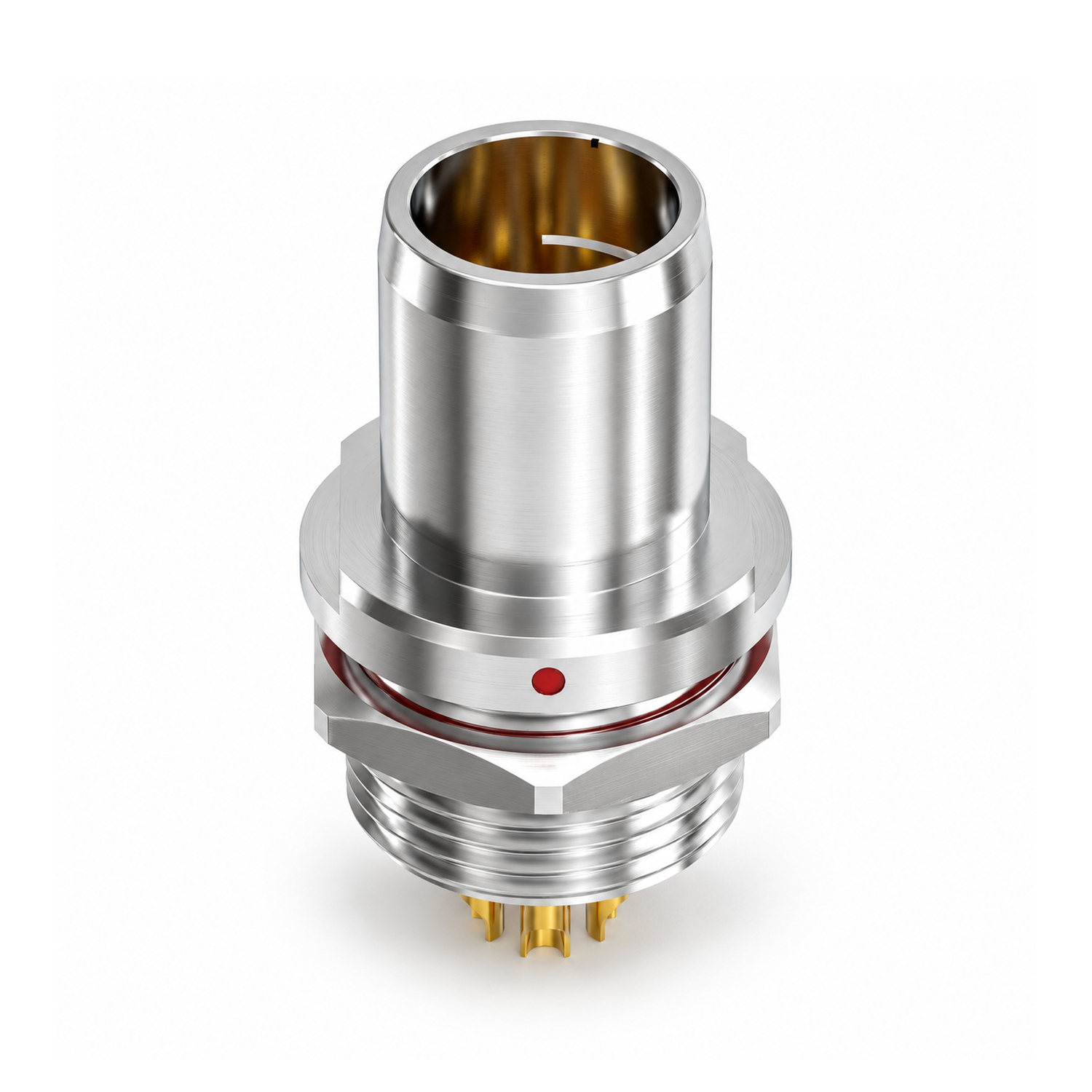

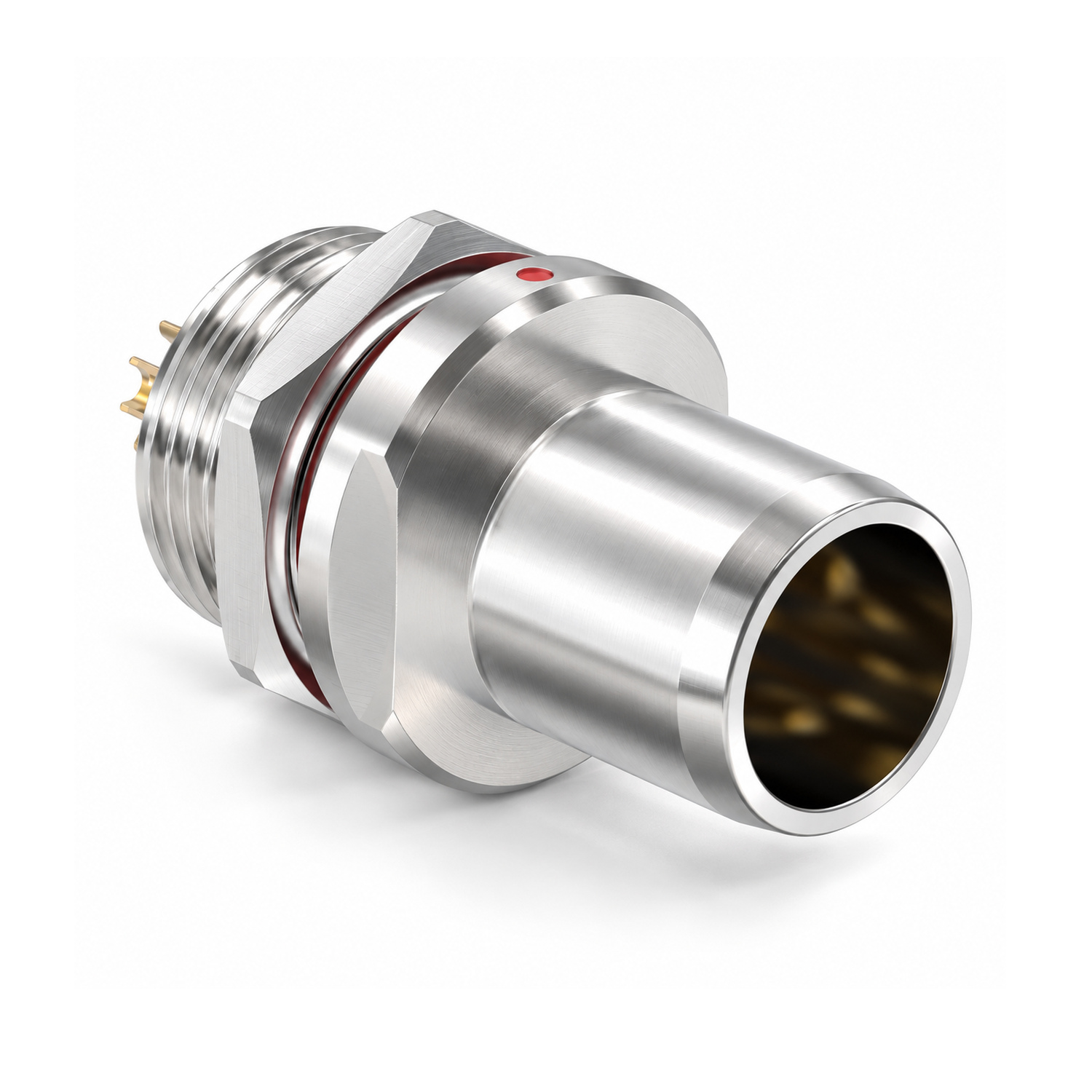

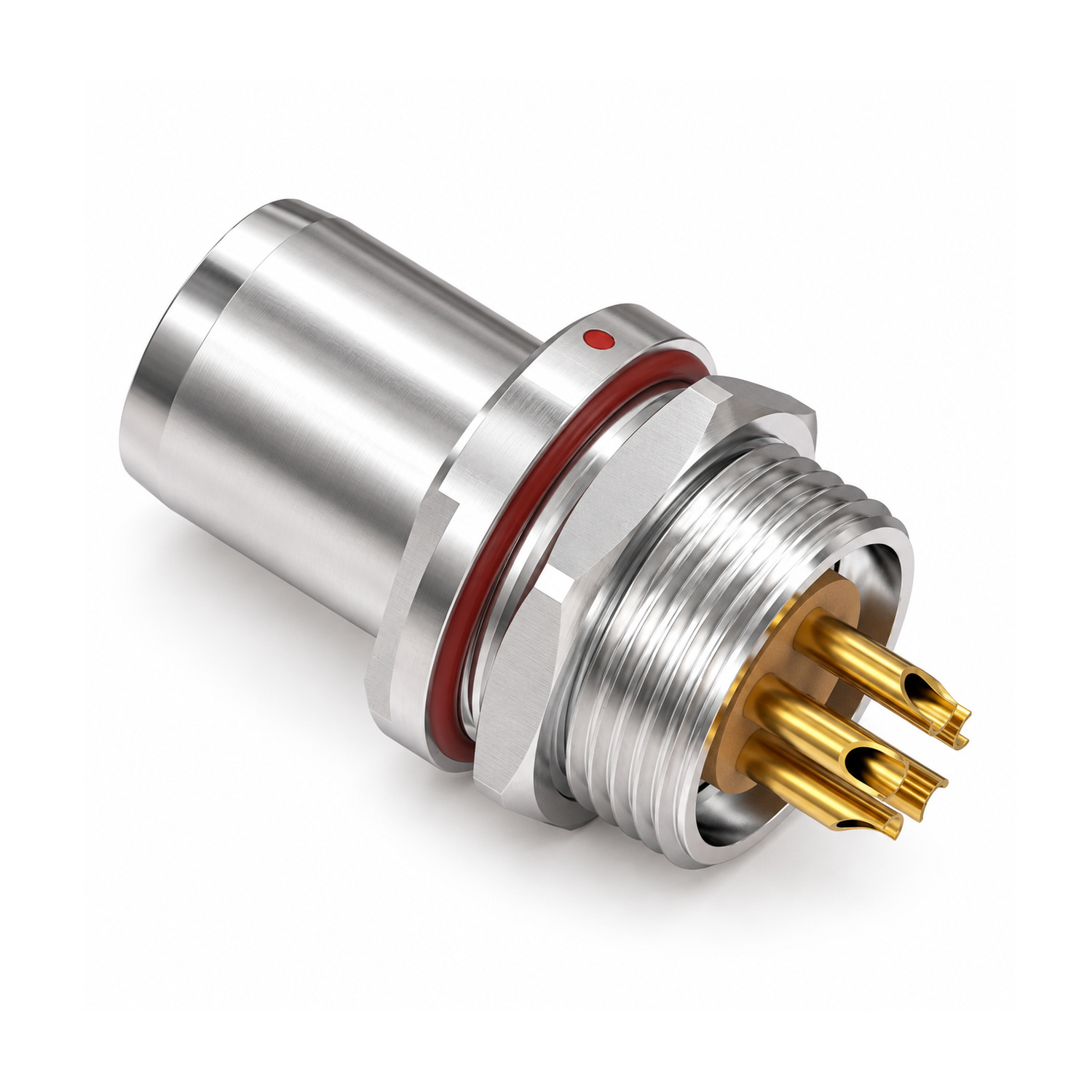

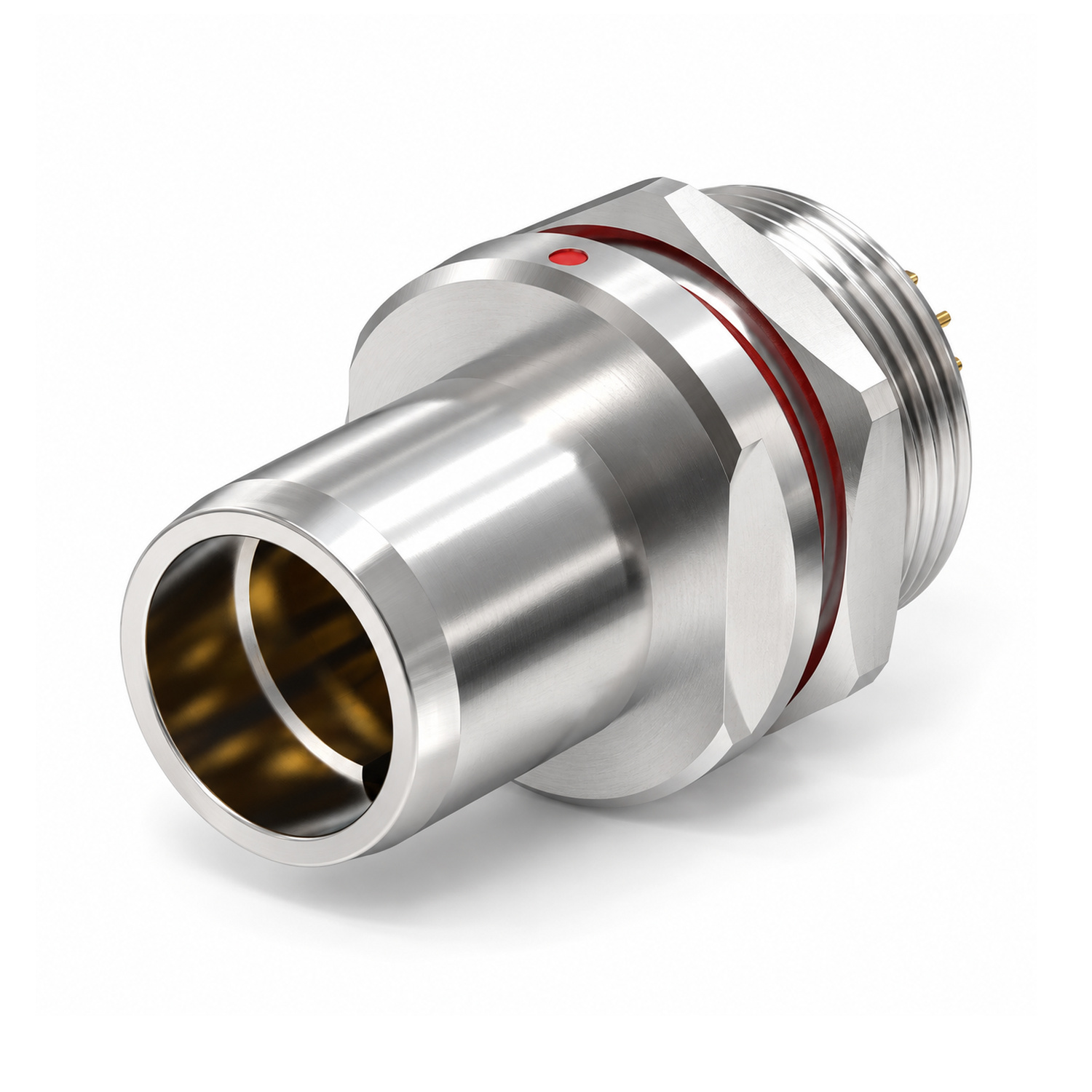

XM-OAD1 is an F Series waterproof connector designed as a fixed straight plug with nut mounting. It uses a half-moon ring positioning structure with options 1 or 2 for accurate connector alignment. The fixed mounting configuration provides a stable connection point for equipment panels, while the metal construction is suited to applications requiring waterproof protection and mechanical durability.
Product Features & Advantages
- Fixed F Series waterproof connector configuration
- Nut mounting for stable panel installation
- Half-moon ring positioning with 1 or 2 options
- Straight plug design for fixed equipment integration
- Push-Pull connector design for reliable mating
- Metal housing for robust mechanical construction
- High resistance to shock and vibration
- Environmental protection with IP68 rating
- Suitable for demanding outdoor and industrial connector applications

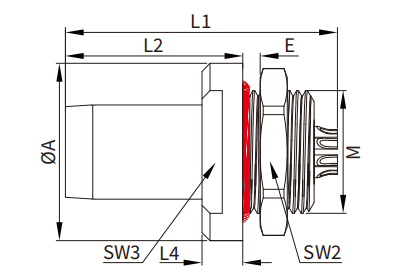

Dimensions
| Series | A (mm) | M | L1 (mm) | L2 (mm) | L4 (mm) | E (mm) | SW2 (mm) | SW3 (mm) |
|---|---|---|---|---|---|---|---|---|
| 0F | 13 | M9×0.5 | 21 | 13 | 3.0 | 2.5 | 11 | 9 |
| 1F | 17 | M12×1.0 | 26 | 14 | 3.0 | 5.0 | 14 | 12 |
| 1.5F | 19 | M14×1.0 | 26.5 | 13.7 | 3.7 | 4.0 | 17 | 12 |
| 2F | 22 | M15×1.0 | 28 | 15 | 3.0 | 7.5 | 17 | 12 |
| 3F | 27 | M16×1.0 | 32 | 17 | 4.0 | 6.0 | 19 | – |
Technical Parameters
| Parameter | Specification |
|---|---|
| Usage Temperature | -55°C ~ +250°C |
| Mating Cycles | >5000 |
| Rubber Core Material | PEEK |
| Terminal Material | Copper Alloy, Gold-Plated |
| Humidity | Max. 95% Relative Humidity at 60°C |
| Main Material | Brass, Nickel-Plated |
| Seal / O-Ring | FKM |
| Protection Grade | IP68 |
| Salt Spray Test | Over 144 hours |
| Environmental Test | 55/175/21 |
| Vibration Resistance | 10–2000Hz, 15g |
| Shock Resistance | 100g, 6ms |
| Shielding Performance | 75dB (10MHz) / 40dB (1GHz) |
| Insulation Resistance | ≥1000Ω |
Product Industry Applications
- Outdoor Control Equipment
- Industrial Panel Systems
- Waterproof Electronic Equipment
- Instrumentation Systems
- Test and Measurement Equipment
- Industrial Automation Equipment
