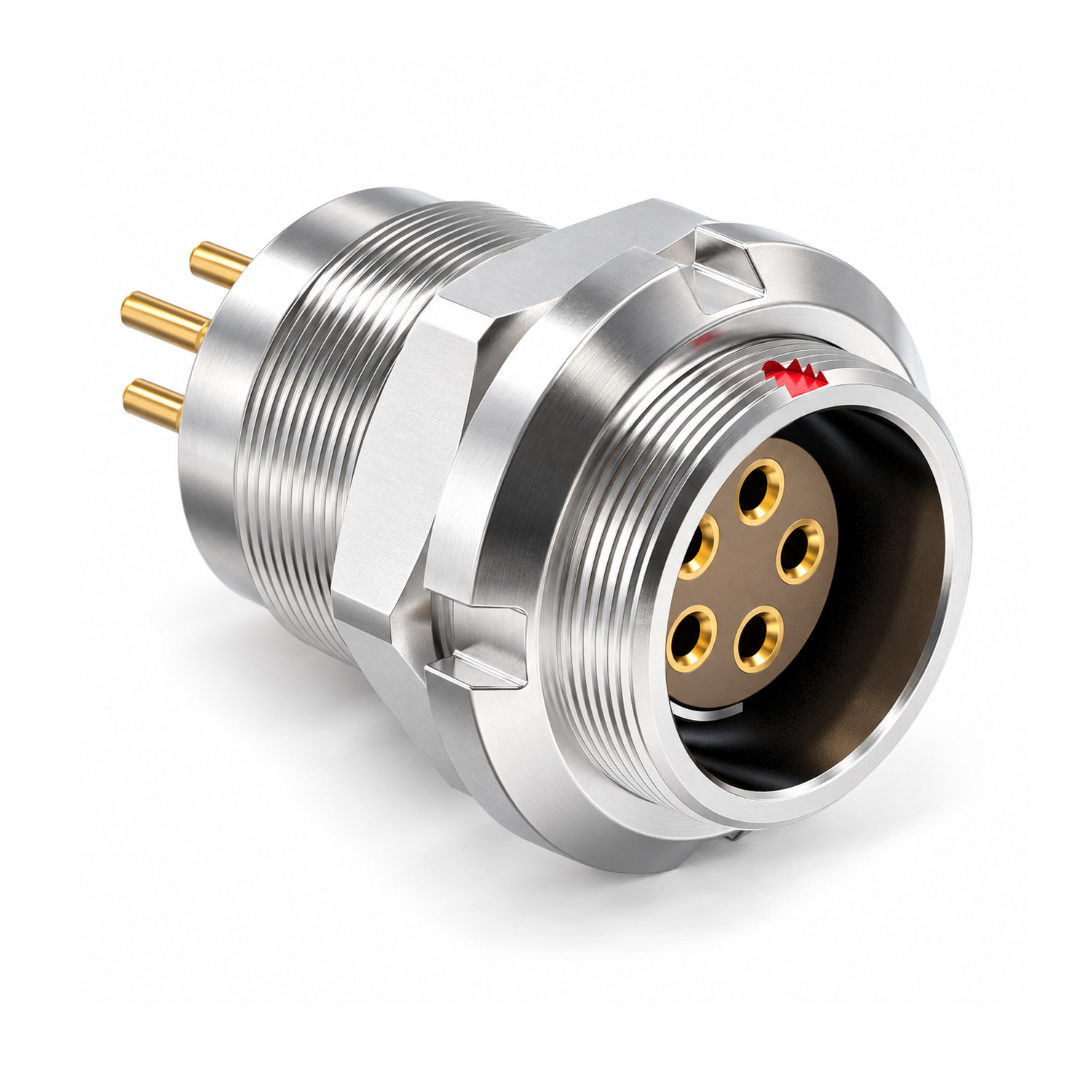

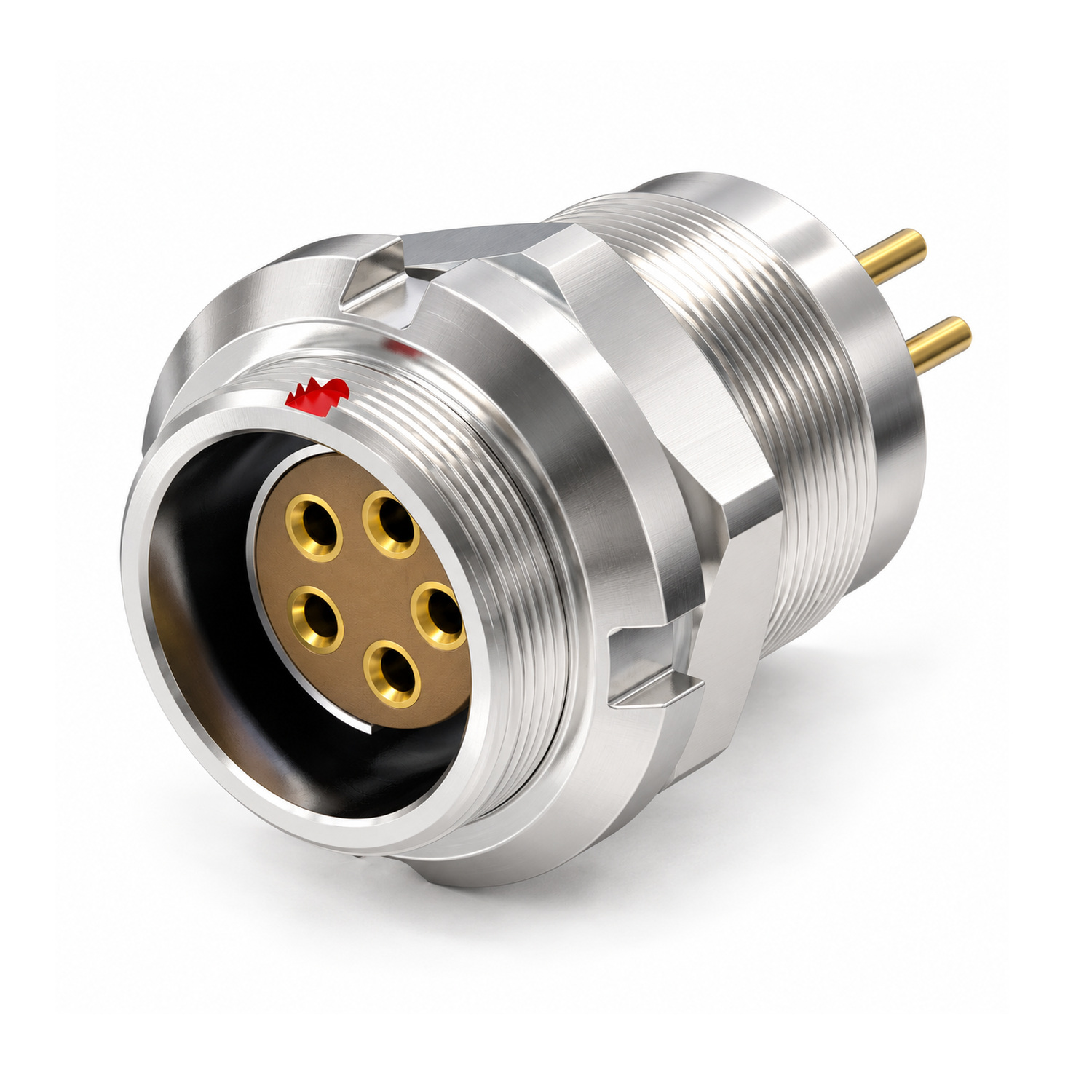

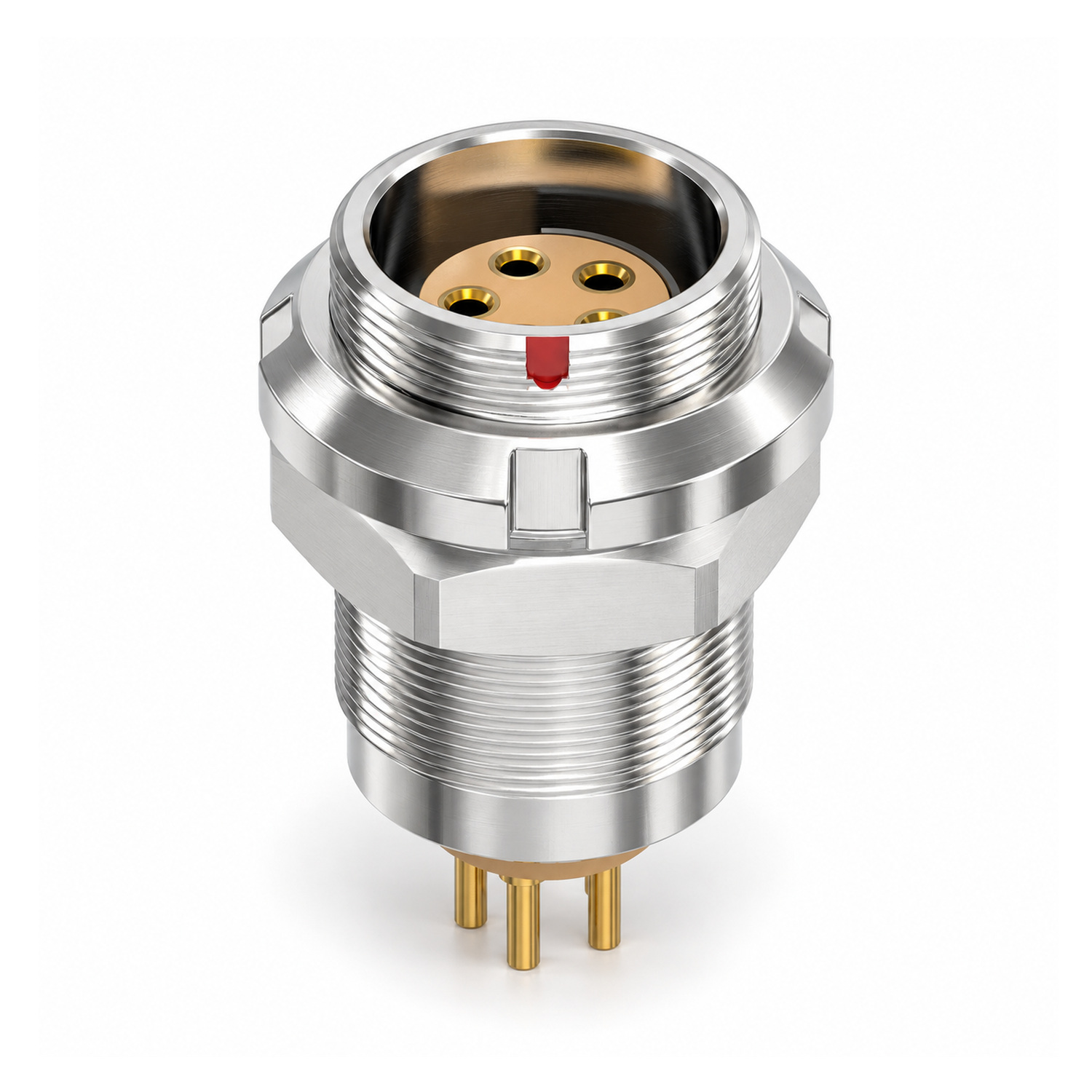

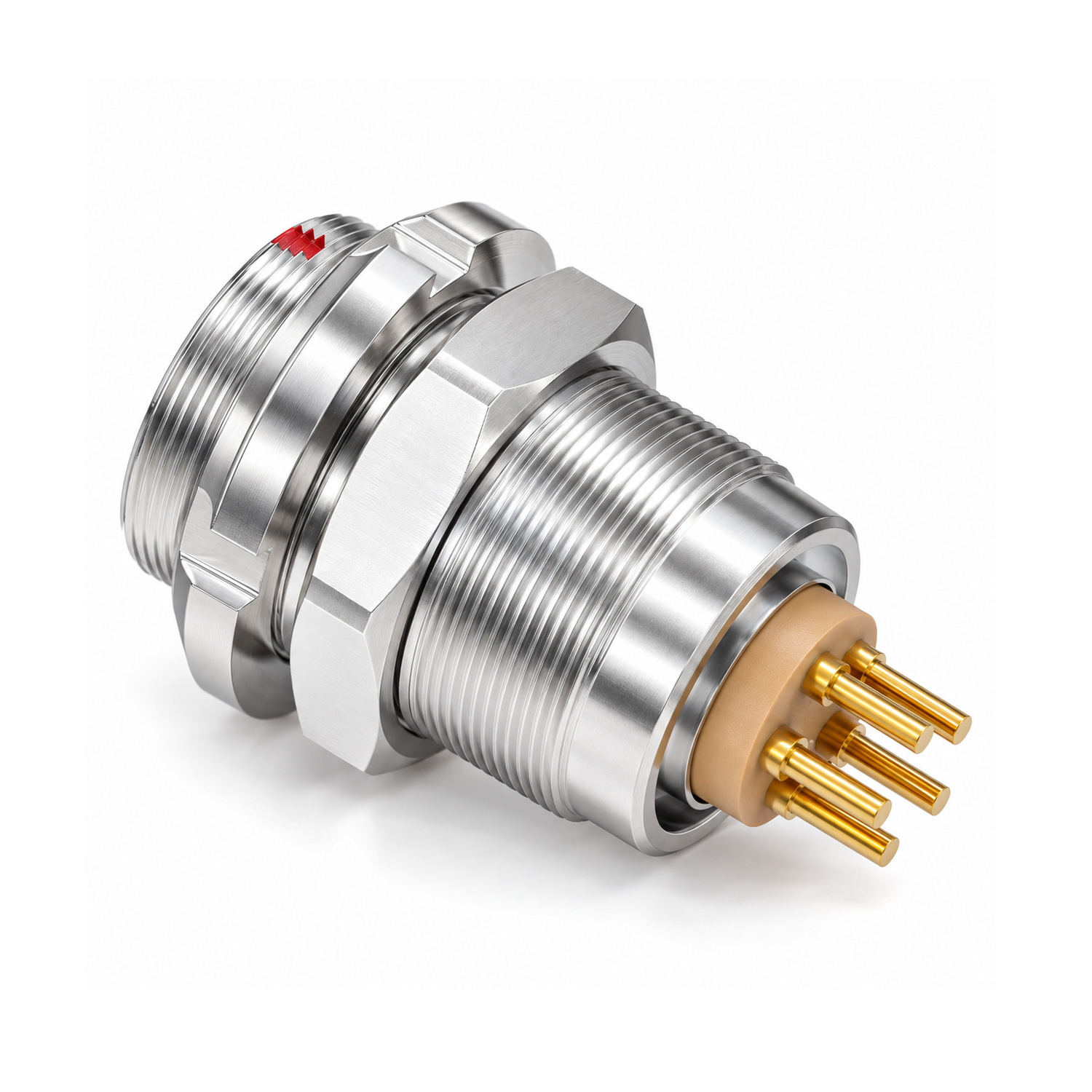

XM-OG51 is an F Series fixed female Push-Pull connector designed for PCB applications with dual nut mounting for internal or external installation. It uses a half-moon ring positioning structure with options 1 or 2 for reliable connector alignment. The straight receptacle configuration provides a stable PCB connection while allowing the mounting method to be selected according to the equipment structure.
Product Features & Advantages
- Fixed female Push-Pull connector for PCB applications
- Dual nut mounting for internal or external installation
- PCB-compatible configuration for equipment integration
- Half-moon ring positioning with 1 or 2 options
- Push-Pull self-latching system for secure mating
- Straight connector configuration
- Compact metal housing for equipment integration
- Keyed positioning for convenient blind mating
- High resistance to shock and vibration
- Waterproof performance when mated and assembled with cables

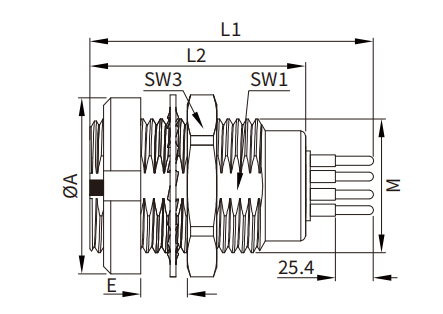

Dimensions
| Series | A (mm) | L1 (mm) | L2 (mm) | M | E (mm) | SW1 (mm) | SW3 (mm) |
|---|---|---|---|---|---|---|---|
| 0F | 12 | 19 | 14 | M9×0.5 | 8 | 8 | 11 |
| 1F | 15 | 23 | 15 | M12×1.0 | 8 | 10 | 14 |
| 1.5F | 18 | 24 | 18 | M14×1.0 | 8 | 12 | 17 |
| 2F | 29 | 26 | 18 | M15×1.0 | 10 | 13.5 | 17 |
| 3F | 23 | 30 | 24 | M18×1.0 | 14 | 16.5 | 22 |
Технические параметры
| Parameter | Specification |
|---|---|
| Connector Model | XM-OG51 |
| Connector Series | F Series |
| Connector Type | Female Receptacle |
| Receptacle Type | Fixed |
| Mounting Type | Dual Nut Mount, Internal / External |
| Application | PCB |
| Alignment | 1 or 2 |
| Positioning Type | Half-Moon Ring |
| Locking Mechanism | Push-Pull Self-Latching |
| Connector Shape | Straight |
| Part Number | XM-OG51.F.3*.CLNA |
Промышленные применения
- Электронные узлы на печатных платах
- Платы промышленного управления
- Встраиваемое электронное оборудование
- Системы управления автоматизацией
- Оборудование для испытаний и измерений
- Электронная измерительная аппаратура
