Description

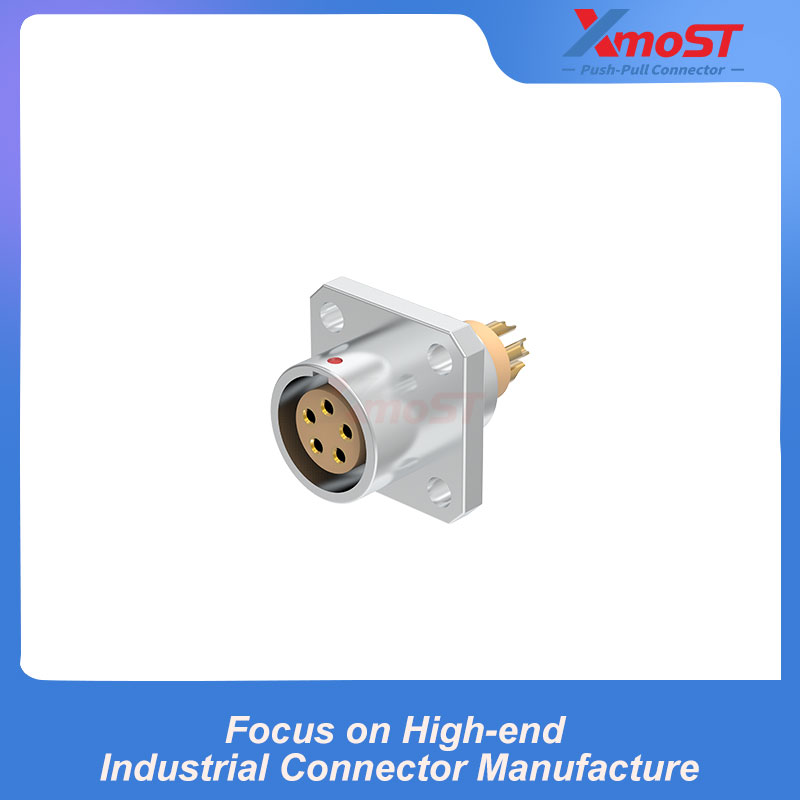

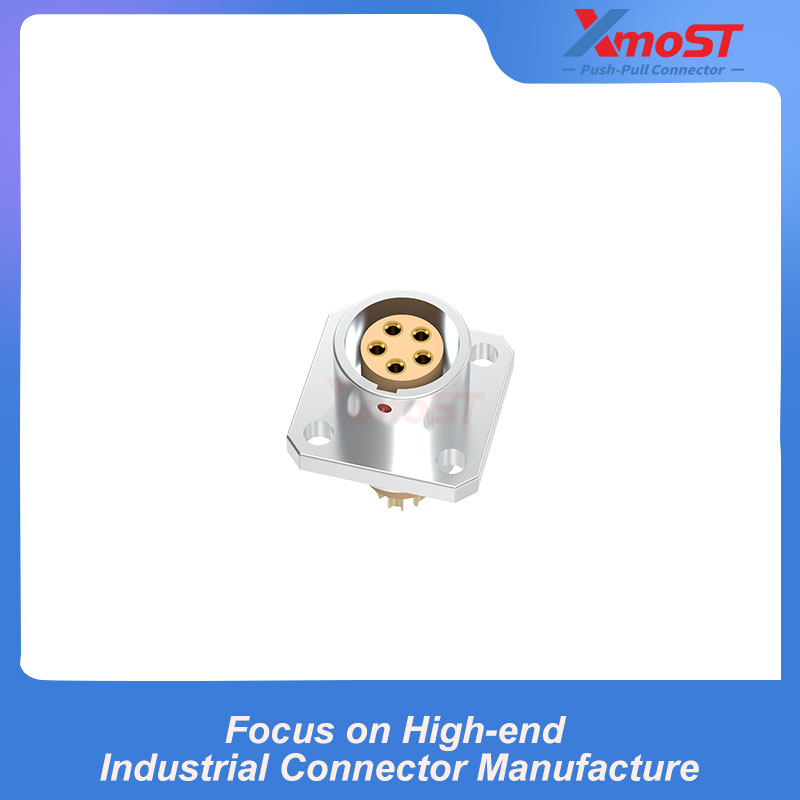

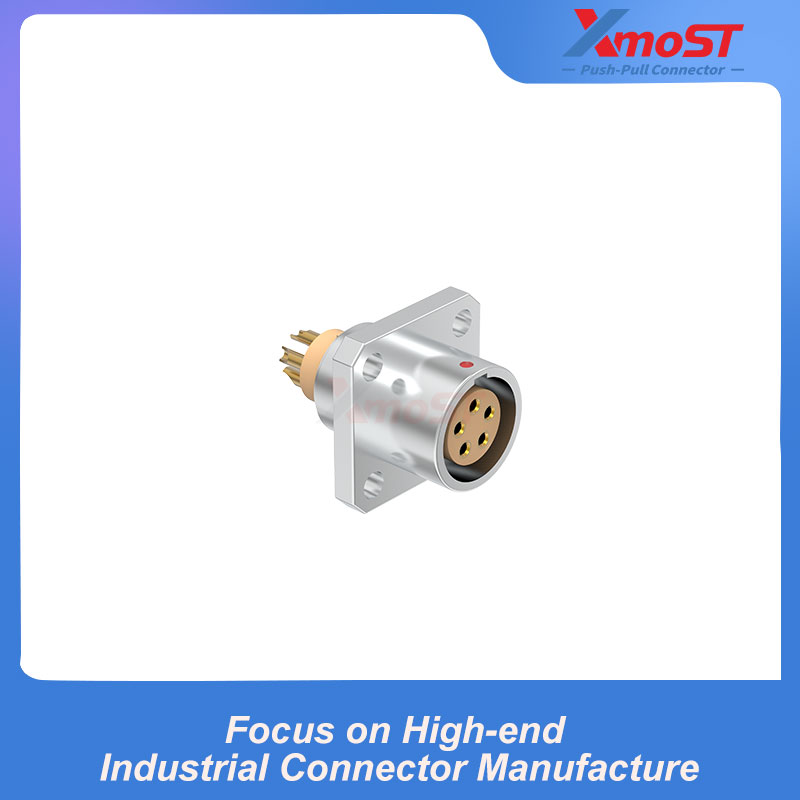

XM-LZDG is a straight fixed female receptacle with a prominent cylindrical front housing and a square mounting flange. Four screw holes are positioned at the corners of the flange, providing stable and evenly distributed panel attachment.

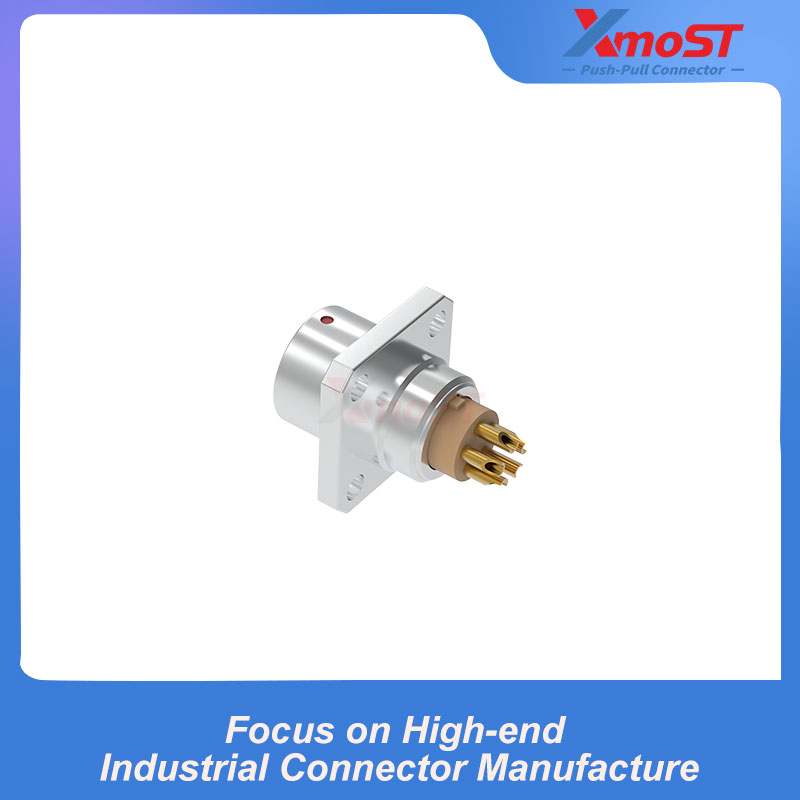

The protruding front body provides clear access to the female mating interface, while the rear contacts extend toward the equipment interior. The receptacle supports push-pull self-locking mating and uses the standard G alignment key. Alternative A–M keying options are available to help prevent cross-mating.
Product Features
- Straight fixed female receptacle
- Protruding cylindrical front housing
- Square panel-mounting flange
- Four-hole screw-mount structure
- Push-pull self-locking mating system
- Standard G alignment key
- Alternative A–M keying options
- Available in 1B and 2B shell sizes
- Compact rear contact arrangement

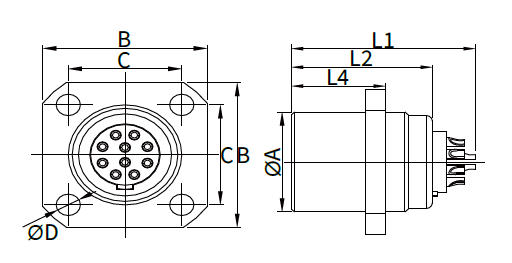

Dimensions
| Series | A (mm) | B (mm) | C (mm) | D (mm) | L1 (mm) | L2 (mm) | L4 (mm) |
|---|---|---|---|---|---|---|---|
| 1B | 12 | 19 | 12.8 | 3.2 | 21.7 | 18.4 | 10.3 |
| 2B | 14.5 | 21 | 14.5 | 3.2 | 22.8 | 19.8 | 12 |
All dimensions are in millimetres. Dimensions B, C and D should be used when preparing the four-hole screw-mounting layout.
Applications
- Industrial control panels
- Automation equipment
- Robotics and motion-control systems
- Test and measurement instruments
- Medical and diagnostic equipment
- Communication systems
- Professional audio/video equipment
- Panel-mounted electronic devices
