Description

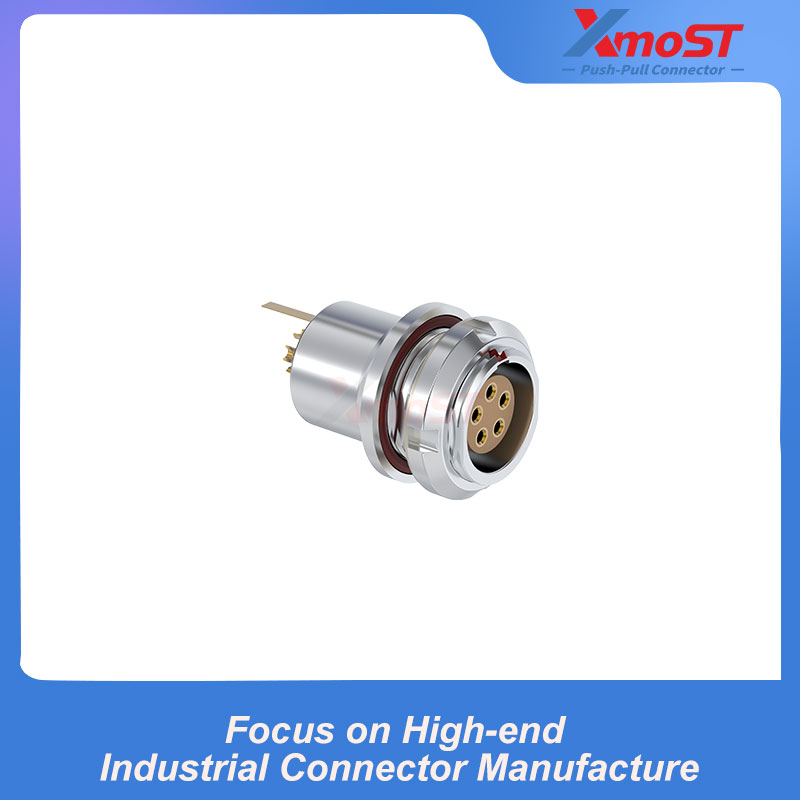

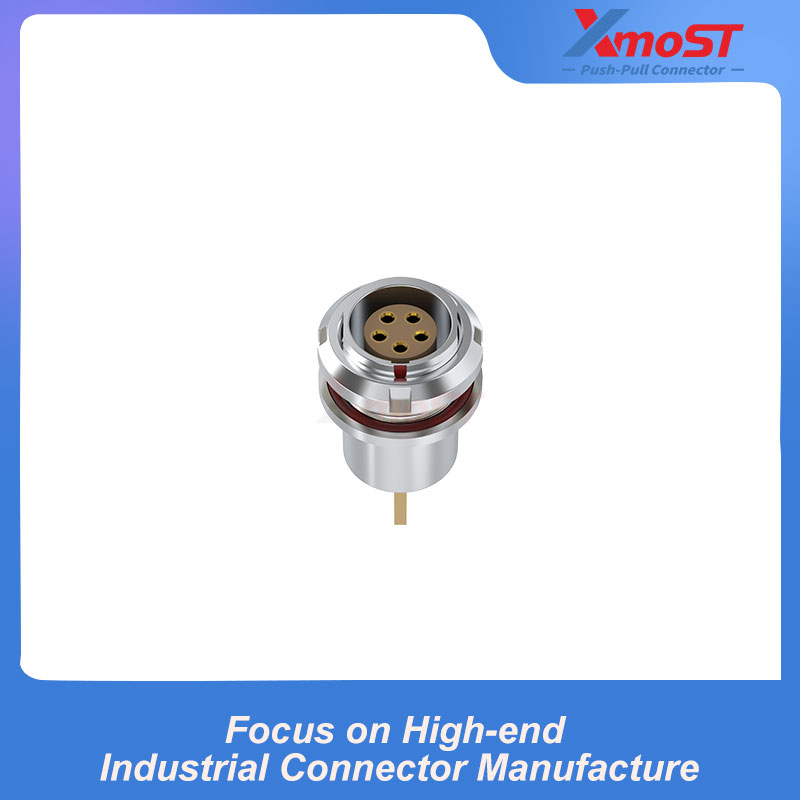

XM-LHMG is a straight fixed female receptacle with a compact cylindrical body and threaded nut-mounting structure. A sealing ring is positioned behind the mounting thread to support watertight or vacuum-sealed panel installation.

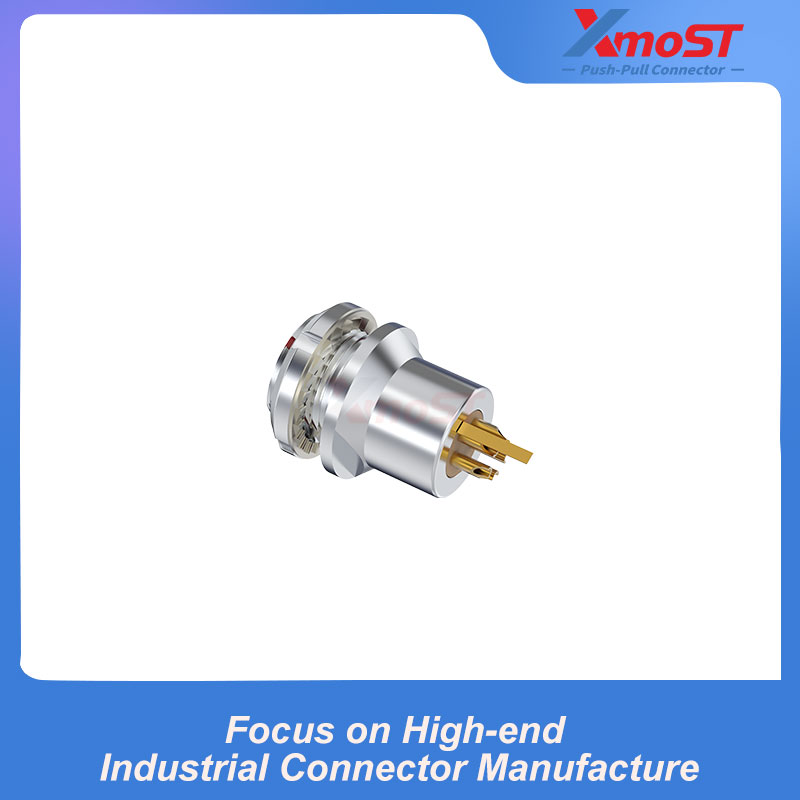

The rear of the receptacle features straight contacts and an extended grounding tab for connection to the equipment grounding system. Its mating interface is compatible with the B Series push-pull self-locking mechanism. The standard G alignment key is available alongside alternative A–M and R keying options.
Product Features
- Straight fixed female receptacle
- Threaded nut-mount panel installation
- Watertight or vacuum-sealed structure
- Integrated panel sealing ring
- Extended rear grounding tab
- Push-pull self-locking mating system
- Standard G alignment key
- Alternative A–M and R keying options
- Available in 0B, 1B and 2B shell sizes
- Anti-rotation panel cutout

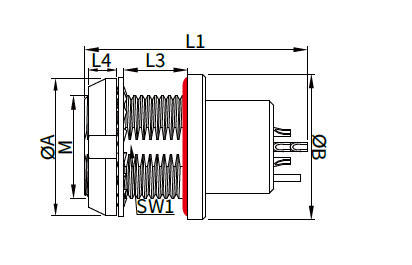

Dimensions
| Series | A (mm) | B (mm) | Mounting thread M | L1 (mm) | L3 (mm) | L4 (mm) | SW1 (mm) |
|---|---|---|---|---|---|---|---|
| 0B | 10 | 12 | M9 × 0.6 | 21.3 | 5.5 | 2.5 | 8.2 |
| 1B | 14 | 16 | M12 × 1.0 | 23.2 | 5.5 | 3.5 | 10.5 |
| 2B | 18 | 19.2 | M15 × 1.0 | 24.8 | 5.5 | 3.5 | 13.5 |
Recommended Panel Cutout
| Series | Flat width SW (mm) | Cutout diameter Ø (mm) |
|---|---|---|
| 0B | 8.3 | 9.1 |
| 1B | 10.6 | 12.1 |
| 2B | 13.6 | 15.1 |
Flat section helps prevent the receptacle from rotating after nut-mounted panel installation.
Applications
- Sealed industrial control equipment
- Vacuum systems and instruments
- Test and measurement equipment
- Medical and laboratory devices
- Communication equipment
- Equipment enclosures requiring grounding
- Panel-mounted systems exposed to moisture
