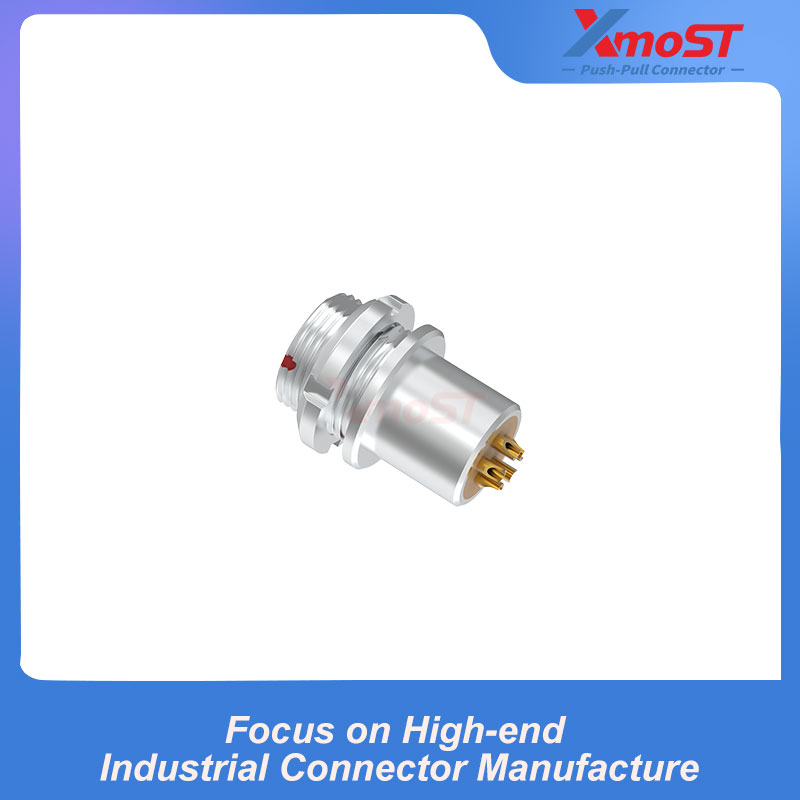

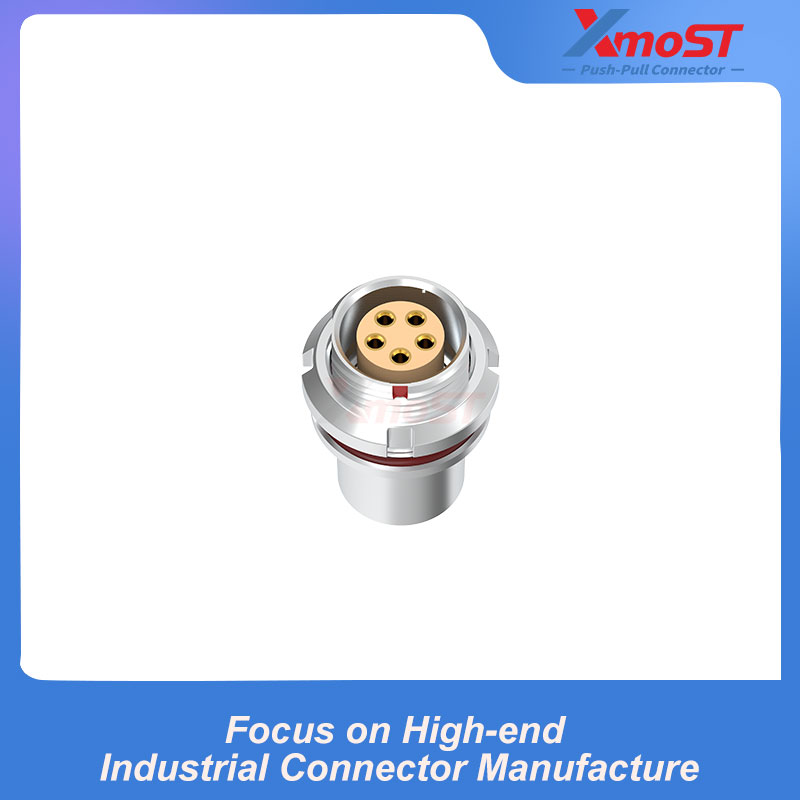

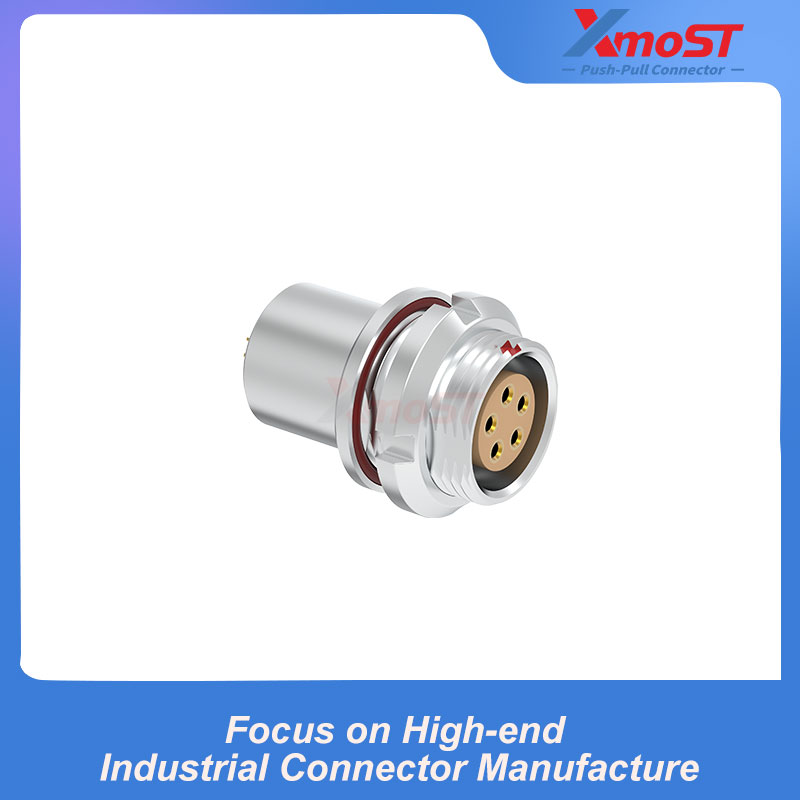

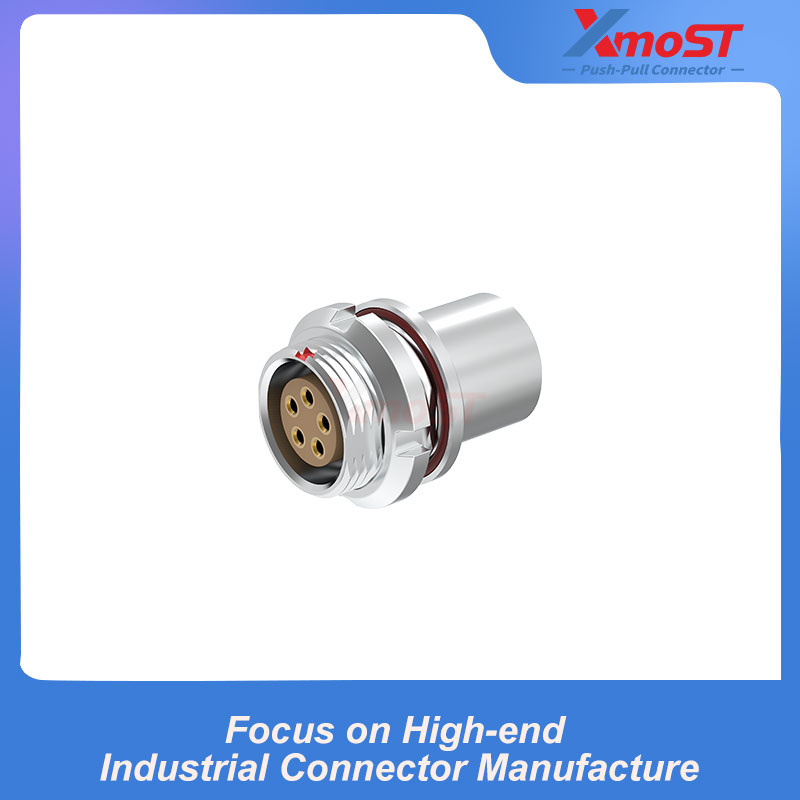

XM-LHEG is a T Series fixed female receptacle with internal chassis nut mounting, designed for compact outdoor equipment and watertight or vacuum-sealed applications. The straight receptacle features G alignment and a Push-Pull self-latching mechanism for fast and reliable connection.
The connector is compatible with existing B sockets and uses the same mounting hole as B sockets. The T Series supports 2 to 32 contacts, cable diameters from 1.0 to 10.5 mm, and solder, crimp or print contacts.
Product Features & Advantages
- IP68 mated
- Push-Pull self-latching system
- Mechanical key (FGG) with multiple keys to avoid cross-mating
- High packing density for space savings
- 360° shielding for full EMC shielding
- Compatible with existing B sockets
- Same mounting hole as B sockets
- Black-chrome plated brass and plastic outer shell available
- Multipole types 2 to 32 contacts
- For cables 1.0 up to 10.5 mm
- Solder, crimp or print contacts

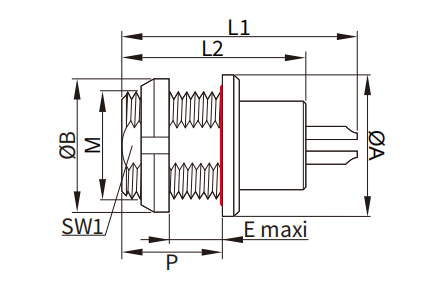

Dimensions
| Series | A (mm) | B (mm) | M | L1 (mm) | L2 (mm) | P (mm) | E (mm) | SW1 (mm) |
|---|---|---|---|---|---|---|---|---|
| 00T | 10 | 10 | M7×0.5 | 18 | 15 | 7 | 5.5 | 6.3 |
| 0T | 12 | 12 | M9×0.6 | 22 | 18.5 | 9 | 6.5 | 8.2 |
| 1T | 15.5 | 16 | M12×1.0 | 26 | 21.5 | 10 | 6.0 | 10.5 |
| 2T | 18.5 | 19.6 | M15×1.0 | 30.5 | 25 | 11 | 8.0 | 13.5 |
Maximum Operating Pressure
| Shell Size | Maximum Operating Pressure |
|---|---|
| 00T | 60 bar |
| 0T | 60 bar |
| 1T | 60 bar |
| 2T | 40 bar |
Panel Cutout Drawing
| Shell Size | Flat Width SW (mm) | Cutout Diameter Ø (mm) |
|---|---|---|
| 00T | 6.4 | 7.1 |
| 0T | 8.3 | 9.1 |
| 1T | 10.6 | 12.1 |
| 2T | 13.6 | 15.1 |
Product Industry Applications
- Outdoor Electronic Equipment
- Industrial Control Systems
- Precision Instrumentation
- Test & Measurement Equipment
- Communication Equipment
- Aerospace Equipment
- Military & Defense Equipment
- Outdoor Monitoring Systems
- Industrial Automation
- Vacuum-Sealed Equipment
