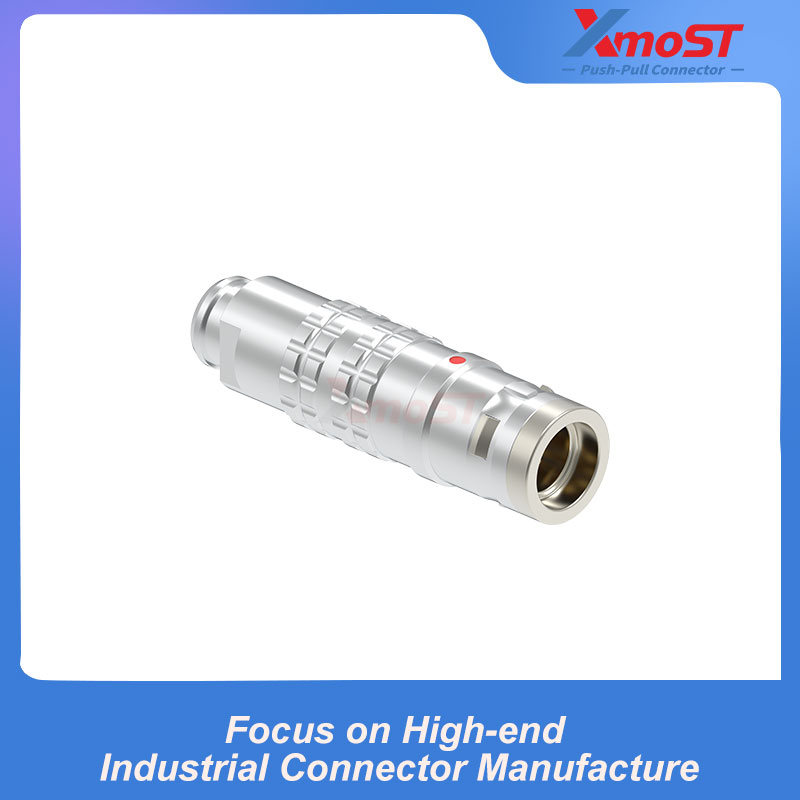

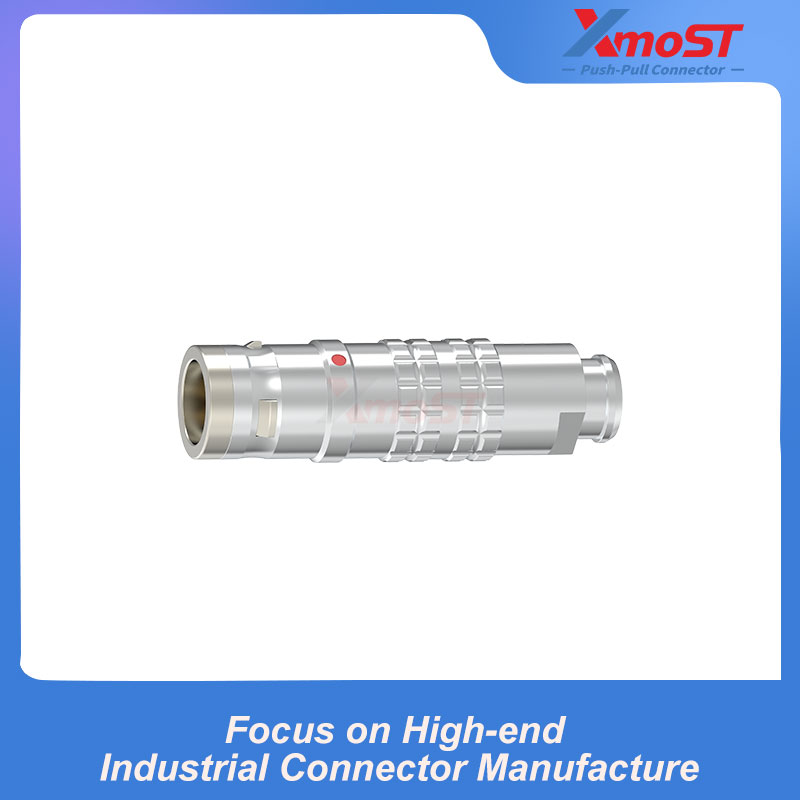

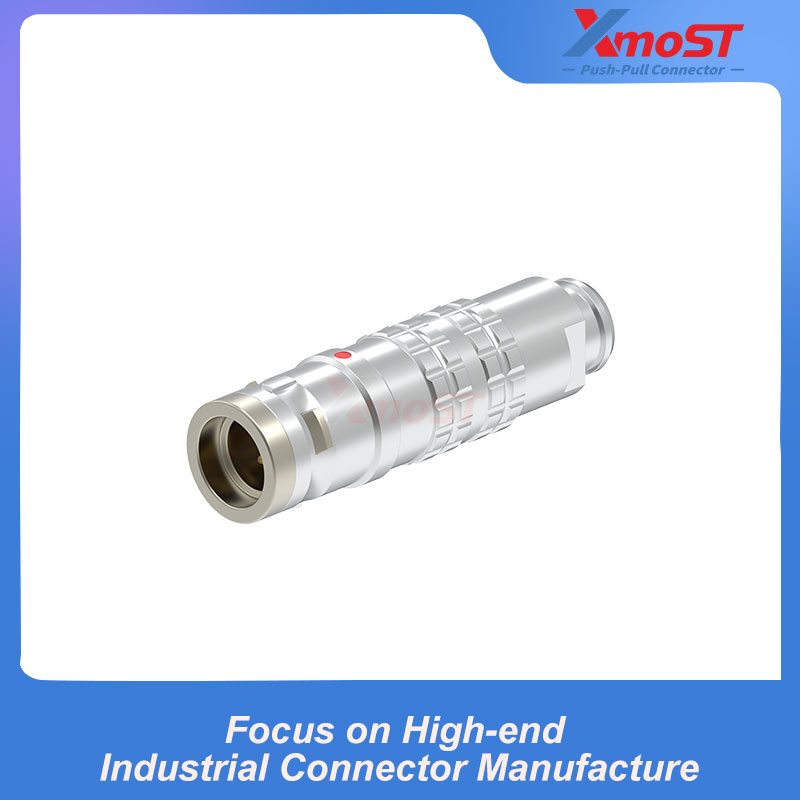

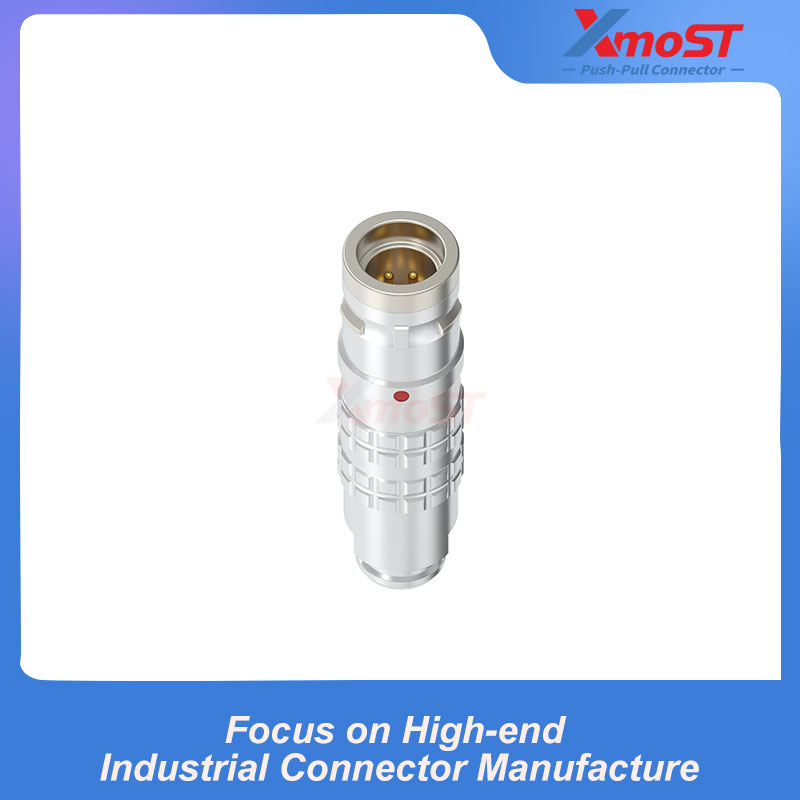

XM-LFGG is a K Series waterproof straight plug with a Push-Pull self-latching system, cable clamp, and backshell with strain relief. It supports alignment pin options G and A–M and is designed for reliable cable connection and protection in demanding equipment applications.
Product Features & Advantages
- Push-Pull self-latching system for secure and quick connection
- Waterproof design with IP66 / IP68 protection
- Straight plug configuration for cable connection
- Cable clamp for secure cable retention
- Backshell with strain relief to help protect the cable connection
- Alignment pin options G and A–M for connector polarization
- 360° shielding for full EMC shielding
- Solder or print contacts available
- K Series supports high-reliability applications with more than 5000 mating cycles

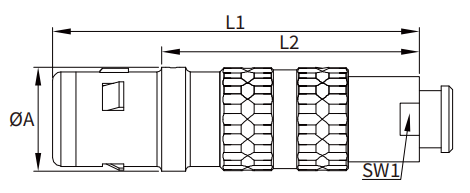

Dimensions
| Series | A (mm) | L1 (mm) | L2 (mm) | SW1 (mm) |
|---|---|---|---|---|
| 0K | 11 | 36 | 25 | 7 |
| 1K | 13 | 42 | 28 | 9 |
| 2K | 16 | 52 | 36 | 13 |
| 3K | 19 | 61 | 41 | 15 |
| 4K | 25 | 71 | 50.5 | 19 |
Technical Parameters
| Parameter | Specification |
|---|---|
| Operating Temperature | -55°C ~ +200°C |
| Mating Cycles | >5000 |
| Rubber Core Material | PEEK |
| Terminal Material | Copper Alloy, Gold-Plated |
| Screw / Nut Material | Brass, Nickel-Plated |
| Main Material | Brass, Chrome-Plated |
| Seal / O-Ring | FKM |
| Protection Grade | IP66 / IP68 |
| Shielding Efficiency | 10MHz >75dB / 1GHz >40dB |
| Salt Spray Test | Over 144 hours |
| Humidity | Max. 95% Relative Humidity at 60°C |
| Vibration Resistance | 10–2000Hz, 15g |
| Shock Resistance | 100g, 6ms |
| Environmental Test | 50/175/21 |
| Insulation Resistance | ≥1000Ω |
Product Industry Applications
- Outdoor Electronic Equipment
- Industrial Control Systems
- Precision Instrumentation
- Test & Measurement Equipment
- Industrial Equipment
- Electronic Equipment
