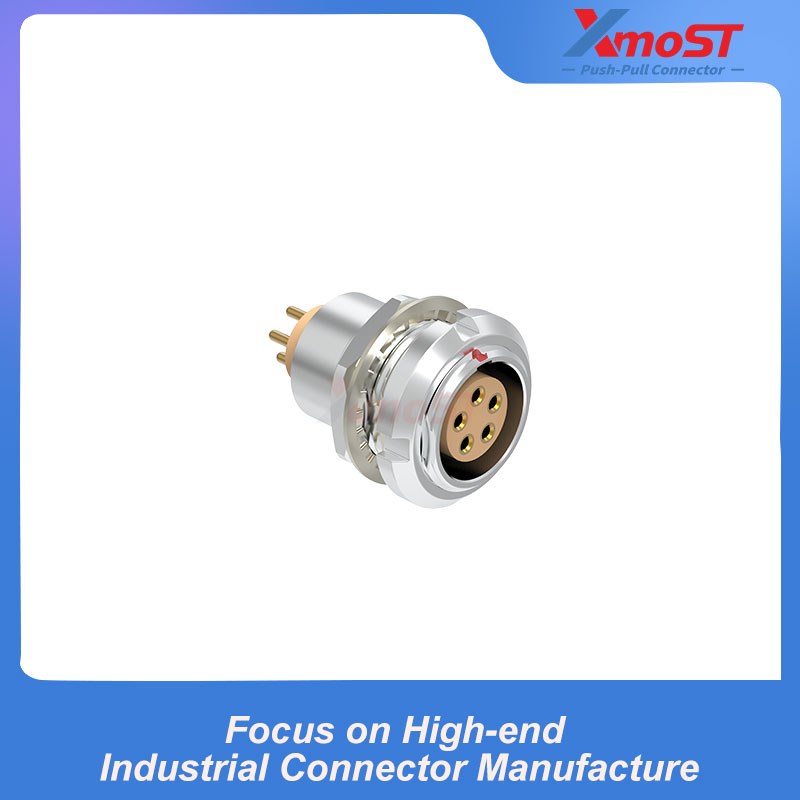

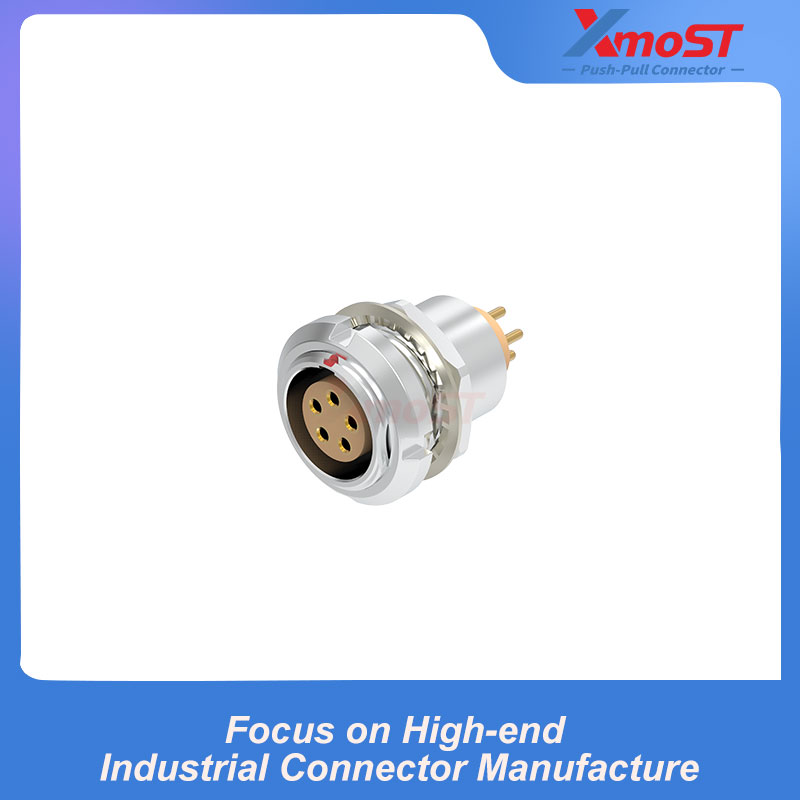

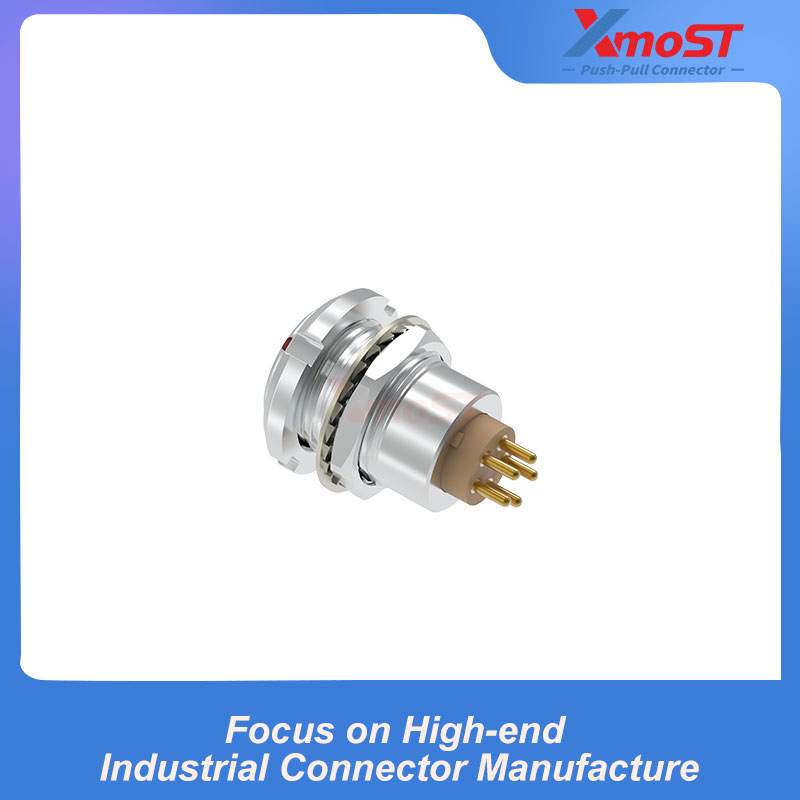

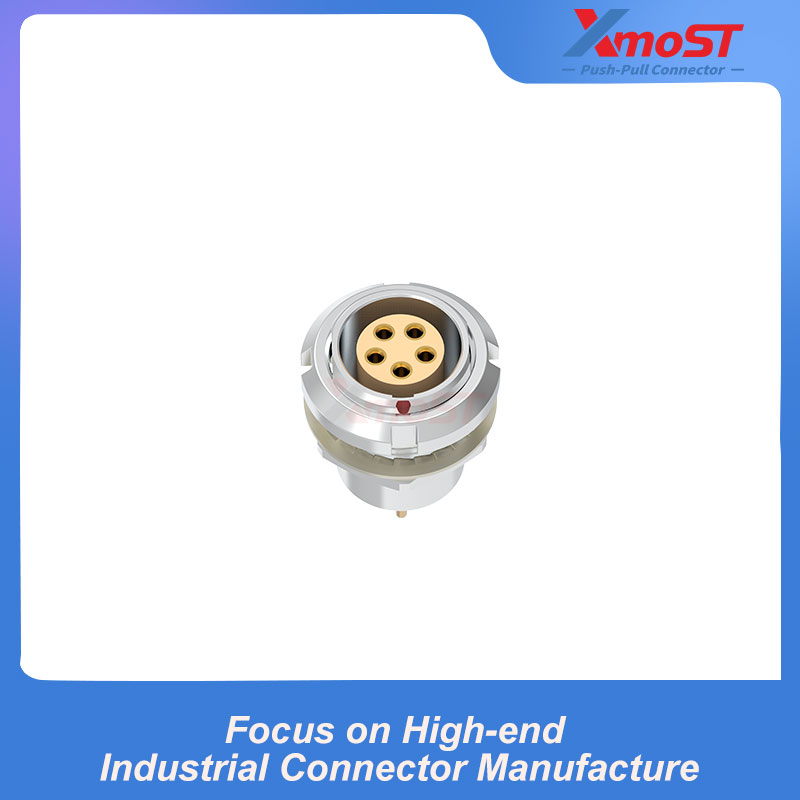

XM-LECG is a straight fixed receptacle designed for twin-nut panel mounting and direct PCB installation. It features a female mating interface with straight male PCB pins at the rear.
The threaded mounting body, two fixing nuts and lock washer provide secure installation through an equipment panel. A standard G alignment key supports accurate connector mating, while A–M and R keying options are available for configurations requiring protection against cross-mating.
Product Features
- Straight fixed receptacle
- Twin-nut panel-mounting structure
- Female mating interface
- Straight male pins for PCB connection
- Push-pull self-locking mating mechanism
- Standard G alignment key
- A–M and R alternative keying options
- Anti-rotation panel cutout
- Available in 00B to 4B shell sizes
- Compact design for panel and PCB integration
Dimensions

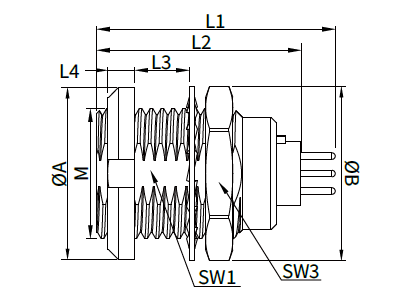

| Shell size | A (mm) | B (mm) | Mounting thread M | L1 (mm) | L2 (mm) | L3 (mm) | L4 (mm) | SW1 (mm) | SW3 (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 00B | 10 | 10.2 | M7 × 0.5 | 15.9 | 13.7 | 4.3 | 2.5 | 6.3 | 9 |
| 0B | 12 | 12.5 | M9 × 0.6 | 21.3 | 14.5 | 5.5 | 2.5 | 8.2 | 11 |
| 1B | 16 | 16 | M12 × 1.0 | 23.2 | 16.6 | 6.0 | 3.2 | 10.5 | 14 |
| 2B | 18 | 19.5 | M15 × 1.0 | 24.8 | 18.7 | 6.5 | 3.5 | 13.5 | 17 |
| 3B | 24 | 25 | M18 × 1.0 | 30.7 | 22.5 | 9.0 | 4.5 | 16.5 | 22 |
| 4B | 30 | 34 | M25 × 1.0 | 34.0 | 27.0 | 11.0 | 4.5 | 23.5 | 30 |
All dimensions are in millimetres.
Recommended Panel Cutout
| Shell size | Flat width SW (mm) | Cutout diameter Ø (mm) |
|---|---|---|
| 00B | 6.4 | 7.1 |
| 0B | 8.3 | 9.1 |
| 1B | 10.6 | 12.1 |
| 2B | 13.6 | 15.1 |
| 3B | 16.6 | 18.1 |
| 4B | 23.6 | 25.1 |
The panel cutout includes a flat section that helps prevent the connector body from rotating after installation.
