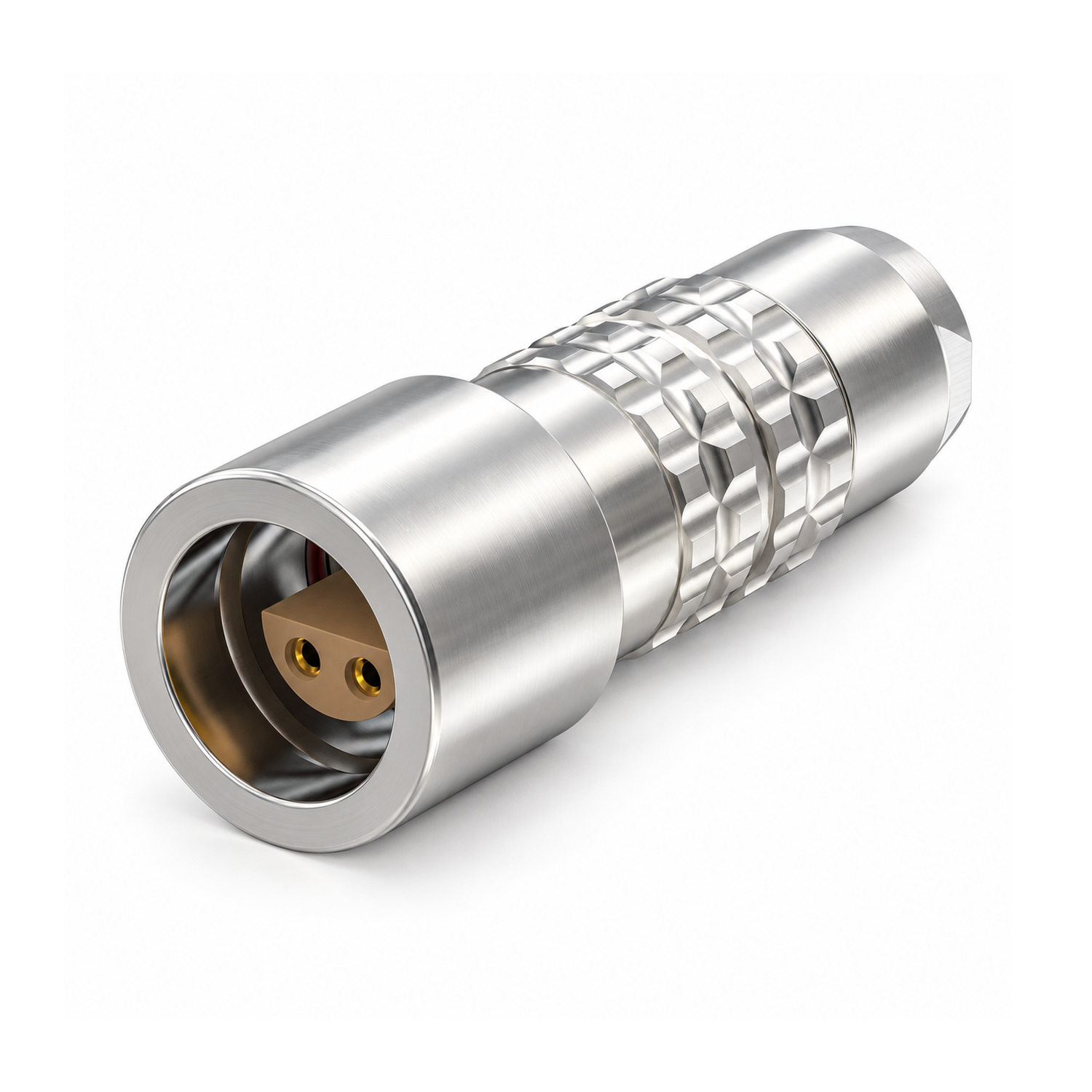

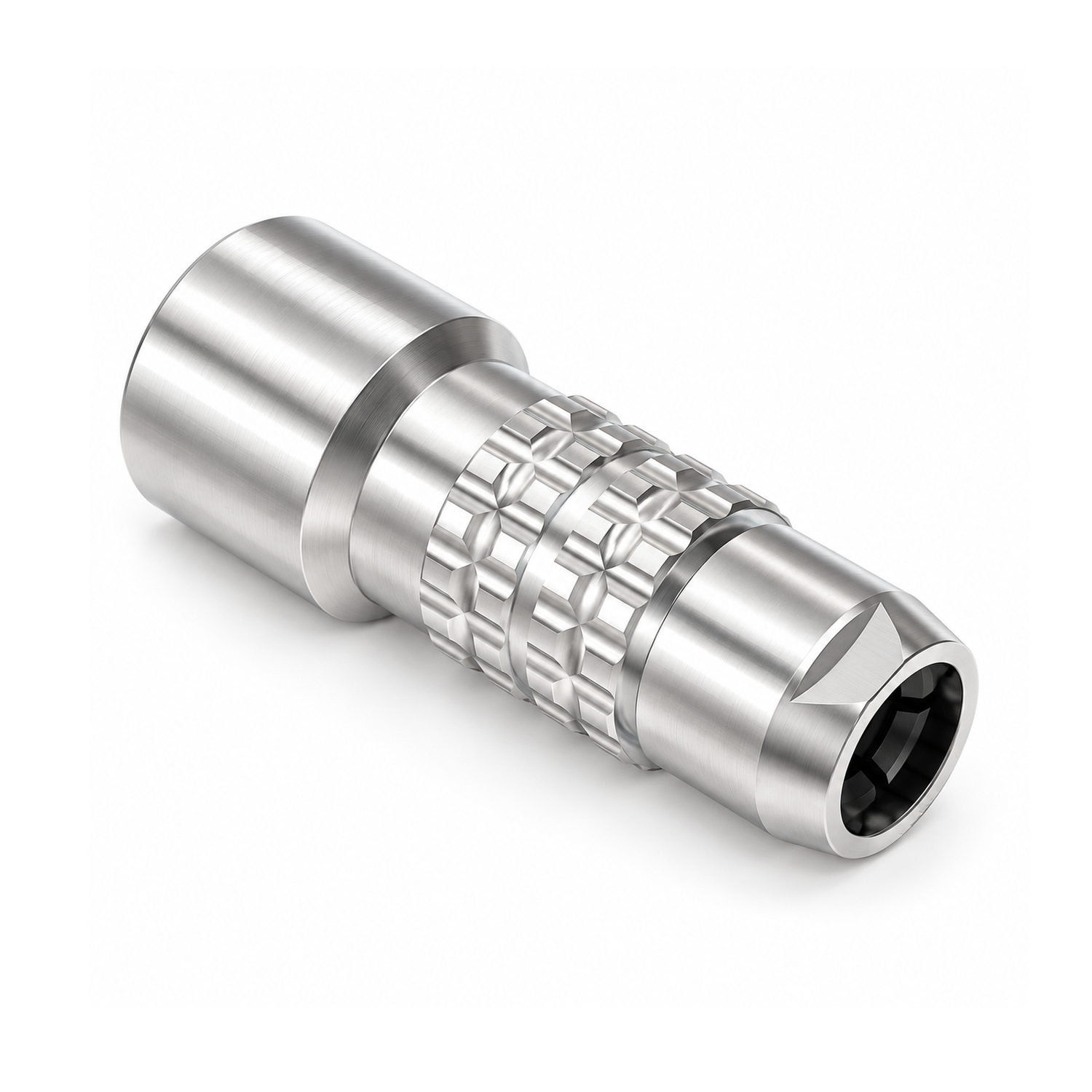

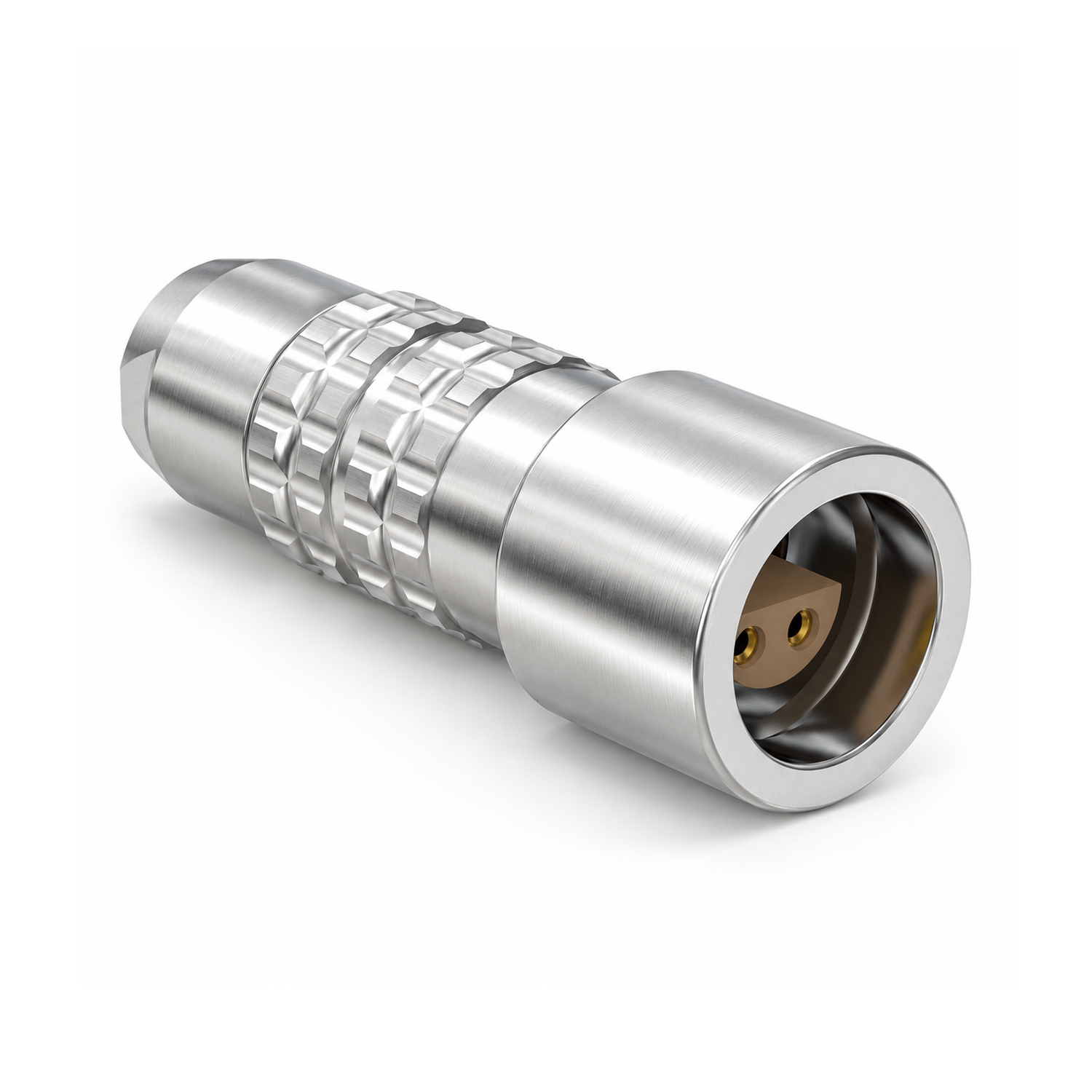

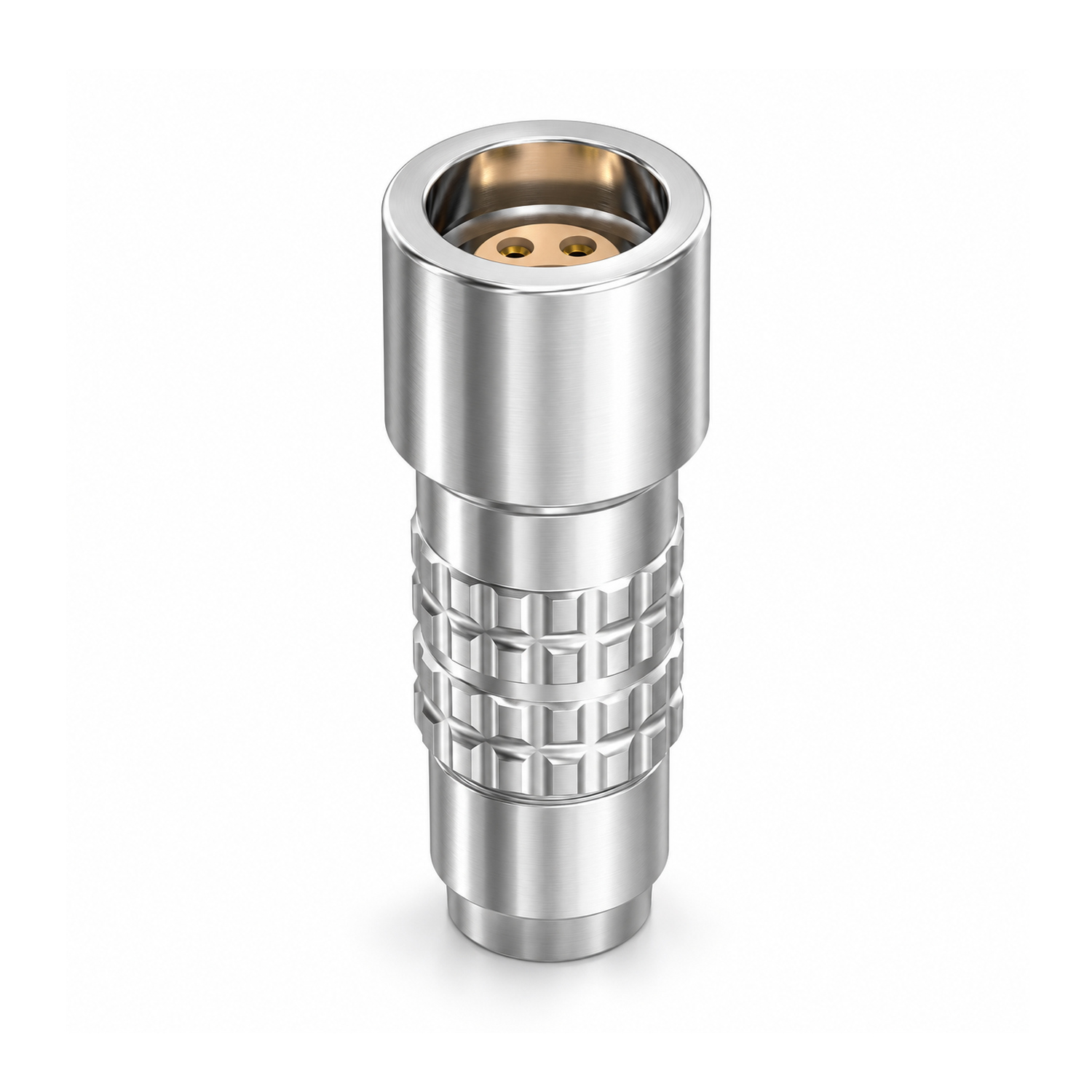

XM-LECA Floating Receptacle is designed for cable-to-cable connections in industrial and outdoor applications. Its floating receptacle design allows two cable assemblies to be connected without requiring a fixed panel-mounted interface.
The connector features a self-locking mechanism, stepped alignment insulator, and cable clamp for cable assembly applications. Its compact straight configuration provides a practical solution for equipment wiring where a flexible cable-to-cable connection is required.
Key Features
- Floating receptacle design
- Cable-to-cable connection
- Self-locking mechanism
- Stepped alignment insulator
- G or A–F, L and R alignment pin options
- Cable clamp
- Straight connector configuration
- IP66/IP68 protection
- More than 5,000 mating cycles
- Suitable for industrial and outdoor applications

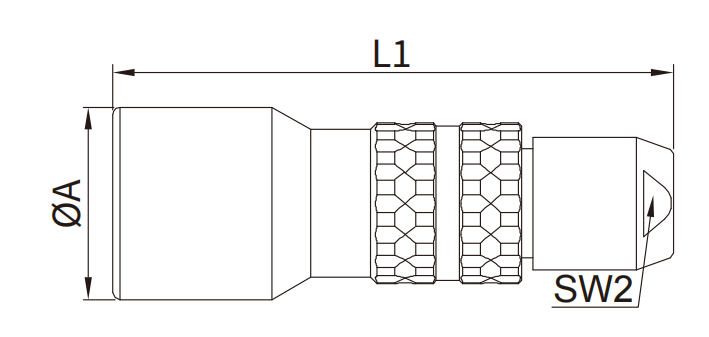

Dimensions
| Series | A (mm) | L1 (mm) | SW2 (mm) |
|---|---|---|---|
| 0E | 13 | 34 | 7 |
| 1E | 15 | 45 | 9 |
| 2E | 19 | 53 | 13 |
| 3E | 23 | 65 | 15 |
All dimensions are in mm.
Technical Specifications
| Parameter | Specification |
|---|---|
| Series | E-Series |
| Connector Model | XM-LECA |
| Connector Type | Floating Receptacle, Cable-to-Cable |
| Connector Shape | Straight |
| Alignment Pin | Stepped Insulator, G or A–F, L and R |
| Locking Mechanism | Self-Locking |
| Cable Connection | Cable Clamp |
| Part Number | XM-LECA.E.3*.CLLC** |
| Protection Grade | IP66 / IP68 |
| Operating Temperature | -55°C to +200°C |
| Mating Cycles | >5,000 |
| Shielding Effectiveness | >95 dB at 10 MHz / >80 dB at 1 GHz |
| Salt Spray Test | >144 hours |
| Humidity | Max. 95% Relative Humidity at 60°C |
| Vibration Resistance | 10–2000 Hz, 15 g |
| Shock Resistance | 100 g, 6 ms |
| Environmental Test | 50/175/21 |
| Insulation Resistance | ≥100 MΩ |
Applications
- Industrial automation
- Industrial equipment
- Outdoor equipment
- Instrumentation
- Cable-to-cable connections
- Industrial cable assemblies
- Equipment requiring flexible cable connections
