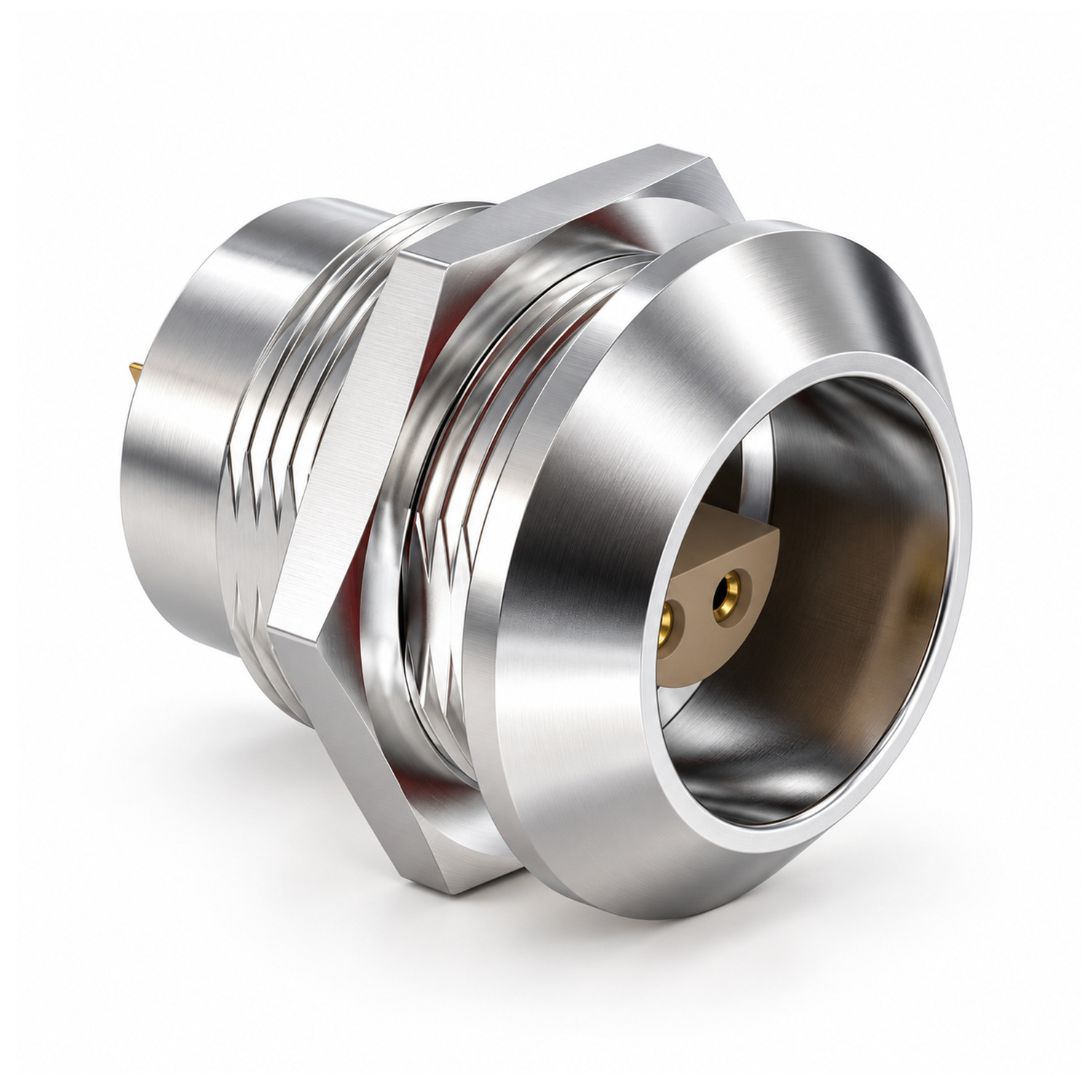

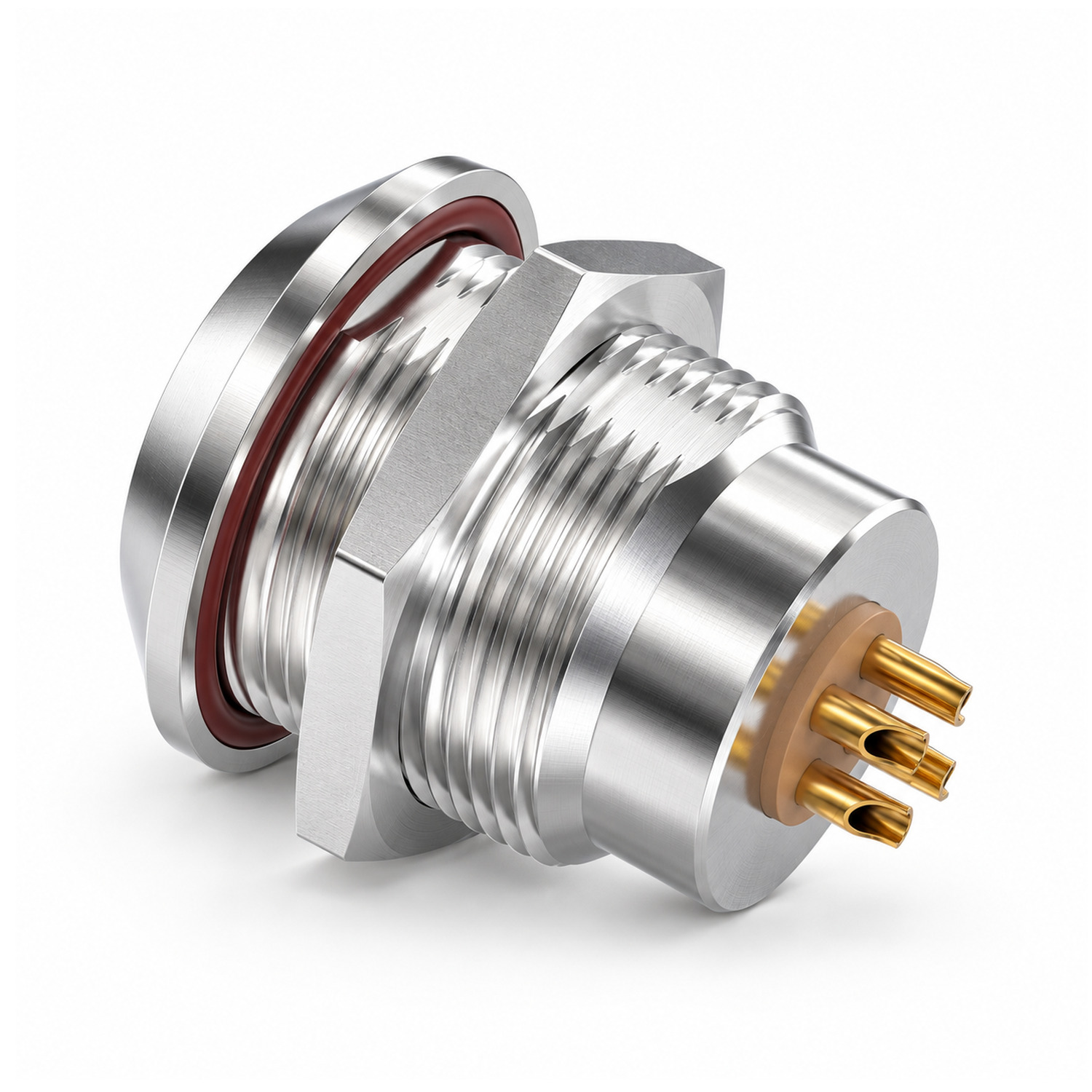

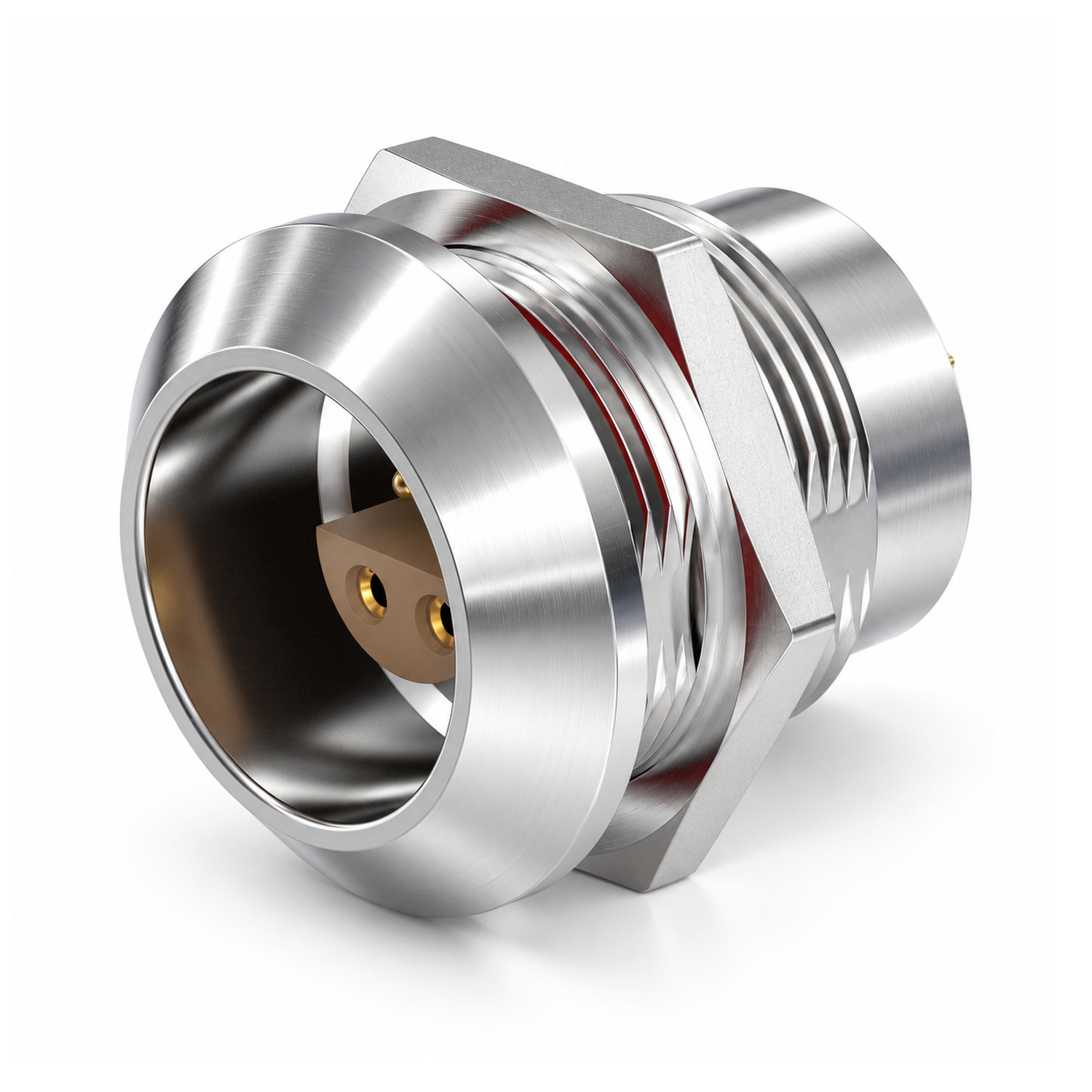

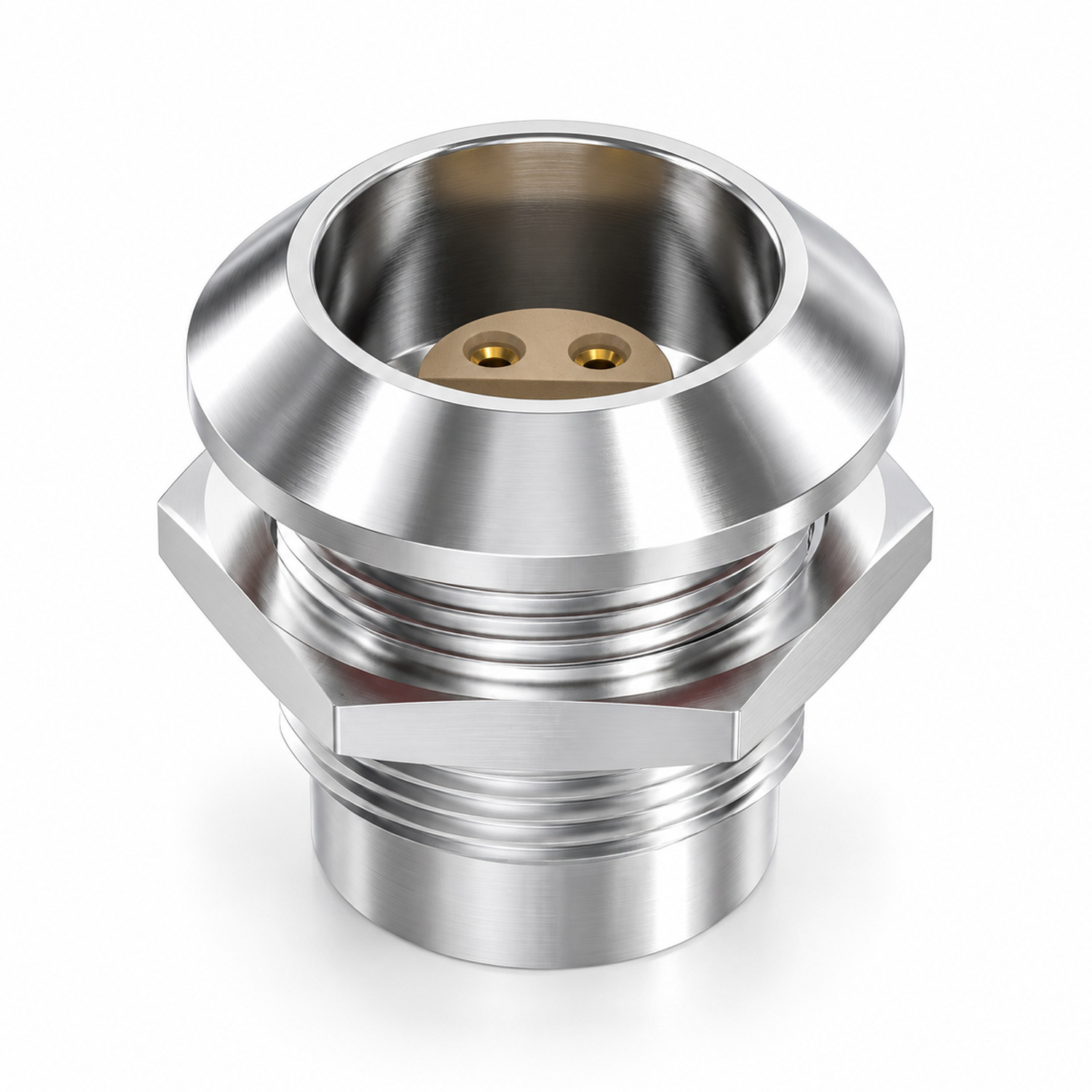

XM-LERA Fixed Receptacle is a panel-mount connector designed for equipment requiring a secure self-locking connection. It uses a nut-mount installation method and features a stepped alignment insulator with selectable alignment pin configurations.
The receptacle is available in 0E to 4E sizes, with different mounting dimensions and thread specifications to accommodate various equipment panel requirements.
Key Features
- Fixed panel-mount receptacle
- Nut-mount installation
- Self-locking connection
- Stepped alignment insulator
- G or A–F, L and R alignment pin options
- Available in 0E, 1E, 2E, 3E, and 4E sizes
- Multiple mounting thread sizes

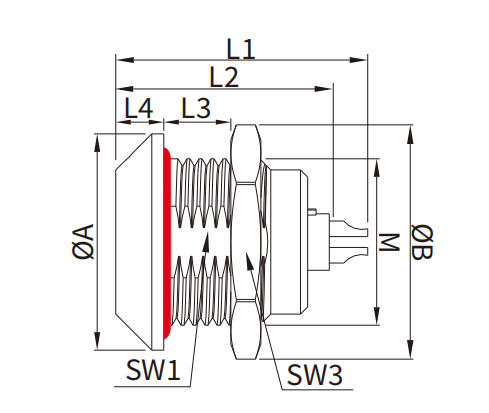

Dimensions
| Series | A (mm) | B (mm) | M | L1 (mm) | L2 (mm) | L3 (mm) | L4 (mm) | SW1 (mm) | SW3 (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 0E | 18 | 19 | M14×1.0 | 21.3 | 20 | 6 | 4 | 12.5 | 17 |
| 1E | 20 | 22 | M16×1.0 | 27.8 | 25 | 9 | 4.5 | 14.5 | 19 |
| 2E | 25 | 28 | M20×1.0 | 29 | 28 | 9 | 5 | 18.5 | 24 |
| 3E | 31 | 34 | M24×1.0 | 36.1 | 33.6 | 11 | 6 | 22.5 | 30 |
| 4E | 37 | 40.5 | M30×1.0 | 40.2 | 38.6 | 9 | 6.5 | 28.5 | 36 |
Panel Cutout Dimensions
| Series | SW (mm) | Panel Cutout Ø (mm) |
|---|---|---|
| 0E | 12.6 | 14.1 |
| 1E | 14.6 | 16.1 |
| 2E | 18.6 | 20.1 |
| 3E | 22.6 | 24.1 |
| 4E | 28.6 | 30.1 |
All dimensions are in mm.
Technical Specifications
| Parameter | Specification |
|---|---|
| Series | E-Series |
| Connector Model | XM-LERA |
| Connector Type | Fixed Receptacle, Nut Mount |
| Connector Shape | Straight |
| Alignment Pin | Stepped Insulator, G or A–F, L and R |
| Locking Mechanism | Self-Locking |
| Part Number | XM-LERA.E.3*.CLL |
| Protection Grade | IP66 / IP68 |
| Operating Temperature | -55°C to +200°C |
| Mating Cycles | >5,000 |
| Shielding Effectiveness | >95 dB at 10 MHz / >80 dB at 1 GHz |
| Salt Spray Test | >144 hours |
| Humidity | Max. 95% Relative Humidity at 60°C |
| Vibration Resistance | 10–2000 Hz, 15 g |
| Shock Resistance | 100 g, 6 ms |
| Environmental Test | 50/175/21 |
| Insulation Resistance | ≥100 MΩ |
Applications
- Industrial control equipment
- Instrumentation
- Automation equipment
- Outdoor equipment
- Panel-mounted electronic equipment
- Industrial cable connection system
