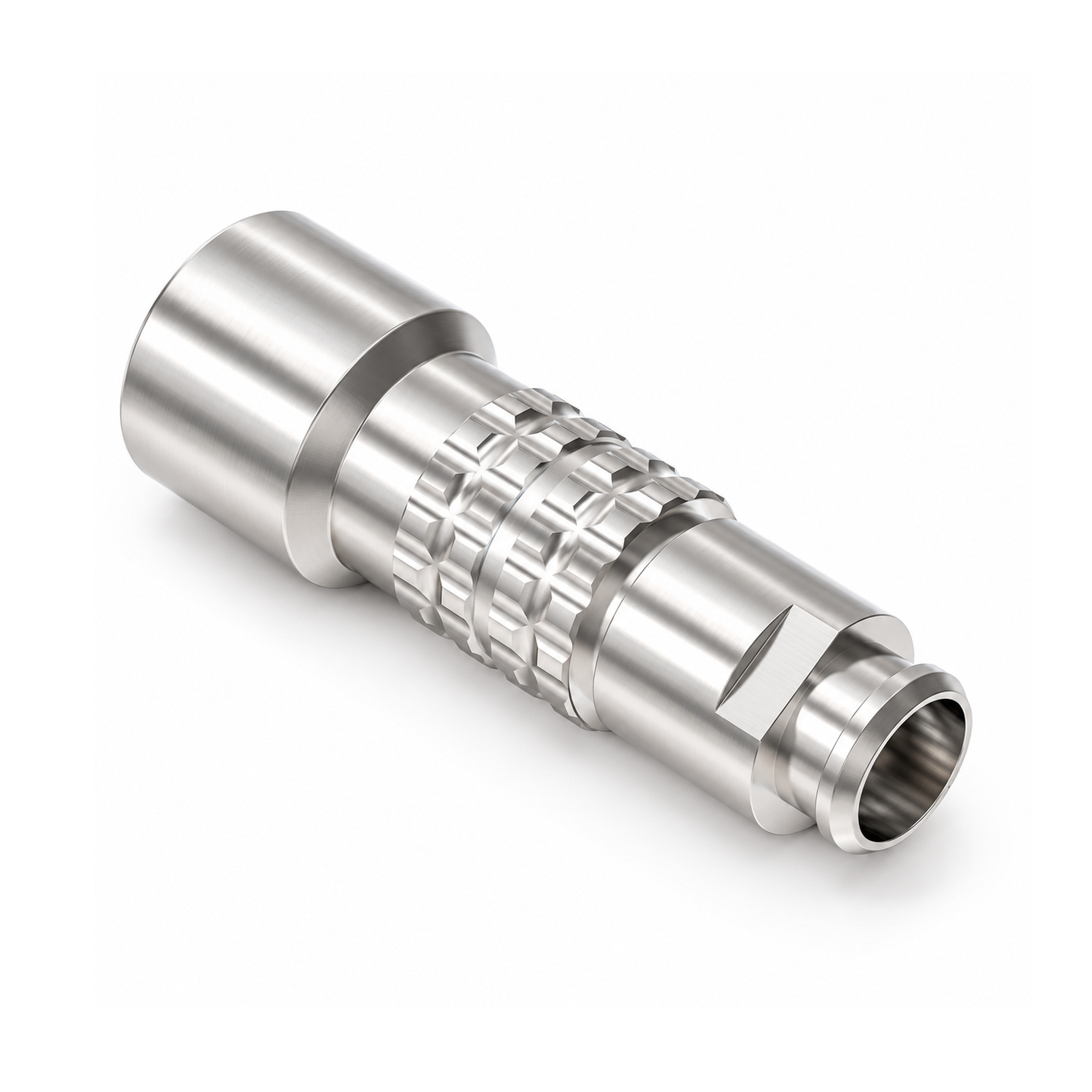

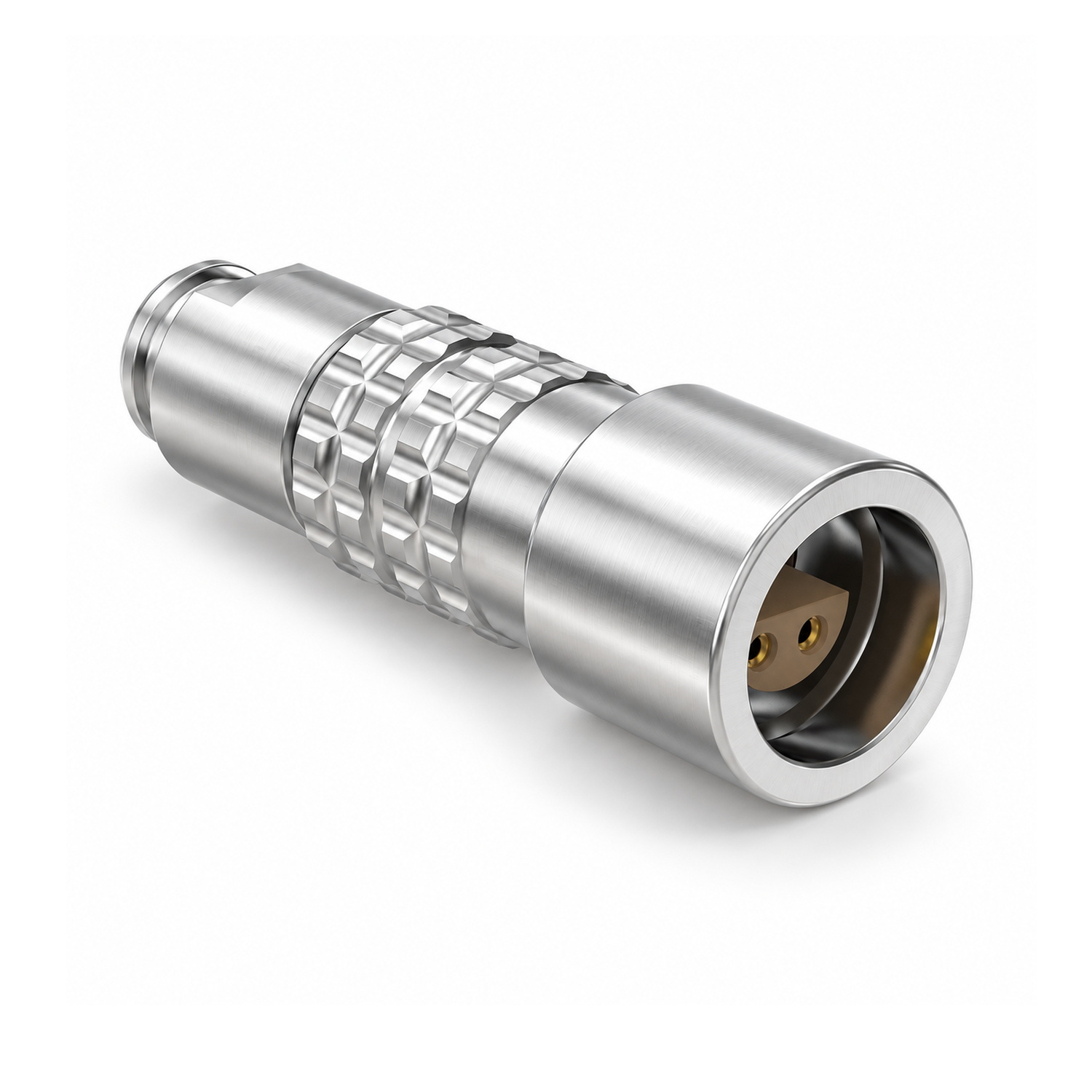

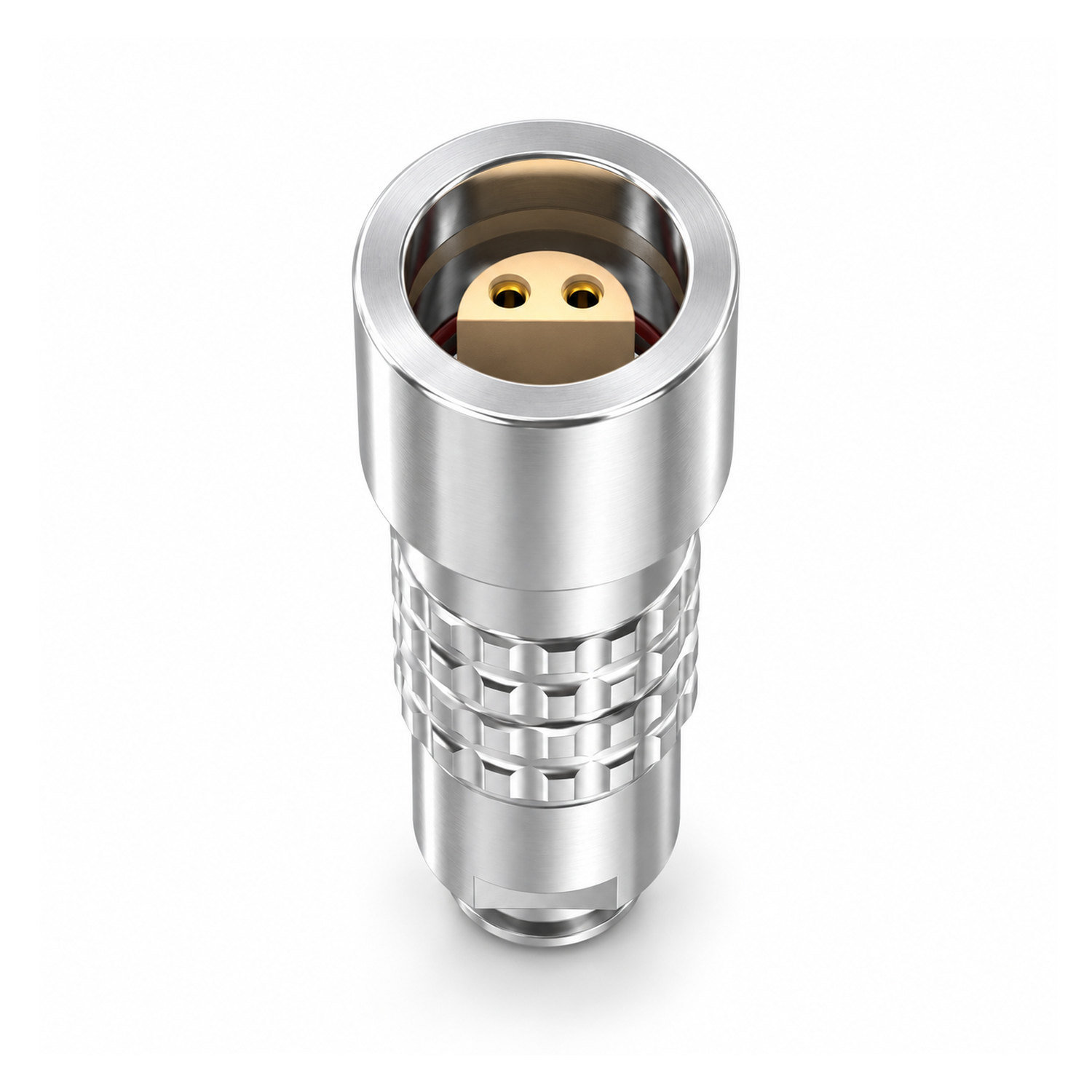

XM-LECA Floating Receptacle Connector is designed for cable-to-cable connection applications where reliable alignment, secure locking, and effective cable strain relief are required.
This straight connector features a stepped-insulator alignment pin and a self-locking mechanism for secure mating. The cable clamp and backshell with strain relief help provide stable cable retention and reduce mechanical stress on the cable connection.
The XM-LECA is available in multiple sizes to accommodate different connector dimensions and cable assembly requirements.
Key Features
- Floating receptacle design for cable-to-cable connections
- Straight connector configuration
- Stepped-insulator alignment pin
- Self-locking mechanism
- Cable clamp for secure cable retention
- Backshell with strain relief
- Multiple size options from 0E to 3E

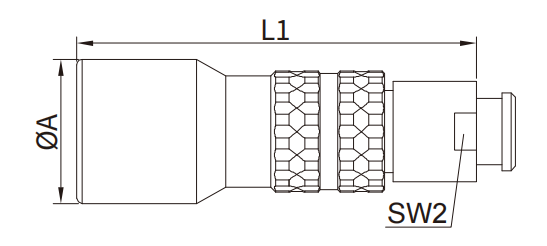

Dimension Standard: mm
| Series | A | L1 | SW2 |
|---|---|---|---|
| 0E | 13 | 34 | 7 |
| 1E | 15 | 45 | 9 |
| 2E | 19 | 53 | 13 |
| 3E | 23 | 65 | 15 |
Technical Specifications
| Parameter | Specification |
|---|---|
| Series | E-Series |
| Connector Model | XM-LECA |
| Connector Type | Fixed Receptacle, Nut Mount |
| Connector Shape | Straight |
| Alignment Pin | Stepped Insulator, G or A–F, L and R |
| Locking Mechanism | Self-Locking |
| Sealing Type | Watertight / Vacuum Sealed |
| Part Number | XM-LHGP.E.3*.CLL |
| Protection Grade | IP66 / IP68 |
| Operating Temperature | -55°C to +200°C |
| Mating Cycles | >5,000 |
| Shielding Effectiveness | >95 dB at 10 MHz / >80 dB at 1 GHz |
| Salt Spray Test | >144 hours |
| Humidity | Max. 95% Relative Humidity at 60°C |
| Vibration Resistance | 10–2000 Hz, 15 g |
| Shock Resistance | 100 g, 6 ms |
| Environmental Test | 50/175/21 |
| Insulation Resistance | ≥100 MΩ |
XM-LECA Floating Receptacle Connector is suitable for cable-to-cable connection applications where secure locking, precise alignment, and reliable cable strain relief are required.
- Industrial Automation — sensor, actuator, control and equipment wiring
- Industrial Equipment — internal and external cable connections for machinery and equipment
- Robotics & Motion Control — cable connections requiring secure locking and mechanical stability
- Test & Measurement Equipment — reliable cable interconnection for testing and instrumentation systems
- Communication & Electronic Equipment — cable assemblies requiring compact and secure circular connections
- Portable & Modular Equipment — detachable cable connections where repeated mating and secure retention are required
