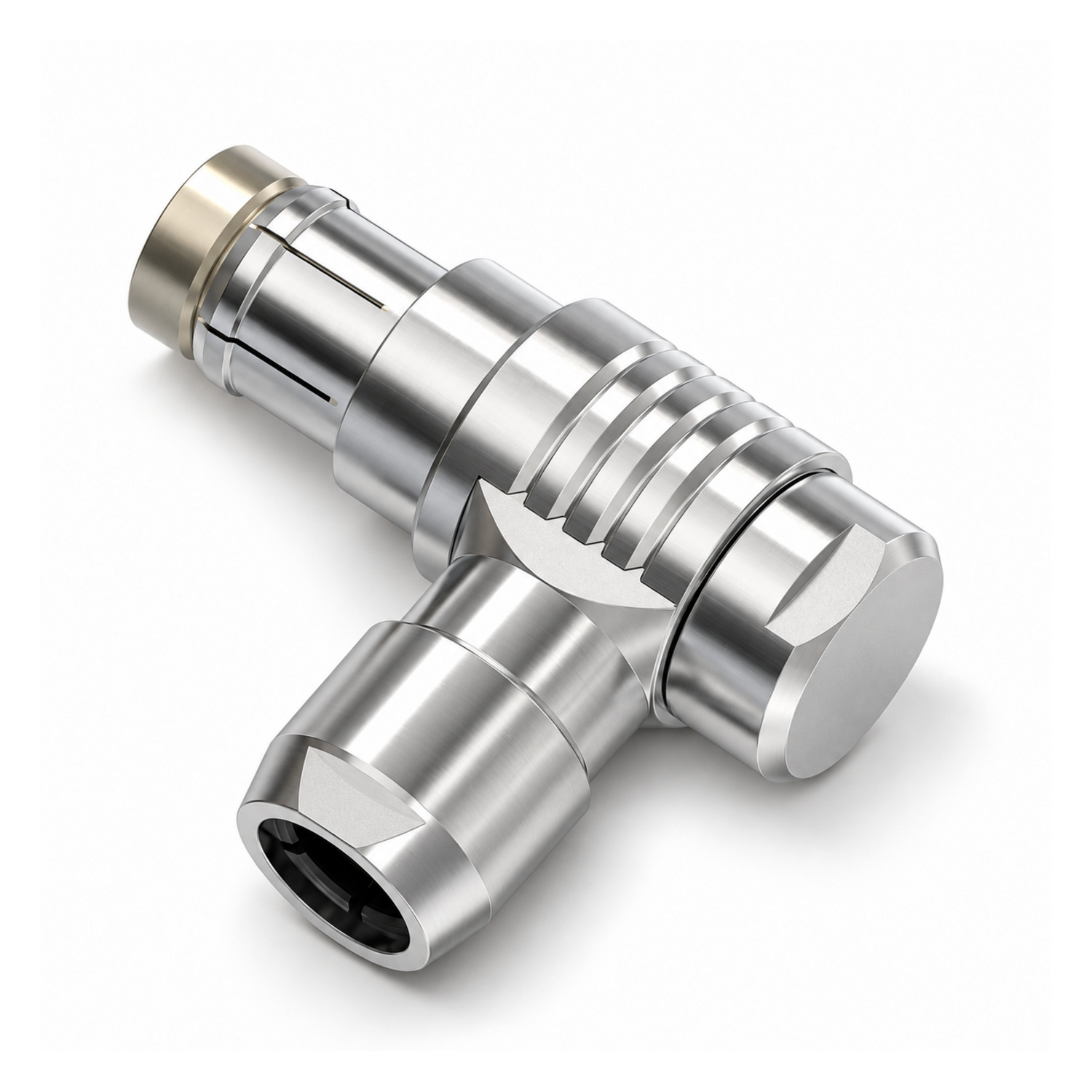

XM-OW31 is an F Series Push-Pull connector in a 90° angled plug configuration with a cable clamp. It features half-moon ring positioning with options 1 or 2 for accurate connector alignment and convenient mating. The angled structure changes the cable routing direction by 90°, making the connector suitable for equipment where cable space or routing direction is a key consideration.
Product Features & Advantages
- 90° angled Push-Pull connector configuration
- Half-moon ring positioning with 1 or 2 options
- Cable clamp for secure cable fixation
- Push-Pull self-latching mechanism
- Compact angled structure for controlled cable routing
- Metal housing for a robust connector construction
- Blind mating supported by keyed positioning
- High shock and vibration resistance
- Waterproof when properly mated and assembled with cables
- Suitable for demanding cable connection applications
Dimensions
| Series | A (mm) | L1 (mm) | L2 (mm) | H (mm) | SW1 (mm) | SW2 (mm) |
|---|---|---|---|---|---|---|
| 0F | 12 | 33 | 33 | 25 | 7 | 8 |
| 1F | 15 | 38 | 27 | 31 | 10 | 11 |
| 1.5F | 17 | 39 | 29 | 33 | 12 | 12 |
| 2F | 19 | 39 | 29 | 33 | 12 | 14 |
| 3F | 23 | 45 | 32 | 37 | 15 | 17 |
Technical Parameters
| Parameter | Specification |
|---|---|
| Usage Temperature | -55°C ~ +250°C |
| Mating Cycles | >5000 |
| Rubber Core Material | PEEK |
| Terminal Material | Copper Alloy, Gold-Plated |
| Humidity | Max. 95% Relative Humidity at 60°C |
| Main Material | Brass, Nickel-Plated |
| Seal / O-Ring | FKM |
| Protection Grade | IP68 |
| Salt Spray Test | Over 144 hours |
| Environmental Test | 55/175/21 |
| Vibration Resistance | 10–2000Hz, 15g |
| Shock Resistance | 100g, 6ms |
| Shielding Performance | 75dB (10MHz) / 40dB (1GHz) |
| Insulation Resistance | ≥1000Ω |
Product Industry Applications
- Industrial Automation Equipment
- Control and Monitoring Systems
- Outdoor Electronic Equipment
- Test and Measurement Equipment
- Communication Equipment
- Equipment with Directional Cable Routing
